Toyota Auris/hybrid (ukp) NRE150 STARTER

NRE150L-DGFNKW (2008)

Toyota Auris/Hybrid (Ukp)

Production Nov 2008 - Jan 2010

Engine 1NRFE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

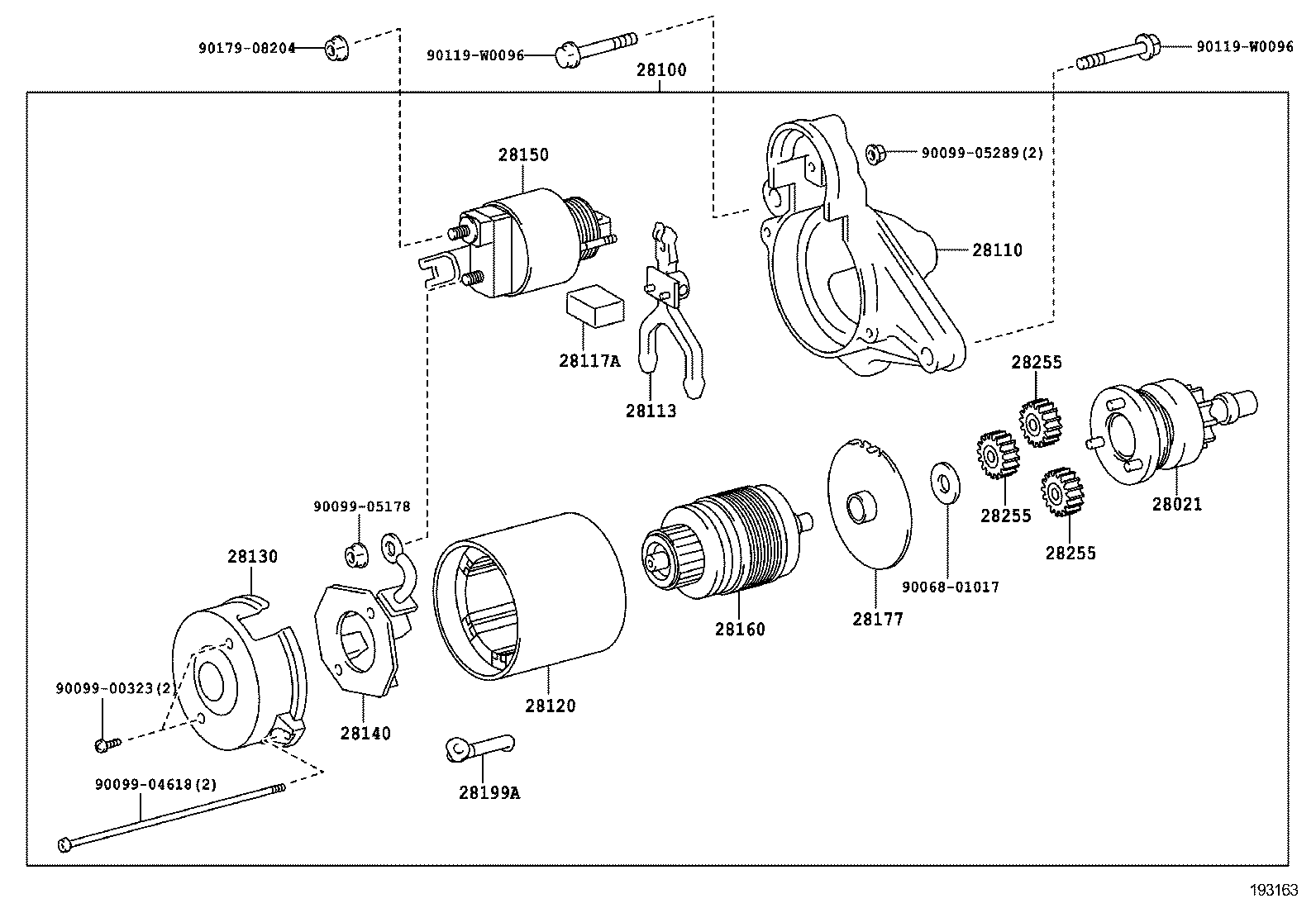

(0811- )1NRFE

Click highlighted areas on diagram

12V 1.3KW

Part #	Description	Period	Qty
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-37050	1NRFE..NRE150..3D	11/2008 - 01/2010	1
28021-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28021-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	1
28021-37050	1NRFE..NRE150	12/2009 - 12/2999	1
28100 - STARTER ASSY
28100-0Y010	1NRFE..NRE150..3D 12V 1.3KW	11/2008 - 01/2010	1
28100-0Y020	1NRFE..NRE150..3D 12V 1.6KW,STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28100-0Y010	1NRFE..NRE150 12V 1.3KW	12/2009 - 12/2999	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0Y010	1NRFE..NRE150..3D	11/2008 - 01/2010	1
28110-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28110-0Y010	1NRFE..NRE150	12/2009 - 12/2999	1
28110-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	1
28113 - LEVER, STARTER PINION DRIVE
28113-37050	1NDTV..NDE150..5D..6FS..TERRA;1N#..NDE150,NRE150..3D..(6F,6FS)	11/2008 - 01/2010	1
28113-37050	1NRFE..NRE150;1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
28117A - SEAL, RUBBER
28117-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28117-37050	1NRFE..NRE150;1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
28117-37050	1NDTV..NDE150..5D..6FS..TERRA;1N#..NDE150,NRE150..3D..(6F,6FS)	11/2008 - 01/2010	1
28117-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	1
28120 - YOKE ASSY, STARTER
28120-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28120-0J050	1NRFE..NRE150..3D	11/2008 - 01/2010	1
28120-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	1
28120-0J050	1NRFE..NRE150	12/2009 - 12/2999	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0Y010	1NRFE..NRE150..3D	11/2008 - 01/2010	1
28130-0Y010	1NRFE..NRE150	12/2009 - 12/2999	1
28130-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	1
28130-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-37050	1NRFE..NRE150;1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
28140-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28140-37050	1NDTV..NDE150..5D..6FS..TERRA;1N#..NDE150,NRE150..3D..(6F,6FS)	11/2008 - 01/2010	1
28140-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-40090	1NRFE..NRE150..3D	11/2008 - 01/2010	1
28150-40090	1NRFE..NRE150	12/2009 - 12/2999	1
28160 - ARMATURE ASSY, STARTER
28160-0D180	1NRFE..NRE150..3D	11/2008 - 01/2010	1
28180-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28160-0D180	1NRFE..NRE150	12/2009 - 12/2999	1
28180-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	1
28177 - PLATE(FOR STARTER ARMATURE)
28177-37050	1NDTV..NDE150..5D..6FS..TERRA;1N#..NDE150,NRE150..3D..(6F,6FS)	11/2008 - 01/2010	1
28177-37050	1NRFE..NRE150;1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
28199A - PROTECTOR, DUST STARTER
28199-31090	1NRFE..NRE150	12/2009 - 12/2999	1
28199-31090	1NRFE..NRE150	11/2008 - 01/2010	1
28255 - GEAR, PLANET
28255-37050	1NRFE..NRE150..3D	11/2008 - 01/2010	3
28255-37050	1NRFE..NRE150	12/2009 - 12/2999	3
28255-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	3
28255-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	3
28255 - GEAR, PLANET
28255-37050	1NRFE..NRE150..3D	11/2008 - 01/2010	3
28255-37050	1NRFE..NRE150	12/2009 - 12/2999	3
28255-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	3
28255-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	3
28255 - GEAR, PLANET
28255-37050	1NRFE..NRE150..3D	11/2008 - 01/2010	3
28255-37050	1NRFE..NRE150	12/2009 - 12/2999	3
28255-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	3
28255-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	3
Common parts
90068-01017
90099-00323
90099-04618
90099-05178
90099-05289
90119-W0096
90179-08204

(0811- )1NRFE

Click highlighted areas on diagram

12V 1.6KW

Part #	Description	Period	Qty
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-37050	1NRFE..NRE150..3D	11/2008 - 01/2010	1
28021-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28021-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	1
28021-37050	1NRFE..NRE150	12/2009 - 12/2999	1
28100 - STARTER ASSY
28100-0Y010	1NRFE..NRE150..3D 12V 1.3KW	11/2008 - 01/2010	1
28100-0Y020	1NRFE..NRE150..3D 12V 1.6KW,STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28100-0Y010	1NRFE..NRE150 12V 1.3KW	12/2009 - 12/2999	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0Y010	1NRFE..NRE150..3D	11/2008 - 01/2010	1
28110-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28110-0Y010	1NRFE..NRE150	12/2009 - 12/2999	1
28110-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	1
28117A - SEAL, RUBBER
28117-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28117-37050	1NRFE..NRE150;1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
28117-37050	1NDTV..NDE150..5D..6FS..TERRA;1N#..NDE150,NRE150..3D..(6F,6FS)	11/2008 - 01/2010	1
28117-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	1
28120 - YOKE ASSY, STARTER
28120-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28120-0J050	1NRFE..NRE150..3D	11/2008 - 01/2010	1
28120-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	1
28120-0J050	1NRFE..NRE150	12/2009 - 12/2999	1
28122 - COLLAR, SPACE
28122-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28122-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0Y010	1NRFE..NRE150..3D	11/2008 - 01/2010	1
28130-0Y010	1NRFE..NRE150	12/2009 - 12/2999	1
28130-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	1
28130-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-37050	1NRFE..NRE150;1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
28140-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28140-37050	1NDTV..NDE150..5D..6FS..TERRA;1N#..NDE150,NRE150..3D..(6F,6FS)	11/2008 - 01/2010	1
28140-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	1
28160 - ARMATURE ASSY, STARTER
28160-0D180	1NRFE..NRE150..3D	11/2008 - 01/2010	1
28180-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28160-0D180	1NRFE..NRE150	12/2009 - 12/2999	1
28180-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	1
28199A - PROTECTOR, DUST STARTER
28199-31090	1NRFE..NRE150	12/2009 - 12/2999	1
28199-31090	1NRFE..NRE150	11/2008 - 01/2010	1
28226B - STARTER KIT, REPAIR SERVICE
28226-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	1
28255 - GEAR, PLANET
28255-37050	1NRFE..NRE150..3D	11/2008 - 01/2010	3
28255-37050	1NRFE..NRE150	12/2009 - 12/2999	3
28255-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	3
28255-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	3
28255 - GEAR, PLANET
28255-37050	1NRFE..NRE150..3D	11/2008 - 01/2010	3
28255-37050	1NRFE..NRE150	12/2009 - 12/2999	3
28255-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	3
28255-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	3
28255 - GEAR, PLANET
28255-37050	1NRFE..NRE150..3D	11/2008 - 01/2010	3
28255-37050	1NRFE..NRE150	12/2009 - 12/2999	3
28255-47110	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	12/2009 - 12/2999	3
28255-47110	1NRFE..NRE150..3D STOP & START SYSTEM PACKAGE	11/2008 - 01/2010	3
Common parts
90068-01017
90099-00323
90099-04623
90099-05178
90099-05289
90119-W0096
90179-08204

NRE150L-DGFNKW (2008)

(0811- )1NRFE

(0811- )1NRFE
