NDE180R-DWFDXW (2013)
Toyota Auris/Hybrid (Ukp)

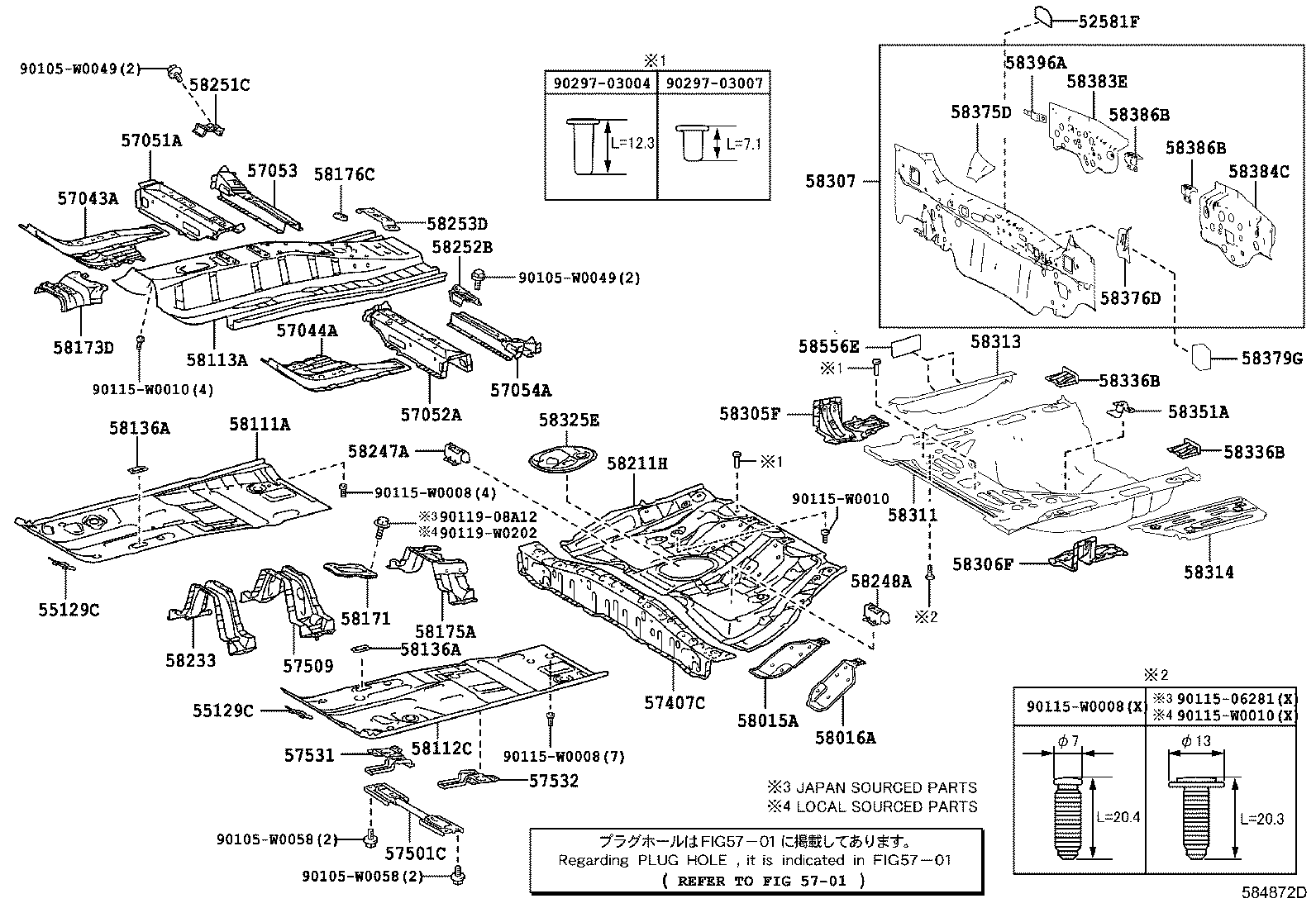

ILLUST NO. 1 OF 3(1306- )ADE186,NDE180,NRE18#,WWE185,ZRE185..WG
FLOOR PANEL & LOWER BACK PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52581F - PROTECTOR, REAR BUMPER | ||||
| 52581-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55129-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 RH |
1 | ||
| 55139-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 LH |
1 | ||
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55129-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 RH |
1 | ||
| 55139-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 LH |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57407-02150 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 57501C - BRACE SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57501-02021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 58161-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 57531 - BRACKET, FRONT FLOOR CENTER BRACE, RH | ||||
| 57531-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 57532 - BRACKET, FRONT FLOOR CENTER BRACE, LH | ||||
| 57532-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-02160 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 58015-02161 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-02141 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 58016-02140 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-02927 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-02904 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-02906 |
NDE180..6F;ADE186,NRE180,ZRE185 |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58173D - BRACKET, COMPUTER MOUNTING, NO.4 | ||||
| 58173-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 57805-02031 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58176C - REINFORCEMENT, PARKING BRAKE BASE, NO.2 | ||||
| 58176-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-02907 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 58233 - BRACKET, EXHAUST PIPE MOUNTING | ||||
| 58203-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-05010 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58247-05010 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 58251C - BRACE, FLOOR PANEL, FRONT RH | ||||
| 58251-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58253D - BRACKET, PARKING BRAKE CABLE | ||||
| 58253-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58305-02010 |
ZWE186..HB;ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58306-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-02330 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-05060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-02160 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-02130 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-02080 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 58351-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 58375D - REINFORCEMENT, BODY LOWER BACK PANEL, RH | ||||
| 58391-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 58376D - REINFORCEMENT, BODY LOWER BACK, LH | ||||
| 58392-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 58379G - PAD, BODY LOWER BACK | ||||
| 61824-02290 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 58383E - REINFORCEMENT, BODY LOWER BACK, NO.2 RH | ||||
| 58383-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 58384C - REINFORCEMENT, BODY LOWER BACK, NO.2 LH | ||||
| 58384-02150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 58396A - BRACKET, WIRE HARNESS CLAMP | ||||
| 82715-05440 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 58556E - SILENCER, REAR FLOOR, NO.1 | ||||
| 58556-02010 |
ADE186,NDE180,NRE180,ZRE185..WG |
2 | ||
| Common parts | ||||
| 90105-W0049 | ||||
| 90105-W0058 | ||||
| 90115-06281 | ||||
| 90115-W0008 | ||||
| 90115-W0010 | ||||
| 90119-08A12 | ||||
| 90119-W0202 | ||||
| 90297-03004 | ||||
| 90297-03007 | ||||
| Linked diagrams | ||||
| 5701 | ||||

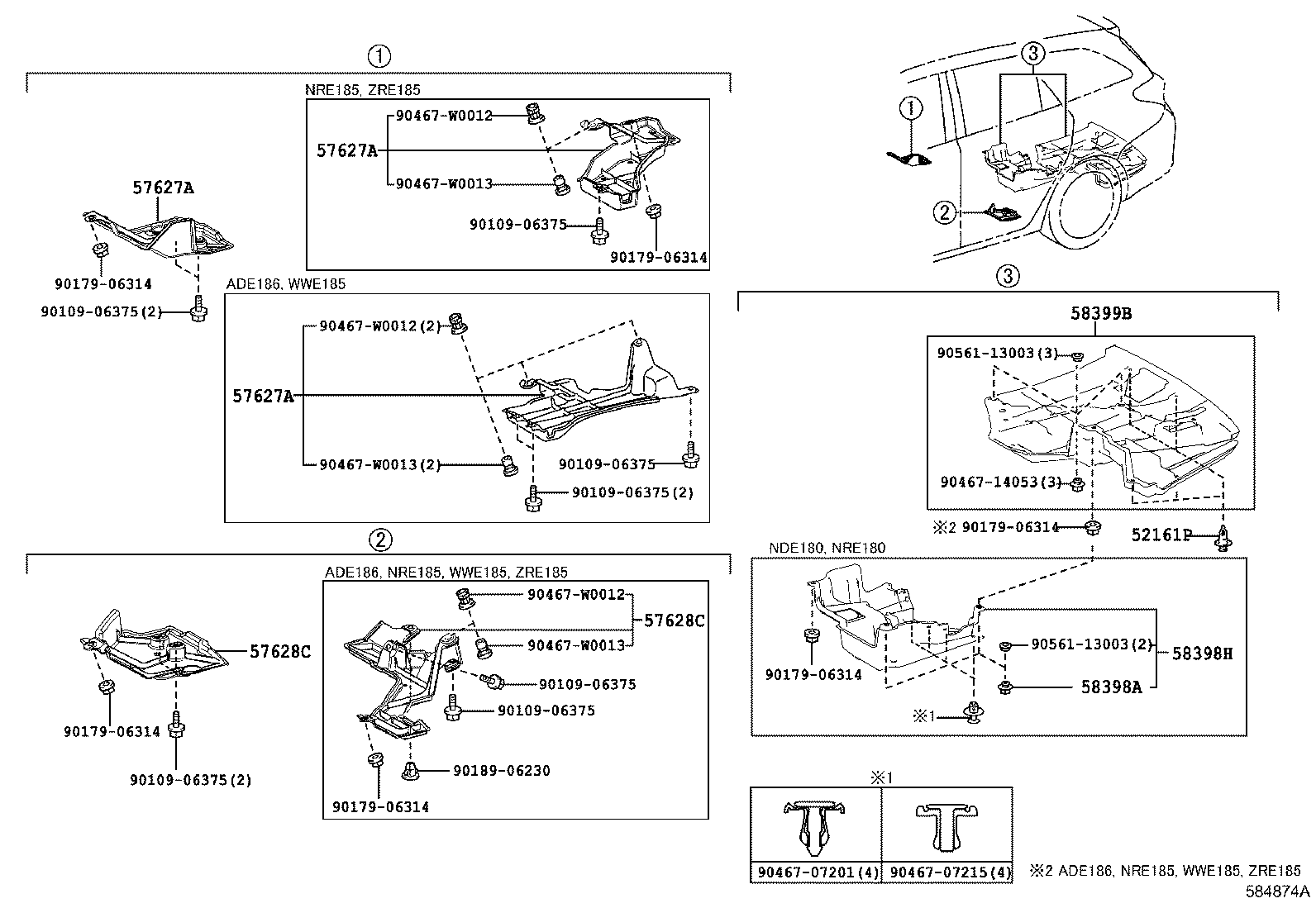

ILLUST NO. 3 OF 3(1306- )ADE186,NDE180,NRE18#,WWE185,ZRE185..WG
FLOOR UNDER COVER(REAR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (J) |
4 | ||
| 52161-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (L) |
4 | ||
| 57627A - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-02040 |
NDE180,NRE180 |
1 | ||
| 57627A - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-02040 |
NDE180,NRE180 |
1 | ||
| 57627A - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-02040 |
NDE180,NRE180 |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-02050 |
NDE180,NRE180 |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-02050 |
NDE180,NRE180 |
1 | ||
| 58398A - CLIP, NO.3(FOR FLOOR UNDER COVER) | ||||
| 90467-14053 |
NDE180,NRE180..WG |
2 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-02090 |
NDE180,NRE180..WG |
1 | ||
| 58399B - COVER, FLOOR UNDER, NO.2 | ||||
| 58399-02051 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| 58399-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..WG |
1 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90179-06314 | ||||
| 90189-06230 | ||||
| 90467-07201 | ||||
| 90467-07215 | ||||
| 90467-14053 | ||||
| 90467-W0012 | ||||
| 90467-W0013 | ||||
| 90561-13003 | ||||
