NDE180R-DHFNXW (2012)
Toyota Auris/Hybrid (Ukp)

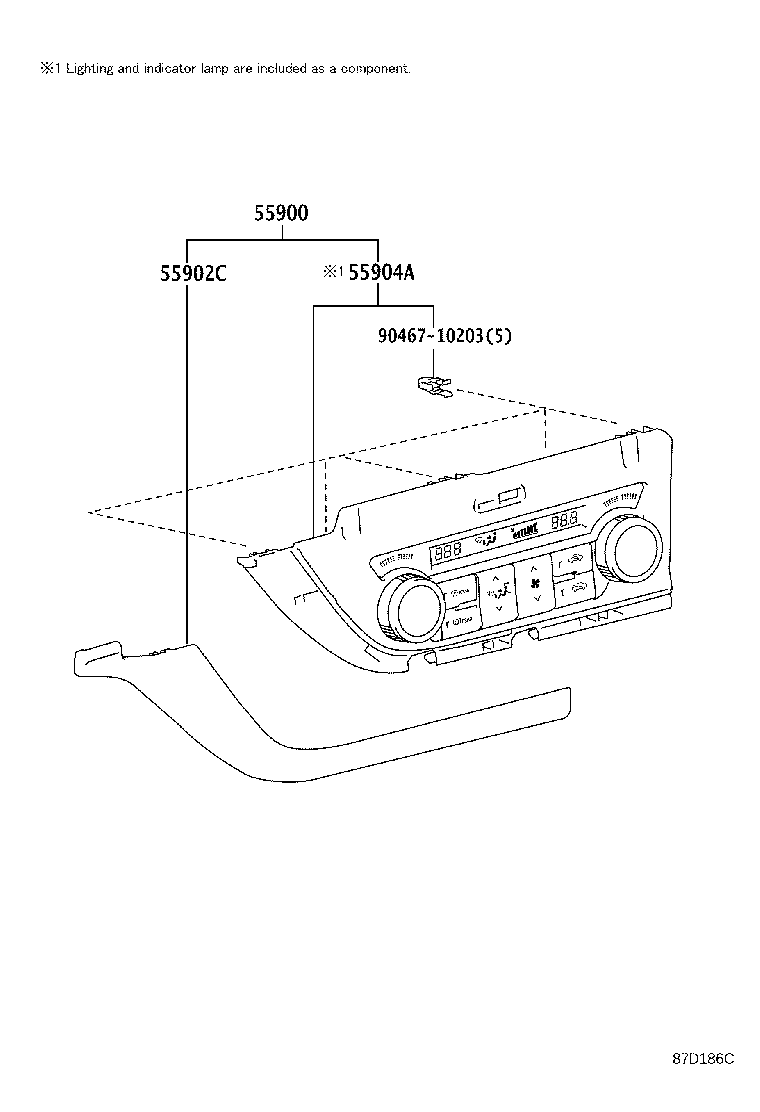

ILLUST NO. 1 OF 3(1210-1505)RHD
HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-02410C2 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&AIR CONDITIONER-AUTO(DUAL MODE),BLACK,TRIM2# |
1 | ||
| 55900-02450C0 |
NDE180,NRE180..RHD..D BLACK,TRIM2# |
1 | ||
| 55900-02420C0 |
NDE180,NRE180..RHD..D AIR CONDITIONER-AUTO(SINGLE MODE),BLACK,TRIM2# |
1 | ||
| 55900-02440B1 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE,GRAY,TRIM2# |
1 | ||
| 55900-02430B0 |
NDE180,NRE180,ZRE185..RHD..N METAL SILVER,TRIM2# |
1 | ||
| 55900-02800C0 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N MODELYEAR 14,BLACK,TRIM2# |
1 | ||
| 55900-02450C0 |
NDE180,NRE180,ZRE185..RHD..N LIGHT GRADE&AIR CONDITIONER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 55902C - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-12210B0 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE,GRAY,TRIM2# |
1 | ||
| 55902-12220C0 |
NDE180,NRE180,ZRE185..RHD..N LIGHT GRADE&AIR CONDITIONER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 55902-02230C0 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&AIR CONDITIONER-AUTO(DUAL MODE),BLACK,TRIM2# |
1 | ||
| 55902-12220C0 |
NDE180,NRE180..RHD..D BLACK,TRIM2# |
1 | ||
| 55902-12230B0 |
NDE180,NRE180,ZRE185..RHD..N METAL SILVER,TRIM2# |
1 | ||
| 55902-02230C0 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N MODELYEAR 14,BLACK,TRIM2# |
1 | ||
| 55904A - HOUSING SUB-ASSY, HEATER CONTROL | ||||
| 55904-02090 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N |
1 | ||
| 55904-02100 |
NDE180,NRE180..RHD..D |
1 | ||
| 55904-02080 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&AIR CONDITIONER-AUTO(DUAL MODE) |
1 | ||
| 55904-02100 |
NDE180,NRE180,ZRE185..RHD..N LIGHT GRADE&AIR CONDITIONER-WITHOUT |
1 | ||
| 55904-02090 |
NDE180,NRE180..RHD..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||

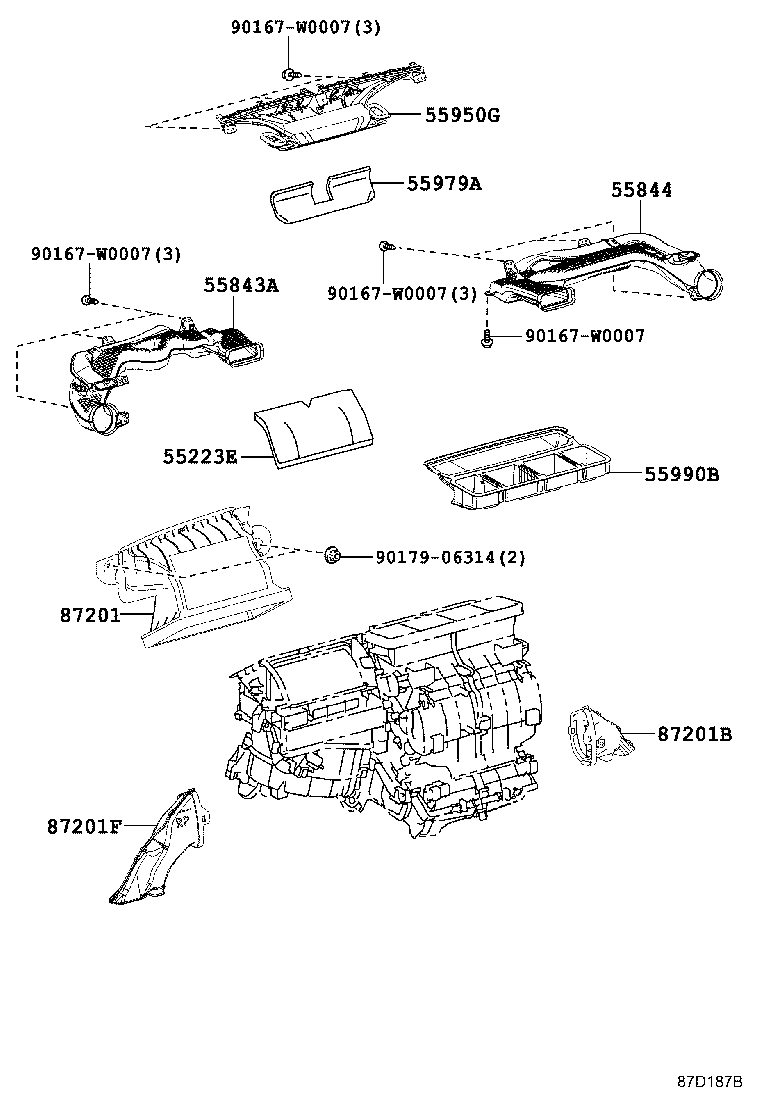

ILLUST NO. 2 OF 3(1210- )RHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55223E - INSULATOR, DASH PANEL HEAT, NO.1 | ||||
| 55223-05120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55086-02100 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55084-02170 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-02260 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55979A - CUSHION, DEFROSTER NOZZLE | ||||
| 55979-02080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87220-02150 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87211-02520 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87211-05050 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| Common parts | ||||
| 90167-W0007 | ||||
| 90179-06314 | ||||

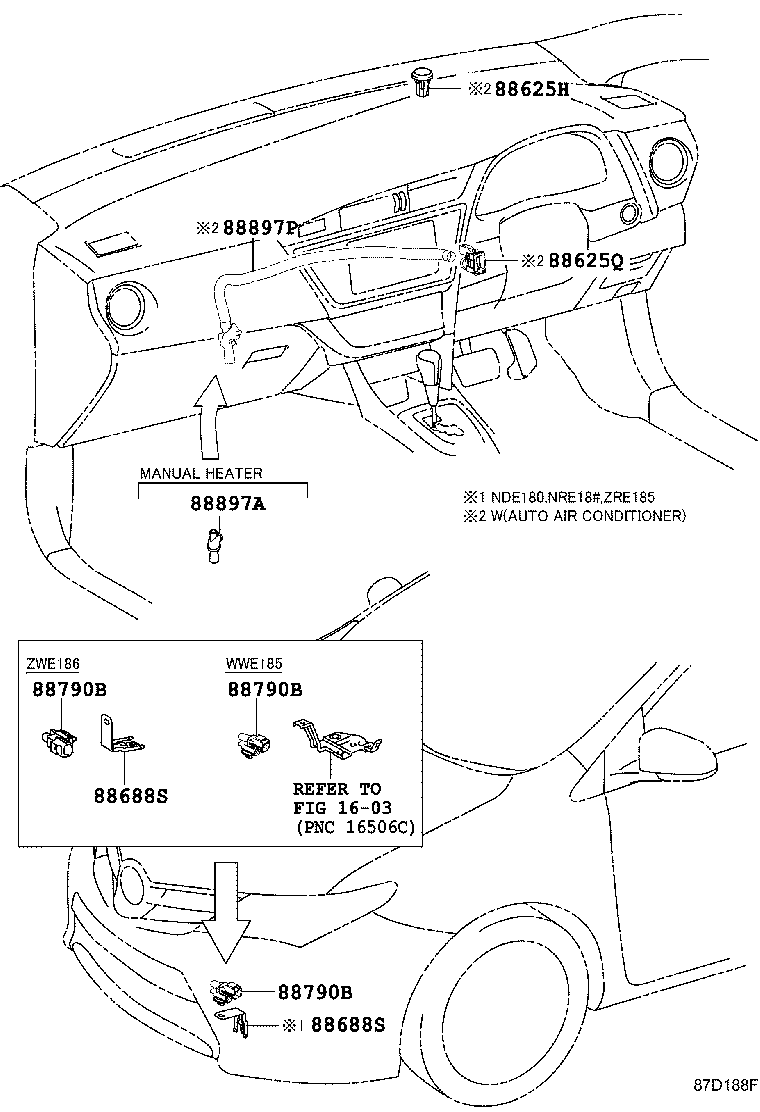

ILLUST NO. 3 OF 3(1210- )RHD
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88790-35070 |
NDE180,NRE180..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 88625-51010 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 88790-35070 |
ZRE185;ADE186,NDE180,NRE180,ZWE186..N |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
NDE180,NRE180..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 88625-47021 |
ZRE185;ADE186,NDE180,NRE180,ZWE186..G,N |
1 | ||
| 88688S - BRACKET (FOR COOLER THERMISTOR) | ||||
| 88688-0Z150 |
NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 88688S - BRACKET (FOR COOLER THERMISTOR) | ||||
| 88688-0Z150 |
NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 88897A - PIPE, ASPIRATOR | ||||
| 88897-02180 |
NDE180..D LIGHT GRADE |
1 | ||
| 88897-02180 |
NDE180,NRE180..D |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88505-02140 |
NDE180,NRE180..RHD..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 88505-02140 |
NDE180,NRE180,ZRE185,ZWE186..RHD..(G,N) |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
