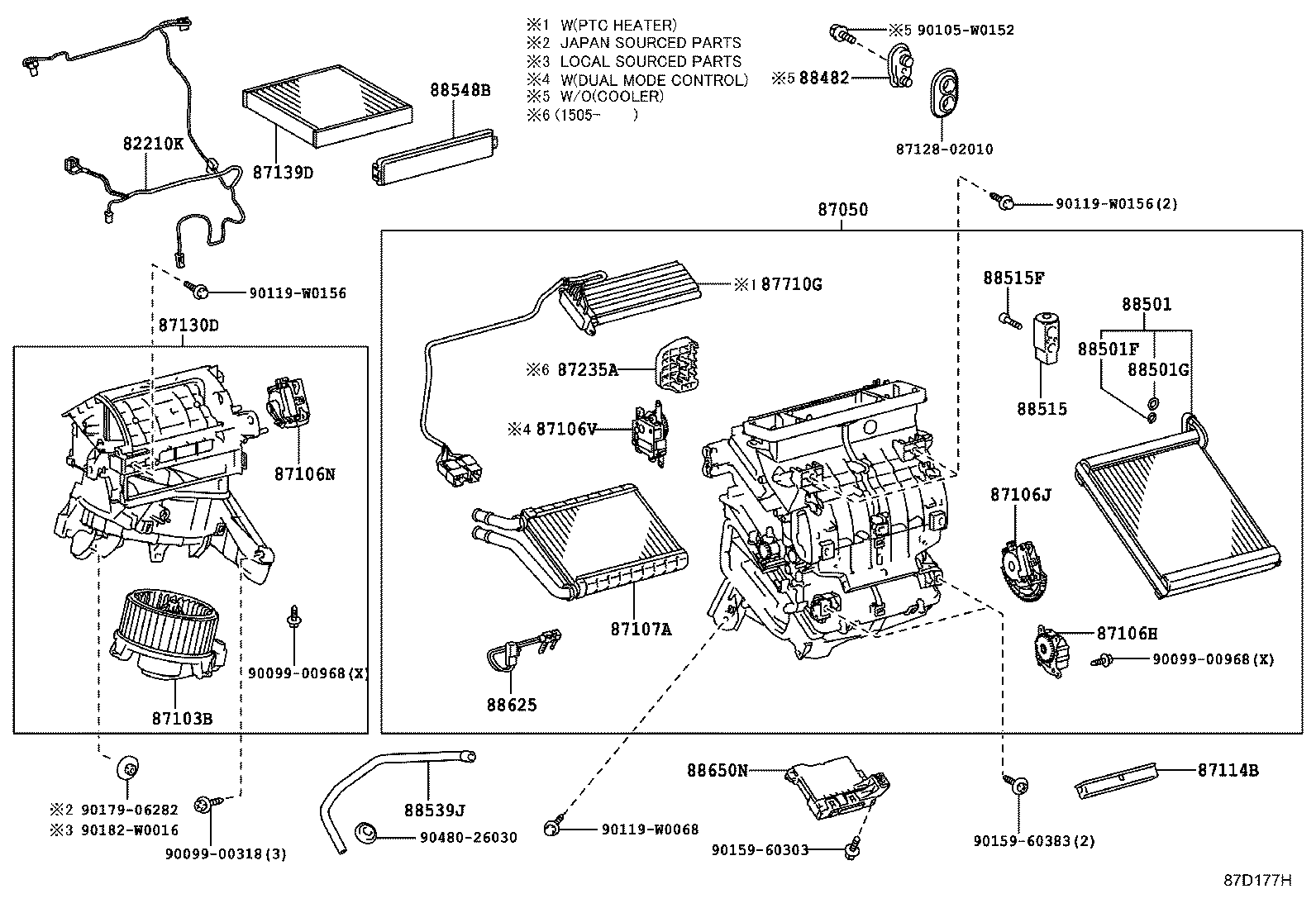

NDE180R-DHFNXW (2012)
Toyota Auris/Hybrid (Ukp)
(1210- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-02020 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE&AIR CONDITIONER-AUTO(DUAL MODE) |
1 | ||
| 82212-02060 |
NDE180,NRE180,ZRE185,ZWE186..RHD..(D,N) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-02E60 |
NDE180..RHD..N HIGH GRADE |
1 | ||
| 87050-02G10 |
NDE180..RHD..D |
1 | ||
| 87050-02G10 |
NDE180..RHD..N |
1 | ||
| 87050-02G10 |
NDE180..RHD..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-02130 |
NDE180,ZRE185..RHD..N HIGH GRADE |
1 | ||
| 87103-05050 |
NDE180,NRE180,ZRE185,ZWE186..RHD..(D,N) |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-05040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 87106-02270 |
NRE180..LHD..N;ADE186,NDE180,ZRE185..N HIGH GRADE |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-02140 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-02160 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 87106V - SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2) | ||||
| 87106-02280 |
NRE180..LHD..N;ADE186,NDE180,ZRE185..N HIGH GRADE |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-02150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-02281 |
NDE180..RHD..N HIGH GRADE |
1 | ||
| 87130-05181 |
NDE180..RHD |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-0D070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 POLLEN FILTER |
1 | ||
| 87139-50100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 *DPF |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-02100 |
NDE180..RHD |
1 | ||
| 88482 - CAP, COOLER | ||||
| 88482-26040 |
NDE180,NRE180..D |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-02202 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
ADE186,NDE180,NRE180,ZRE185 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
ADE186,NDE180,NRE180,ZRE185 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-02520 |
ZWE186..RHD;ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04597 |
NDE180..RHD;NRE180,ZRE185 |
2 | ||
| 90099-04542 |
ZRE185..N;NDE180..RHD..N HIGH GRADE |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-02250 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-02060 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-02D90 |
NDE180,NRE180..D |
1 | ||
| 88650-02D70 |
ZRE185;ADE186,NDE180,NRE180..N |
1 | ||
| 88650-02D90 |
ZRE185;NRE180..RHD..N;ADE186,NDE180..N LIGHT GRADE&AIR CONDITIONER-WITHOUT |
1 | ||
| 88650-02D70 |
NDE180,NRE180..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 88650-02D80 |
NRE180..LHD..N;ADE186,NDE180,ZRE185..N HIGH GRADE&AIR CONDITIONER-AUTO(DUAL MODE) |
1 | ||
| 88650-02A20 |
ZRE185;ADE186,NDE180,NRE180..N |
1 | ||
| 88650-02A40 |
NDE180,NRE180..D |
1 | ||
| 88650-02A20 |
NDE180,NRE180..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 88650-02A30 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE&AIR CONDITIONER-AUTO(DUAL MODE) |
1 | ||
| 88650-02A40 |
ZRE185;NRE180..RHD..N;ADE186,NDE180..N LIGHT GRADE&AIR CONDITIONER-WITHOUT |
1 | ||
| Common parts | ||||
| 87128-02010 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90105-W0152 | ||||
| 90119-W0068 | ||||
| 90119-W0156 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 90182-W0016 | ||||
| 90480-26030 | ||||
