NDE180R-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1210- )

Click highlighted areas on diagram

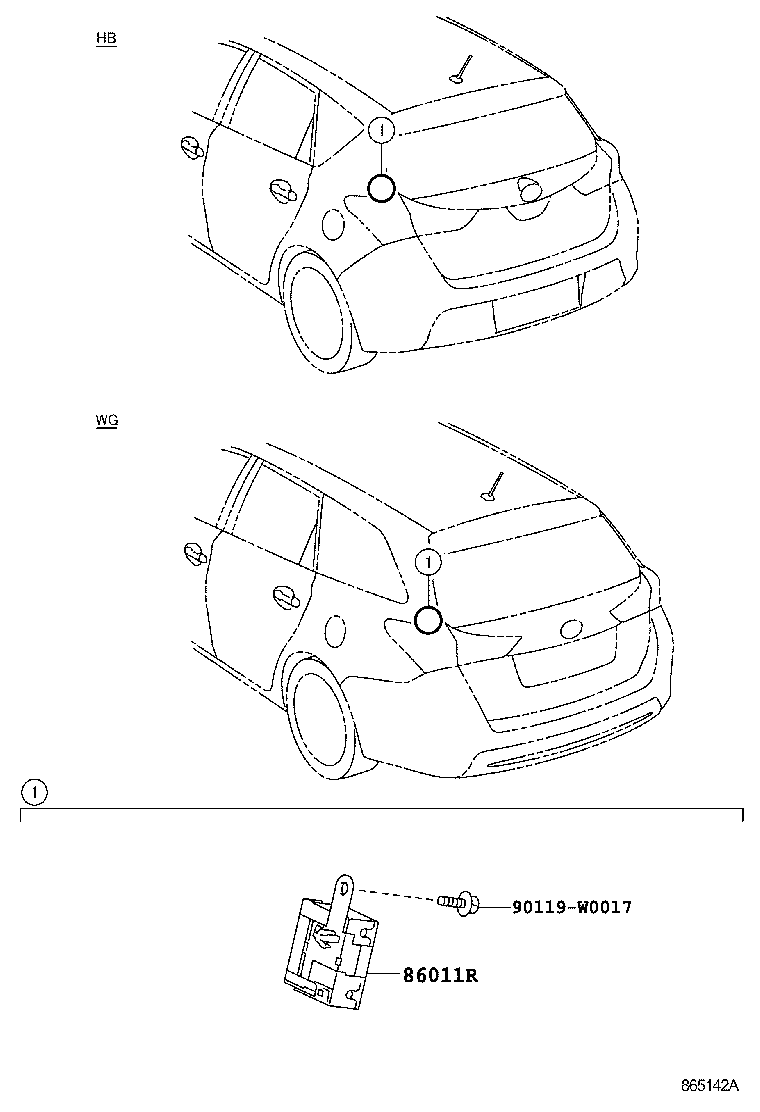

CONDENSER

diagram 86011R 90119W0017
Part # Description Qty Price
86011R - CONDENSER, RADIO SETTING
90980-04204

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
Common parts
90119-W0017

ILLUST NO. 1 OF 2(1210-1505)

Click highlighted areas on diagram

diagram 86120 86120A 86120A 86145 86183E 86190C 86203D 86211 86212 86280K 86285 86286B 9011908718 90119W0030 90119W0030 90119W0083 90153W0001 90153W0001 90153W0001 90153W0001 9046710183 90467W0006B3
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-02880

NDE180,NRE180,ZRE185..D

PANASONIC,ID=53876

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25204

NDE180,NRE180,ZRE185..D

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25204

NDE180,NRE180,ZRE185..D

 2
86145 - CONNECTOR, ANTENNA MALE
86145-52010

NDE180,NRE180,ZRE185..RHD..N

AUDIO-RADIO LESS & 6SPEAKER

 1
86145-52010

NDE180,NRE180..RHD..D

AUDIO-RADIO LESS & 4SPEAKER

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0D030

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
86203D - WIRE, STEREO COMPONENT, NO.1
86203-12440

ADE186,NDE180,NRE180,ZRE185..N

AUDIO-RADIO LESS & 6SPEAKER

 1
86203-12440

ADE186,NDE180,NRE180,ZRE185

 1
86203-02160

ADE186,NDE180,NRE180,ZRE185..N

AUDIO-RADIO LESS & 6SPEAKER

 1
86203-12440

NDE180,NRE180,ZRE185..D

AUDIO-RADIO LESS & 4SPEAKER

 1
86203-02160

ADE186,NDE180,NRE180,ZRE185

AUDIO-RADIO LESS & SPEAKER LESS

 1
86203-02160

ADE186,NDE180,NRE180,ZRE185

 1
86203-12440

ADE186,NDE180,NRE180,ZRE185

AUDIO-RADIO LESS & SPEAKER LESS

 1
86203-02160

NDE180,NRE180,ZRE185..D

AUDIO-RADIO LESS & 4SPEAKER

 1
86211 - BRACKET, RADIO, NO.1
86211-02240

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
86212 - BRACKET, RADIO, NO.2
86212-02200

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
Common parts
90119-08718
90119-W0030
90119-W0083
90153-W0001
90467-10183
90467-W0006B3
