NDE180R-DHFNXW (2012)
Toyota Auris/Hybrid (Ukp)
Production
Oct 2012
-
May 2015
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1210- )

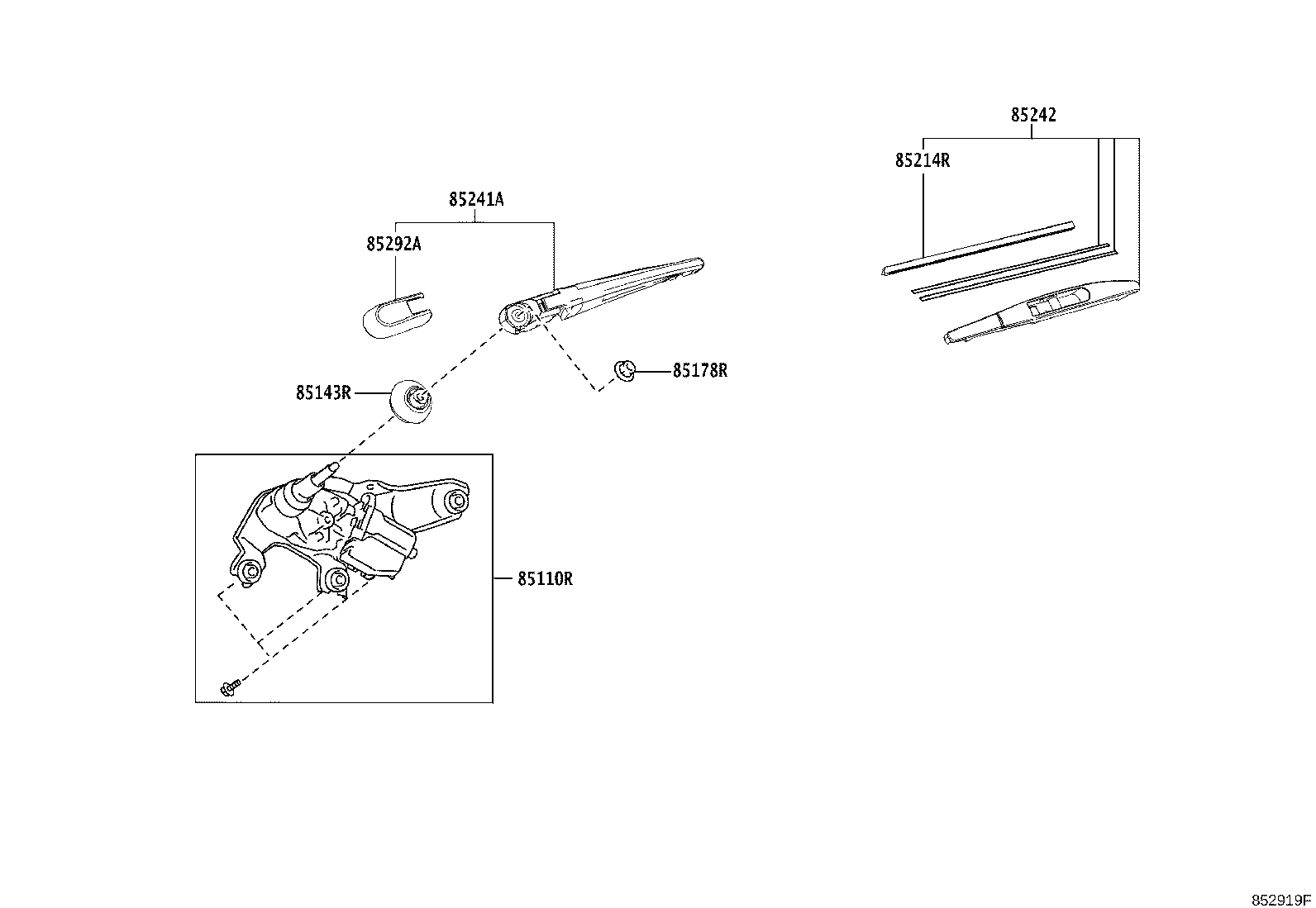

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85143R - GROMMET, REAR WIPER MOTOR | ||||
| 85143-05070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06158 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-52060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 85241A - ARM, REAR WIPER | ||||
| 85241-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 85242 - BLADE, RR WIPER | ||||
| 85242-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 85292A - CAP, REAR WIPER ARM HEAD | ||||
| 85292-0D080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
