NDE180R-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )RHD..HB

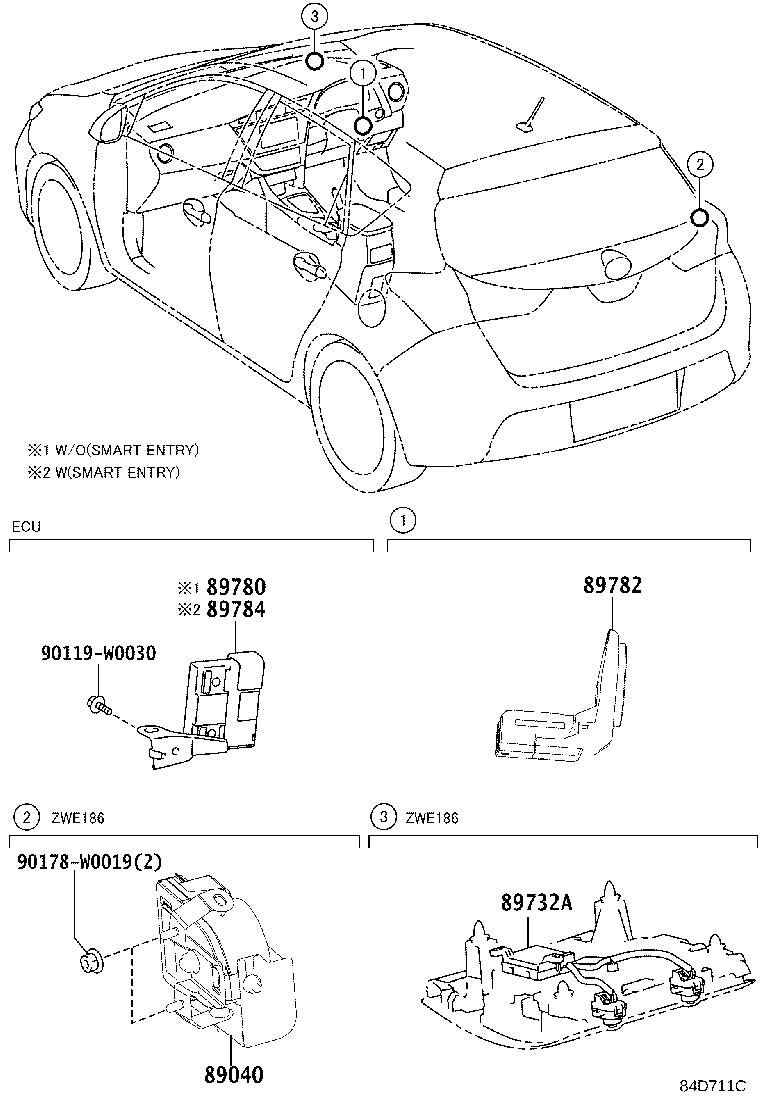

Click highlighted areas on diagram

diagram 89040 89732A 89780 89782 89784 90119W0030 90178W0019
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-02130

ADE186,NDE180,NRE180,ZRE185

 1
89782 - COIL, TRANSPONDER KEY
89782-02010

ADE186,NDE180,NRE180,ZRE185

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-02071

ZRE185..RHD;NDE180..RHD..6F..N

HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)

 1
89784-02071

ZRE185..RHD;NDE180..RHD..6F..N

COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)

 1
Common parts
90119-W0030
90178-W0019
