NDE180R-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015

Engine 1NDTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1210- )RHD

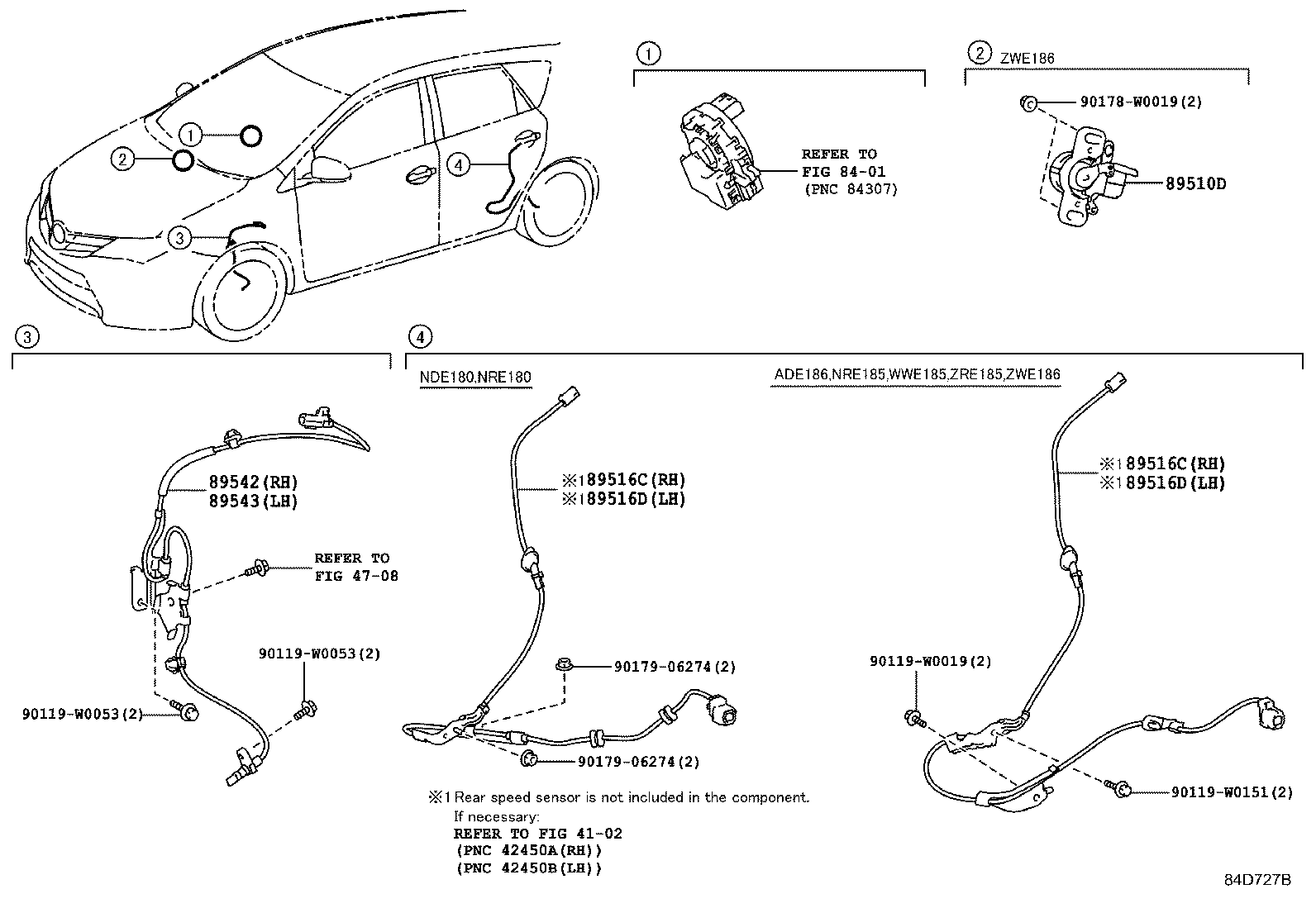

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-02170	NDE180,NRE180	10/2012 - 05/2015	1
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-02170	NDE180,NRE180	10/2012 - 05/2015	1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-02180	NDE180,NRE180	10/2012 - 05/2015	1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-02180	NDE180,NRE180	10/2012 - 05/2015	1
89542 - SENSOR, SPEED, FRONT RH
89542-02061	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
89543 - SENSOR, SPEED, FRONT LH
89543-02061	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
Common parts
90119-W0019
90119-W0053
90119-W0151
90178-W0019
90179-06274
Linked diagrams
4102
4708
8401
