NDE180R-DHFNXW (2012)
Toyota Auris/Hybrid (Ukp)
ILLUST NO. 5 OF 7(1210-1505)RHD

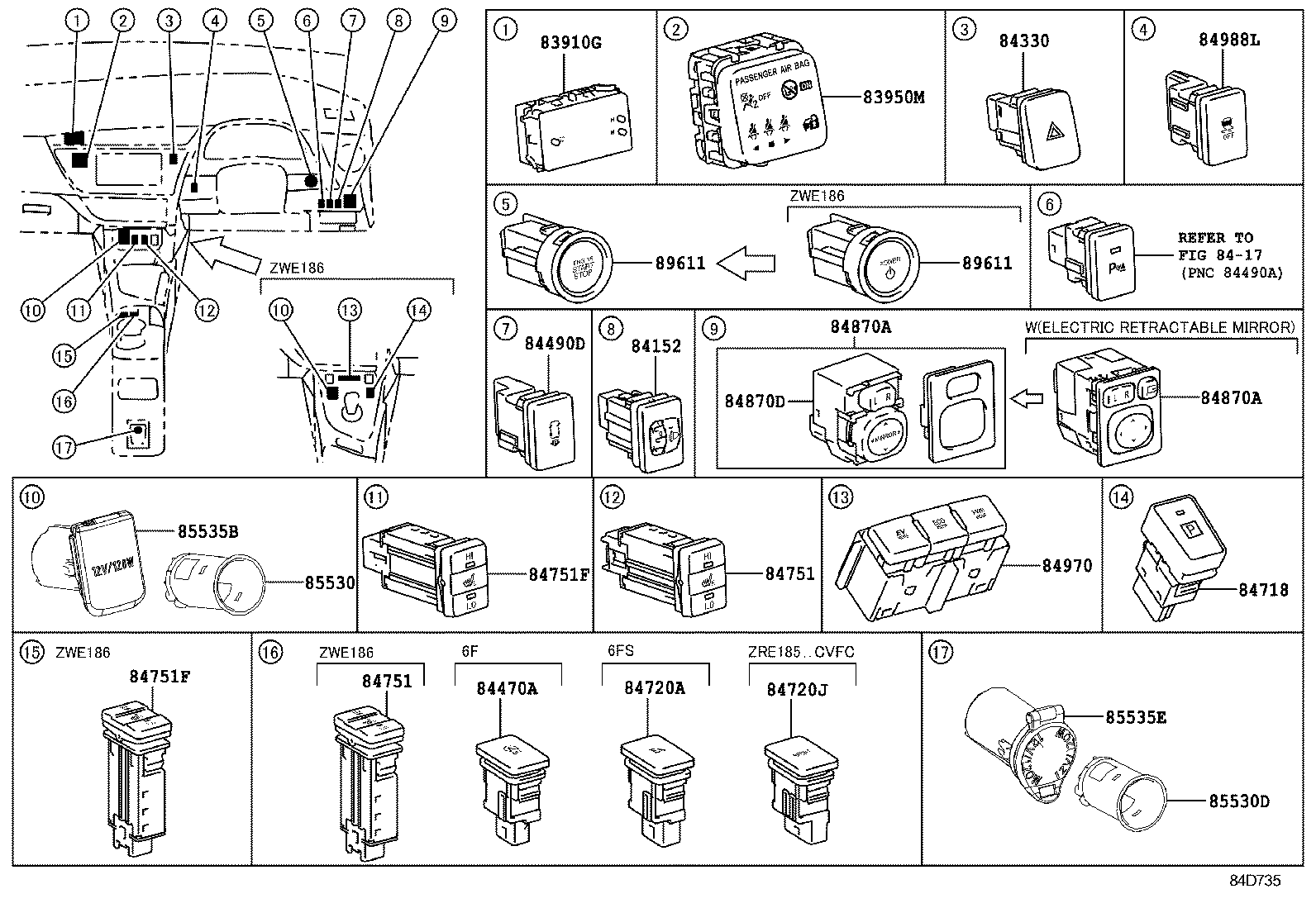

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-12620 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 83910-12630 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-02190 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 83950-02200 |
NRE180..LHD..HB..D;NDE180,ZRE185..HB..6F..D N1 PACKAGE |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02190 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 84470A - SWITCH ASSY, ECORUN CANCEL | ||||
| 84470-02011 |
NDE180..6F;NRE180..LHD START & STOP SYSTEM PACKAGE |
1 | ||
| 84470-02010 |
NDE180..RHD..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 84470-02010 |
NDE180..RHD..HB..D N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944 |
1 | ||
| 84470-02010 |
NDE180,NRE180..RHD..6F |
1 | ||
| 84490D - SWITCH ASSY, IPA MAIN | ||||
| 84490-02031 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N CLEARANCE & BACK SONAR-WITH |
1 | ||
| 84490-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N CLEARANCE & BACK SONAR-WITH |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-12100 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84751-12100 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-FABLIC(HIGH GRADE) |
1 | ||
| 84751-12100 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84751-12101 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84751-12101 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84751-12101 |
NDE180,NRE180,ZRE185..RHD..N SEAT COVER MATERIAL-FABLIC(SPORT GRADE) |
1 | ||
| 84751-12101 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-FABLIC(HIGH GRADE) |
1 | ||
| 84751-12100 |
NDE180,NRE180,ZRE185..RHD..N SEAT COVER MATERIAL-FABLIC(SPORT GRADE) |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-12100 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84751-12100 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-FABLIC(HIGH GRADE) |
1 | ||
| 84751-12100 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84751-12101 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84751-12101 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84751-12101 |
NDE180,NRE180,ZRE185..RHD..N SEAT COVER MATERIAL-FABLIC(SPORT GRADE) |
1 | ||
| 84751-12101 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-FABLIC(HIGH GRADE) |
1 | ||
| 84751-12100 |
NDE180,NRE180,ZRE185..RHD..N SEAT COVER MATERIAL-FABLIC(SPORT GRADE) |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-12110 |
NDE180,NRE180,ZRE185..RHD..N SEAT COVER MATERIAL-FABLIC(SPORT GRADE) |
1 | ||
| 84751-12110 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84751-12110 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-FABLIC(HIGH GRADE) |
1 | ||
| 84751-12111 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-FABLIC(HIGH GRADE) |
1 | ||
| 84751-12111 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84751-12111 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84751-12111 |
NDE180,NRE180,ZRE185..RHD..N SEAT COVER MATERIAL-FABLIC(SPORT GRADE) |
1 | ||
| 84751-12110 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-12110 |
NDE180,NRE180,ZRE185..RHD..N SEAT COVER MATERIAL-FABLIC(SPORT GRADE) |
1 | ||
| 84751-12110 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84751-12110 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-FABLIC(HIGH GRADE) |
1 | ||
| 84751-12111 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-FABLIC(HIGH GRADE) |
1 | ||
| 84751-12111 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N SEAT COVER MATERIAL-FABLIC(MY14) |
1 | ||
| 84751-12111 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84751-12111 |
NDE180,NRE180,ZRE185..RHD..N SEAT COVER MATERIAL-FABLIC(SPORT GRADE) |
1 | ||
| 84751-12110 |
ZRE185..RHD;NDE180..RHD..6F..N SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02110C0 |
NDE180,NRE180,ZRE185..D OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER),BLACK,TRIM2# |
1 | ||
| 84870-02090C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 84870-02100C0 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER),BLACK,TRIM2# |
1 | ||
| 84870-02101 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185,ZWE186..N OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 84870-02110C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER),BLACK,TRIM2# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02110C0 |
NDE180,NRE180,ZRE185..D OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER),BLACK,TRIM2# |
1 | ||
| 84870-02090C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 84870-02100C0 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER),BLACK,TRIM2# |
1 | ||
| 84870-02101 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185,ZWE186..N OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 84870-02110C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER),BLACK,TRIM2# |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-02140 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-02041 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 84988-02040 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-0D020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-12050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02100 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR) |
1 | ||
| 89611-02100 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02100 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR) |
1 | ||
| 89611-02100 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR) |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 6 OF 7(1210- )

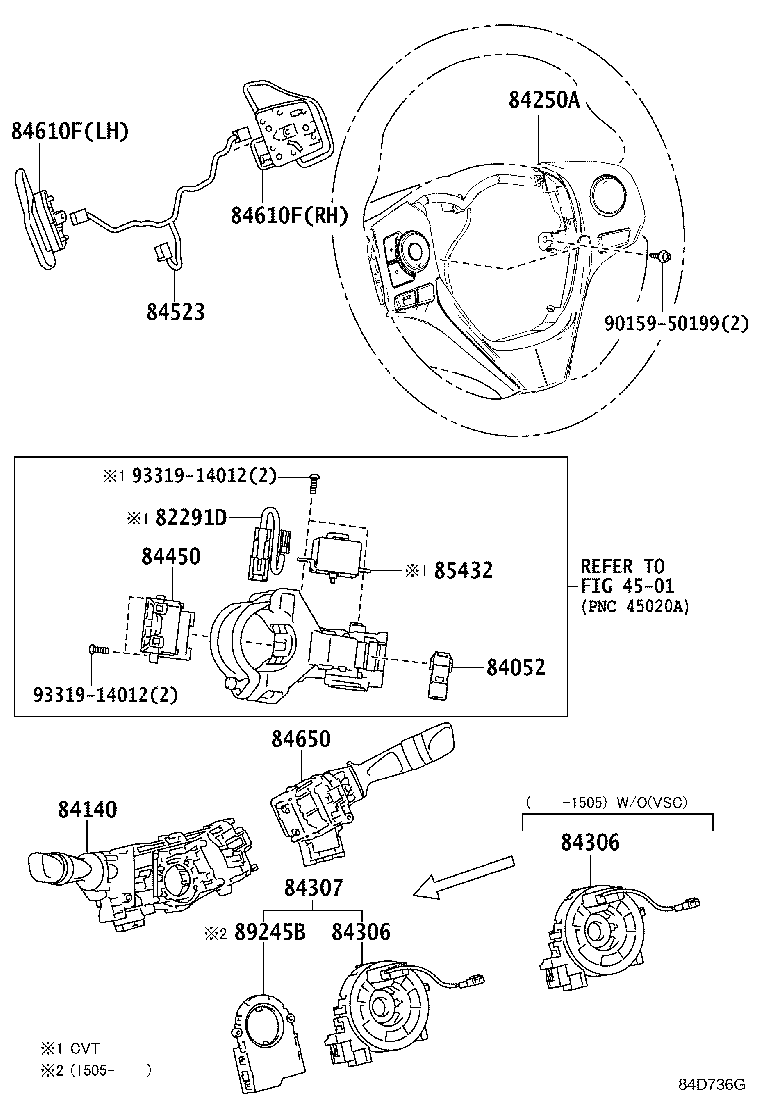

STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NRE180..LHD..N;ADE186,NDE180,ZRE185..N WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR) |
1 | ||
| 84052-71010 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02720 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 84140-02740 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N LIGHT GRADE |
1 | ||
| 84140-02730 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N |
1 | ||
| 84140-02730 |
NDE180,NRE180,ZRE185..D FRONT FOG LAMP-WITH |
1 | ||
| 84140-02740 |
NDE180,NRE180,ZRE185..D |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-02320C0 |
ADE186,NDE180,NRE180,ZRE185..N AUDIO-RADIO LESS & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 84250-02320C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
1 | ||
| 84250-02320C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N BLACK,TRIM2# |
1 | ||
| 84250-02340C0 |
NDE180,NRE180,ZRE185..D LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
1 | ||
| 84250-02320C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
1 | ||
| 84250-02340C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
1 | ||
| 84250-02340C0 |
NDE180,NRE180,ZRE185..D BLACK,TRIM2# |
1 | ||
| 84250-02340C0 |
NDE180,NRE180,ZRE185..D AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84308-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84308-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-02120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84307-02200 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-02030 |
NRE180..LHD..N;ADE186,NDE180,ZRE185..N WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR) |
1 | ||
| 84450-02030 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02670 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE |
1 | ||
| 84652-02670 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185,ZWE186..N COMFORT PACKAGE |
1 | ||
| 84652-02540 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 4 OF 7(1210- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 7.5A,MINI FUSE,BROWN |

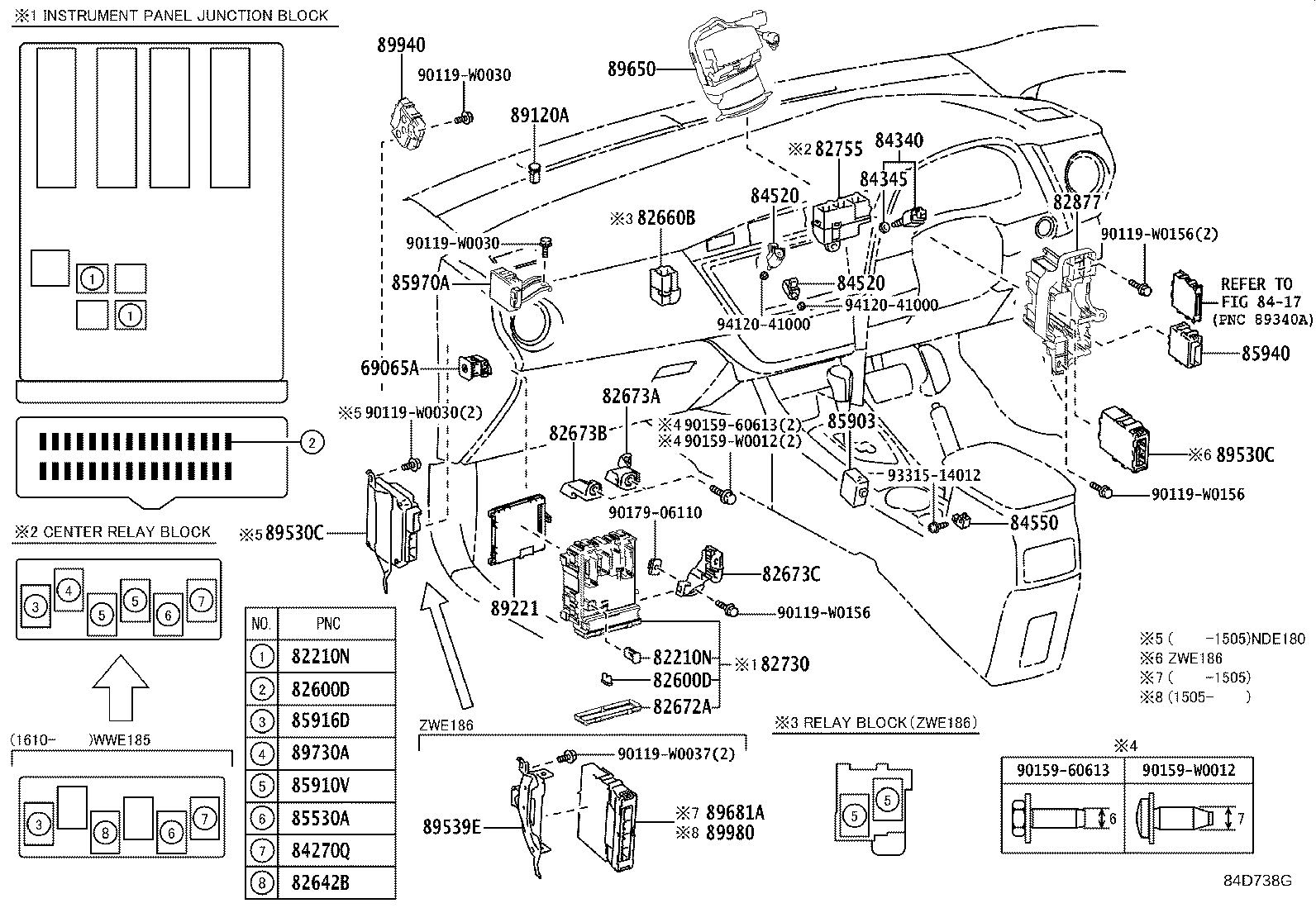

1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90080-87021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12450 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12310 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12320 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12330 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12X70 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 82730-12X80 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 82730-12X80 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE |
1 | ||
| 82730-12X80 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
1 | ||
| 82755 - BLOCK, CENTER RELAY | ||||
| 82755-12030 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-02040 |
ZRE185..RHD;NDE180..RHD..6F..N COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82877-02040 |
NDE180,NRE180,ZRE185..RHD..N CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82877-02040 |
ZRE185..RHD;NDE180..RHD..6F..N COMFORT PACKAGE |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90080-87021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09020 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
ADE186,NDE180,NRE180,ZRE185..6F |
2 | ||
| 84520-42010 |
NDE180..RHD..HB..D N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
ADE186,NDE180,NRE180,ZRE185..6F |
2 | ||
| 84520-42010 |
NDE180..RHD..HB..D N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
NDE180,NRE180,ZRE185..D FRONT FOG LAMP-WITH |
1 | ||
| 90987-02027 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-02060 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE |
1 | ||
| 85940-02060 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185,ZWE186..N COMFORT PACKAGE |
1 | ||
| 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-12030 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-12010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-02050 |
NDE180,NRE180..RHD |
1 | ||
| 89220-02051 |
NDE180,NRE180..RHD |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12D00 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90119-W0156 | ||||
| 90159-60613 | ||||
| 90159-W0012 | ||||
| 90179-06110 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8417 | ||||

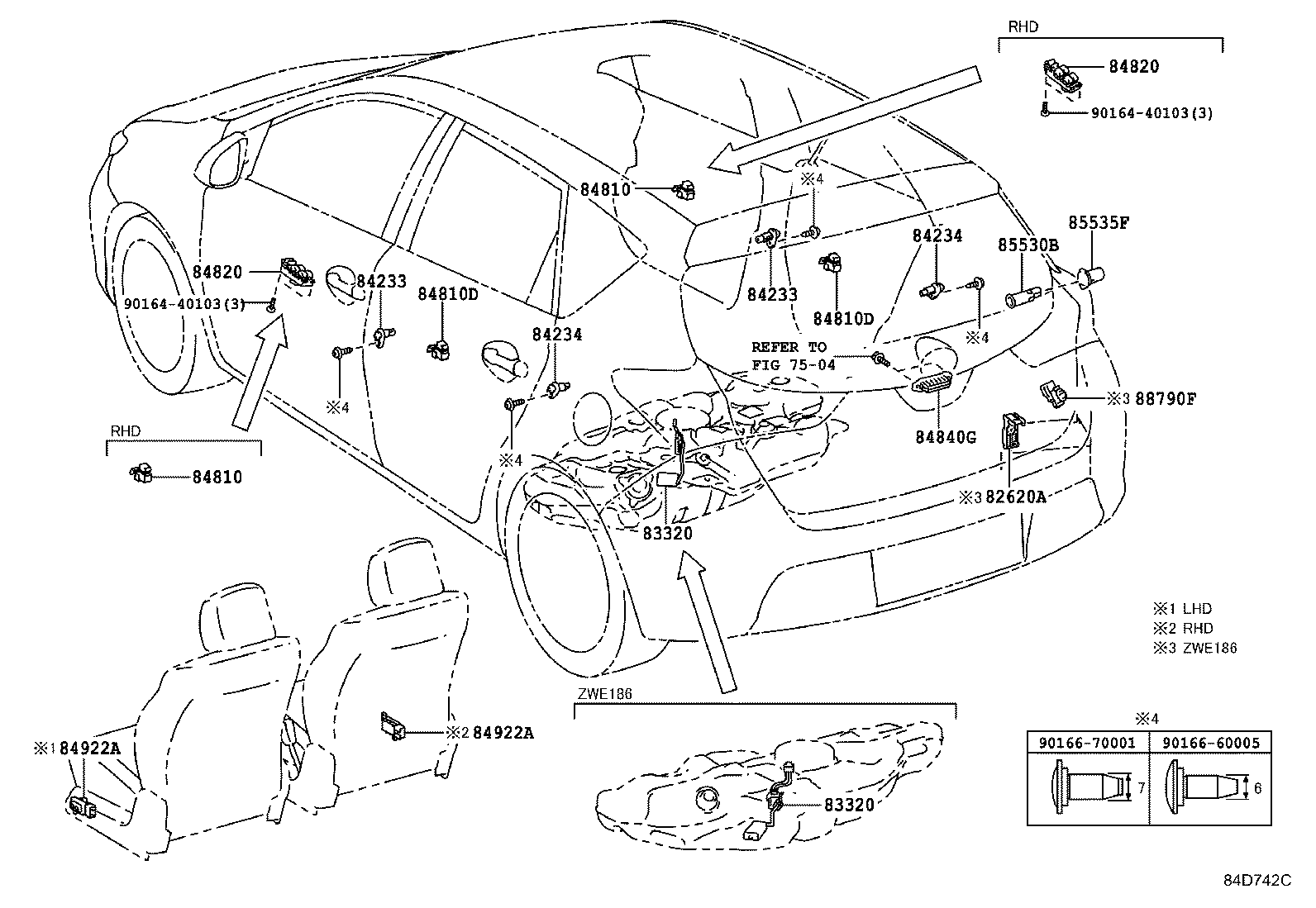

ILLUST NO. 7 OF 7(1210- )HB
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02240 |
ADE186,NDE180 |
1 | ||
| 83320-12890 |
ADE186,NDE180 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02240 |
ADE186,NDE180 |
1 | ||
| 83320-12890 |
ADE186,NDE180 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-02140 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 84810-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 84810-02140 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
1 | ||
| 84810-02140 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-02140 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 84810-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 84810-02140 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
1 | ||
| 84810-02140 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02140 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
2 | ||
| 84810-02140 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE |
2 | ||
| 84810-02140 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
2 | ||
| 84810-0D030 |
ADE186,NDE180,NRE180,ZRE185..N |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02140 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
2 | ||
| 84810-02140 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE |
2 | ||
| 84810-02140 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
2 | ||
| 84810-0D030 |
ADE186,NDE180,NRE180,ZRE185..N |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02330 |
NDE180,NRE180,ZRE185..RHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN) |
1 | ||
| 84040-02110 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 84820-02310 |
NDE180,NRE180,ZRE185..RHD..N |
1 | ||
| 84820-02330 |
NDE180,NRE180..RHD..D |
1 | ||
| 84040-02110 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
1 | ||
| 84820-02330 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N LIGHT GRADE |
1 | ||
| 84040-02110 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02330 |
NDE180,NRE180,ZRE185..RHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN) |
1 | ||
| 84040-02110 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 84820-02310 |
NDE180,NRE180,ZRE185..RHD..N |
1 | ||
| 84820-02330 |
NDE180,NRE180..RHD..D |
1 | ||
| 84040-02110 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
1 | ||
| 84820-02330 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N LIGHT GRADE |
1 | ||
| 84040-02110 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-02040 |
NDE180..LHD..6FS;NRE180..LHD..HB..N;ZRE185,ZWE186..HB..N;ADE186,NDE180..HB..6F..N WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR) |
1 | ||
| 84840-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-05010C0 |
NDE180,ZRE185..RHD..N SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-05010C0 |
NDE180,ZRE185..RHD..N SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-0D020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85535F - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-12050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| Linked diagrams | ||||
| 7504 | ||||

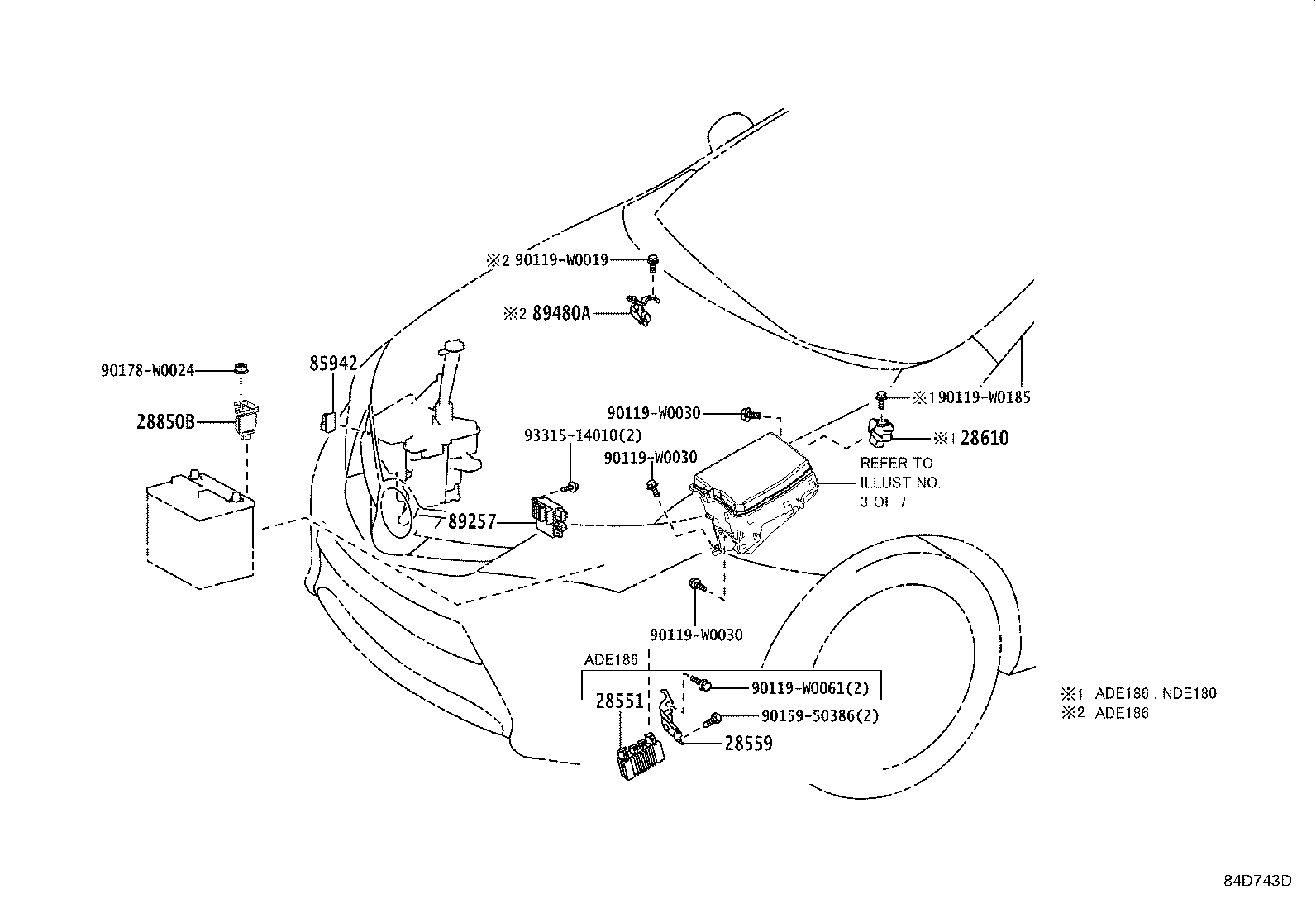

ILLUST NO. 2 OF 7(1210-1505)ADE186,NDE180,NRE180,ZRE185
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28601-26030 |
1ADFTV,1NDTV..ADE186,NDE180 |
1 | ||
| 28850B - COMPUTER ASSY, ALTERNATOR CONTROL | ||||
| 28850-26011 |
1ADFTV,1NDTV..ADE186,NDE180 |
1 | ||
| 28850-26012 |
1ADFTV,1NDTV..ADE186,NDE180 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12020 |
NDE180 |
1 | ||
| Common parts | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90119-W0061 | ||||
| 90119-W0185 | ||||
| 90159-50386 | ||||
| 90178-W0024 | ||||
| 93315-14010 | ||||

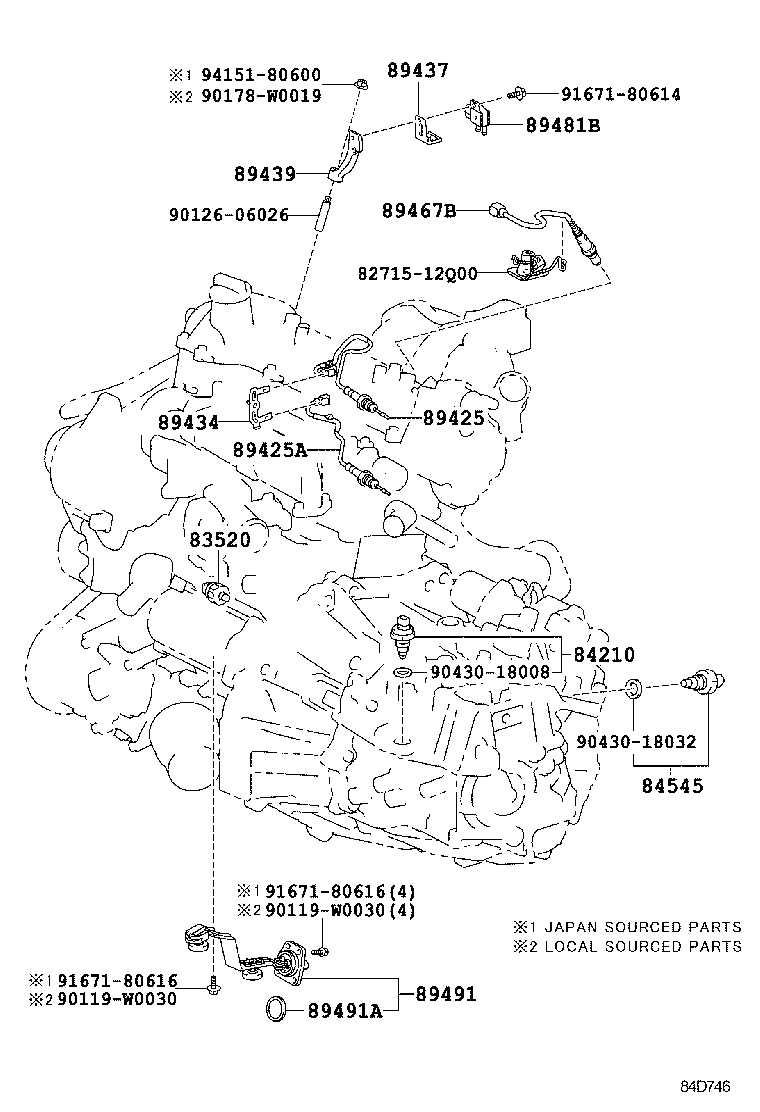

ILLUST NO. 1 OF 7(1210-1505)NDE180
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
ADE186,NDE180 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
ADE186,NDE180,NRE180,ZRE185..MTM |
1 | ||
| 84545 - SWITCH, NEUTRAL POSITION | ||||
| 84545-52010 |
NDE180,NRE180..RHD..6F |
1 | ||
| 84545-52010 |
NDE180..RHD..HB..D N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944 |
1 | ||
| 84545-52010 |
NDE180..RHD..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-52031 |
NDE180 |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-52021 |
NDE180 |
1 | ||
| 89434 - BRACKET, MANIFOLD TEMPERATURE SENSOR | ||||
| 89434-52050 |
NDE180 |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-12110 |
NDE180 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-52010 |
NDE180 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12130 |
NDE180 (J) |
1 | ||
| 89467-02080 |
NDE180 (L) |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-12050 |
NDE180 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-52051 |
NDE180 |
1 | ||
| 89491-52052 |
NDE180 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-36005 |
NDE180 |
1 | ||
| Common parts | ||||
| 82715-12Q00 | ||||
| 90119-W0030 | ||||
| 90126-06026 | ||||
| 90178-W0019 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||

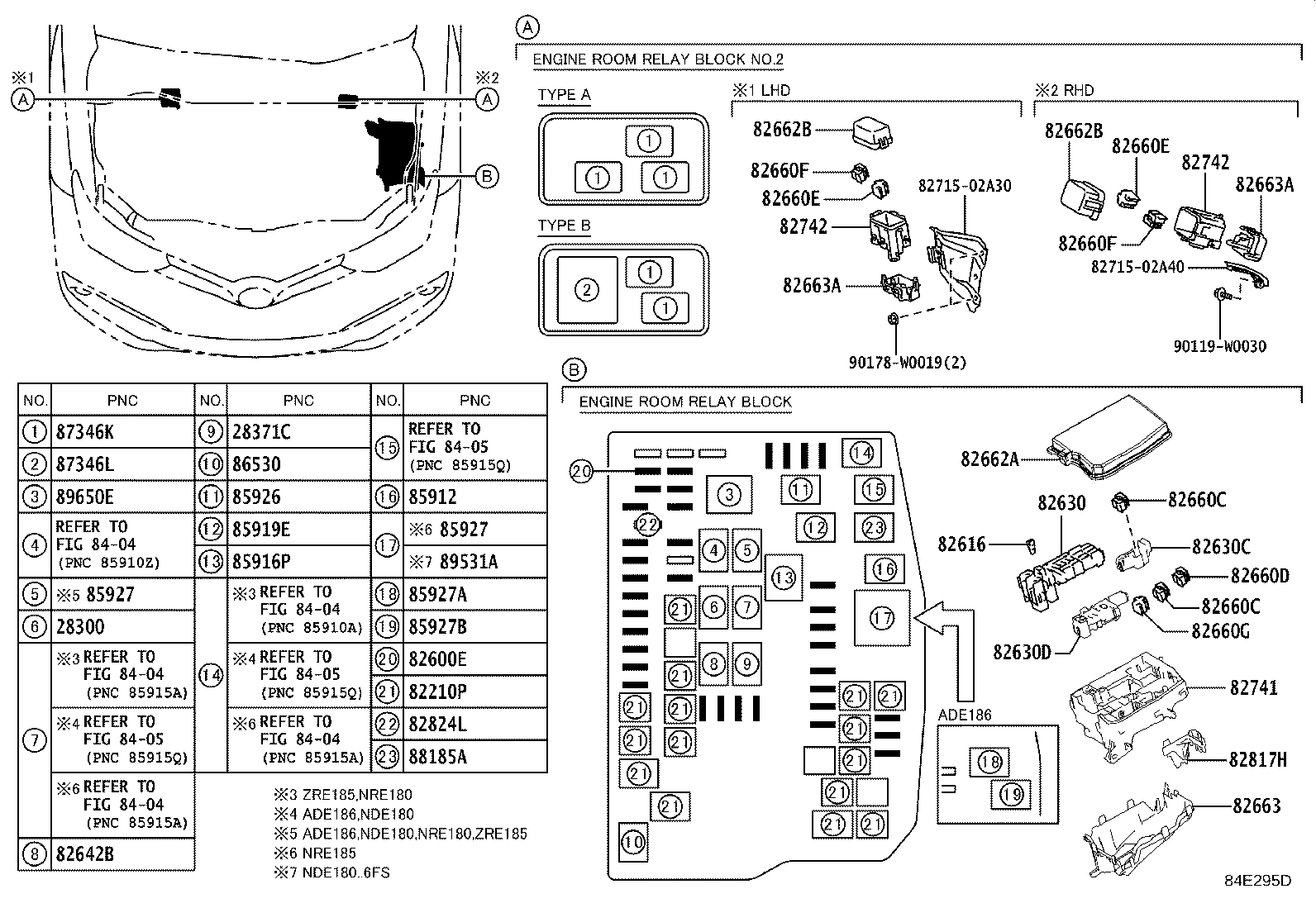

ILLUST NO. 3 OF 7(1210- )ADE186,NDE180,NRE18#,ZRE185
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1ADFTV,1N#,1ZRFAE..ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 28300-21020 |
1ADFTV,1N#,1ZRFAE..ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90080-87021 |
1ADFTV,1N#,1ZRFAE..ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08305 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08296 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08286 |
ADE186,NDE180 140A,TERM.:MALE,RBR |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12050 |
ADE186,NDE180 |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-12060 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-12100 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90080-87021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-42030 |
ADE186,NDE180,NRE180,ZRE185 |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-42030 |
ADE186,NDE180,NRE180,ZRE185 |
2 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
ADE186,NDE180 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
ADE186,NDE180 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ADE186,NDE180 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ADE186,NDE180 |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NDE180,ZWE186 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-02410 |
NDE180..6F |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02580 |
ADE186,NDE180 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02580 |
ADE186,NDE180 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02090 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12070 |
ADE186,NDE180 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12070 |
ADE186,NDE180 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-02090 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12080 |
ADE186,NDE180 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12080 |
ADE186,NDE180 |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-02E00 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85919E - RELAY, STOP LAMP | ||||
| 90987-04004 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 90080-87020 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87021 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90080-87021 |
ADE186,NDE180 TYPE B:REFER ILLUST. |
2 | ||
| 90080-87021 |
NDE180..D LIGHT GRADE,TYPE B:REFER ILLUST. |
2 | ||
| 90080-87021 |
ADE186,NDE180 LIGHT GRADE&AIR CONDITIONER-WITHOUT,TYPE B:REFER ILLUST. |
2 | ||
| 90080-87021 |
ADE186,NDE180 ADDITIONAL HEATER-WITHOUT,TYPE B:REFER ILLUST. |
2 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90080-87030 |
ADE186,NDE180 TYPE B:REFER ILLUST. |
1 | ||
| 90080-87030 |
ADE186,NDE180 ADDITIONAL HEATER-WITHOUT,TYPE B:REFER ILLUST. |
1 | ||
| 90080-87030 |
NDE180..D LIGHT GRADE,TYPE B:REFER ILLUST. |
1 | ||
| 90080-87030 |
ADE186,NDE180 LIGHT GRADE&AIR CONDITIONER-WITHOUT,TYPE B:REFER ILLUST. |
1 | ||
| 89650E - RELAY, ELECTRIC POWER STEERING | ||||
| 90080-87030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 82715-02A30 | ||||
| 82715-02A40 | ||||
| 90119-W0030 | ||||
| 90178-W0019 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
