NDE180R-DHFNXW (2012)
Toyota Auris/Hybrid (Ukp)

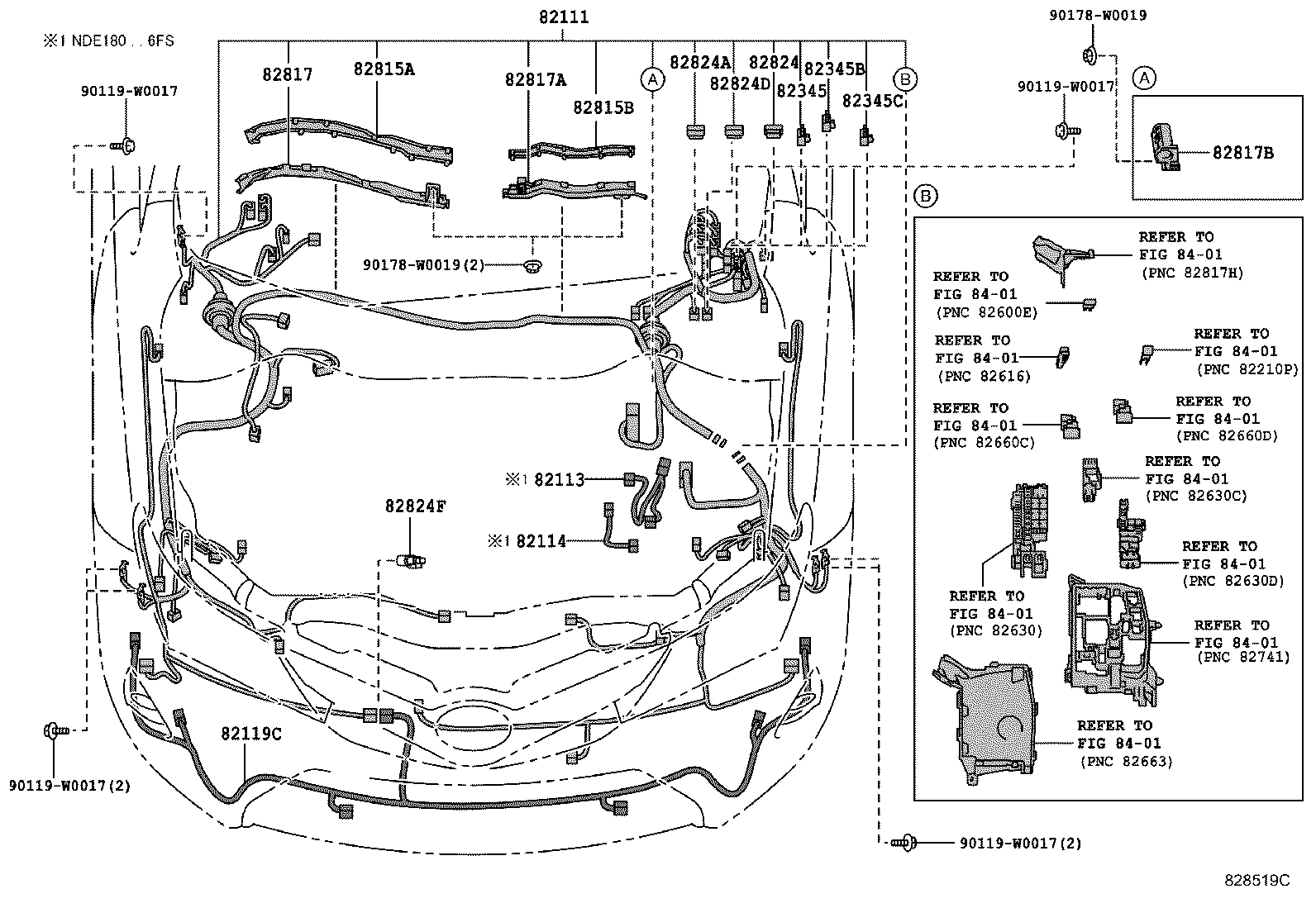

ILLUST NO. 1 OF13(1210- )NDE180,NRE18#,WWE185,ZRE185..RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-0Z360 |
NDE180..RHD..6F |
1 | ||
| 82115-0ZT10 |
NDE180..RHD..HB..D N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944 |
1 | ||
| 82115-0Z360 |
NDE180..RHD..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 82115-0ZT11 |
NDE180..RHD..6F |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12150 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12160 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12B10 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12B20 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12J30 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
ZWE186;NDE180,NRE180,ZRE185..RHD |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-52270 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90178-W0019 | ||||
| Linked diagrams | ||||
| 8401 | ||||

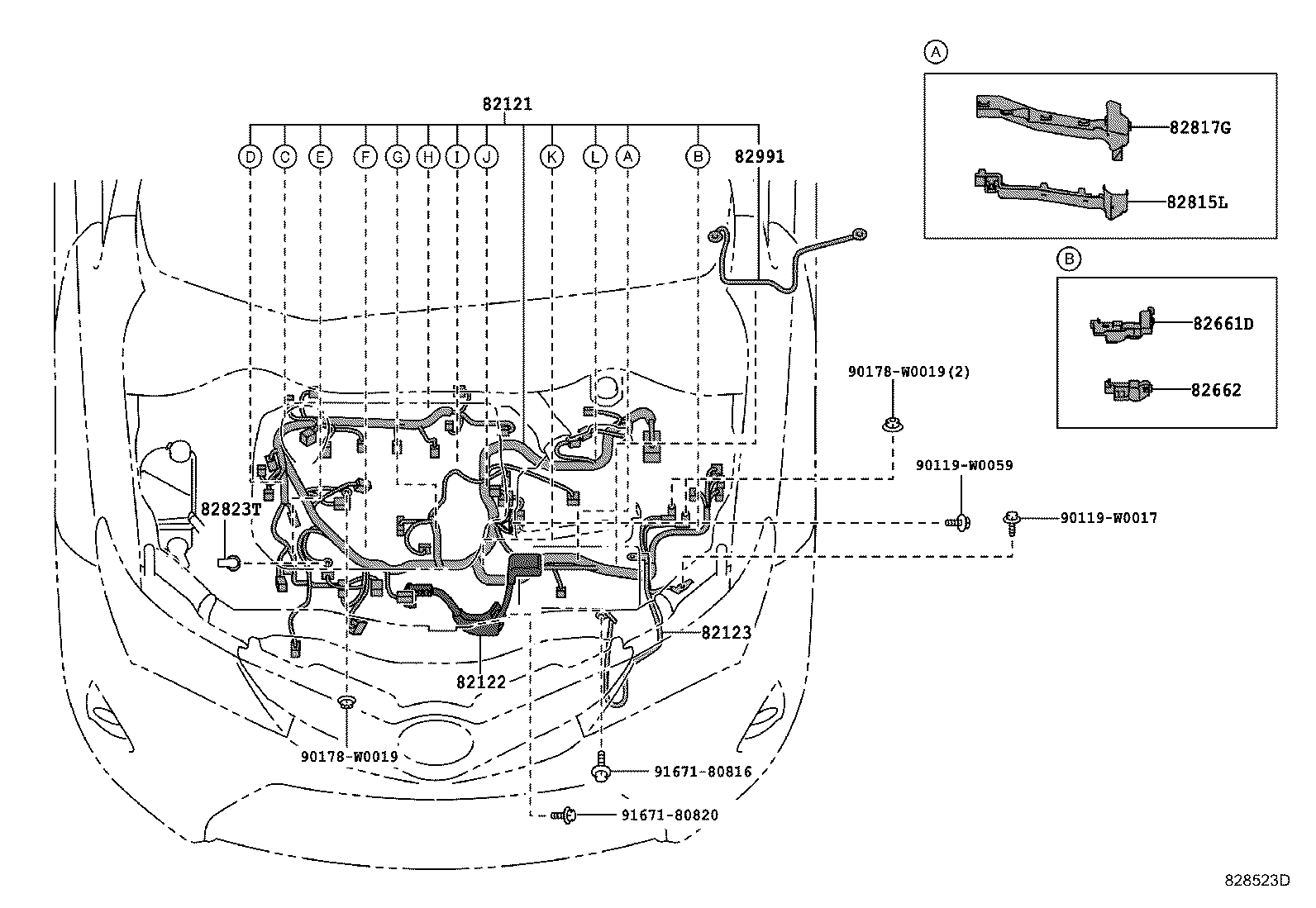

ILLUST NO. 2 OF13(1210-1505)NDE180
ENGINE 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0Z260 |
NDE180..RHD..HB..D N1 PACKAGE&WITHOUT(PACKAGE OPTION 2)&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82121-0Z270 |
NDE180..RHD..6F |
1 | ||
| 82121-0Z260 |
NDE180..RHD..6F |
1 | ||
| 82121-0Z270 |
NDE180..RHD..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-02170 |
NDE180 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02570 |
NDE180 |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12320 |
ADE186,NDE180 |
1 | ||
| 82662 - COVER, RELAY BLOCK, UPPER | ||||
| 82662-12C00 |
ADE186,NDE180 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-02370 |
NDE180 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-02B00 |
NDE180 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-02040 |
NDE180..RHD..6F LIGHT GRADE |
1 | ||
| 82991-02040 |
NDE180..RHD..6F LIGHT GRADE&START & STOP SYSTEM PACKAGE |
1 | ||
| 82991-02030 |
NDE180 |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90119-W0059 | ||||
| 90178-W0019 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||

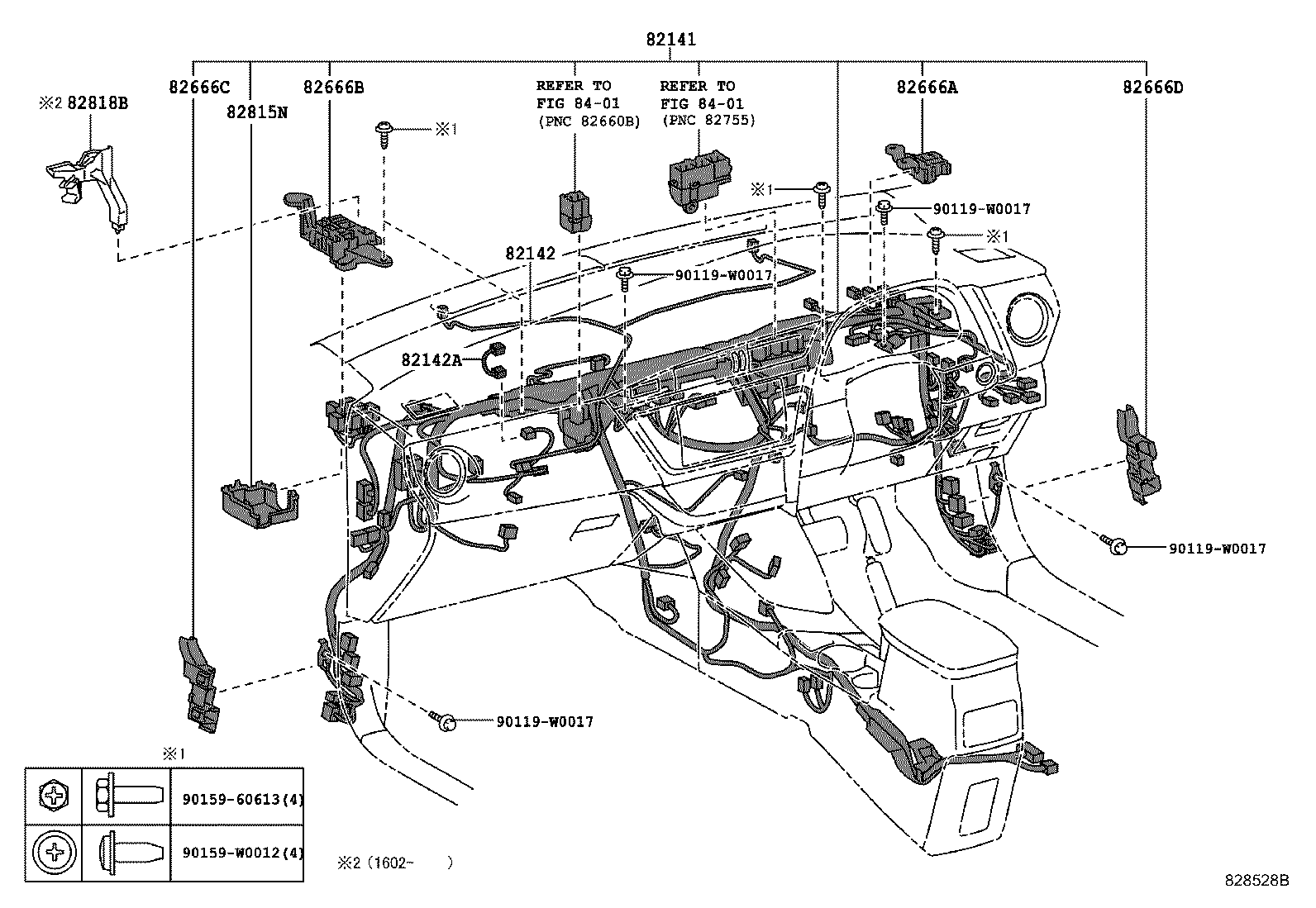

ILLUST NO. 3 OF13(1210- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82117-0ZA90 |
NDE180..RHD..HB..D N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82118-0ZC90 |
NDE180..RHD..6F..N LIGHT GRADE&POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN)&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 82118-0ZC90 |
NDE180,NRE180..RHD..D LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 82118-0ZD50 |
NDE180,NRE180..RHD..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82118-0ZD50 |
NDE180,NRE180..RHD..6F..N |
1 | ||
| 82118-0ZD80 |
NDE180,NRE180..RHD..D |
1 | ||
| 82118-0ZD60 |
NDE180..RHD..6F..N HIGH GRADE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&SEAT COVER MATERIAL-NATURAL LEATHER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZD60 |
NDE180..RHD..6F..N HIGH GRADE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZD60 |
NDE180..RHD..6F..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82118-0ZC91 |
NDE180..RHD..6F..N LIGHT GRADE&START & STOP SYSTEM PACKAGE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 82117-0ZS50 |
NDE180..RHD..6F..N COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82117-0ZS50 |
NDE180..RHD..6F..N HIGH GRADE&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&SEAT COVER MATERIAL-NATURAL LEATHER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82117-0ZS50 |
NDE180..RHD..6F..N HIGH GRADE&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZC91 |
NDE180..RHD..D LIGHT GRADE&START & STOP SYSTEM PACKAGE |
1 | ||
| 82117-0ZA91 |
NDE180,NRE180..RHD..6F..N |
1 | ||
| 82117-0ZA91 |
NDE180,NRE180..RHD..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82117-0ZS60 |
NDE180,NRE180..RHD..D |
1 | ||
| 82118-0ZD61 |
NDE180..RHD..6F..N HIGH GRADE&START & STOP SYSTEM PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZD61 |
NDE180..RHD..6F..N HIGH GRADE&START & STOP SYSTEM PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&SEAT COVER MATERIAL-NATURAL LEATHER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZD51 |
NDE180..RHD..D START & STOP SYSTEM PACKAGE&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82118-0ZD81 |
NDE180..RHD..D START & STOP SYSTEM PACKAGE |
1 | ||
| 82118-0ZD61 |
NDE180..RHD..6F..N COMFORT PACKAGE&START & STOP SYSTEM PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82118-0ZD51 |
NDE180..RHD..6F..N START & STOP SYSTEM PACKAGE |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-02320 |
NDE180,NRE180..RHD..D |
1 | ||
| 82142-02330 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N |
1 | ||
| 82142-02340 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82142-02320 |
NDE180,NRE180,ZRE185..RHD..N LIGHT GRADE |
1 | ||
| 82142-02350 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82142-02330 |
NDE180,NRE180..RHD..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02350 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12510 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12520 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02420 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-02430 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-12580 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90159-60613 | ||||
| 90159-W0012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF13(1210- )HB
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0ZD70 |
NDE180,NRE180..RHD..HB |
1 | ||
| 82161-0ZD80 |
NDE180..RHD..HB..N HIGH GRADE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82161-0ZD80 |
NDE180..RHD..HB..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 82161-0ZD80 |
NDE180..RHD..HB..N HIGH GRADE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82161-0ZD81 |
NDE180..RHD..HB..6F..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82161-0ZD81 |
NDE180..RHD..HB..6F..N COMFORT PACKAGE |
1 | ||
| 82161-0ZD71 |
NDE180,NRE180..RHD..HB |
1 | ||
| 82161-0ZD81 |
NDE180..RHD..HB..6F..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-02190 |
NDE180..6F..N;ADE186,ZRE185..N;NDE180..LHD..6FS;NRE180,ZWE186..LHD..N COMFORT PACKAGE |
1 | ||
| 82163-02190 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-02U80 |
ZRE185..RHD..HB;NDE180..RHD..HB..6F..N HIGH GRADE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82171-02V10 |
ZRE185..RHD..HB;NDE180..RHD..HB..6F..N HIGH GRADE&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82171-02U60 |
NDE180,NRE180,ZRE185,ZWE186..RHD..HB..N |
1 | ||
| 82171-02U80 |
NDE180..RHD..HB..6F..N;ZRE185,ZWE186..RHD..HB..N COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82171-02V10 |
NDE180..RHD..HB..6F..N;ZRE185,ZWE186..RHD..HB..N COMFORT PACKAGE&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82171-02X60 |
NDE180,NRE180..RHD..HB..D |
1 | ||
| 82171-02U90 |
NDE180,NRE180,ZRE185,ZWE186..RHD..HB..N ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-02460 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-02470 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-02C00 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-02C10 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-12F90 |
NDE180 |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90179-06178 | ||||
| Linked diagrams | ||||
| 5804 | ||||
| 8121 | ||||
| 8401 | ||||
| 8601 | ||||
ILLUST NO. 7 OF13(1210- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-02080 |
NDE180,ZRE185..RHD..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH |
1 | ||
| 82192-02110 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH |
1 | ||
| 82191-02080 |
NDE180,ZRE185..RHD..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH |
1 | ||
| 82192-02110 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH |
1 | ||
| 82192-02110 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH |
1 | ||
| 82192-02110 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH |
1 | ||
ILLUST NO. 8 OF13(1210- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A770 | ||||
| 82711-1E350 | ||||
| 82711-1E360 | ||||
| 82711-35470 | ||||
| 82715-02480 | ||||
| 82715-02F00 | ||||
| 82715-02F10 | ||||
| 82715-02J00 | ||||
| 82715-02J80 | ||||
| 82715-02J90 | ||||
| 82715-02K00 | ||||
| 82715-0D750 | ||||
| 82715-0D770 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12B20 | ||||
| 82715-12B70 | ||||
| 82715-12B80 | ||||
| 82715-12C30 | ||||
| 82715-12C70 | ||||
| 82715-12L40 | ||||
| 82715-12N30 | ||||
| 82715-12N70 | ||||
| 82715-12N90 | ||||
| 82715-12P00 | ||||
| 82715-12P10 | ||||
| 82715-12P20 | ||||
| 82715-47510 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-6A460 | ||||
| 82715-75190 | ||||
| 82715-75260 | ||||
| 82715-WA010 | ||||
| 90119-W0017 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90178-06008 | ||||
| 90178-W0019 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
ILLUST NO. 9 OF13(1210- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02490 | ||||
| 82715-02540 | ||||
| 82715-02750 | ||||
| 82715-02820 | ||||
| 82715-02860 | ||||
| 82715-02J40 | ||||
| 82715-02N70 | ||||
| 82715-02N80 | ||||
| 82715-02N90 | ||||
| 82715-02P00 | ||||
| 82715-02P30 | ||||
| 82715-05280 | ||||
| 82715-05410 | ||||
| 82715-05500 | ||||
| 82715-05510 | ||||
| 82715-12890 | ||||
| 82715-12P30 | ||||
| 82715-12P50 | ||||
| 82715-12P70 | ||||
| 82715-12P80 | ||||
| 82715-12P90 | ||||
| 82715-12Q41 | ||||
| 82715-20A10 | ||||
| 82715-20A70 | ||||
| 82715-28L90 | ||||
| 82715-42740 | ||||
| 82715-47420 | ||||
| 82715-47470 | ||||
| 82715-47480 | ||||
| 82715-47510 | ||||
| 82715-47530 | ||||
| 82715-47540 | ||||
| 82715-47550 | ||||
| 82715-52N20 | ||||
| 82729-20150 | ||||
| 90109-06385 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90119-W0059 | ||||
| 90119-W0173 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
ILLUST NO.11 OF13(1210- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52130 | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10897 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11349 | ||||
| 90980-11659 | ||||
| 90980-12380 | ||||
| 90980-WA052 | ||||

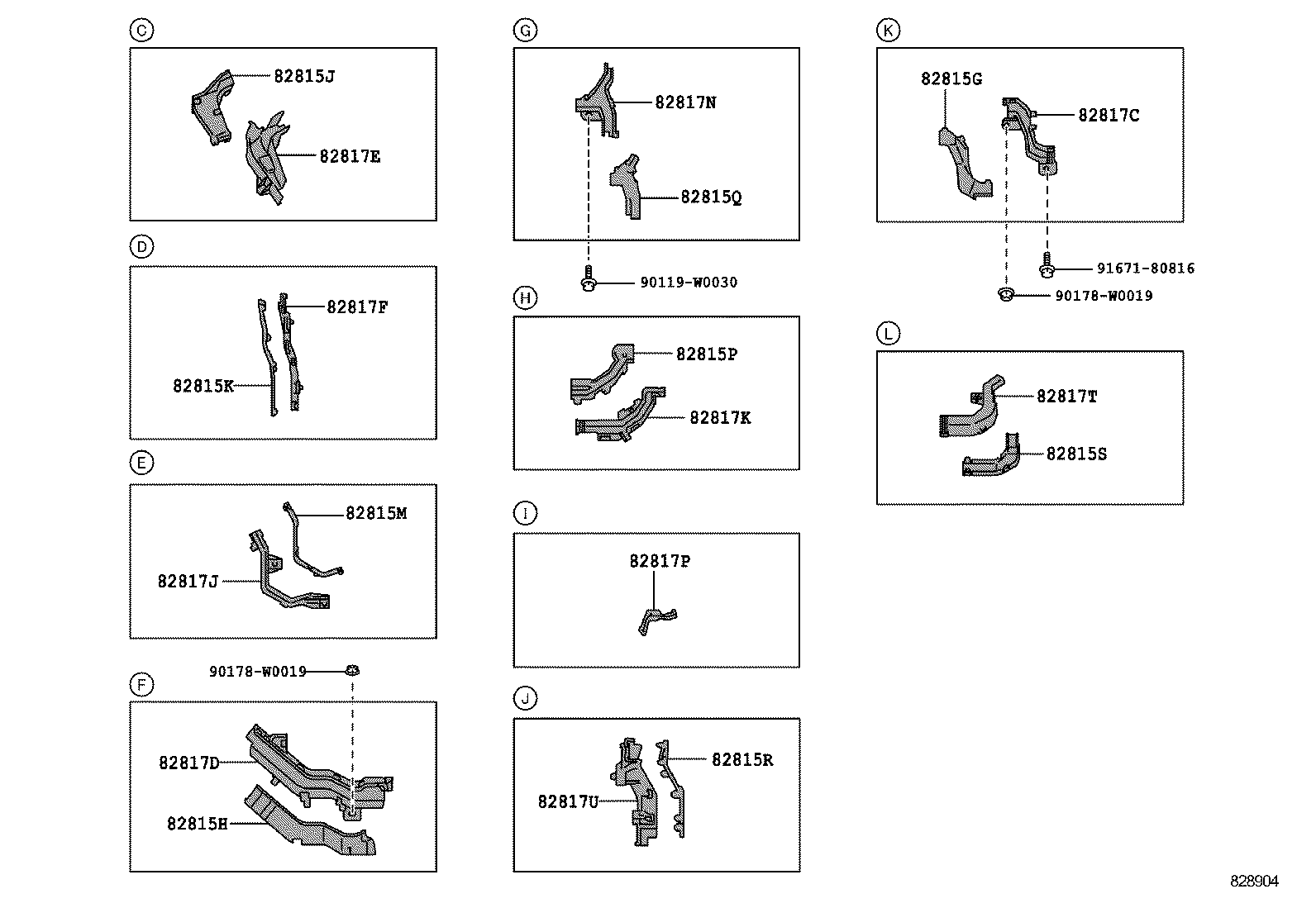

ILLUST NO. 2 OF13(1210-1505)NDE180
ENGINE 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-02290 |
NDE180 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-0D100 |
NDE180 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-0D110 |
NDE180 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-0D120 |
NDE180 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-0D130 |
NDE180 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-0D150 |
NDE180 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-12490 |
NDE180 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-02280 |
NDE180 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-02070 |
ADE186,NDE180 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-02800 |
NDE180 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-0D170 |
NDE180 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-0D180 |
NDE180 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-0D190 |
NDE180 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-0D200 |
NDE180 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-0D210 |
NDE180 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-12F90 |
NDE180 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-12K60 |
NDE180 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-02380 |
ADE186,NDE180 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-02790 |
NDE180 |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90178-W0019 | ||||
| 91671-80816 | ||||
ILLUST NO. 4 OF13(1210- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0Z430 |
NDE180,ZRE185,ZWE186..RHD..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82151-0Z470 |
ZWE186..RHD..N;NDE180,NRE180..RHD..D |
1 | ||
| 82151-0Z470 |
NDE180,NRE180,ZRE185..RHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN) |
1 | ||
| 82151-0Z430 |
NDE180,ZRE185..RHD..N HIGH GRADE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82151-0Z480 |
NDE180,NRE180,ZRE185..RHD..N |
1 | ||
| 82151-0Z471 |
NDE180,NRE180..RHD..D |
1 | ||
| 82151-0Z430 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82151-0Z430 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0Z270 |
NDE180,ZRE185..RHD..N HIGH GRADE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82152-0Z270 |
NDE180,ZRE185,ZWE186..RHD..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82152-0Z270 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82152-0Z270 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82152-0Z320 |
NDE180,NRE180,ZRE185,ZWE186..RHD..(D,N) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02A60 |
NDE180,NRE180,ZRE185..RHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN)&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 82153-02A80 |
NDE180,NRE180,ZRE185..RHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN) |
1 | ||
| 82153-02A60 |
NDE180,NRE180..RHD..D |
1 | ||
| 82153-02B40 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 82153-02B00 |
NDE180,NRE180,ZRE185..RHD..N |
1 | ||
| 82153-02B40 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
1 | ||
| 82153-02B40 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE |
1 | ||
| 82153-02A60 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-02800 |
NDE180,NRE180,ZRE185..RHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN)&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 82154-02820 |
NDE180,NRE180,ZRE185..RHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN) |
1 | ||
| 82154-02880 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 82154-02800 |
NDE180,NRE180..RHD..D |
1 | ||
| 82154-02840 |
NDE180,NRE180,ZRE185..RHD..N |
1 | ||
| 82154-02800 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 82154-02880 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE |
1 | ||
| 82154-02880 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-02340 |
NDE180,NRE180..RHD..HB..D |
1 | ||
| 82184-02340 |
NDE180,NRE180,ZRE185..RHD..HB..N AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82184-02360 |
NDE180,NRE180,ZRE185,ZWE186..RHD..HB..(G,N) |
1 | ||
| 82184-02341 |
NDE180,NRE180..RHD..HB..D |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-02340 |
NDE180,NRE180..RHD..HB..D |
1 | ||
| 82184-02340 |
NDE180,NRE180,ZRE185..RHD..HB..N AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82184-02360 |
NDE180,NRE180,ZRE185,ZWE186..RHD..HB..(G,N) |
1 | ||
| 82184-02341 |
NDE180,NRE180..RHD..HB..D |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
ILLUST NO.12 OF13(1210- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52130 | ||||
| 90980-10795 | ||||
| 90980-10906 | ||||
| 90980-10908 | ||||
| 90980-11070 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
| 90980-12732 | ||||
ILLUST NO.10 OF13(1210- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02P40 | ||||
| 82715-02P70 | ||||
| 82715-0DB70 | ||||
| 82715-0F200 | ||||
| 82715-0F210 | ||||
| 82715-0F220 | ||||
| 82715-12R70 | ||||
| 82715-12R80 | ||||
| 82715-12S50 | ||||
| 82715-12S80 | ||||
| 82715-12S90 | ||||
| 90119-W0019 | ||||
| 90119-W0216 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
ILLUST NO.13 OF13(1210- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52440 | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11875 | ||||
| 90980-12183 | ||||
| 90980-12200 | ||||
| 90980-12221 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
| 90980-12828 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
