NDE180R-DHFNXW (2012)
Toyota Auris/Hybrid (Ukp)

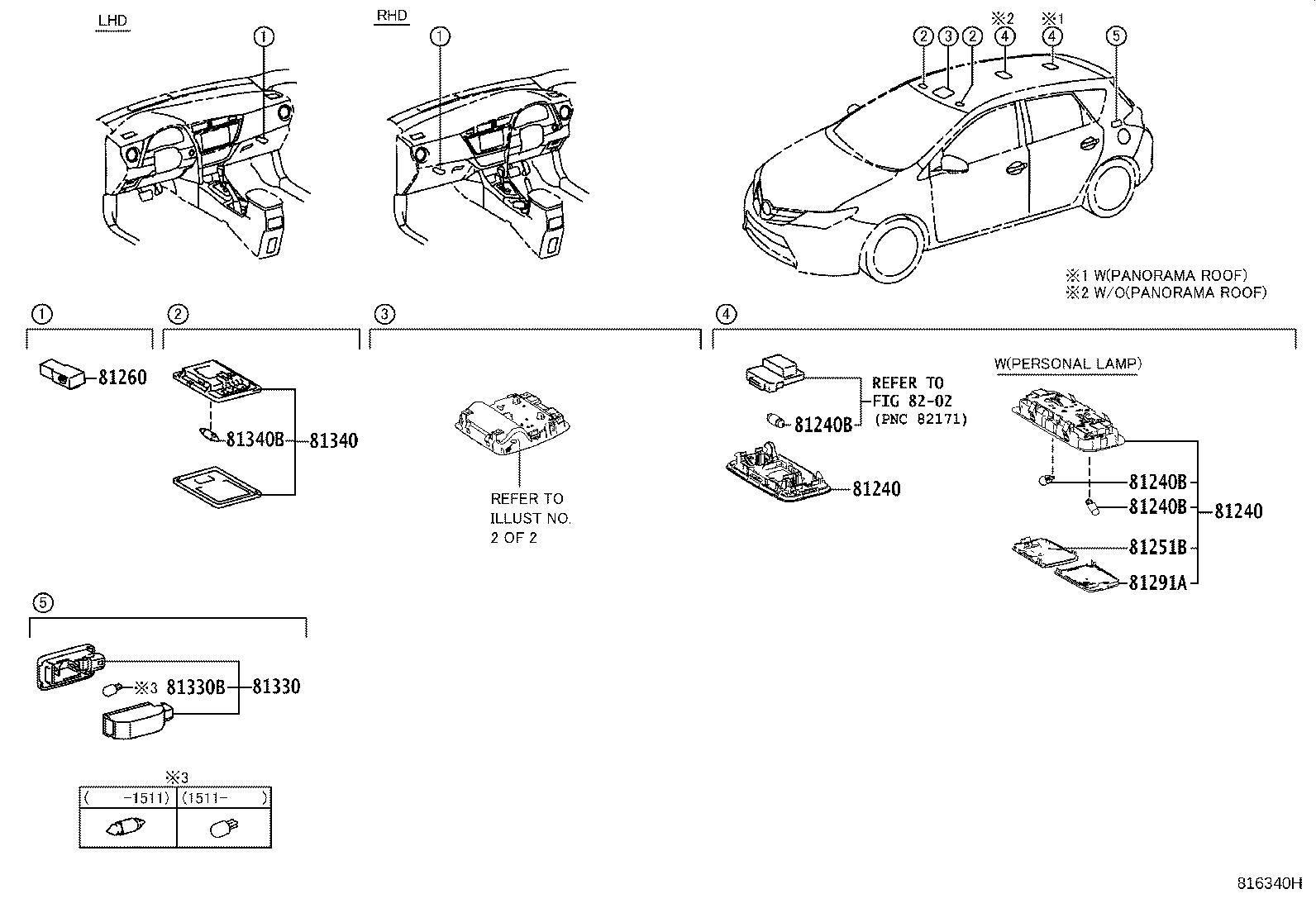

ILLUST NO. 1 OF 2(1210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-02080B0 |
NDE180,NRE180,ZRE185..D LT.GRAY,TRIM2# |
1 | ||
| 81250-05030B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LT.GRAY,TRIM2# |
1 | ||
| 81240-02080B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE),LT.GRAY,TRIM2# |
1 | ||
| 81250-05030B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE,LT.GRAY,TRIM2# |
1 | ||
| 81240-02080B0 |
NDE180,NRE180,ZRE185..D LIGHT GRADE,LT.GRAY,TRIM2# |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-02080B0 |
NDE180,NRE180,ZRE185..D LT.GRAY,TRIM2# |
1 | ||
| 81250-05030B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LT.GRAY,TRIM2# |
1 | ||
| 81240-02080B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE),LT.GRAY,TRIM2# |
1 | ||
| 81250-05030B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE,LT.GRAY,TRIM2# |
1 | ||
| 81240-02080B0 |
NDE180,NRE180,ZRE185..D LIGHT GRADE,LT.GRAY,TRIM2# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
NDE180,NRE180,ZRE185..D 12V 8W |
1 | ||
| 90981-11062 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N 12V 8W |
2 | ||
| 90981-14011 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N 12V 8W,ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
NDE180,NRE180,ZRE185..D 12V 8W |
1 | ||
| 90981-11062 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N 12V 8W |
2 | ||
| 90981-14011 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N 12V 8W,ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
NDE180,NRE180,ZRE185..D 12V 8W |
1 | ||
| 90981-11062 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N 12V 8W |
2 | ||
| 90981-14011 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N 12V 8W,ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 81251B - LENS, REAR ROOM LAMP, RH | ||||
| 81251-05030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-48010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 81291A - LENS, REAR ROOM LAMP, LH | ||||
| 81291-05030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-05050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-WE003 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 12V 5W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-02030B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LT.GRAY,TRIM2# |
2 | ||
| 81340-02030B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE,LT.GRAY,TRIM2# |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-WE003 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N 12V 5W |
2 | ||
| Linked diagrams | ||||
| 8202 | ||||

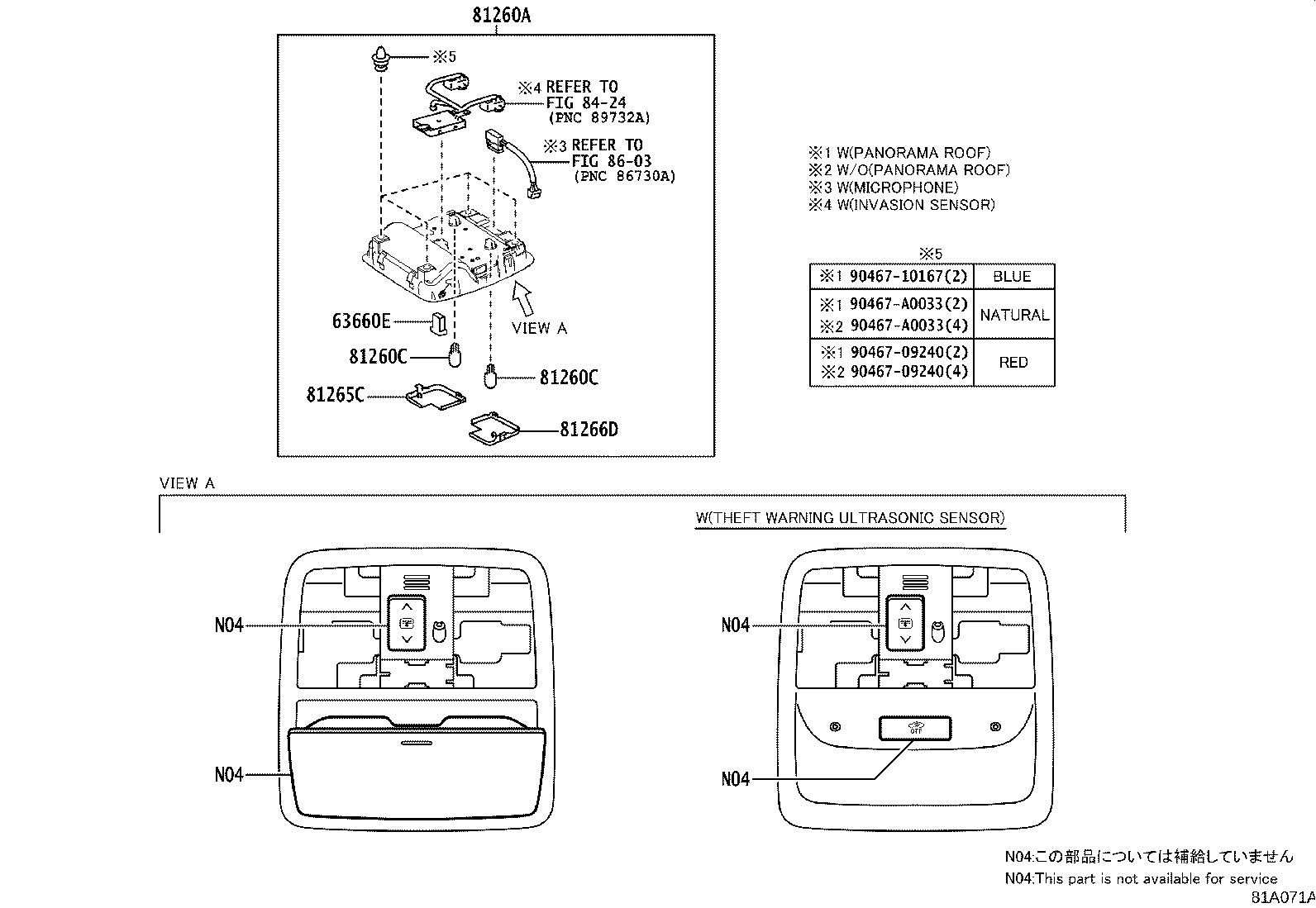

ILLUST NO. 2 OF 2(1210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81260A - LAMP ASSY, MAP | ||||
| 81260-02460B0 |
ADE186,NDE180,NRE180,ZRE185..N LIGHT GRADE,LT.GRAY,TRIM2# |
1 | ||
| 81260-02460B0 |
NDE180,NRE180,ZRE185..D LT.GRAY,TRIM2# |
1 | ||
| 81260-02510B0 |
NDE180,NRE180,ZRE185..RHD..N ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE),LT.GRAY,TRIM2# |
1 | ||
| 81260-02490B0 |
NRE180..RHD..HB..N;NDE180,ZRE185..RHD..N ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&AUDIO-RADIO LESS & 6SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 81260-02490B0 |
NDE180,NRE180,ZRE185..RHD..N LT.GRAY,TRIM2# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 12V 8W |
2 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81265-02460 |
NDE180,NRE180,ZRE185..D |
1 | ||
| 81265-02460 |
ADE186,NDE180,NRE180,ZRE185..N LIGHT GRADE |
1 | ||
| 81265-02480 |
NRE180..HB..N;NRE180..LHD..WG..N;ADE186,NDE180,ZRE185..N ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 81265-02480 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81266-02460 |
ADE186,NDE180,NRE180,ZRE185..N LIGHT GRADE |
1 | ||
| 81266-02480 |
NRE180..HB..N;NRE180..LHD..WG..N;ADE186,NDE180,ZRE185..N ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 81266-02480 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N |
1 | ||
| 81266-02460 |
NDE180,NRE180,ZRE185..D |
1 | ||
| Common parts | ||||
| 90467-09240 | ||||
| 90467-10167 | ||||
| 90467-A0033 | ||||
| Linked diagrams | ||||
| 8424 | ||||
| 8603 | ||||
