NDE180R-DHFNXW (2012)
Toyota Auris/Hybrid (Ukp)

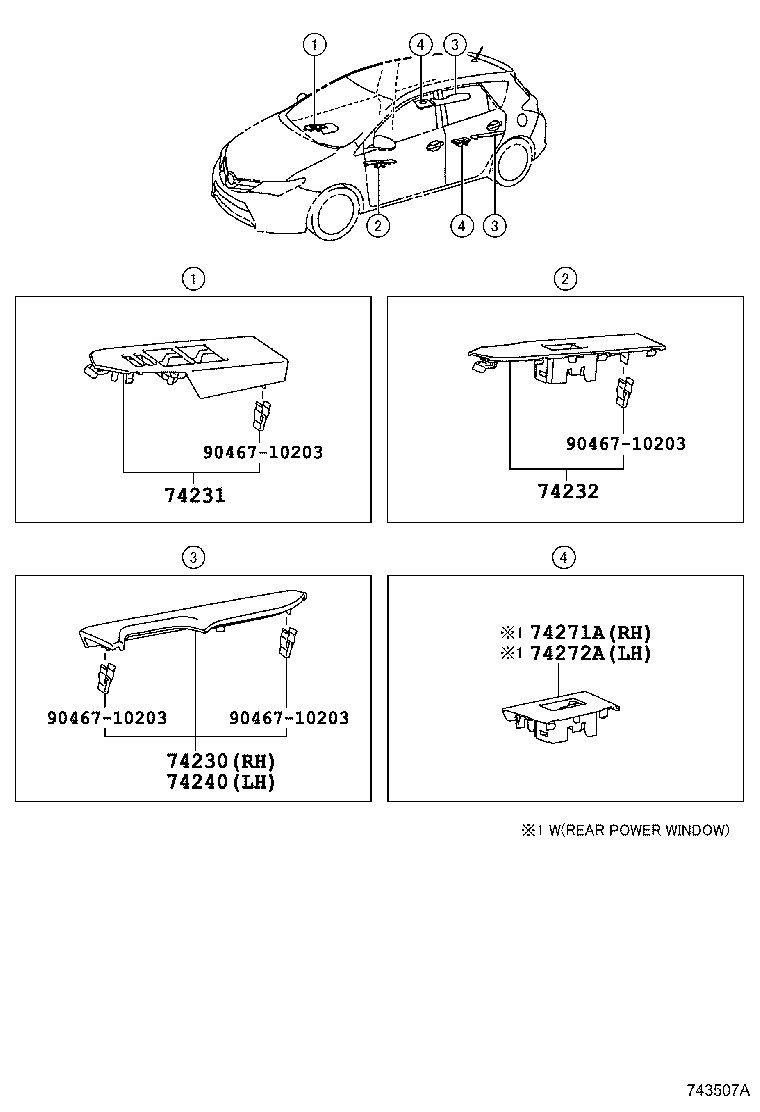

ILLUST NO. 1 OF 2(1210- )RHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74250-02070C4 |
NDE180,NRE180,ZRE185..RHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2# |
1 | ||
| 74250-02130C2 |
NRE180..LHD..N;ADE186,NDE180,ZRE185..N SPORT PACKAGE&POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN)&SEAT COVER MATERIAL-FABLIC(SPORT GRADE),BLACK,TRIM2# |
1 | ||
| 74250-02030C2 |
NDE180,NRE180,ZRE185..D BLACK,TRIM2# |
1 | ||
| 74250-02040C3 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE),BLACK,TRIM2# |
1 | ||
| 74250-02120C3 |
ADE186,NDE180,NRE180,ZRE185..N BLACK,TRIM2# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-02D30C0 |
NDE180,NRE180,ZRE185..RHD..N BLACK,TRIM2# |
1 | ||
| 74231-02D20C0 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N LIGHT GRADE,BLACK,TRIM2# |
1 | ||
| 74231-02D40C0 |
NDE180,ZRE185,ZWE186..RHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN),BLACK,TRIM2# |
1 | ||
| 74231-02D20C0 |
NDE180,NRE180..RHD..D BLACK,TRIM2# |
1 | ||
| 74231-02D20C0 |
NDE180,NRE180,ZRE185..RHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2# |
1 | ||
| 74231-02D40C0 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE,BLACK,TRIM2# |
1 | ||
| 74231-02D40C0 |
NDE180..RHD..6F..N;ZRE185,ZWE186..RHD..N COMFORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-02E00C0 |
NDE180,NRE180,ZRE185,ZWE186..RHD..(D,N) BLACK,TRIM2# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74260-02060C4 |
NDE180,NRE180,ZRE185..RHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2# |
1 | ||
| 74260-02100C2 |
NRE180..LHD..N;ADE186,NDE180,ZRE185..N SPORT PACKAGE&POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN)&SEAT COVER MATERIAL-FABLIC(SPORT GRADE),BLACK,TRIM2# |
1 | ||
| 74260-02030C3 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE),BLACK,TRIM2# |
1 | ||
| 74260-02090C3 |
ADE186,NDE180,NRE180,ZRE185..N BLACK,TRIM2# |
1 | ||
| 74260-02020C3 |
NDE180,NRE180,ZRE185..D BLACK,TRIM2# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-02630C0 |
ADE186,NDE180,NRE180,ZRE185..N BLACK,TRIM2# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-02630C0 |
ADE186,NDE180,NRE180,ZRE185..N BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||

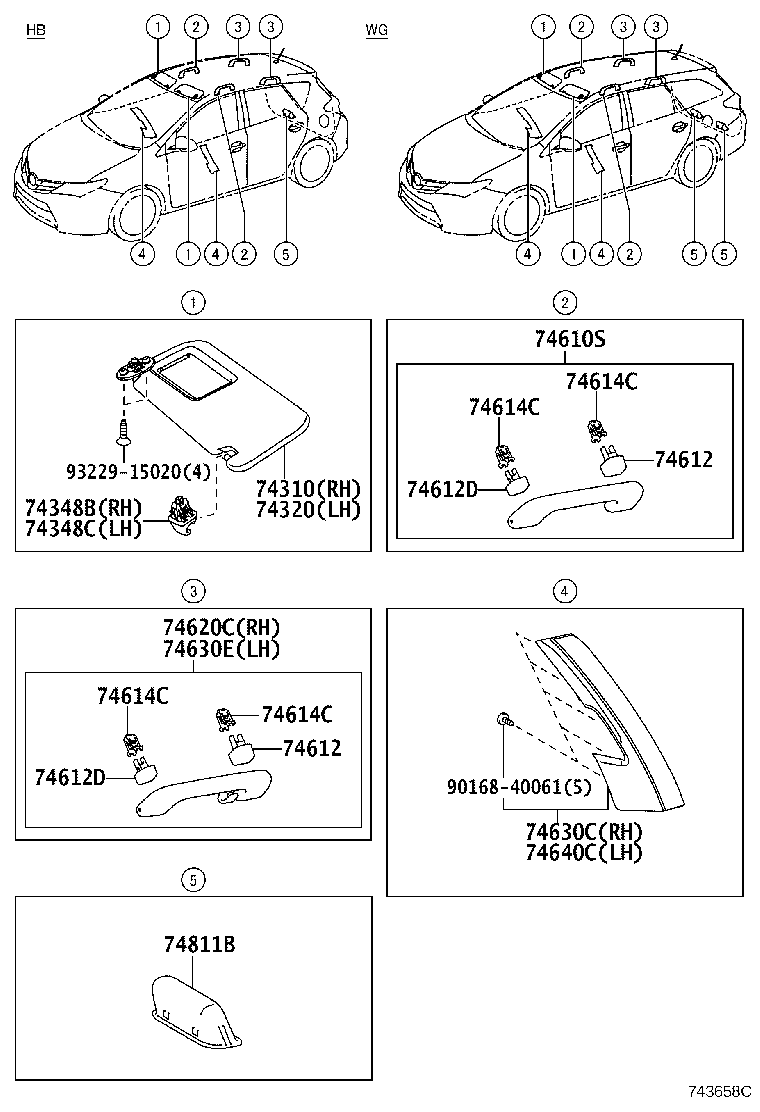

ILLUST NO. 2 OF 2(1210- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-0D660B1 |
NDE180,NRE180,ZRE185,ZWE186..RHD..(D,N) LT.GRAY,TRIM2# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-02D70B0 |
NDE180,NRE180,ZRE185,ZWE186..RHD..(D,N) LT.GRAY,TRIM2# |
1 | ||
| 74348B - HOLDER, VISOR, RH | ||||
| 74348-33040B1 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LT.GRAY,TRIM2# |
1 | ||
| 74348C - HOLDER, VISOR, LH | ||||
| 74348-33040B1 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LT.GRAY,TRIM2# |
1 | ||
| 74610S - GRIP ASSY, ASSIST | ||||
| 74610-02170B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LT.GRAY,TRIM2# |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-02150B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LT.GRAY,TRIM2# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-02150B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LT.GRAY,TRIM2# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-02060B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LT.GRAY,TRIM2# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-02060B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LT.GRAY,TRIM2# |
4 | ||
| 74614C - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
8 | ||
| 74614C - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
8 | ||
| 74614C - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
8 | ||
| 74614C - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
8 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-02180B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LT.GRAY,TRIM2# |
1 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-02060B1 |
ZWE186..N;NDE180,NRE180,ZRE185..D MD.SILVER,TRIM2# |
1 | ||
| 74630-02060B1 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE,MD.SILVER,TRIM2# |
1 | ||
| 74630-02050B0 |
ADE186,NDE180,NRE180,ZRE185..N SPORT PACKAGE,GRAY,TRIM2# |
1 | ||
| 74630-02040B0 |
ADE186,NDE180,NRE180,ZRE185..N METAL SILVER,TRIM2# |
1 | ||
| 74630-02060B1 |
ADE186,NDE180,NRE180,ZRE185..N MODELYEAR 14,MD.SILVER,TRIM2# |
1 | ||
| 74630-02060B1 |
ADE186,NDE180,NRE180,ZRE185..N LIGHT GRADE,MD.SILVER,TRIM2# |
1 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74610-02180B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LT.GRAY,TRIM2# |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-02030B0 |
ADE186,NDE180,NRE180,ZRE185..N METAL SILVER,TRIM2# |
1 | ||
| 74640-02040B0 |
ADE186,NDE180,NRE180,ZRE185..N SPORT PACKAGE,GRAY,TRIM2# |
1 | ||
| 74640-02050B1 |
ADE186,NDE180,NRE180,ZRE185..N LIGHT GRADE,MD.SILVER,TRIM2# |
1 | ||
| 74640-02050B1 |
ZWE186..N;NDE180,NRE180,ZRE185..D MD.SILVER,TRIM2# |
1 | ||
| 74640-02050B1 |
ADE186,NDE180,NRE180,ZRE185..N MODELYEAR 14,MD.SILVER,TRIM2# |
1 | ||
| 74640-02050B1 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE,MD.SILVER,TRIM2# |
1 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 74811-02030C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 74811-28020C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90168-40061 | ||||
| 93229-15020 | ||||
