NDE180R-DHFNXW (2012)
Toyota Auris/Hybrid (Ukp)

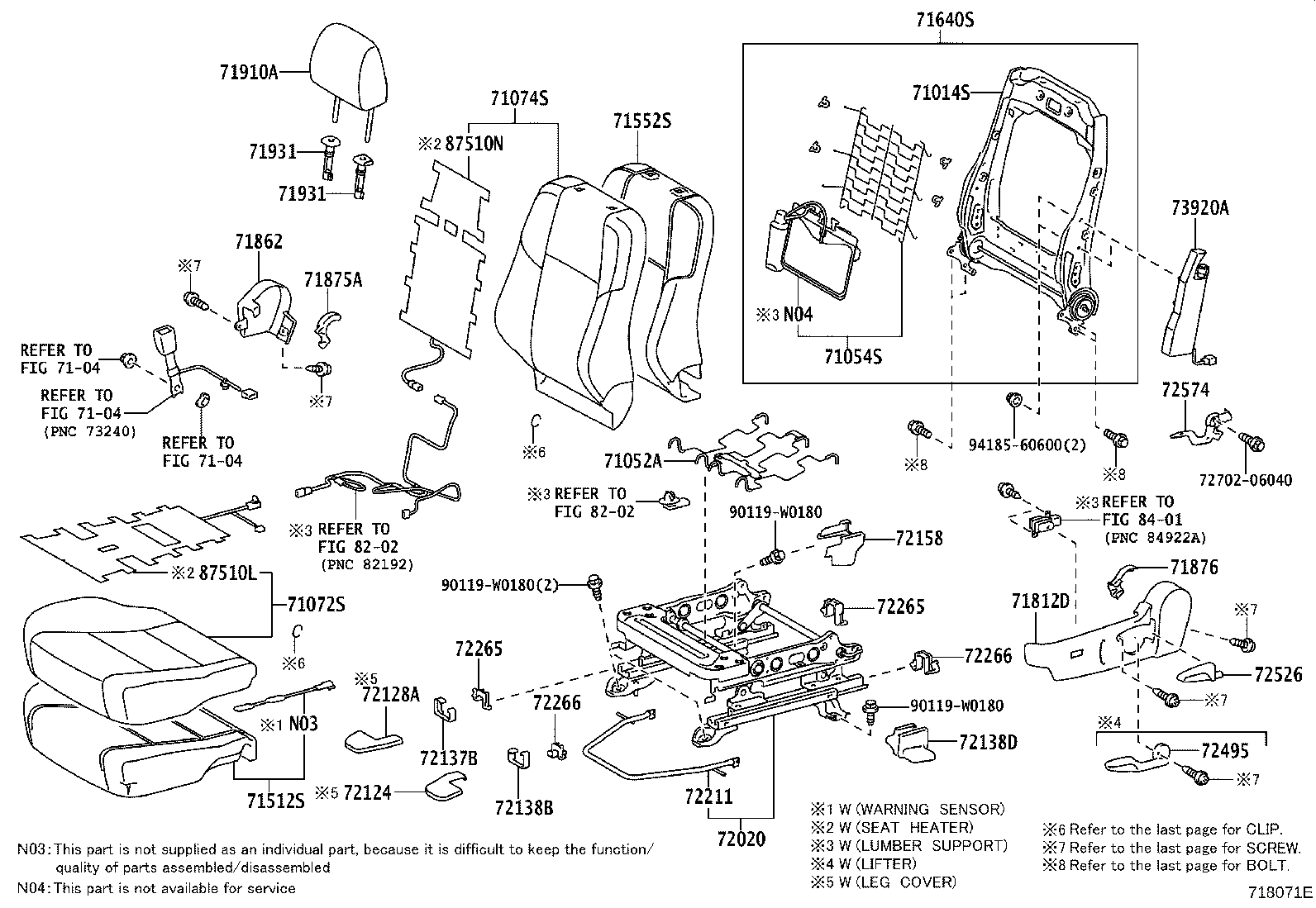

ILLUST NO. 1 OF 2(1210- )
LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-02100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-02300 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-02080 |
ZWE186..RHD;ZWE186..LHD..N;ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0Z030C2 |
NDE180,NRE180,ZRE185..D BLACK,TRIM2# |
1 | ||
| 71072-0Z030C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
1 | ||
| 71072-0Z140C0 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE),BLACK,TRIM2# |
1 | ||
| 71072-0Z160C1 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71072-0Z040C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N BLACK,TRIM2# |
1 | ||
| 71072-0Z130C1 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71072-0Z070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71072-0Z150C0 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0Z820C0 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE),BLACK,TRIM2# |
1 | ||
| 71074-0Z840C3 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71074-0Z780C2 |
NDE180,NRE180,ZRE185..D BLACK,TRIM2# |
1 | ||
| 71074-0Z810C2 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71074-0Z790C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N BLACK,TRIM2# |
1 | ||
| 71074-0Z780C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
1 | ||
| 71074-0Z781C2 |
NDE180,NRE180,ZRE185..D BLACK,TRIM2# |
1 | ||
| 71074-0Z791C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N BLACK,TRIM2# |
1 | ||
| 71074-0ZK10C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71074-0Z830C0 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71074-0Z811C2 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71074-0Z831C0 |
ADE186,NDE180,NRE180,ZRE185..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71074-0Z841C3 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71074-0Z781C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
1 | ||
| 71074-0ZK11C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-02110 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 71501-02120 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH |
1 | ||
| 71501-02120 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH |
1 | ||
| 71501-02121 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH |
1 | ||
| 71501-02111 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 71501-02120 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE) |
1 | ||
| 71501-02121 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02650 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE) |
1 | ||
| 71552-02650 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH |
1 | ||
| 71552-02630 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 71552-02650 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-02620 |
ZWE186..RHD;ZWE186..LHD..N;ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02480C0 |
NDE180,NRE180..RHD..D BLACK,TRIM2# |
1 | ||
| 71812-02490C0 |
NDE180,NRE180..N;NDE180,NRE180..LHD..D;ADE186,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 71812-02480C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-02190C0 |
NDE180,NRE180..RHD..D BLACK,TRIM2# |
1 | ||
| 71862-02200C0 |
NDE180,NRE180..N;NDE180,NRE180..LHD..D;ADE186,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 71862-02190C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-02170C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-02170C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02G80C5 |
NRE180..LHD..WG..N;NDE180,ZRE185..RHD..HB..MTM..N;ADE186,NDE180,ZRE185..WG..6F..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-02G90C0 |
NDE180,NRE180,ZRE185..RHD..MTM..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE),BLACK,TRIM2# |
2 | ||
| 71910-02G80C6 |
NRE180..LHD..WG..N;NDE180,ZRE185..RHD..HB..MTM..N;ADE186,NDE180,ZRE185..WG..6F..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-02G60C1 |
NDE180,NRE180,ZRE185..6F..D BLACK,TRIM2# |
2 | ||
| 71910-02G60C1 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71910-02G70C0 |
ZRE185..6F..N;ADE186,NDE180,NRE180,ZWE186..N BLACK,TRIM2# |
2 | ||
| 71910-02J00C2 |
NRE180..LHD..WG..N;NDE180,ZRE185..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..6F..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-02G90C1 |
ZRE185..6F..N;ADE186,NDE180,NRE180,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-02G90C0 |
NDE180,NRE180,ZRE185..RHD..MTM..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-02G81C6 |
NRE180..LHD..WG..N;NDE180,ZRE185..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..6F..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02330C4 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-02150C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02330C4 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-02150C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-02440 |
NDE180,NRE180..N;ADE186,ZRE185,ZWE186;NDE180,NRE180..LHD..D |
1 | ||
| 72020-02450 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE) |
1 | ||
| 72020-02450 |
NDE180,NRE180..RHD..D |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N SUB COLD AREA SPEC,BLACK,TRIM2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-02010C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N SUB COLD AREA SPEC,BLACK,TRIM2# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72138-02210C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-02260C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 72138D - COVER, SEAT TRACK, OUTER, LH | ||||
| 72138-02190C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02190C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-02060C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REAR |
2 | ||
| 72265-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,FRONT |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-02060C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REAR |
2 | ||
| 72265-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,FRONT |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-02060C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,FRONT |
2 | ||
| 72265-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REAR |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-02060C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,FRONT |
2 | ||
| 72265-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REAR |
2 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-02030C0 |
NDE180,NRE180..N;NDE180,NRE180..LHD..D;ADE186,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-02170C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 72574 - LEVER, RECLINING CONTROL, LH | ||||
| 72574-06010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-02090 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-02160 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH |
1 | ||
| 87510-02160 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH |
1 | ||
| 87510-02160 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH |
1 | ||
| 87510-02160 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-02010 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH |
1 | ||
| 87530-02010 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH |
1 | ||
| 87530-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH |
1 | ||
| 87530-02020 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH |
1 | ||
| Common parts | ||||
| 72702-06040 | ||||
| 90119-W0180 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

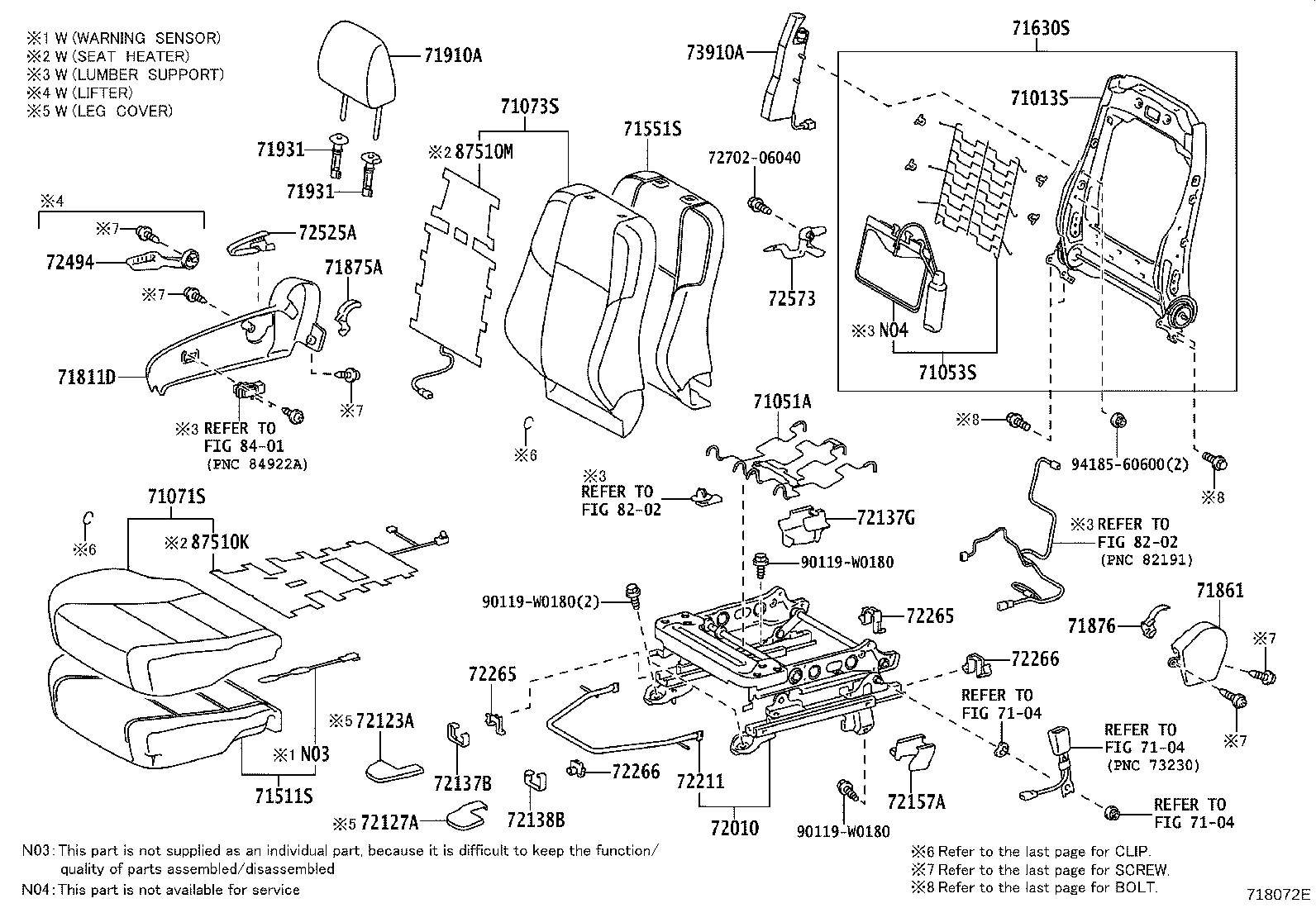

ILLUST NO. 2 OF 2(1210- )
RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-02100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-02300 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-02100 |
NDE180,ZRE185..RHD..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH |
1 | ||
| 71053-02140 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH |
1 | ||
| 71053-02080 |
ZWE186..LHD..G;ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 71053-02140 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH |
1 | ||
| 71053-02140 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH |
1 | ||
| 71053-02100 |
NDE180,ZRE185..RHD..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH |
1 | ||
| 71053-02140 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0ZA20C0 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE),BLACK,TRIM2# |
1 | ||
| 71071-0Z880C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
1 | ||
| 71071-0Z880C2 |
NDE180,NRE180,ZRE185..D BLACK,TRIM2# |
1 | ||
| 71071-0Z890C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N BLACK,TRIM2# |
1 | ||
| 71071-0ZA80C1 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71071-0ZE50C0 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71071-0ZB10C1 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71071-0ZA90C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0Z880C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
1 | ||
| 71073-0Z880C2 |
NDE180,NRE180,ZRE185..D BLACK,TRIM2# |
1 | ||
| 71073-0ZA20C0 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE),BLACK,TRIM2# |
1 | ||
| 71073-0Z890C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N BLACK,TRIM2# |
1 | ||
| 71073-0ZA40C2 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71073-0ZA10C2 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71073-0ZA30C0 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71073-0Z881C2 |
NDE180,NRE180,ZRE185..D BLACK,TRIM2# |
1 | ||
| 71073-0ZA41C2 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71073-0ZA11C2 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71073-0ZA31C0 |
ADE186,NDE180,NRE180,ZRE185..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71073-0ZL00C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71073-0Z881C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
1 | ||
| 71073-0Z891C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N BLACK,TRIM2# |
1 | ||
| 71073-0ZL01C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02450 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 71511-02610 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE) |
1 | ||
| 71511-02610 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH |
1 | ||
| 71511-02610 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-02810 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE) |
1 | ||
| 71551-02810 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH |
1 | ||
| 71551-02810 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH |
1 | ||
| 71551-02790 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02610 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH |
1 | ||
| 71630-02610 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH |
1 | ||
| 71630-02610 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH |
1 | ||
| 71630-02610 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH |
1 | ||
| 71630-02620 |
ZWE186..LHD..G;ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02400C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
1 | ||
| 71811-02400C0 |
NDE180,NRE180..RHD..D LIGHT GRADE,BLACK,TRIM2# |
1 | ||
| 71811-02410C0 |
NDE180,NRE180..RHD;NDE180,NRE180..LHD..N;ADE186,ZRE185,ZWE186..N BLACK,TRIM2# |
1 | ||
| 71811-02420C0 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71811-02420C0 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71811-02420C0 |
NDE180,NRE180,ZRE185,ZWE186..RHD..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71811-02420C0 |
ZRE185..RHD;NDE180..RHD..6F..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-02170C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
1 | ||
| 71861-02180C0 |
NDE180,NRE180..RHD;NDE180,NRE180..LHD..N;ADE186,ZRE185,ZWE186..N BLACK,TRIM2# |
1 | ||
| 71861-02170C0 |
NDE180,NRE180..RHD..D LIGHT GRADE,BLACK,TRIM2# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-02170C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-02170C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02G80C5 |
NRE180..LHD..WG..N;NDE180,ZRE185..RHD..HB..MTM..N;ADE186,NDE180,ZRE185..WG..6F..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-02G90C0 |
NDE180,NRE180,ZRE185..RHD..MTM..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE),BLACK,TRIM2# |
2 | ||
| 71910-02G80C6 |
NRE180..LHD..WG..N;NDE180,ZRE185..RHD..HB..MTM..N;ADE186,NDE180,ZRE185..WG..6F..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-02G60C1 |
NDE180,NRE180,ZRE185..6F..D BLACK,TRIM2# |
2 | ||
| 71910-02G60C1 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2# |
2 | ||
| 71910-02G70C0 |
ZRE185..6F..N;ADE186,NDE180,NRE180,ZWE186..N BLACK,TRIM2# |
2 | ||
| 71910-02J00C2 |
NRE180..LHD..WG..N;NDE180,ZRE185..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..6F..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-02G90C1 |
ZRE185..6F..N;ADE186,NDE180,NRE180,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-02G90C0 |
NDE180,NRE180,ZRE185..RHD..MTM..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-02G81C6 |
NRE180..LHD..WG..N;NDE180,ZRE185..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..6F..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02330C4 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-02150C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02330C4 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-02150C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-02470 |
NDE180,NRE180..RHD..D LIGHT GRADE |
1 | ||
| 72010-02470 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE) |
1 | ||
| 72010-02480 |
NDE180,NRE180..RHD;NDE180,NRE180..LHD..N;ADE186,ZRE185,ZWE186..G,N |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N SUB COLD AREA SPEC,BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-02030C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N SUB COLD AREA SPEC,BLACK,TRIM2# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72138-02210C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 72137G - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-02240C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-02260C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02230C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-02060C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REAR |
2 | ||
| 72265-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,FRONT |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-02060C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REAR |
2 | ||
| 72265-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,FRONT |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-02060C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,FRONT |
2 | ||
| 72265-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REAR |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-02060C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,FRONT |
2 | ||
| 72265-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2#,REAR |
2 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-02120C0 |
NDE180,NRE180..RHD;NDE180,NRE180..LHD..N;ADE186,ZRE185,ZWE186..N BLACK,TRIM2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-02140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 72573 - LEVER, RECLINING CONTROL, RH | ||||
| 72573-06010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-02070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-02160 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH |
1 | ||
| 87510-02160 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH |
1 | ||
| 87510-02160 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-02010 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH |
1 | ||
| 87530-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH |
1 | ||
| 87530-02010 |
ZRE185..RHD..HB;NRE180..LHD..WG..N;NDE180..RHD..HB..6F..N;ADE186,NDE180,ZRE185..WG..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH |
1 | ||
| 87530-02020 |
NDE180,NRE180,ZRE185..RHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH |
1 | ||
| Common parts | ||||
| 72702-06040 | ||||
| 90119-W0180 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
(1210- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 7119A-02010 | ||||
| 7232A-02010 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
