NDE180R-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )RHD

Click highlighted areas on diagram

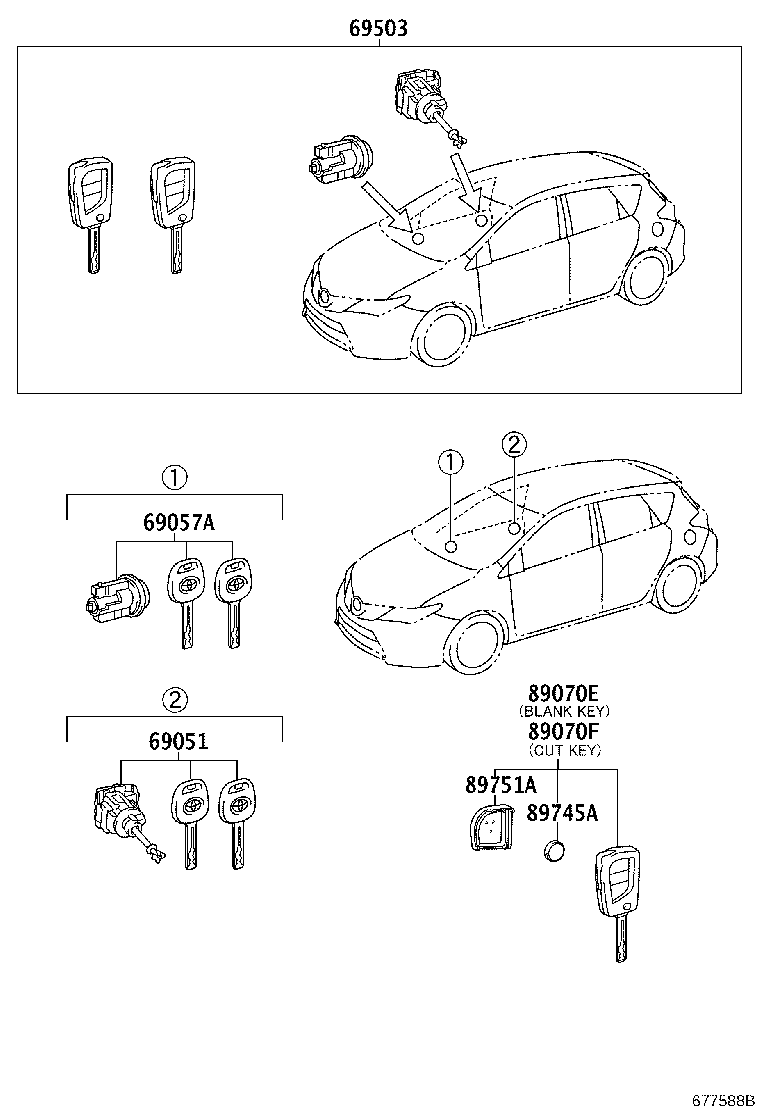

W/O(SMART ENTRY)

diagram 69051 69057A 69503 89070E 89070F 89745A 89751A
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-02220

NDE180,NRE180,ZRE185..RHD

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-02680

NDE180,NRE180,ZRE185..RHD

 1
69503 - CYLINDER SET, LOCK
69005-02830

ZRE185..RHD;NDE180..RHD..6F..N

WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)

 1
89704-02600

NDE180,NRE180,ZRE185..RHD

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-02850

NDE180,ZRE185..RHD..N

HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)

 1
89070-02850

ADE186,NDE180,NRE180,ZRE185

 1
89070-02850

NDE180,ZRE185..RHD..N

COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)

 1
89070F - TRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
89070-02830

NDE180,NRE180,ZRE185..RHD

 2
89745A - BATTERY, TRANSMITTER
89745-0H010

NDE180,NRE180,ZRE185..RHD

 1
89751A - COVER, TRANSMITTER HOUSING
89751-05020

NDE180,NRE180,ZRE185..RHD

 2

(1210- )RHD

Click highlighted areas on diagram

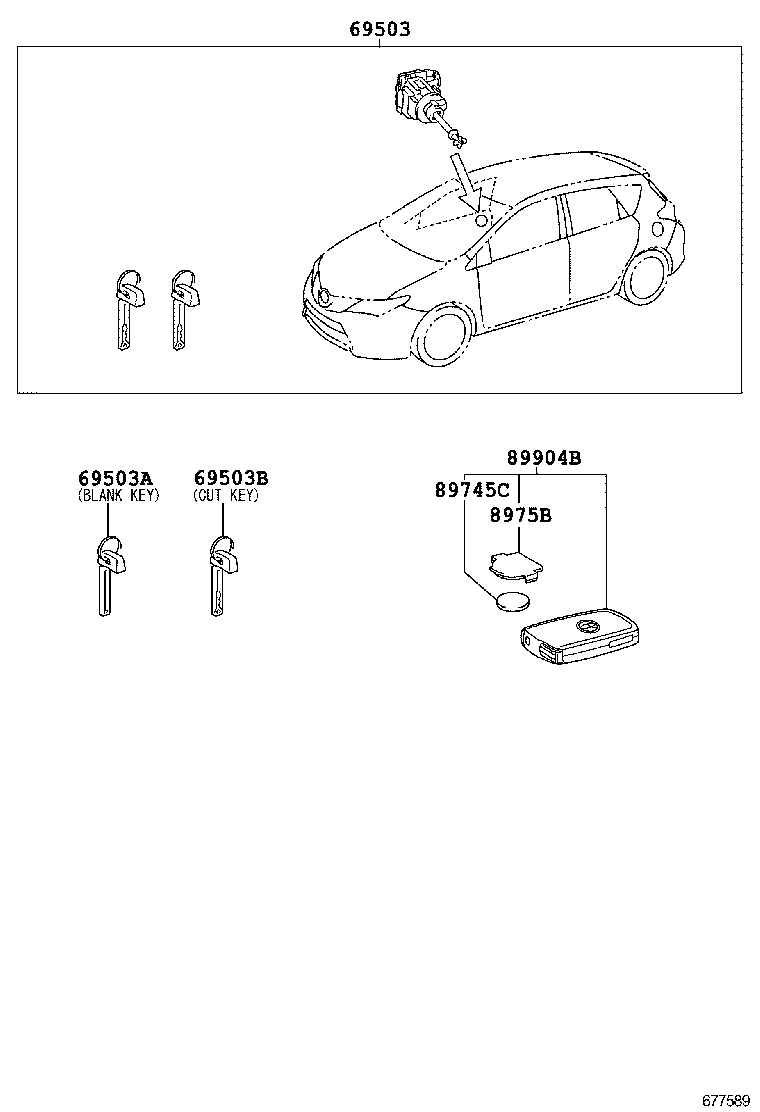

W(SMART ENTRY)

diagram 69503 69503A 69503B 89745C 8975B 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-02830

ZRE185..RHD;NDE180..RHD..6F..N

WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)

 1
89704-02600

NDE180,NRE180,ZRE185..RHD

 1
69503A - KEY, BLANK
69515-33100

ZRE185..RHD;NDE180..RHD..6F..N

MASTER KEY,W(*68),WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)

 1
69503B - KEY, CUT
69515-33090

ZRE185..RHD;NDE180..RHD..6F..N

MASTER KEY,W(*68),WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)

 2
89745C - BATTERY, TRANSMITTER
89745-50020

ZRE185..RHD;NDE180..RHD..6F..N

HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)

 1
89745-50020

ZRE185..RHD;NDE180..RHD..6F..N

COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)

 1
8975B - COVER, TRANSMITTER BATTERY HOUSING
8975B-33010

ZRE185..RHD;NDE180..RHD..6F..N

COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)

 2
8975B-33010

ZRE185..RHD;NDE180..RHD..6F..N

HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)

 2
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-0D130

ZRE185..RHD;NDE180..RHD..6F..N

HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)

 2
89904-0D130

ZRE185..RHD;NDE180..RHD..6F..N

COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)

 2
