NDE180R-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )

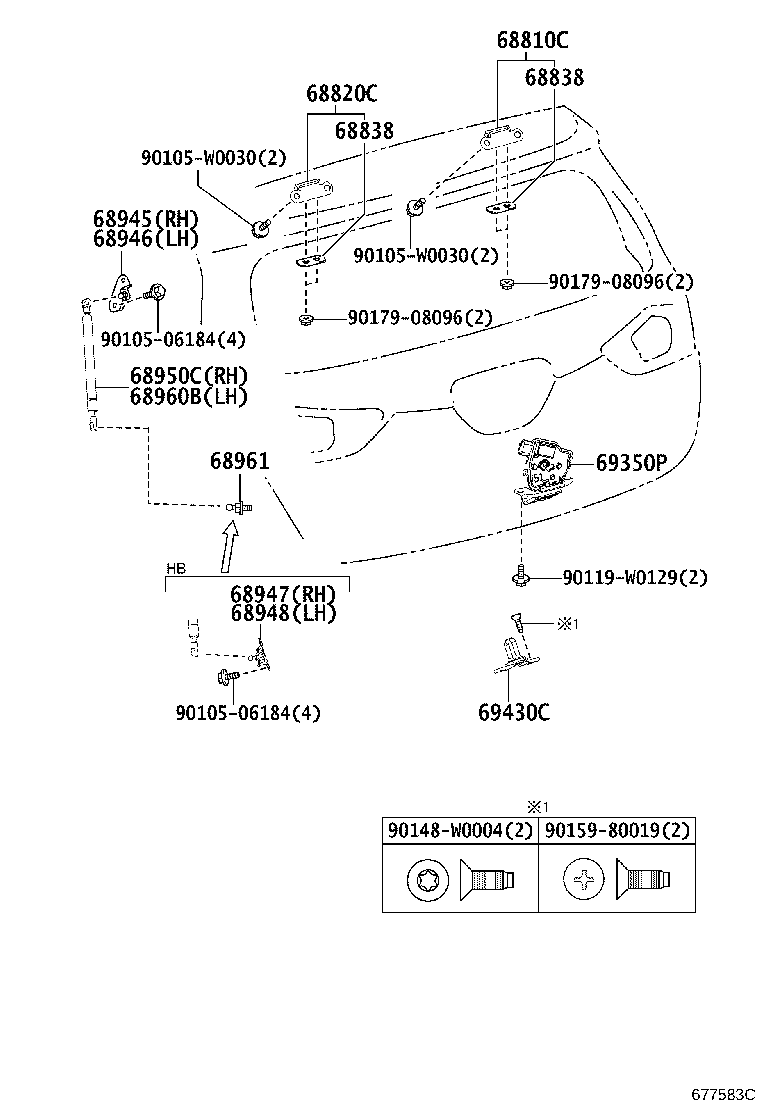

Click highlighted areas on diagram

diagram 68810C 68820C 68838 68838 68945 68946 68947 68948 68950C 68960B 68961 69350P 69430C 9010506184 9010506184 90105W0030 90105W0030 90119W0129 90148W0004 9015980019 9017908096 9017908096
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68810-02020

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
68820C - HINGE ASSY, BACK DOOR, LH
68810-02020

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-05050

ADE186,NDE180,NRE180,ZRE185,ZWE186

T=1.6

 2
68838-05040

ADE186,NDE180,NRE180,ZRE185,ZWE186

T=1.0

 2
68838-05060

ADE186,NDE180,NRE180,ZRE185,ZWE186

T=2.0

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-05050

ADE186,NDE180,NRE180,ZRE185,ZWE186

T=1.6

 2
68838-05040

ADE186,NDE180,NRE180,ZRE185,ZWE186

T=1.0

 2
68838-05060

ADE186,NDE180,NRE180,ZRE185,ZWE186

T=2.0

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-12050

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-12020

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-12050

ADE186,NDE180,NRE180,ZRE185,ZWE186..HB

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-12050

ADE186,NDE180,NRE180,ZRE185,ZWE186..HB

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-02130

ADE186,NDE180,NRE180,ZRE185,ZWE186..HB

 1
68960B - STAY ASSY, BACK DOOR, LH
68960-02120

ADE186,NDE180,NRE180,ZRE185,ZWE186..HB

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-02090

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-02030

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
Common parts
90105-06184
90105-W0030
90119-W0129
90148-W0004
90159-80019
90179-08096
