NDE180R-DHFNXW (2012)
Toyota Auris/Hybrid (Ukp)

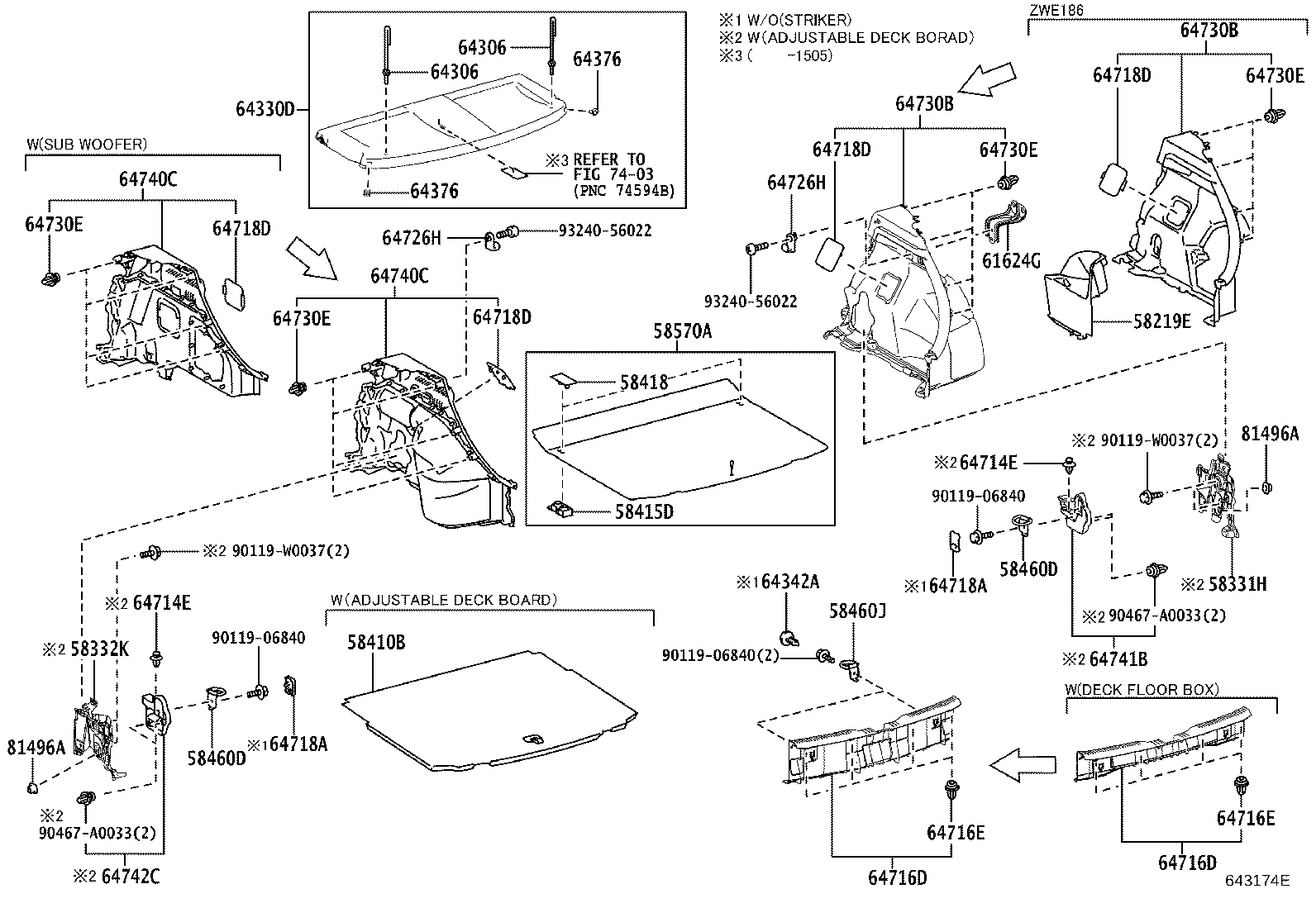

ILLUST NO. 1 OF 2(1210- )HB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58331H - BRACKET, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 58331-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(G,N) DECK BOARD-WITH(ADJUSTABLE DECK BOARD) |
1 | ||
| 58332K - BRACKET, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 58332-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(G,N) DECK BOARD-WITH(ADJUSTABLE DECK BOARD) |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-02050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 58415D - BRACKET, DECK BOARD SUPPORT | ||||
| 58415-02080 |
ADE186,NDE180,NRE180,ZRE185..HB SPARE TIRE-GROUND TIRE(STEEL WHEEL) |
2 | ||
| 58415-02080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F |
2 | ||
| 58418 - BRACKET, DECK BOARD, NO.1 | ||||
| 58417-02010 |
ADE186,NDE180,NRE180,ZRE185..HB SPARE TIRE-GROUND TIRE(STEEL WHEEL) |
2 | ||
| 58417-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZRE185..WG;ZRE185..HB..N;NDE180,NRE180..WG..D;ADE186,NDE180,NRE180,ZWE186..G,N |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZRE185..WG;ZRE185..HB..N;NDE180,NRE180..WG..D;ADE186,NDE180,NRE180,ZWE186..G,N |
2 | ||
| 58460J - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZRE185..WG;ZRE185..HB..N;NDE180,NRE180..WG..D;ADE186,NDE180,NRE180,ZWE186..G,N |
2 | ||
| 58570A - MAT ASSY, REAR FLOOR | ||||
| 58570-02140C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 58570-02140C0 |
NDE180,NRE180,ZRE185..HB..D LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
1 | ||
| 58570-02140C0 |
ADE186,NDE180,NRE180,ZRE185..HB..N LIGHT GRADE&DECK BOARD-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
1 | ||
| 58570-02140C0 |
ADE186,NDE180,NRE180,ZRE185..HB..N LIGHT GRADE&SPARE TIRE-WITHOUT&DECK BOARD-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
1 | ||
| 58570-02140C0 |
NDE180,NRE180,ZRE185..HB..D LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
1 | ||
| 58570-02220C0 |
ADE186,NDE180,NRE180,ZRE185..HB SPARE TIRE-GROUND TIRE(STEEL WHEEL),BLACK,TRIM2# |
1 | ||
| 58570-02220C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,BLACK,TRIM2# |
1 | ||
| 58570-02140C0 |
ADE186,NDE180,NRE180,ZRE185..HB..N SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F&DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 61624G - BRACKET, DECK SIDE TRIM UPPER, RH | ||||
| 58337-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-02070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
2 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-02070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
2 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-02A30C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) LIGHT GRADE,BLACK,TRIM2# |
1 | ||
| 64330-02A30C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 64342A - CLIP | ||||
| 90467-W0006C0 |
NDE180,NRE180,ZRE185..HB..D BLACK,TRIM2# |
2 | ||
| 90467-W0006C0 |
NDE180,NRE180..RHD..HB..D LIGHT GRADE&SPARE TIRE-WITHOUT,BLACK,TRIM2# |
2 | ||
| 90467-W0006C0 |
NDE180,NRE180,ZRE185..HB..D LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
2 | ||
| 64376 - SPACER, PACKAGE TRAY TRIM, NO.2 | ||||
| 64376-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
2 | ||
| 64376 - SPACER, PACKAGE TRAY TRIM, NO.2 | ||||
| 64376-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
2 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 90467-07076C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
2 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 90467-07076C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
2 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-02120C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 64716-02120C0 |
NDE180,NRE180..RHD..HB..D LIGHT GRADE&SPARE TIRE-WITHOUT,BLACK,TRIM2# |
1 | ||
| 64716-02120C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
1 | ||
| 64716-02130C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,BLACK,TRIM2# |
1 | ||
| 64716-02130C0 |
ADE186,NDE180,NRE180,ZRE185..HB SPARE TIRE-GROUND TIRE(STEEL WHEEL),BLACK,TRIM2# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-02120C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2# |
1 | ||
| 64716-02120C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 64716-02120C0 |
NDE180,NRE180..RHD..HB..D LIGHT GRADE&SPARE TIRE-WITHOUT,BLACK,TRIM2# |
1 | ||
| 64716-02130C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,BLACK,TRIM2# |
1 | ||
| 64716-02130C0 |
ADE186,NDE180,NRE180,ZRE185..HB SPARE TIRE-GROUND TIRE(STEEL WHEEL),BLACK,TRIM2# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-W0005 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
4 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-W0005 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
4 | ||
| 64718A - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-12020C0 |
NDE180,NRE180,ZRE185..HB..D BLACK,TRIM2# |
2 | ||
| 64718A - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-12020C0 |
NDE180,NRE180,ZRE185..HB..D BLACK,TRIM2# |
2 | ||
| 64718D - COVER, DECK TRIM SERVICE HOLE | ||||
| 58731-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2#,#, RH |
1 | ||
| 58731-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2#,RH |
1 | ||
| 58732-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2#,LH |
1 | ||
| 58732-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2#,#, LH |
1 | ||
| 64718D - COVER, DECK TRIM SERVICE HOLE | ||||
| 58731-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2#,#, RH |
1 | ||
| 58731-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2#,RH |
1 | ||
| 58732-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2#,LH |
1 | ||
| 58732-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2#,#, LH |
1 | ||
| 64718D - COVER, DECK TRIM SERVICE HOLE | ||||
| 58731-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2#,#, RH |
1 | ||
| 58731-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2#,RH |
1 | ||
| 58732-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2#,LH |
1 | ||
| 58732-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2#,#, LH |
1 | ||
| 64718D - COVER, DECK TRIM SERVICE HOLE | ||||
| 58731-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2#,#, RH |
1 | ||
| 58731-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2#,RH |
1 | ||
| 58732-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2#,LH |
1 | ||
| 58732-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2#,#, LH |
1 | ||
| 64726H - HOOK, DECK SIDE TRIM, NO.2 | ||||
| 64726-05030C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 64726H - HOOK, DECK SIDE TRIM, NO.2 | ||||
| 64726-05030C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-02260C0 |
ADE186,NDE180,NRE180,ZRE185..HB BLACK,TRIM2# |
1 | ||
| 64730-02270C0 |
ADE186,NDE180,NRE180,ZRE185..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-02260C0 |
ADE186,NDE180,NRE180,ZRE185..HB BLACK,TRIM2# |
1 | ||
| 64730-02270C0 |
ADE186,NDE180,NRE180,ZRE185..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-W0005 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
8 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-W0005 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
8 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-W0005 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
8 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-W0005 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
8 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-02210C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 64740-02220C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-02210C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 64740-02220C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 64741B - BOX, DECK SIDE TRIM, RH | ||||
| 64741-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(G,N) DECK BOARD-WITH(ADJUSTABLE DECK BOARD) |
1 | ||
| 64742C - BOX, DECK SIDE TRIM, LH | ||||
| 64742-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(G,N) DECK BOARD-WITH(ADJUSTABLE DECK BOARD) |
1 | ||
| 81496A - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-12030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 81496A - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-12030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| Common parts | ||||
| 90119-06840 | ||||
| 90119-W0037 | ||||
| 90467-A0033 | ||||
| 93240-56022 | ||||
| Linked diagrams | ||||
| 7403 | ||||

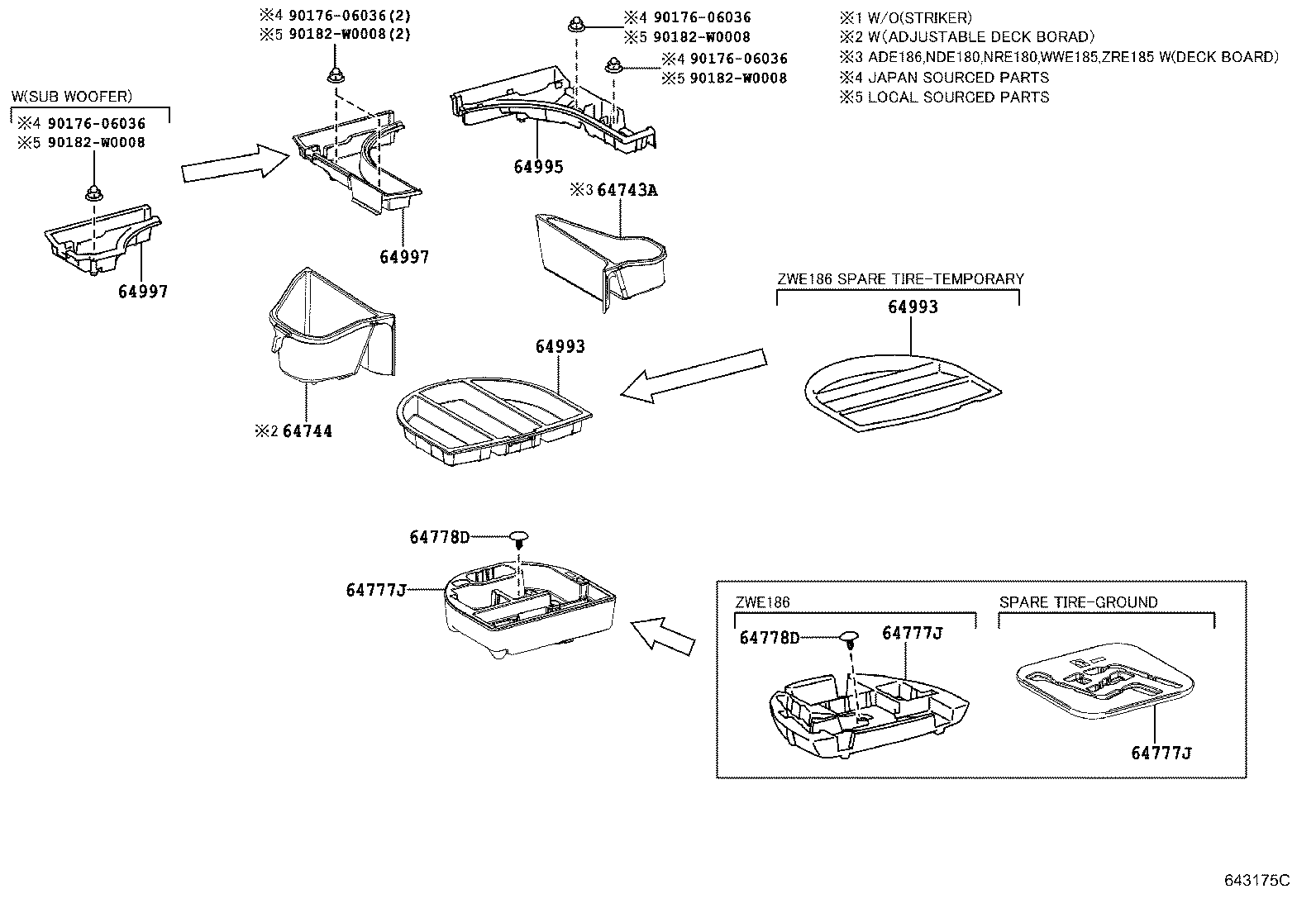

ILLUST NO. 2 OF 2(1210- )HB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64743A - BOARD, DECK TRIM SIDE, LOWER RH | ||||
| 64743-02020C0 |
ADE186,NDE180,NRE180,ZRE185..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 64744 - BOARD, DECK TRIM SIDE, LWR LH | ||||
| 64744-02020C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2# |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-02190 |
ADE186,NDE180,NRE180,ZRE185..HB SPARE TIRE-GROUND TIRE(STEEL WHEEL) |
1 | ||
| 64777-02240 |
ADE186,NDE180,NRE180,ZRE185..HB |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-02190 |
ADE186,NDE180,NRE180,ZRE185..HB SPARE TIRE-GROUND TIRE(STEEL WHEEL) |
1 | ||
| 64777-02240 |
ADE186,NDE180,NRE180,ZRE185..HB |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-02190 |
ADE186,NDE180,NRE180,ZRE185..HB SPARE TIRE-GROUND TIRE(STEEL WHEEL) |
1 | ||
| 64777-02240 |
ADE186,NDE180,NRE180,ZRE185..HB |
1 | ||
| 64778D - PROTECTOR, SPARE WHEEL | ||||
| 64778-52160 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 64778D - PROTECTOR, SPARE WHEEL | ||||
| 64778-52160 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-02080C0 |
ADE186,NDE180,NRE180,ZRE185..HB SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,BLACK,TRIM2# |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-02080C0 |
ADE186,NDE180,NRE180,ZRE185..HB SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,BLACK,TRIM2# |
1 | ||
| 64995 - BOX, DECK FLOOR, RH | ||||
| 64995-02110C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,BLACK,TRIM2# |
1 | ||
| 64995-02110C0 |
ADE186,NDE180,NRE180,ZRE185..HB SPARE TIRE-GROUND TIRE(STEEL WHEEL),BLACK,TRIM2# |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-02100C0 |
ADE186,NDE180,NRE180,ZRE185..HB SPARE TIRE-GROUND TIRE(STEEL WHEEL),BLACK,TRIM2# |
1 | ||
| 64997-02100C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,BLACK,TRIM2# |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-02100C0 |
ADE186,NDE180,NRE180,ZRE185..HB SPARE TIRE-GROUND TIRE(STEEL WHEEL),BLACK,TRIM2# |
1 | ||
| 64997-02100C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90176-06036 | ||||
| 90182-W0008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
