NDE180R-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

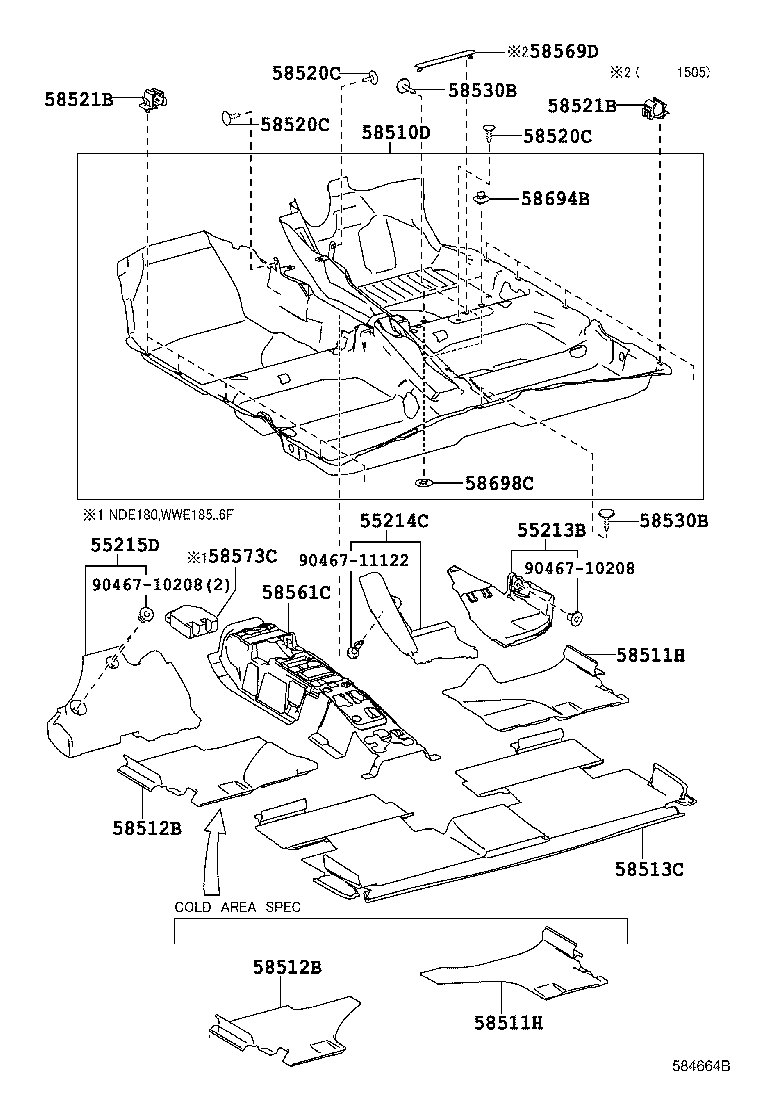

ILLUST NO. 1 OF 2(1210- )NDE180,NRE18#,WWE185,ZRE185..RHD

Click highlighted areas on diagram

FLOOR CARPET

diagram 55213B 55214C 55215D 58510D 58511H 58511H 58512B 58512B 58513C 58520C 58520C 58520C 58521B 58521B 58530B 58530B 58561C 58569D 58573C 58694B 58698C 9046710208 9046710208 9046711122
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-02220

NDE180,NRE180,ZRE185,ZWE186..RHD

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-02020

NDE180,NRE180,ZRE185,ZWE186..RHD

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-02020

NDE180,NRE180,ZRE185,ZWE186..RHD

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-02G10C0

NDE180,NRE180,ZRE185..RHD

BLACK,TRIM2#

 1
58511H - MAT, FLOOR, FRONT RH
58511-02080

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
58511H - MAT, FLOOR, FRONT RH
58511-02080

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
58512B - MAT, FLOOR, FRONT LH
58512-02060

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
58512B - MAT, FLOOR, FRONT LH
58512-02060

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
58513C - MAT, FLOOR, FRONT CENTER
58513-02070

ADE186,NDE180,NRE180,ZRE185

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-W0006C0

ADE186,NDE180,NRE180,ZRE185,ZWE186

BLACK

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-W0006C0

ADE186,NDE180,NRE180,ZRE185,ZWE186

BLACK

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-W0006C0

ADE186,NDE180,NRE180,ZRE185,ZWE186

BLACK

 2
58521B - HOOK, FLOOR CARPET
58521-02110

ADE186,NDE180,NRE180,ZRE185,ZWE186

 10
58521B - HOOK, FLOOR CARPET
58521-02110

ADE186,NDE180,NRE180,ZRE185,ZWE186

 10
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-07049C0

ADE186,NDE180,NRE180,ZRE185

BLACK

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-07049C0

ADE186,NDE180,NRE180,ZRE185

BLACK

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-02250

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-02030B0

ADE186,NDE180,NRE180,ZRE185,ZWE186

DK.GRAY

 1
58573C - PAD, FRONT FLOOR CENTER
58573-02010

ADE186,NDE180..6F

 1
58694B - PLATE, MAT SET, UPPER
58694-76010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 2
58698C - PLATE, MAT SET, LOWER
58698-76010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 2
Common parts
90467-10208
90467-11122
