NDE180R-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )RHD

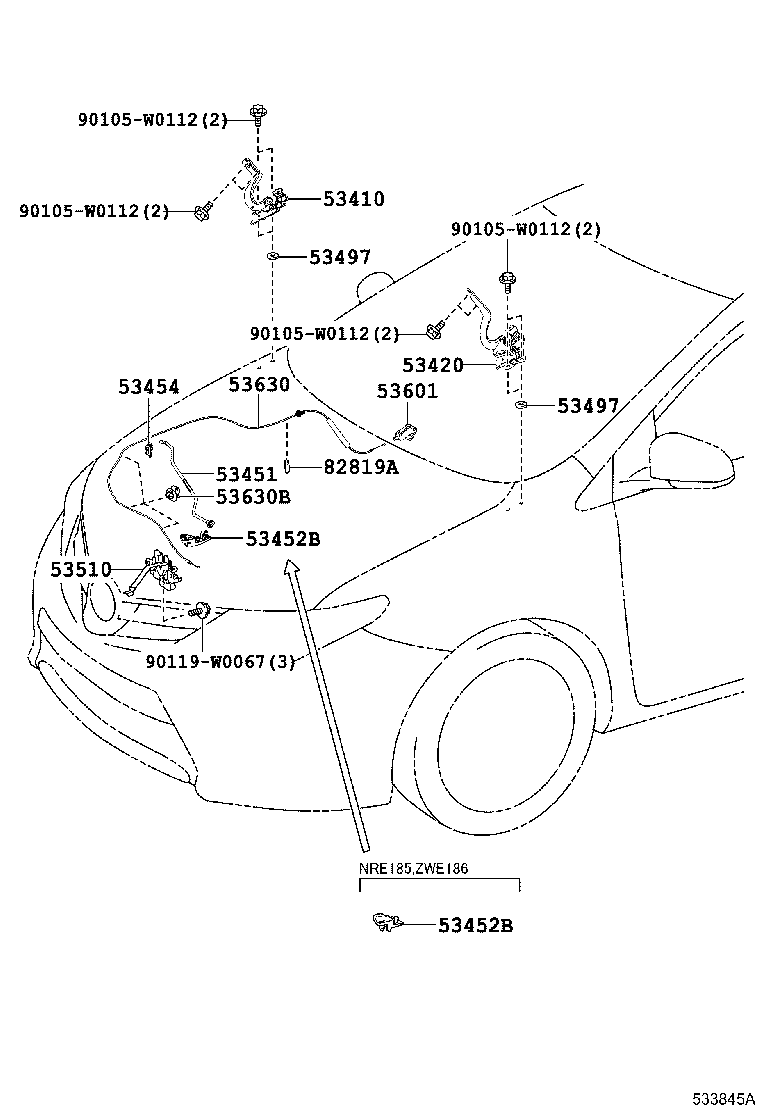

Click highlighted areas on diagram

diagram 53410 53420 53451 53452B 53452B 53454 53497 53497 53510 53601 53630 53630B 82819A 90105W0112 90105W0112 90105W0112 90105W0112 90119W0067
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-02210

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
53420 - HINGE ASSY, HOOD, LH
53420-02210

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
53451 - ROD, HOOD SUPPORT
53440-02160

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
53452B - BRACKET, HOOD SUPPORT ROD
53452-02120

ADE186,NDE180,NRE180,ZRE185

 1
53452B - BRACKET, HOOD SUPPORT ROD
53452-02120

ADE186,NDE180,NRE180,ZRE185

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-12030

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
53497 - PAD, HOOD HINGE, NO.1
53497-05010

ADE186,NDE180,NRE180,ZRE185,ZWE186

T=1.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-05010

ADE186,NDE180,NRE180,ZRE185,ZWE186

T=1.0

 4
53510 - LOCK ASSY, HOOD
53510-02490

NDE180,NRE180..RHD..6F

 1
53510-02490

NDE180..RHD..6F

START & STOP SYSTEM PACKAGE

 1
53510-02480

NDE180..RHD..HB..D

N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944

 1
53510-02480

NDE180,NRE180..RHD..6F

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-05030C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N

BLACK,TRIM2#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-12680

NDE180,NRE180,ZRE185,ZWE186..RHD

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

ADE186,NDE180,NRE180,ZRE185,ZWE186

 3
82819A - GROMMET, WIRE
82817-02720

ADE186,NDE180,NRE180,ZRE185,ZWE186

(L)

 1
82817-1A810

ADE186,NDE180,NRE180,ZRE185,ZWE186

(J)

 1
Common parts
90105-W0112
90119-W0067
