Toyota Auris/hybrid (ukp) NDE180 HOOD & FRONT FENDER

Part #	Description	Period	Qty
47749D - CLIP, PIN HOLD
47749-50090	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	2
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-02110	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-02080	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
53875A - LINER, FRONT FENDER, RH
53875-02450	NDE180..D;NRE180,ZRE185	10/2012 - 05/2015	1
53875-02450	ADE186,NDE180,ZWE186..G,N LIGHT GRADE	10/2012 - 05/2015	1
53875-02410	ADE186,NDE180,ZWE186..G,N	10/2012 - 05/2015	1
53876A - LINER, FRONT FENDER, LH
53876-02460	ADE186,NDE180,ZWE186..G,N	10/2012 - 05/2015	1
53876-02470	ADE186,NDE180,ZWE186..G,N LIGHT GRADE	10/2012 - 05/2015	1
53876-02470	NDE180..D;NRE180,ZRE185	10/2012 - 05/2015	1
Common parts
90159-60488
90159-60602
90189-06013
90189-06193
90467-07201
Linked diagrams
5201

Part #	Description	Period	Qty
53153K - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-02010	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
53154L - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-02010	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
53155C - SEAL, RADIATOR GRILLE, NO.1
53155-02030	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	2
53301 - HOOD SUB-ASSY
53301-02260	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
53341B - INSULATOR, HOOD
53341-02340	ADE186,NDE180,ZWE186	10/2012 - 05/2015	1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050	ZRE185..N;ADE186,NDE180,ZWE186 (J)	10/2012 - 05/2015	6
90467-W0003	ZRE185..N;ADE186,NDE180,ZWE186 (L)	10/2012 - 05/2015	6
53801 - FENDER SUB-ASSY, FRONT RH
53811-02340	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
53802 - FENDER SUB-ASSY, FRONT LH
53812-02340	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
53813B - EXTENSION, FRONT FENDER, RH
53813-48011	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
53814B - EXTENSION, FRONT FENDER, LH
53813-48011	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-02170	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-02160	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-12010	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-47011	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-12010	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-47011	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	1
53882F - SEAL, FRONT FENDER
53882-16030	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	8
53882F - SEAL, FRONT FENDER
53882-16030	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	8
53882F - SEAL, FRONT FENDER
53882-16030	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	8
53882F - SEAL, FRONT FENDER
53882-16030	ADE186,NDE180,NRE180,ZRE185,ZWE186	10/2012 - 05/2015	8
Common parts
90119-06137
90467-09050
90467-W0003
90950-06096

NDE180R-DHFNXW (2012)

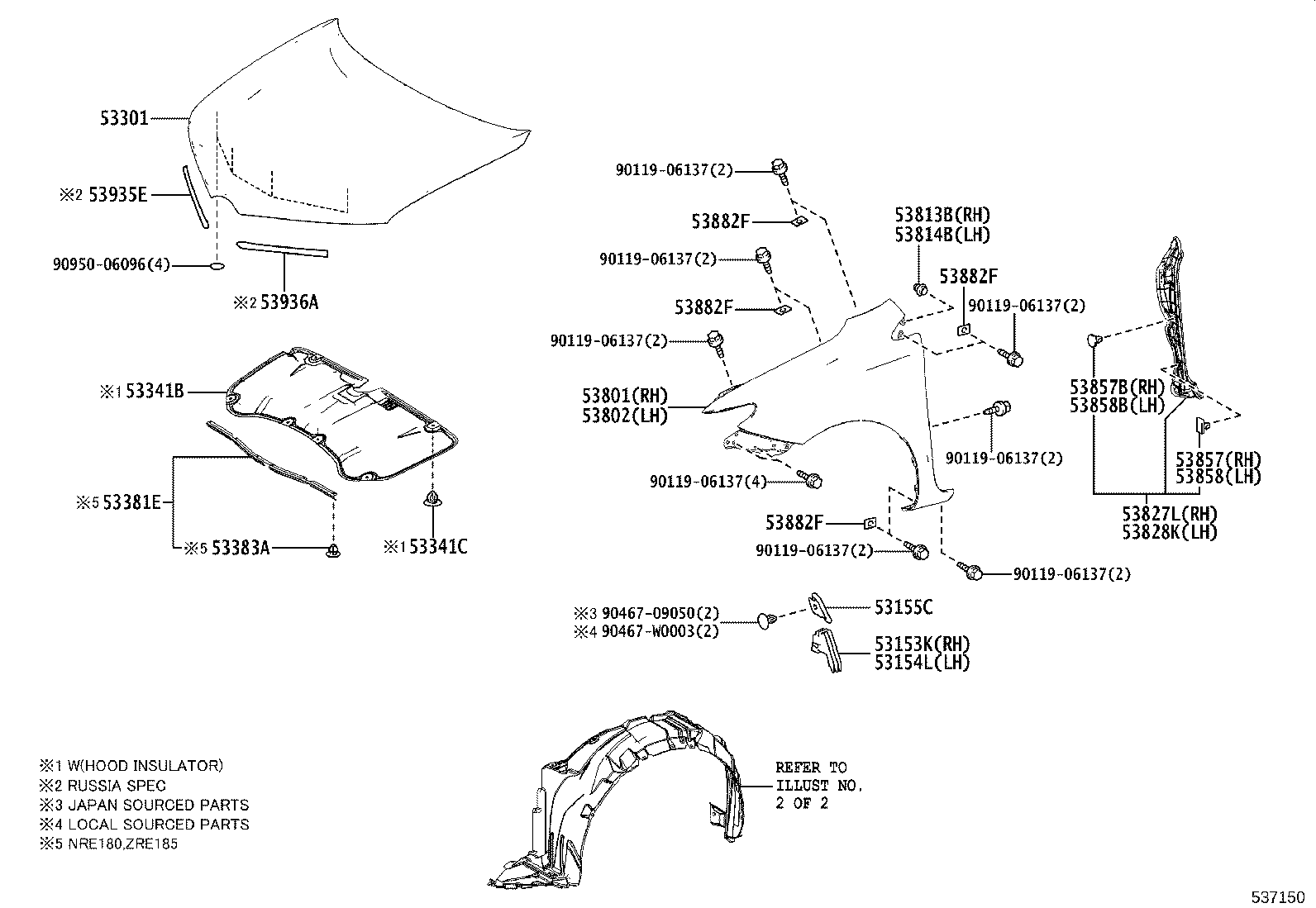

ILLUST NO. 2 OF 2(1210- )

ILLUST NO. 1 OF 2(1210- )
