NDE180R-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )ZWE186..D,N ; (1210- )NDE180,NRE18#,WWE185,ZRE185

Click highlighted areas on diagram

CALIPER MARK=60

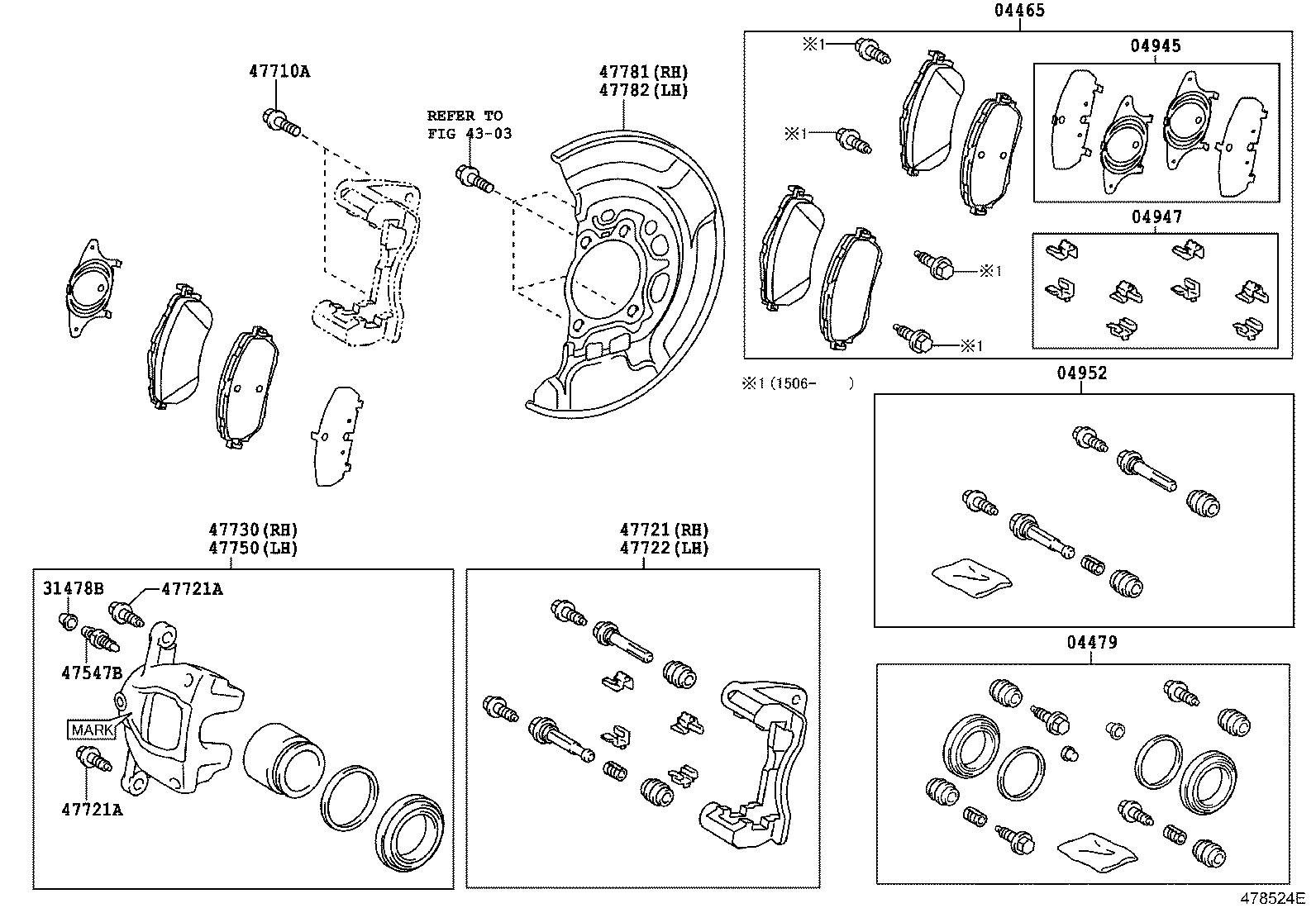

diagram 04465 04479 04945 04947 04952 31478B 4303 47547B 47710A 47721 47721A 47721A 47722 47730 47750 47781 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-02390

NDE180,NRE180,ZRE185,ZWE186..D,N

MARK TEXTAR T4146

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-02320

NDE180,NRE180,ZRE185,ZWE186..D,N

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-02210

NDE180,NRE180,ZRE185,ZWE186..D,N

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-02140

NDE180,NRE180,ZRE185,ZWE186..D,N

 1
04952 - PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE
04952-02310

NDE180,NRE180,ZRE185,ZWE186..D,N

 2
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
90069-39001

ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
90069-39000

ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

ADE186,NDE180,NRE180,ZRE185,ZWE186

*12-1.25PX29.5-23

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-09540

NDE180,NRE180,ZRE185,ZWE186..D,N

PNC 47730=MARK 60

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47715-05060

ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47715-05060

ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-09240

NDE180,NRE180,ZRE185,ZWE186..D,N

PNC 47750=MARK 60

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-02510

NDE180,NRE180,ZRE185,ZWE186..D,N

MARK=60

 1
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-02250

NDE180,NRE180,ZRE185,ZWE186..D,N

MARK=60

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-02200

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-02200

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
Linked diagrams
4303
