Toyota Auris/hybrid (ukp) NDE180 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-09A80	NDE180,NRE180..RHD..6F	10/2012 - 05/2014	1
44610-09A70	NDE180..RHD..HB..D N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944	10/2012 - 05/2014	1
44610-09A70	NDE180,NRE180..RHD..6F	05/2014 - 05/2015	1
44610-09A80	NDE180..RHD..6F START & STOP SYSTEM PACKAGE	05/2014 - 05/2015	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-09020	ADE186,NDE180,NRE180,ZRE185	10/2012 - 05/2015	1
44763C - TUBE, HOSE TO HOSE, NO.2
44763-12450	NDE180..RHD	10/2012 - 05/2015	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12620	NDE180,ZRE185..RHD	10/2012 - 05/2015	1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014	NDE180..RHD;NDE180..LHD..WG	10/2012 - 05/2015	2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014	NDE180..RHD;NDE180..LHD..WG	10/2012 - 05/2015	2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12770	NDE180..RHD	10/2012 - 05/2015	1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500	NDE180..RHD	10/2012 - 05/2015	1
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014	NDE180	10/2012 - 05/2015	1
44785 - GASKET, BRAKE BOOSTER
44785-05020	ADE186,NDE180,NRE180,ZRE185	10/2012 - 05/2015	1
89420H - SENSOR ASSY, VACUUM
89421-09010	NDE180,NRE180..RHD..6F	10/2012 - 05/2014	1
89421-09010	NDE180..RHD..6F START & STOP SYSTEM PACKAGE	05/2014 - 05/2015	1
Common parts
90178-W0019
90179-08179

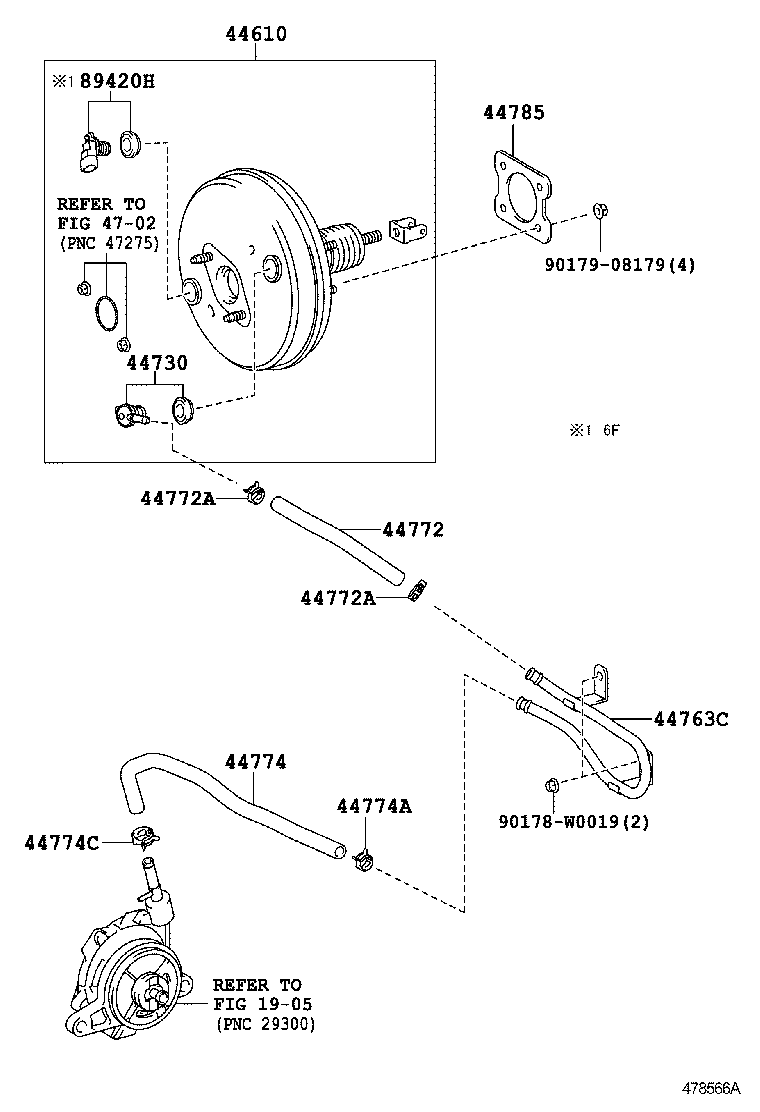

Linked diagrams
1905
4702

NDE180R-DHFNXW (2012)
