NDE180R-DHFNXW (2012)
Toyota Auris/Hybrid (Ukp)
Production
Oct 2012
-
May 2015
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1210- )ADE186,NDE180,NRE18#,WWE185,ZRE185

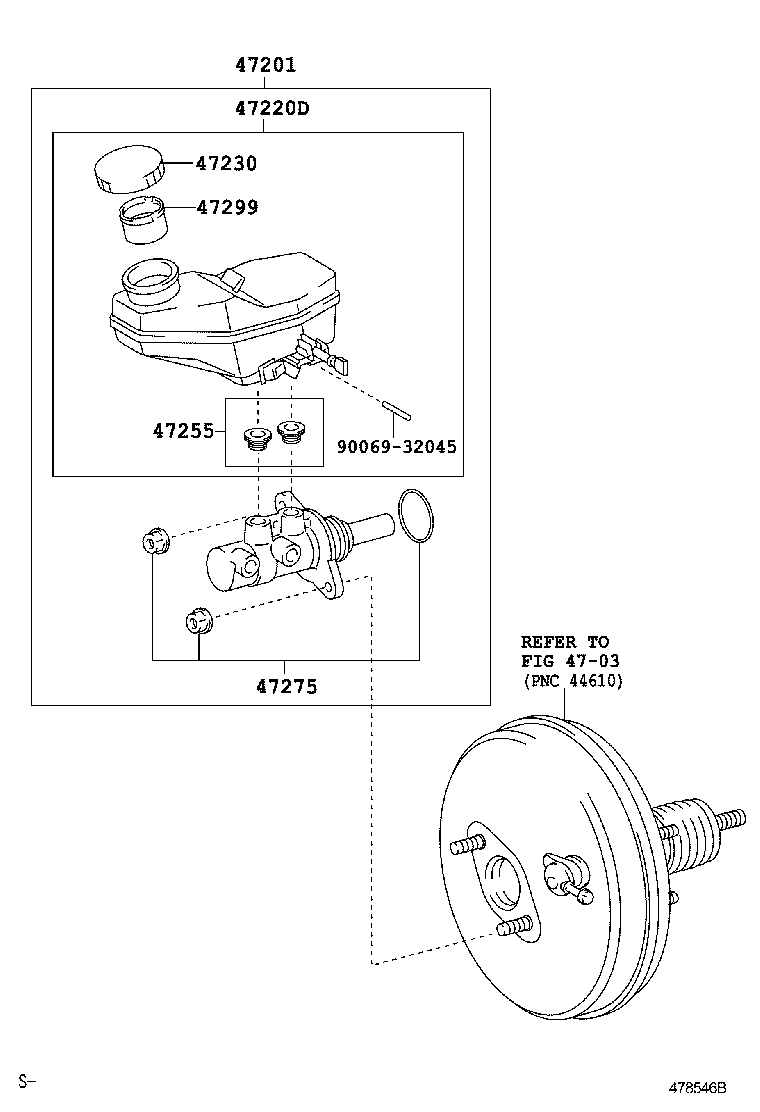

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-09730 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-09190 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-0D010 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-09040 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-09010 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-02160 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| Common parts | ||||
| 90069-32045 | ||||
| Linked diagrams | ||||
| 4703 | ||||
