NDE180R-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )

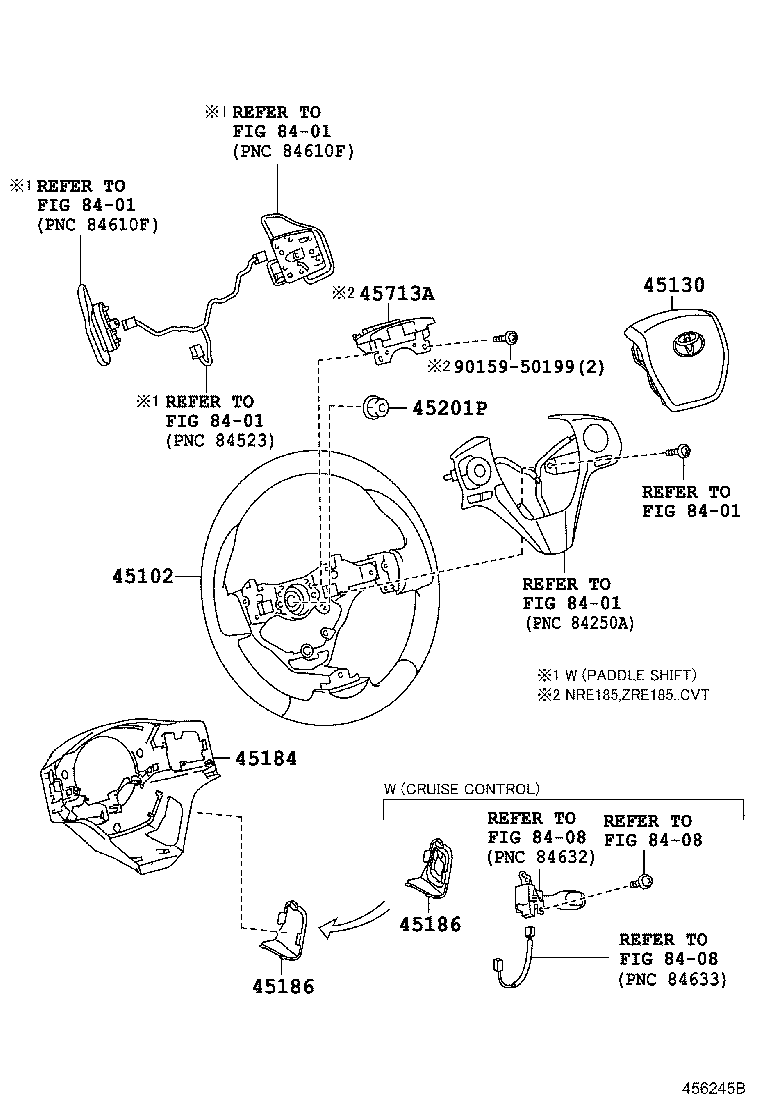

Click highlighted areas on diagram

3-SPOKE

diagram 45102 45130 45184 45186 45186 45201P 45713A 8401 8401 8401 8401 8401 8408 8408 8408 9015950199
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45102-02510C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..N

BLACK,TRIM2#

 1
45102-02520C0

ADE186,NDE180,NRE180,ZRE185..6F..N

LIGHT GRADE,BLACK,TRIM2#

 1
45102-02510C0

NDE180,NRE180,ZRE185..D

STEERING WHEEL-3-SPOKE, LEATHER,BLACK,TRIM2#

 1
45102-02520C0

NDE180,NRE180,ZRE185..D

BLACK,TRIM2#

 1
45130 - BUTTON ASSY, HORN
45130-02450C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N

BLACK,TRIM2#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-02230C0

ZRE185..D;NDE180..6F;ZRE185..6F..N;ADE186,NRE180,ZWE186..D,N

BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-02200C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N

BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-02200C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N

BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
Common parts
90159-50199
Linked diagrams
8401
8408
