NDE180R-DHFNXW (2012)
Toyota Auris/Hybrid (Ukp)
(1210- )NDE180,NRE18#,ZRE185..MTM
EC60,EC61,EC69,EC65A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-25030 |
NDE180,NRE180,ZRE185..MTM |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-0D120 |
NDE180..6F |
1 | ||
| 31115-0D121 |
NDE180..6F |
1 | ||
| 41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR | ||||
| 41300-02030 |
NDE180..RHD..HB..6F FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944 |
1 | ||
| 41300-02020 |
NDE180..RHD..HB..6F FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.736 |
1 | ||
| 41300-02030 |
NDE180..RHD..HB..6F |
1 | ||
| 41300-02020 |
NDE180..RHD..HB..6F |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90080-36143 |
NDE180,NRE180,ZRE185..6F |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-W0013 |
NDE180,NRE180,ZRE185..6F |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90560-41003 |
NDE180,NRE180,ZRE185..MTM T=2.1 |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-44039 |
NDE180,NRE180,ZRE185..MTM T=2.100, MARK 10 |
1 | ||
| 90564-44043 |
NDE180,NRE180,ZRE185..MTM T=2.200, MARK 14 |
1 | ||
| 90564-44041 |
NDE180,NRE180,ZRE185..MTM T=2.150, MARK 12 |
1 | ||
| 90564-44042 |
NDE180,NRE180,ZRE185..MTM T=2.175, MARK 13 |
1 | ||
| 90564-44046 |
NDE180,NRE180,ZRE185..MTM T=2.275, MARK 17 |
1 | ||
| 90564-44048 |
NDE180,NRE180,ZRE185..MTM T=2.325, MARK 19 |
1 | ||
| 90564-44040 |
NDE180,NRE180,ZRE185..MTM T=2.125, MARK 11 |
1 | ||
| 90564-44045 |
NDE180,NRE180,ZRE185..MTM T=2.250, MARK 16 |
1 | ||
| 90564-44049 |
NDE180,NRE180,ZRE185..MTM T=2.350, MARK 20 |
1 | ||
| 90564-44052 |
NDE180,NRE180,ZRE185..MTM T=2.425, MARK 23 |
1 | ||
| 90564-44047 |
NDE180,NRE180,ZRE185..MTM T=2.300, MARK 18 |
1 | ||
| 90564-44051 |
NDE180,NRE180,ZRE185..MTM T=2.400, MARK 22 |
1 | ||
| 90564-44057 |
NDE180,NRE180,ZRE185..MTM T=2.550, MARK 28 |
1 | ||
| 90564-44055 |
NDE180,NRE180,ZRE185..MTM T=2.500, MARK 26 |
1 | ||
| 90564-44053 |
NDE180,NRE180,ZRE185..MTM T=2.450, MARK 24 |
1 | ||
| 90564-44044 |
NDE180,NRE180,ZRE185..MTM T=2.225, MARK 15 |
1 | ||
| 90564-44058 |
NDE180,NRE180,ZRE185..MTM T=2.575, MARK 29 |
1 | ||
| 90564-44056 |
NDE180,NRE180,ZRE185..MTM T=2.525, MARK 27 |
1 | ||
| 90564-44050 |
NDE180,NRE180,ZRE185..MTM T=2.375, MARK 21 |
1 | ||
| 90564-44054 |
NDE180,NRE180,ZRE185..MTM T=2.475, MARK 25 |
1 | ||
| 90564-44061 |
NDE180,NRE180,ZRE185..MTM T=2.650, MARK 32 |
1 | ||
| 90564-44069 |
NDE180,NRE180,ZRE185..MTM T=2.850, MARK 40 |
1 | ||
| 90564-44064 |
NDE180,NRE180,ZRE185..MTM T=2.725, MARK 35 |
1 | ||
| 90564-44068 |
NDE180,NRE180,ZRE185..MTM T=2.825, MARK 39 |
1 | ||
| 90564-44063 |
NDE180,NRE180,ZRE185..MTM T=2.700, MARK 34 |
1 | ||
| 90564-44060 |
NDE180,NRE180,ZRE185..MTM T=2.625, MARK 31 |
1 | ||
| 90564-44065 |
NDE180,NRE180,ZRE185..MTM T=2.750, MARK 36 |
1 | ||
| 90564-44066 |
NDE180,NRE180,ZRE185..MTM T=2.775, MARK 37 |
1 | ||
| 90564-44062 |
NDE180,NRE180,ZRE185..MTM T=2.675, MARK 33 |
1 | ||
| 90564-44067 |
NDE180,NRE180,ZRE185..MTM T=2.800, MARK 38 |
1 | ||
| 90564-44059 |
NDE180,NRE180,ZRE185..MTM T=2.600, MARK 30 |
1 | ||
| 41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON | ||||
| 90080-36144 |
NDE180,NRE180,ZRE185..6F |
1 | ||
| 41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR | ||||
| 90366-W0014 |
NDE180,NRE180,ZRE185..6F |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-05030 |
NDE180,ZRE185..6F |
2 | ||
| 41331-0D070 |
NDE180,ZRE185..6F |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-05030 |
NDE180,ZRE185..6F |
2 | ||
| 41331-0D070 |
NDE180,ZRE185..6F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-05030 |
NDE180,ZRE185..6F |
2 | ||
| 41341-0D070 |
NDE180,ZRE185..6F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-05030 |
NDE180,ZRE185..6F |
2 | ||
| 41341-0D070 |
NDE180,ZRE185..6F |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ADE186,NDE180,NRE180,ZRE185..MTM |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-52060 |
NDE180,NRE180,ZRE185..6F |
1 | ||
| 41342-32020 |
NDE180,NRE180,ZRE185..6F |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
NDE180,ZRE185..MTM |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
NDE180,ZRE185..MTM |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22040 |
NDE180,NRE180,ZRE185..MTM T=1.20,MARK 04 |
2 | ||
| 41361-22160 |
NDE180,NRE180,ZRE185..MTM T=1.15,MARK 16 |
2 | ||
| 41361-22020 |
NDE180,NRE180,ZRE185..MTM T=1.00,MARK 02 |
2 | ||
| 41361-22150 |
NDE180,NRE180,ZRE185..MTM T=1.05,MARK 15 |
2 | ||
| 41361-22030 |
NDE180,NRE180,ZRE185..MTM T=1.10,MARK 03 |
2 | ||
| 41361-22140 |
NDE180,NRE180,ZRE185..MTM T=0.95,MARK 14 |
2 | ||
| 41361-48010 |
NDE180,NRE180,ZRE185..6F T=0.90,MARK 19 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22040 |
NDE180,NRE180,ZRE185..MTM T=1.20,MARK 04 |
2 | ||
| 41361-22160 |
NDE180,NRE180,ZRE185..MTM T=1.15,MARK 16 |
2 | ||
| 41361-22020 |
NDE180,NRE180,ZRE185..MTM T=1.00,MARK 02 |
2 | ||
| 41361-22150 |
NDE180,NRE180,ZRE185..MTM T=1.05,MARK 15 |
2 | ||
| 41361-22030 |
NDE180,NRE180,ZRE185..MTM T=1.10,MARK 03 |
2 | ||
| 41361-22140 |
NDE180,NRE180,ZRE185..MTM T=0.95,MARK 14 |
2 | ||
| 41361-48010 |
NDE180,NRE180,ZRE185..6F T=0.90,MARK 19 |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-35001 |
NDE180,NRE180,ZRE185..6F |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-35001 |
NDE180,NRE180,ZRE185..6F |
2 | ||

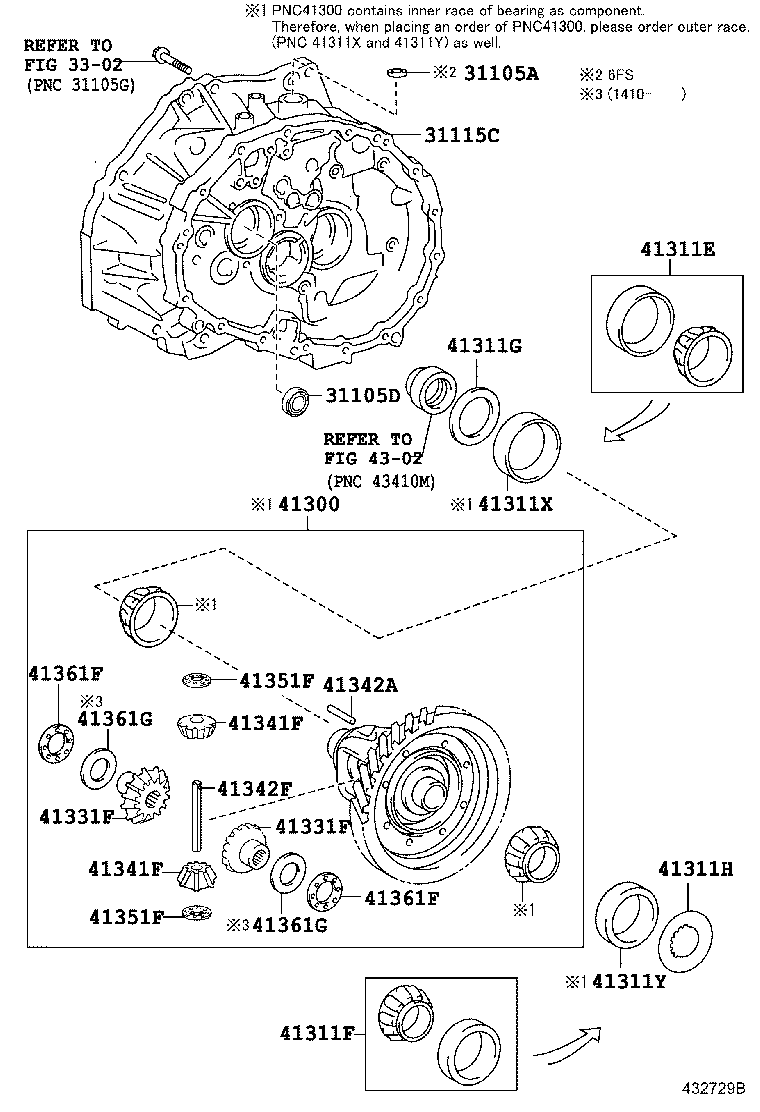

| Linked diagrams | ||||
| 3302 | ||||
| 4302 | ||||
