NDE180R-DHFNXW (2012)
Toyota Auris/Hybrid (Ukp)

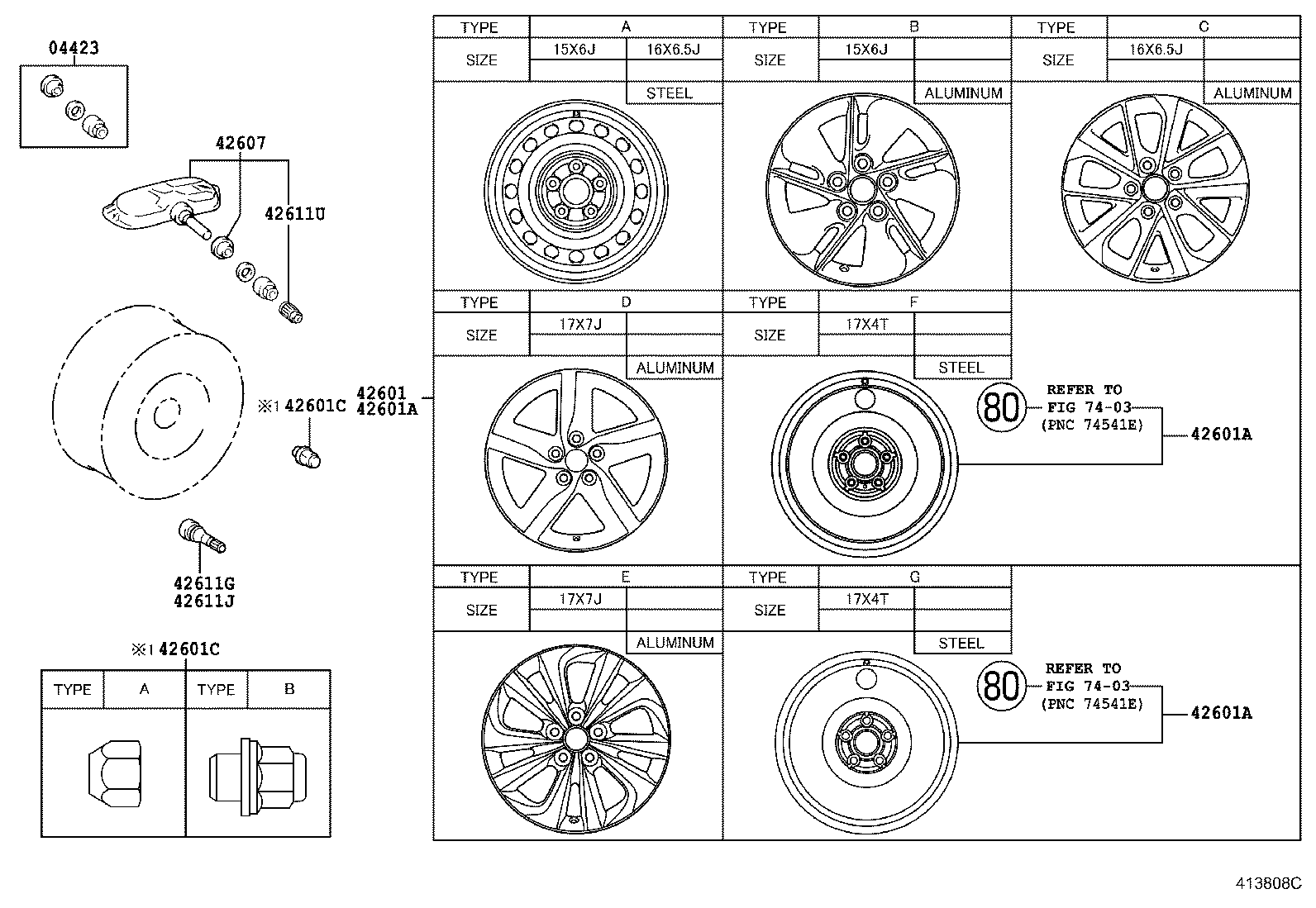

ILLUST NO. 1 OF 3(1210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-02B90 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J STEEL,TYPE A:REFER ILLUST. |
4 | ||
| 42611-02B90 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
4 | ||
| 42611-02B90 |
NDE180,NRE180,ZRE185..D 15X6J, #,TYPE A:REFER ILLUST. |
4 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..D 16X6.5J, #,LIGHT GRADE&TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J STEEL&SPARE TIRE-WITHOUT,TYPE A:REFER ILLUST. |
4 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
4 | ||
| 42611-02E70 |
ADE186,NDE180,NRE180,ZRE185..N 16X6.5J, #,TYPE A:REFER ILLUST. |
4 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J STEEL,TYPE A:REFER ILLUST. |
4 | ||
| 42611-02E90 |
ZRE185..WG;ZRE185..HB..N;NDE180,NRE180..WG..D;ADE186,NDE180,NRE180,ZWE186..N 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI,TYPE C:REFER ILLUST. |
4 | ||
| 42611-02E90 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE C:REFER ILLUST. |
4 | ||
| 42611-02E90 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,LIGHT GRADE&TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-WITHOUT,TYPE C:REFER ILLUST. |
4 | ||
| 42611-02E90 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI,TYPE C:REFER ILLUST. |
4 | ||
| 42611-02C60 |
NDE180..RHD..HB..N 17X7J, #,TIRE & DISC WHEEL-215/45R17 7J ALUMI,TYPE D:REFER ILLUST. |
4 | ||
| 42611-02E90 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE C:REFER ILLUST. |
4 | ||
| 42611-02E80 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J ALUMI,TYPE B:REFER ILLUST. |
4 | ||
| 42611-02E80 |
NDE180..RHD..HB..6F..N 15X6J, #,LIGHT GRADE&TIRE & DISC WHEEL-195/65R15 6J ALUMI&SPARE TIRE-WITHOUT,TYPEB:REFER ILLUST. |
4 | ||
| 42611-02E80 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE B:REFER ILLUST. |
4 | ||
| 42611-YY500 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N 16X6J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,TYPE J:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-02B90 |
NDE180..RHD..D 15X6J, #,ECO PACKAGE&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-0F090 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE F:REFER ILLUST. |
1 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02B90 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02B90 |
NDE180,NRE180,ZRE185..HB..D 15X6J, #,SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02E70 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02E70 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02B90 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02F10 |
ADE186,NDE180,NRE180,ZRE185..HB 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-0F091 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE H:REFER ILLUST. |
1 | ||
| 42611-02F10 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,MODELYEAR 14&TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-02B90 |
NDE180..RHD..D 15X6J, #,ECO PACKAGE&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-0F090 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE F:REFER ILLUST. |
1 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02B90 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02B90 |
NDE180,NRE180,ZRE185..HB..D 15X6J, #,SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02E70 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02E70 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02B90 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02F10 |
ADE186,NDE180,NRE180,ZRE185..HB 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-0F091 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE H:REFER ILLUST. |
1 | ||
| 42611-02F10 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,MODELYEAR 14&TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-02B90 |
NDE180..RHD..D 15X6J, #,ECO PACKAGE&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-0F090 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE F:REFER ILLUST. |
1 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02B90 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02B90 |
NDE180,NRE180,ZRE185..HB..D 15X6J, #,SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02E70 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02E70 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02B90 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02F10 |
ADE186,NDE180,NRE180,ZRE185..HB 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-0F091 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE H:REFER ILLUST. |
1 | ||
| 42611-02F10 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,MODELYEAR 14&TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
ADE186,NDE180,NRE180,ZRE185 TYPE A:REFER ILLUST. |
20 | ||
| 90942-01007 |
NDE180..D LIGHT GRADE,TYPE A:REFER ILLUST. |
20 | ||
| 90942-01033 |
ZRE185..WG;ZRE185..HB..N;NDE180,NRE180..WG..D;ADE186,NDE180,NRE180..N TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR 15OR 16 INCH ALUMI),TYPE B:REFER ILLUST. |
20 | ||
| 90942-01033 |
NDE180,NRE180,ZRE185..HB..D TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR 15OR 16 INCH ALUMI),TYPE B:REFER ILLUST. |
20 | ||
| 90942-01033 |
NDE180..RHD..HB..N TIRE & DISC WHEEL-215/45R17 7J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR 17 INCH ALUMI),TYPE B:REFER ILLUST. |
20 | ||
| 90942-01007 |
NDE180..N;NRE180,ZRE185 LIGHT GRADE&TIRE & DISC WHEEL-195/65R15 6J STEEL,TYPE A:REFER ILLUST. |
20 | ||
| 90942-01033 |
NDE180..HB..6F..N TIRE & DISC WHEEL-195/65R15 6J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR 15 OR 16 INCH ALUMI),TYPE B:REFER ILLUST. |
20 | ||
| 90942-01033 |
ADE186,NDE180,NRE180,ZRE185..N TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&WHEEL CAP-CENTER ORNAMENT(16 INCH ALUMI),TYPE B:REFER ILLUST. |
20 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
ADE186,NDE180,NRE180,ZRE185 TYPE A:REFER ILLUST. |
20 | ||
| 90942-01007 |
NDE180..D LIGHT GRADE,TYPE A:REFER ILLUST. |
20 | ||
| 90942-01033 |
ZRE185..WG;ZRE185..HB..N;NDE180,NRE180..WG..D;ADE186,NDE180,NRE180..N TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR 15OR 16 INCH ALUMI),TYPE B:REFER ILLUST. |
20 | ||
| 90942-01033 |
NDE180,NRE180,ZRE185..HB..D TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR 15OR 16 INCH ALUMI),TYPE B:REFER ILLUST. |
20 | ||
| 90942-01033 |
NDE180..RHD..HB..N TIRE & DISC WHEEL-215/45R17 7J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR 17 INCH ALUMI),TYPE B:REFER ILLUST. |
20 | ||
| 90942-01007 |
NDE180..N;NRE180,ZRE185 LIGHT GRADE&TIRE & DISC WHEEL-195/65R15 6J STEEL,TYPE A:REFER ILLUST. |
20 | ||
| 90942-01033 |
NDE180..HB..6F..N TIRE & DISC WHEEL-195/65R15 6J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR 15 OR 16 INCH ALUMI),TYPE B:REFER ILLUST. |
20 | ||
| 90942-01033 |
ADE186,NDE180,NRE180,ZRE185..N TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&WHEEL CAP-CENTER ORNAMENT(16 INCH ALUMI),TYPE B:REFER ILLUST. |
20 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-02031 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 42607-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
NDE180,NRE180,ZRE185..HB..D TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL) |
1 | ||
| 90942-05009 |
ADE186,NDE180,NRE180,ZRE185..HB..N TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL) |
1 | ||
| 90942-05009 |
NDE180..RHD..D ECO PACKAGE&SPARE TIRE-GROUND TIRE(STEEL WHEEL) |
1 | ||
| 90942-05009 |
ADE186,NDE180,NRE180,ZRE185..HB SPARE TIRE-GROUND TIRE(STEEL WHEEL) |
1 | ||
| 90942-05009 |
NDE180,NRE180,ZRE185..HB..D TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL) |
1 | ||
| 90942-05009 |
NDE180..HB..6F..N ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL) |
1 | ||
| 90942-05009 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F |
1 | ||
| 90942-05009 |
NDE180..HB..6F..N ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL) |
1 | ||
| 90942-05009 |
ADE186,NDE180,NRE180,ZRE185..HB..N MODELYEAR 14&TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL) |
1 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-W5001 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| Linked diagrams | ||||
| 7403 | ||||

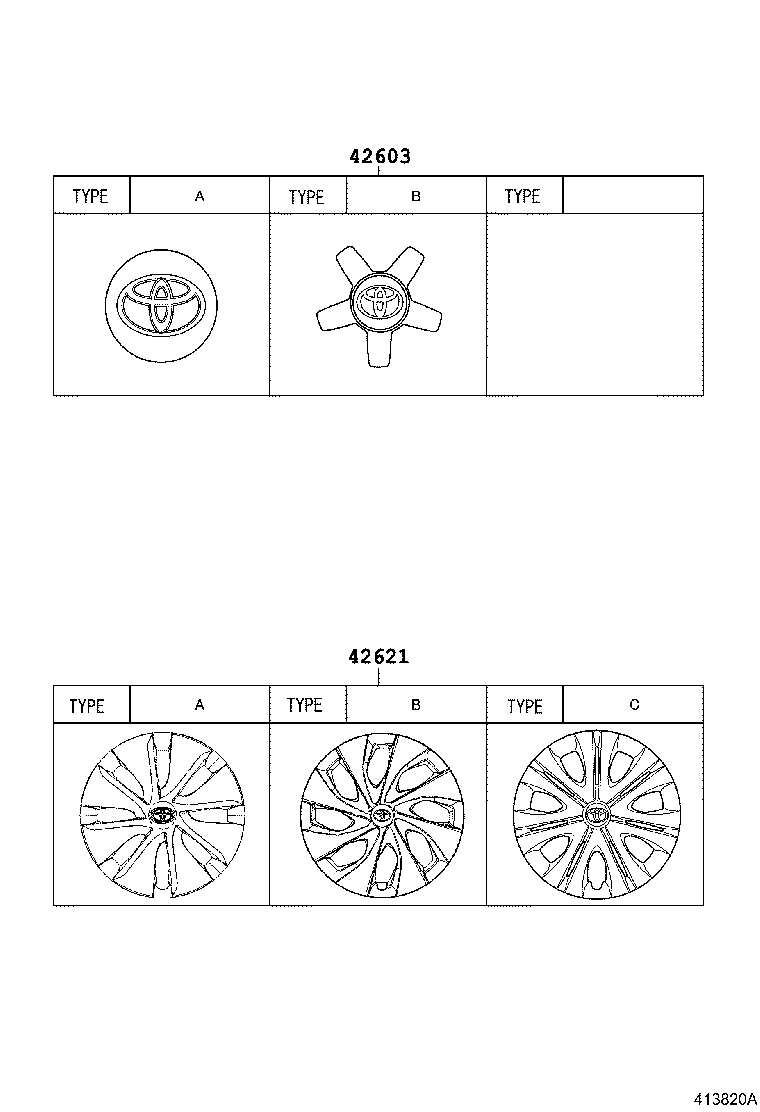

ILLUST NO. 3 OF 3(1210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-12760 |
ZRE185..WG;ZRE185..HB..N;ADE186,NDE180,NRE180..N;NDE180,NRE180,ZWE186..WG..(D,G) *ALU, NO PAINT REQ.,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR 15 OR 16 INCH ALUMI),(J),T/P A:REF.ILLUST |
4 | ||
| 42603-02300 |
ZRE185..WG;ZRE185..HB..N;ADE186,NDE180,NRE180..N;NDE180,NRE180,ZWE186..WG..(D,G) *ALU,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR 15 OR 16 INCH ALUMI),(L),T/P A:REF.ILLUST |
4 | ||
| 42603-02300 |
NDE180,NRE180,ZRE185,ZWE186..HB..(D,G) *ALU,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR 15 OR 16 INCH ALUMI),(L),T/P A:REF.ILLUST |
4 | ||
| 42603-YY210 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N *ALU,WHEEL CAP-CENTER ORNAMENT(16 INCH ALUMI),TYPE A:REFER ILLUST. |
4 | ||
| 42603-12760 |
NDE180,NRE180,ZRE185,ZWE186..HB..(D,G) *ALU, NO PAINT REQ.,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR 15 OR 16 INCH ALUMI),(J),T/P A:REF.ILLUST |
4 | ||
| 42603-02300 |
NDE180..HB..6F..N *ALU,TIRE & DISC WHEEL-195/65R15 6J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR 15 OR 16 INCH ALUMI),(L),T/P A:REF.ILLUST |
4 | ||
| 42603-02201 |
NDE180..RHD..HB..N *ALU,TIRE & DISC WHEEL-215/45R17 7J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR 17 INCH ALUMI),TYPE A:REFER ILLUST. |
4 | ||
| 42603-12760 |
NDE180..HB..6F..N *ALU, NO PAINT REQ.,TIRE & DISC WHEEL-195/65R15 6J ALUMI&WHEEL CAP-CENTER ORNAMENT(FOR 15 OR 16 INCH ALUMI),(J),T/P A:REF.ILLUST |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-02340 |
NDE180..HB..6F..N TIRE & DISC WHEEL-195/65R15 6J STEEL&WHEEL CAP-FULL CAP,PLASTIC,15 INCH,TYPE A:REFER ILLUST. |
4 | ||
| 42602-02321 |
ADE186,NDE180,NRE180,ZRE185..N WHEEL CAP-FULL CAP,16 INCH,PNC 42621 = TYPE C,TYPE C:REFER ILLUST. |
4 | ||
| 42602-02321 |
NDE180,NRE180,ZRE185..D TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J STEEL&WHEEL CAP-FULL CAP,16 INCH,PNC 42621 = TYPE C,TYPE C:REFER ILLUST. |
4 | ||
| 42602-02340 |
NDE180,NRE180,ZRE185..D TYPE A:REFER ILLUST. |
4 | ||
| 42602-02410 |
NDE180,NRE180,ZRE185..D TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J STEEL&WHEEL CAP-FULL CAP,16 INCH,PNC 42621 = TYPE B,TYPE B:REFER ILLUST. |
4 | ||
| 42602-02410 |
ADE186,NDE180,NRE180,ZRE185..N TYPE B:REFER ILLUST. |
4 | ||

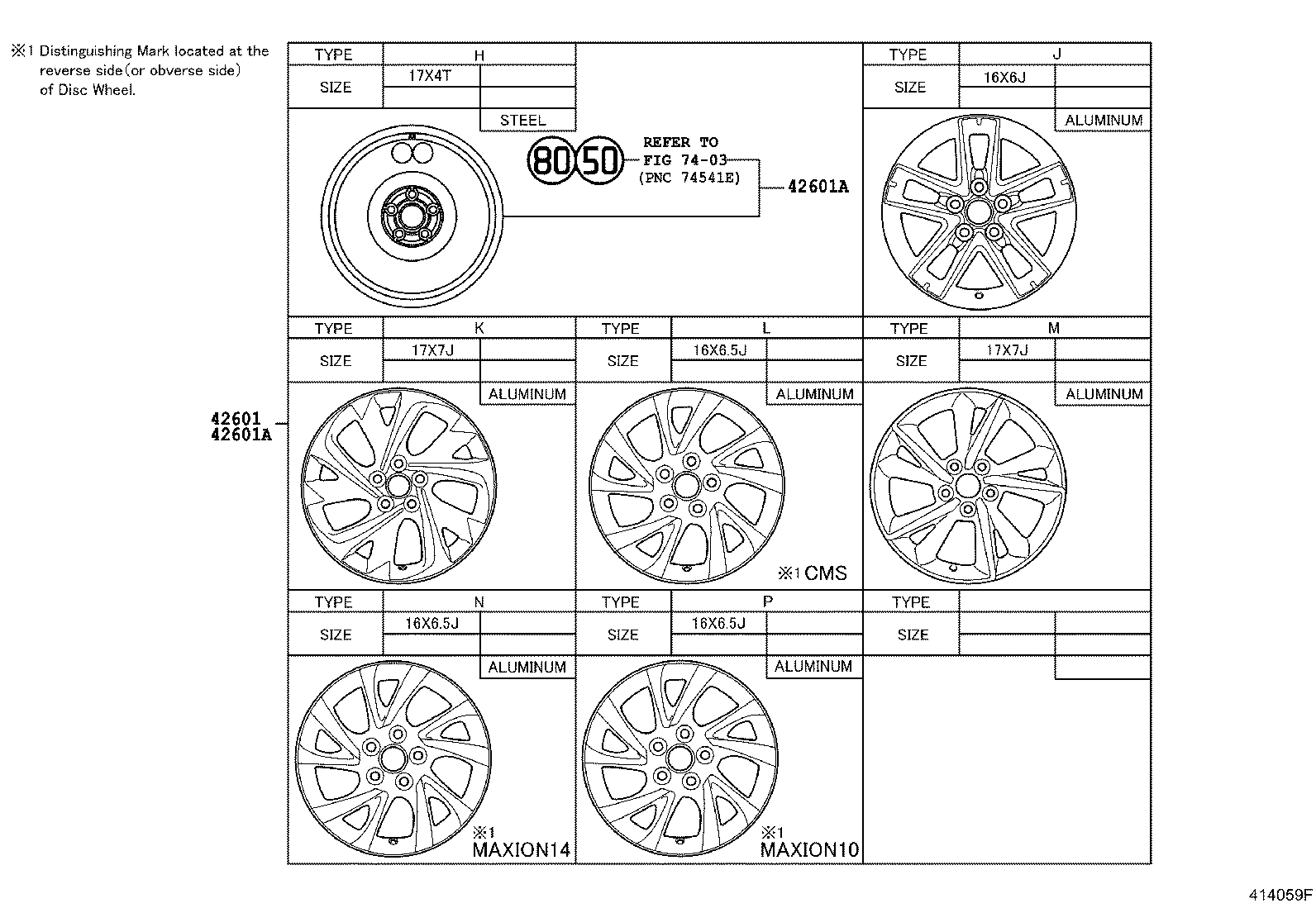

ILLUST NO. 2 OF 3(1210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-02B90 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J STEEL,TYPE A:REFER ILLUST. |
4 | ||
| 42611-02B90 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
4 | ||
| 42611-02B90 |
NDE180,NRE180,ZRE185..D 15X6J, #,TYPE A:REFER ILLUST. |
4 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..D 16X6.5J, #,LIGHT GRADE&TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J STEEL&SPARE TIRE-WITHOUT,TYPE A:REFER ILLUST. |
4 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
4 | ||
| 42611-02E70 |
ADE186,NDE180,NRE180,ZRE185..N 16X6.5J, #,TYPE A:REFER ILLUST. |
4 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J STEEL,TYPE A:REFER ILLUST. |
4 | ||
| 42611-02E90 |
ZRE185..WG;ZRE185..HB..N;NDE180,NRE180..WG..D;ADE186,NDE180,NRE180,ZWE186..N 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI,TYPE C:REFER ILLUST. |
4 | ||
| 42611-02E90 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE C:REFER ILLUST. |
4 | ||
| 42611-02E90 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,LIGHT GRADE&TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-WITHOUT,TYPE C:REFER ILLUST. |
4 | ||
| 42611-02E90 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI,TYPE C:REFER ILLUST. |
4 | ||
| 42611-02C60 |
NDE180..RHD..HB..N 17X7J, #,TIRE & DISC WHEEL-215/45R17 7J ALUMI,TYPE D:REFER ILLUST. |
4 | ||
| 42611-02E90 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE C:REFER ILLUST. |
4 | ||
| 42611-02E80 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J ALUMI,TYPE B:REFER ILLUST. |
4 | ||
| 42611-02E80 |
NDE180..RHD..HB..6F..N 15X6J, #,LIGHT GRADE&TIRE & DISC WHEEL-195/65R15 6J ALUMI&SPARE TIRE-WITHOUT,TYPEB:REFER ILLUST. |
4 | ||
| 42611-02E80 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE B:REFER ILLUST. |
4 | ||
| 42611-YY500 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N 16X6J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,TYPE J:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-02B90 |
NDE180..RHD..D 15X6J, #,ECO PACKAGE&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-0F090 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE F:REFER ILLUST. |
1 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02B90 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02B90 |
NDE180,NRE180,ZRE185..HB..D 15X6J, #,SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02E70 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02E70 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02B90 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02F10 |
ADE186,NDE180,NRE180,ZRE185..HB 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-0F091 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE H:REFER ILLUST. |
1 | ||
| 42611-02F10 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,MODELYEAR 14&TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-02B90 |
NDE180..RHD..D 15X6J, #,ECO PACKAGE&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-0F090 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE F:REFER ILLUST. |
1 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02B90 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02E70 |
NDE180,NRE180,ZRE185..HB..D 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02B90 |
NDE180,NRE180,ZRE185..HB..D 15X6J, #,SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02E70 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02E70 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02B90 |
NDE180..HB..6F..N 15X6J, #,ECO PACKAGE&TIRE & DISC WHEEL-195/65R15 6J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-02F10 |
ADE186,NDE180,NRE180,ZRE185..HB 16X6.5J, #,TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| 42611-0F091 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE H:REFER ILLUST. |
1 | ||
| 42611-02F10 |
ADE186,NDE180,NRE180,ZRE185..HB..N 16X6.5J, #,MODELYEAR 14&TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST. |
1 | ||
| Linked diagrams | ||||
| 7403 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
