NDE180R-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )NDE180,NRE18#,ZRE185..MTM

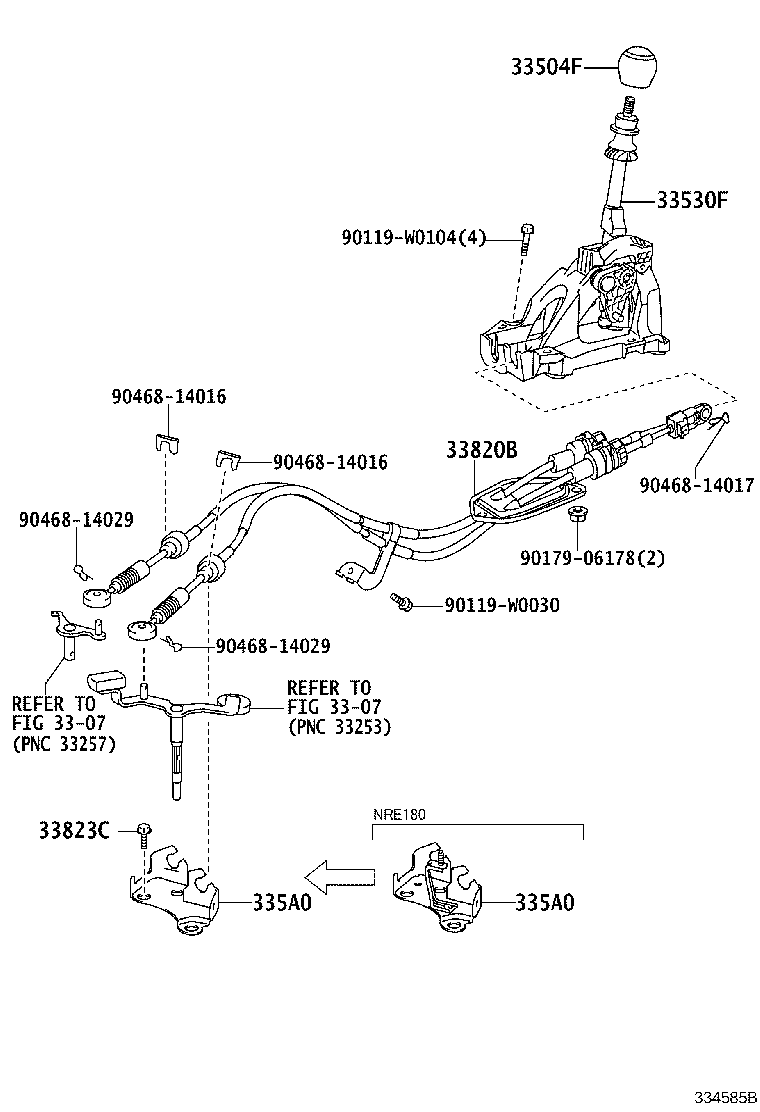

Click highlighted areas on diagram

diagram 3307 3307 33504F 33530F 335A0 335A0 33820B 33823C 90119W0030 90119W0104 9017906178 9046814016 9046814016 9046814017 9046814029 9046814029
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12580C0

ADE186,NDE180,NRE180,ZRE185..6F..N

BLACK/BLACK ME,TRIM2#

 1
33504-05081C2

NDE180,NRE180,ZRE185..6F..D

BLACK & 21GY18,TRIM2#

 1
33504-05081C2

NDE180,NRE180,ZRE185..6F..D

STEERING WHEEL-3-SPOKE, LEATHER,BLACK & 21GY18,TRIM2#

 1
33504-12580C0

NDE180,NRE180,ZRE185..6F..D

STEERING WHEEL-3-SPOKE, LEATHER,BLACK/BLACK ME,TRIM2#

 1
33504-12580C0

ADE186,NDE180,NRE180,ZRE185..6F..N

LIGHT GRADE,BLACK/BLACK ME,TRIM2#

 1
33504-05081C2

ADE186,NDE180,NRE180,ZRE185..6F..N

LIGHT GRADE,BLACK & 21GY18,TRIM2#

 1
33504-05081C2

NDE180,NRE180,ZRE185..6F..D

LIGHT GRADE&STEERING WHEEL-3-SPOKE, LEATHER,BLACK & 21GY18,TRIM2#

 1
33504-02500C0

ADE186,NDE180,NRE180,ZRE185..6F..N

BLACK & BLACK ME.,TRIM2#

 1
33504-02500C0

NDE180,NRE180,ZRE185..6F..D

STEERING WHEEL-3-SPOKE, LEATHER,BLACK & BLACK ME.,TRIM2#

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-05110

ADE186,NDE180,NRE180,ZRE185..6F

 1
335A0 - BRACKET ASSY, CONTROL CABLE
335A0-0D010

NDE180,ZRE185..6F

 1
335A0 - BRACKET ASSY, CONTROL CABLE
335A0-0D010

NDE180,ZRE185..6F

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-05360

NDE180,ZRE185..6F

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-08C60

NDE180,NRE180,ZRE185..6F

 3
Common parts
90119-W0030
90119-W0104
90179-06178
90468-14016
90468-14017
90468-14029
Linked diagrams
3307
