NDE180R-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )NDE180..6F

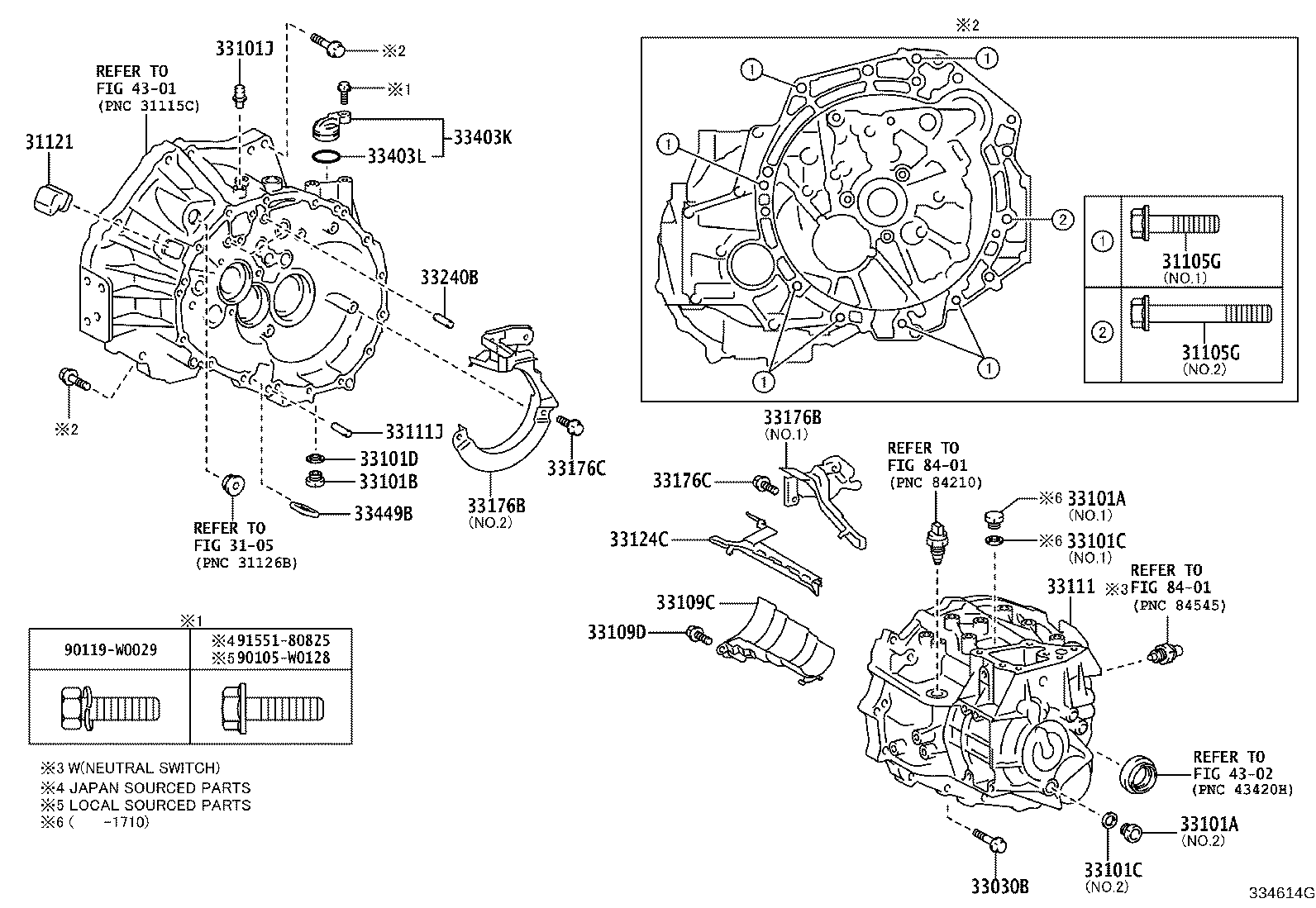

Click highlighted areas on diagram

EC69

diagram 3105 31105G 31105G 31121 33030B 33101A 33101A 33101B 33101C 33101C 33101D 33101J 33109C 33109D 33111 33111J 33124C 33176B 33176B 33176C 33176C 33240B 33403K 33403L 33449B 4301 4302 8401 8401 90105W0128 90119W0029 9155180825
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-W0177

NDE180

*10-1.25PX45-26,(L),NO.1

 7
91552-81080

NDE180

*10-1.25PX80-26,NO.2

 1
90105-W0044

NDE180

*10-1.25PX80-26,(L),NO.2

 1
91552-81045

NDE180

*10-1.25PX45-26,(J),NO.1

 7
91552-81080

NDE180

*10-1.25PX80-26,(J),NO.2

 1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91552-81080

NDE180

*10-1.25PX80-26,NO.2

 1
90105-W0177

NDE180

*10-1.25PX45-26,(L),NO.1

 7
90105-W0044

NDE180

*10-1.25PX80-26,(L),NO.2

 1
91552-81045

NDE180

*10-1.25PX45-26,(J),NO.1

 7
91552-81080

NDE180

*10-1.25PX80-26,(J),NO.2

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-05010

NDE180,NRE180,ZRE185..6F

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
91551-10840

NDE180,NRE180,ZRE185..MTM

*8-1.25PX40-22

 16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

NDE180,NRE180,ZRE185..MTM

NO.2

 1
90341-14032

NDE180,NRE180,ZRE185..MTM

NO.1

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

NDE180,NRE180,ZRE185..MTM

NO.2

 1
90341-14032

NDE180,NRE180,ZRE185..MTM

NO.1

 1
33101B - PLUG(FOR MANUAL TRANSMISSION DRAIN)
90341-18016

NDE180,NRE180,ZRE185..6F

 1
90341-18023

NDE180,NRE180,ZRE185..HB..6F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
12157-10010

NDE180,NRE180,ZRE185..HB..6F

NO.2

 1
90430-14003

NDE180,NRE180,ZRE185..MTM

NO.1

 1
90430-W0001

NDE180,NRE180,ZRE185..6F

NO.2

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
12157-10010

NDE180,NRE180,ZRE185..HB..6F

NO.2

 1
90430-14003

NDE180,NRE180,ZRE185..MTM

NO.1

 1
90430-W0001

NDE180,NRE180,ZRE185..6F

NO.2

 1
33101D - GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
90430-W0001

NDE180,NRE180,ZRE185..6F

 1
12157-10010

NDE180,NRE180,ZRE185..HB..6F

 1
33101J - PLUG, BREATHER
90930-03133

NDE180,NRE180,ZRE185..MTM

 1
33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
33109-0D010

NDE180,NRE180,ZRE185..6F

 1
33109-0D011

NDE180,NRE180,ZRE185..6F

 1
33109D - BOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
90105-W0035

NDE180,NRE180,ZRE185..6F

(L)

 4
91551-80816

NDE180,NRE180,ZRE185..MTM

(J)

 4
33111 - CASE, MANUAL TRANSMISSION
33111-05041

NDE180,NRE180..RHD..6F

 1
33111-02050

NDE180..RHD..HB..D

N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944

 1
33111-02050

NDE180,NRE180..RHD..6F

 1
33111-05041

NDE180..RHD..6F

START & STOP SYSTEM PACKAGE

 1
33111-05041

NDE180..RHD..HB..6F

START & STOP SYSTEM PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.736

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

NDE180,NRE180,ZRE185..MTM

L=23,OD=8

 3
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-0D050

NDE180,NRE180,ZRE185..6F

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-0D030

NDE180,NRE180,ZRE185..6F

NO.2

 1
33176-0D020

NDE180,NRE180,ZRE185..6F

NO.1

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-0D030

NDE180,NRE180,ZRE185..6F

NO.2

 1
33176-0D020

NDE180,NRE180,ZRE185..6F

NO.1

 1
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
90105-W0035

NDE180,NRE180,ZRE185..6F

(L)

 6
91551-80816

NDE180,NRE180,ZRE185..MTM

(J)

 6
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
90105-W0035

NDE180,NRE180,ZRE185..6F

(L)

 6
91551-80816

NDE180,NRE180,ZRE185..MTM

(J)

 6
33240B - PIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
90250-08054

NDE180,NRE180,ZRE185..MTM

 2
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

NDE180,NRE180,ZRE185..MTM

 1
33403L - RING, O
96711-24030

NDE180,NRE180,ZRE185..MTM

 1
33449B - MAGNET, TRANSMISSION
33449-20010

NDE180,NRE180,ZRE185..MTM

 1
Common parts
90105-W0128
90119-W0029
91551-80825
