NDE180R-DHFNXW (2012)
Toyota Auris/Hybrid (Ukp)
Production
Oct 2012
-
May 2015
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

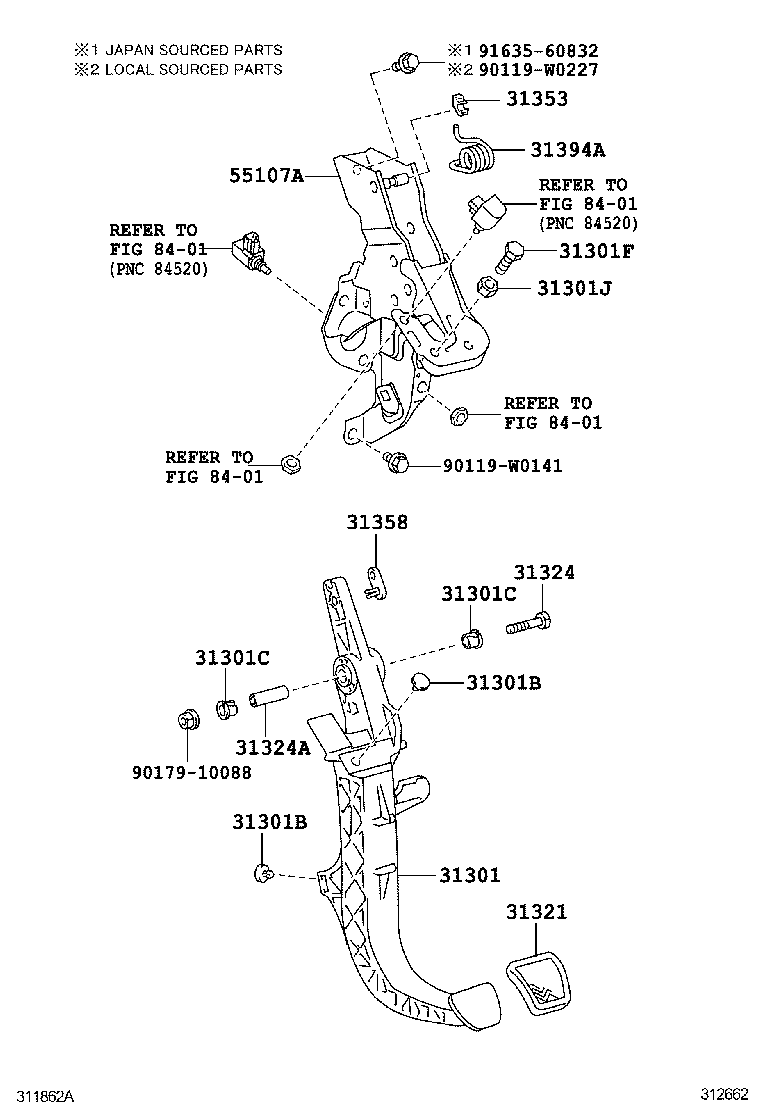

ILLUST NO. 1 OF 2(1210- )NDE180,NRE185,WWE185,ZRE185..RHD..MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31311-12371 |
NDE180,NRE180,ZRE185..RHD..6F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
NDE180,NRE180,ZRE185..RHD..6F |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
NDE180,NRE180,ZRE185..RHD..6F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ADE186,NDE180,NRE180,ZRE185..6F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ADE186,NDE180,NRE180,ZRE185..6F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
ADE186,NDE180,NRE180,ZRE185..6F |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-61000 |
ADE186,NDE180,NRE180,ZRE185..6F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-42010 |
ADE186,NDE180,NRE180,ZRE185..6F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
NDE180,NRE180,ZRE185..RHD..6F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
NDE180,NRE180,ZRE185..RHD..6F |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
NDE180,ZRE185..RHD..6F |
1 | ||
| 31358 - CAP, OVER CENTER SPRING | ||||
| 31358-42010 |
NDE180,ZRE185..RHD..6F |
1 | ||
| 31394A - SPRING, PEDAL W/HOOK | ||||
| 31394-12060 |
NDE180,ZRE185..RHD..6F |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-12291 |
NDE180,ZRE185..RHD..6F |
1 | ||
| Common parts | ||||
| 90119-W0141 | ||||
| 90119-W0227 | ||||
| 90179-10088 | ||||
| 91635-60832 | ||||
| Linked diagrams | ||||
| 8401 | ||||

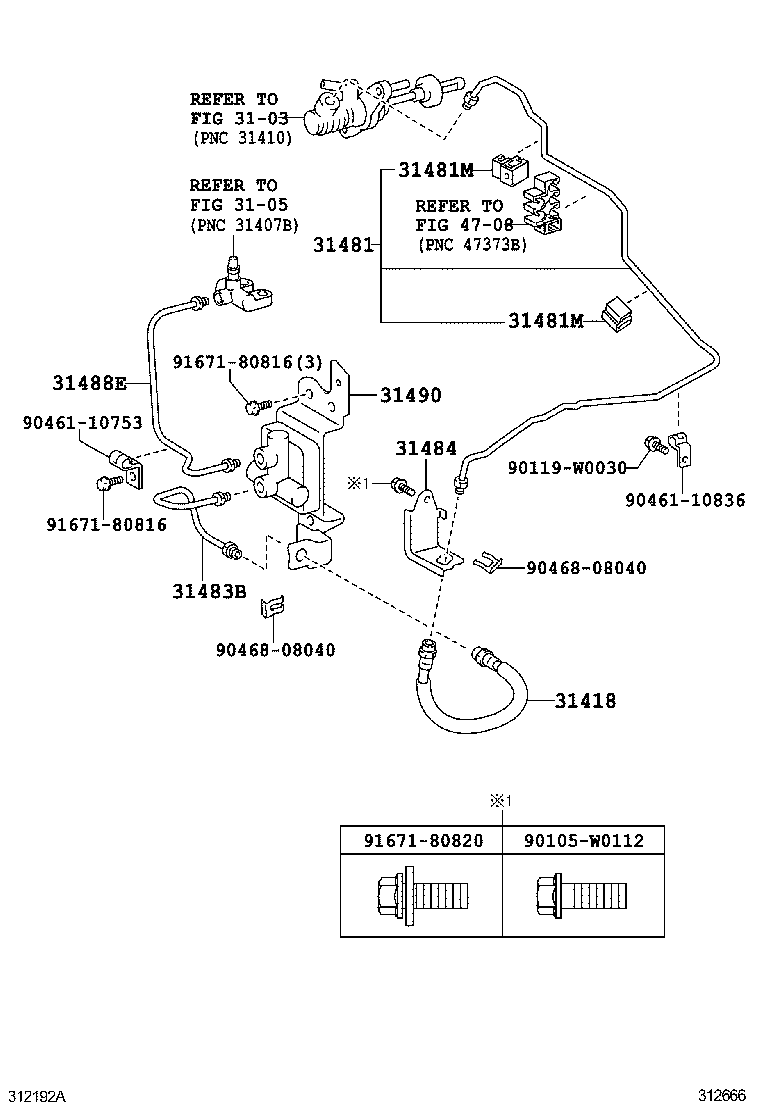

ILLUST NO. 2 OF 2(1210- )NDE180..RHD..6F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-W2041 |
NDE180..6F |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-02510 |
NDE180..RHD..6F |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D78 |
NDE180..RHD..6F |
2 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D78 |
NDE180..RHD..6F |
2 | ||
| 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE | ||||
| 31483-02200 |
NDE180..6F |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-02090 |
ADE186,NDE180,NRE180,ZRE185..6F |
1 | ||
| 31488E - TUBE, BLEEDER TO ACCUMULATOR | ||||
| 31488-12020 |
NDE180..6F |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-12110 |
NDE180..6F |
1 | ||
| Common parts | ||||
| 90105-W0112 | ||||
| 90119-W0030 | ||||
| 90461-10753 | ||||
| 90461-10836 | ||||
| 90468-08040 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
| 4708 | ||||
