NDE180R-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210-1505)1NDTV

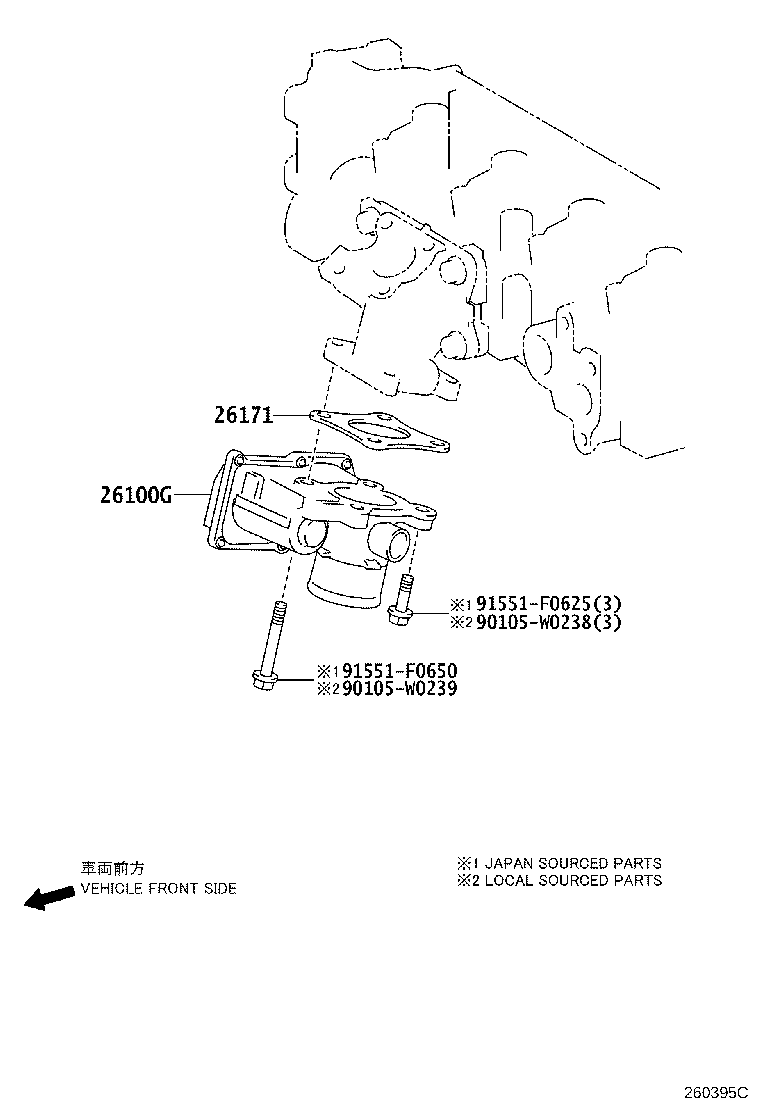

Click highlighted areas on diagram

diagram 26100G 26171 90105W0238 90105W0239 91551F0625 91551F0650
Part # Description Qty Price
26100G - BODY ASSY, DIESEL THROTTLE
26100-0N030

1NDTV..NDE180

 1
26171 - GASKET, VENTURI
26171-33030

1NDTV..NDE180

 1
Common parts
90105-W0238
90105-W0239
91551-F0625
91551-F0650
