NDE180R-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )1NDTV

Click highlighted areas on diagram

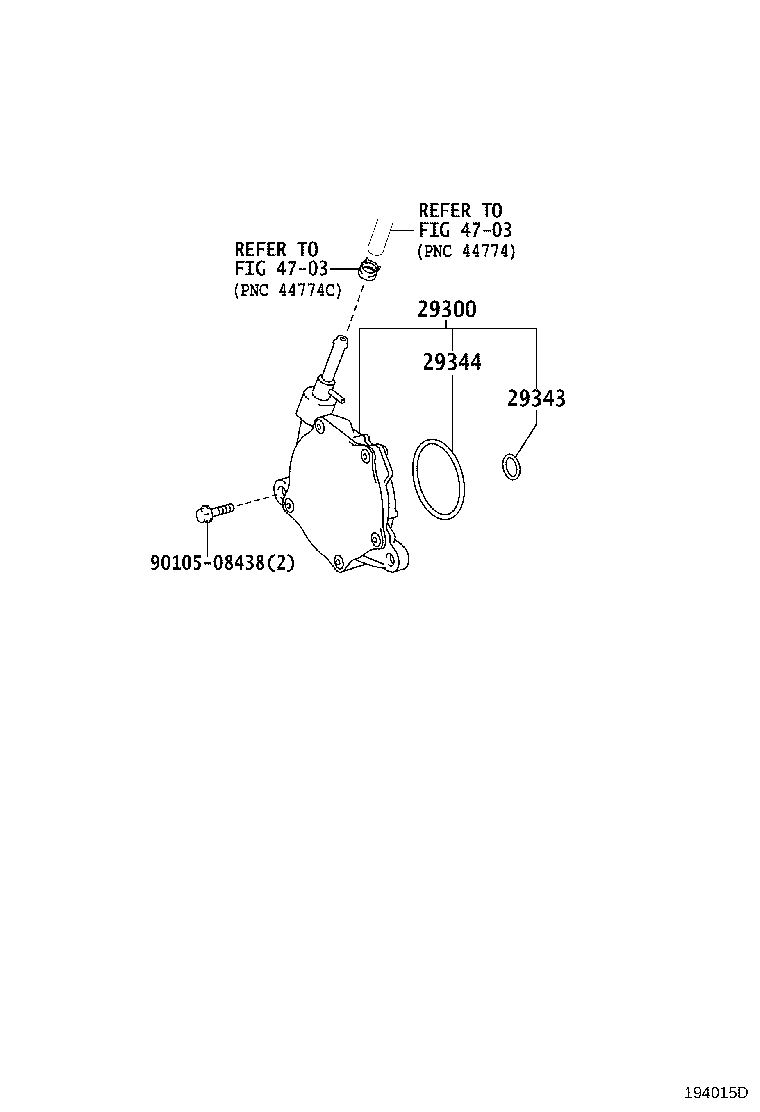

diagram 29300 29343 29344 4703 4703 9010508438
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-0W072

1NDTV..NDE180

 1
29300-0W120

1NDTV..NDE180

 1
29343 - RING, O VACUUM PUMP, NO.1
29343-0W060

1NDTV..NDE180

 1
29344 - RING, O VACUUM PUMP, NO.2
29344-0W060

1NDTV..NDE180

 1
29344-0W100

1NDTV..NDE180

 1
Common parts
90105-08438
Linked diagrams
4703
