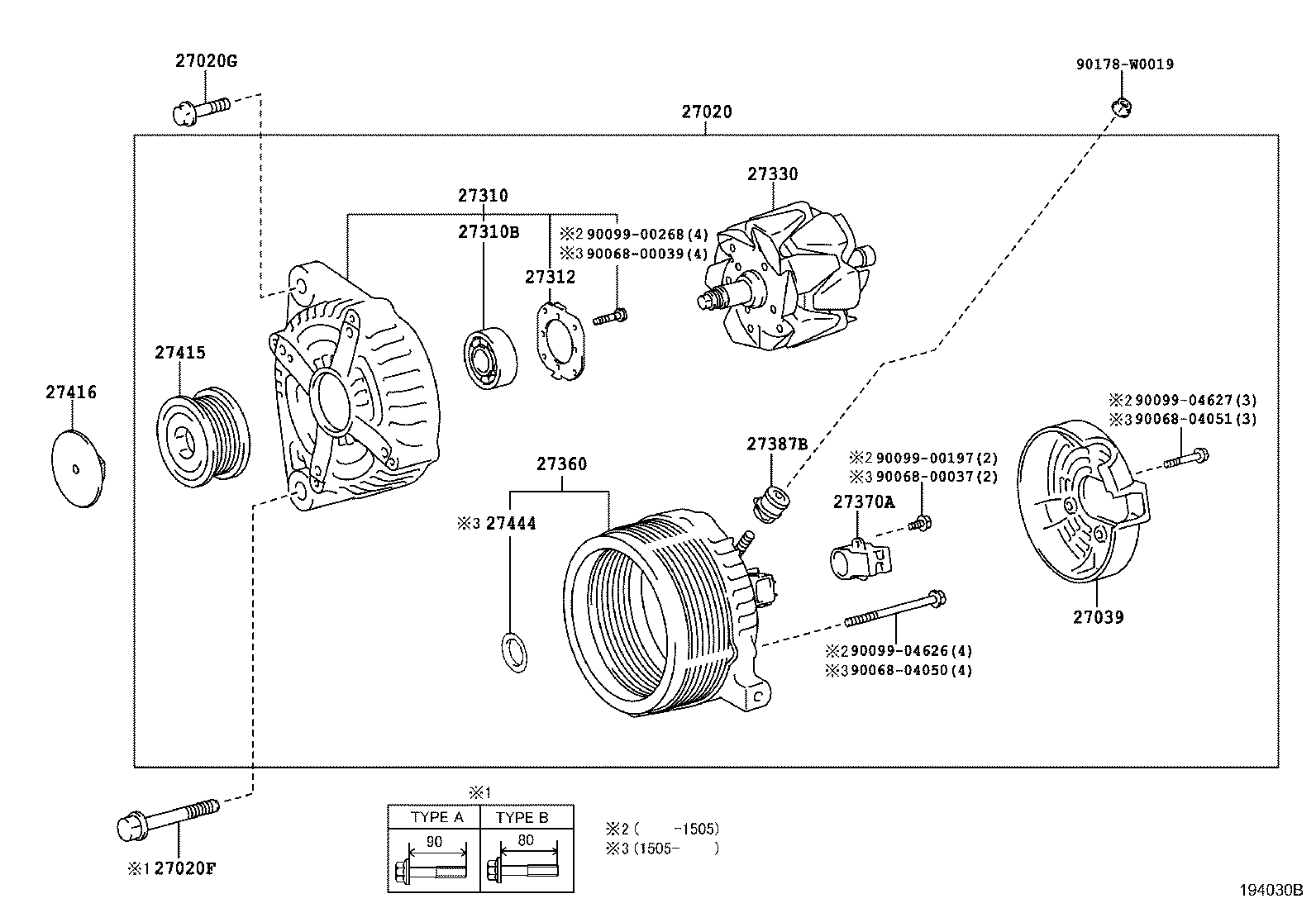

Toyota Auris/hybrid (ukp) NDE180 ALTERNATOR

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-0N100	1NDTV..NDE180 12V 100A	10/2012 - 05/2015	1
27020F - BOLT, NO.1(FOR ALTERNATOR)
90105-W0044	1NDTV..NDE180	10/2012 - 05/2015	1
27020G - BOLT, NO.2(FOR ALTERNATOR)
91671-00845	1N#..NDE180,NRE180	10/2012 - 12/2012	1
90119-W0238	1N#..NDE180,NRE180 (L)	12/2012 - 05/2015	1
91671-00845	1N#..NDE180,NRE180 (J)	12/2012 - 05/2015	1
27039 - COVER, ALTERNATOR REAR END
27039-0Y150	1NRFE..NRE180..RHD;1ADFTV,1NDTV..ADE186,NDE180	10/2012 - 05/2015	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0N080	1NDTV..NDE180	10/2012 - 05/2015	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223	1NRFE..NRE180..RHD;1ADFTV,1NDTV..ADE186,NDE180	10/2012 - 05/2015	1
27312 - PLATE, RETAINER
27312-72100	1NRFE..NRE180..RHD;1ADFTV,1NDTV..ADE186,NDE180	10/2012 - 05/2015	1
27330 - ROTOR ASSY, ALTERNATOR
27330-0Y150	1NRFE..NRE180..RHD;1ADFTV,1NDTV..ADE186,NDE180	10/2012 - 05/2015	1
27360 - COIL ASSY, ALTERNATOR
27360-0N080	1NDTV..NDE180	10/2012 - 05/2015	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-0Y150	1NDTV..NDE180;1NRFE..NRE180..RHD	10/2012 - 05/2015	1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-0Y150	1NRFE..NRE180..RHD;1ADFTV,1NDTV..ADE186,NDE180	10/2012 - 05/2015	1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-33100	1NDTV..NDE180	10/2012 - 05/2015	1
27416 - CAP, ALTERNATOR PULLEY
27416-27010	1ADFTV,1NDTV..ADE186,NDE180	10/2012 - 05/2015	1
Common parts
90068-00037
90068-00039
90068-04050
90068-04051
90099-00197
90099-00268
90099-04626
90099-04627
90178-W0019

NDE180R-DHFNXW (2012)
