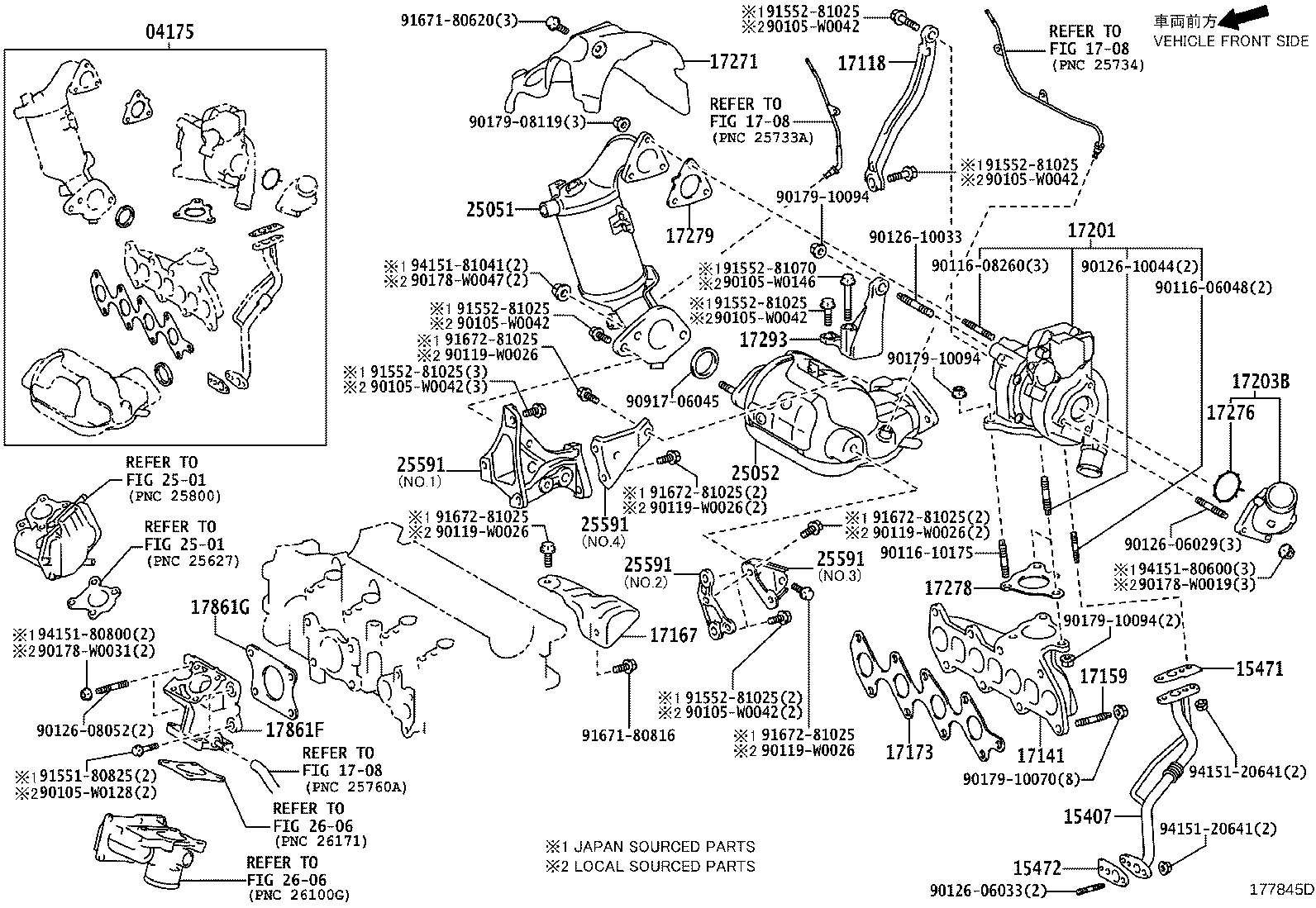

Toyota Auris/hybrid (ukp) NDE180 MANIFOLD

Part #	Description	Period	Qty
04175 - GASKET KIT, TURBOCHARGER
04175-33070	1NDTV..NDE180	10/2012 - 09/2014	1
04175-33071	1NDTV..NDE180	09/2014 - 05/2015	1
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-0N010	1NDTV..NDE180 (L)	04/2015 - 05/2015	1
15407-33021	1NDTV..NDE180 (J)	04/2015 - 05/2015	1
15407-33021	1NDTV..NDE180	10/2012 - 04/2015	1
15471 - GASKET, TURBO OIL INLET
15471-0N010	1NDTV..NDE180	04/2015 - 05/2015	1
15471-33010	1NDTV..NDE180	10/2012 - 04/2015	1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-33020	1NDTV..NDE180	10/2012 - 05/2015	1
17118 - STAY, MANIFOLD
17118-33040	1NDTV..NDE180	10/2012 - 05/2015	1
17141 - MANIFOLD, EXHAUST
17141-33050	1NDTV..NDE180	10/2012 - 03/2015	1
17141-33080	1NDTV..NDE180	04/2015 - 05/2015	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10033	1NDTV..NDE180	10/2012 - 05/2015	8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-33030	1NDTV..NDE180	10/2012 - 05/2015	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-33030	1NDTV..NDE180	10/2012 - 08/2014	1
17173-33031	1NDTV..NDE180	09/2014 - 05/2015	1
17201 - TURBOCHARGER SUB-ASSY
17201-0N042	1NDTV..NDE180	10/2012 - 05/2015	1
17203B - ELBOW SUB-ASSY, COMPRESSOR INLET
17203-33010	1NDTV..NDE180	10/2012 - 04/2015	1
17203-33010	1NDTV..NDE180 (J)	04/2015 - 05/2015	1
17203-0N010	1NDTV..NDE180 (L)	04/2015 - 05/2015	1
17271 - INSULATOR, TURBO, NO.1
17271-33090	1NDTV..NDE180	10/2012 - 05/2015	1
17276 - GASKET, COMPRESSOR INLET
17276-33010	1NDTV..NDE180	10/2012 - 05/2015	1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-33010	1NDTV..NDE180	10/2012 - 05/2015	1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-27020	1NDTV..NDE180	10/2012 - 05/2015	1
17293 - STAY, TURBOCHARGER
17293-33010	1NDTV..NDE180 (J)	04/2014 - 05/2015	1
17293-0N010	1NDTV..NDE180 (L)	04/2014 - 05/2015	1
17293-33010	1NDTV..NDE180	10/2012 - 04/2014	1
17861F - CONNECTOR, INTAKE AIR
17861-0N010	1NDTV..NDE180 (L)	04/2015 - 05/2015	1
17861-33080	1NDTV..NDE180	10/2012 - 04/2015	1
17861-33080	1NDTV..NDE180 (J)	04/2015 - 05/2015	1
17861G - GASKET, INTAKE AIR CONNECTOR
26171-33050	1NDTV..NDE180	10/2012 - 05/2015	1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-33110	1NDTV..NDE180 114=330	10/2012 - 05/2015	1
25052 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD, NO.2
25052-33060	1NDTV..NDE180 114=329	10/2012 - 05/2015	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-0N010	1NDTV..NDE180 (L),NO.1:SEE ILLUST	10/2012 - 05/2015	1
25593-33010	1NDTV..NDE180 (J),NO.3:SEE ILLUST	10/2012 - 05/2015	1
25594-0N010	1NDTV..NDE180 (L),NO.4:SEE ILLUST	10/2012 - 05/2015	1
25592-33020	1NDTV..NDE180 NO.2:REFER ILLUST.	10/2012 - 05/2015	1
25591-33050	1NDTV..NDE180 (J),NO.1:SEE ILLUST	10/2012 - 05/2015	1
25593-0N010	1NDTV..NDE180 (L),NO.3:SEE ILLUST	10/2012 - 05/2015	1
25594-33010	1NDTV..NDE180 (J),NO.4:SEE ILLUST	10/2012 - 05/2015	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-0N010	1NDTV..NDE180 (L),NO.1:SEE ILLUST	10/2012 - 05/2015	1
25593-33010	1NDTV..NDE180 (J),NO.3:SEE ILLUST	10/2012 - 05/2015	1
25594-0N010	1NDTV..NDE180 (L),NO.4:SEE ILLUST	10/2012 - 05/2015	1
25592-33020	1NDTV..NDE180 NO.2:REFER ILLUST.	10/2012 - 05/2015	1
25591-33050	1NDTV..NDE180 (J),NO.1:SEE ILLUST	10/2012 - 05/2015	1
25593-0N010	1NDTV..NDE180 (L),NO.3:SEE ILLUST	10/2012 - 05/2015	1
25594-33010	1NDTV..NDE180 (J),NO.4:SEE ILLUST	10/2012 - 05/2015	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-0N010	1NDTV..NDE180 (L),NO.1:SEE ILLUST	10/2012 - 05/2015	1
25593-33010	1NDTV..NDE180 (J),NO.3:SEE ILLUST	10/2012 - 05/2015	1
25594-0N010	1NDTV..NDE180 (L),NO.4:SEE ILLUST	10/2012 - 05/2015	1
25592-33020	1NDTV..NDE180 NO.2:REFER ILLUST.	10/2012 - 05/2015	1
25591-33050	1NDTV..NDE180 (J),NO.1:SEE ILLUST	10/2012 - 05/2015	1
25593-0N010	1NDTV..NDE180 (L),NO.3:SEE ILLUST	10/2012 - 05/2015	1
25594-33010	1NDTV..NDE180 (J),NO.4:SEE ILLUST	10/2012 - 05/2015	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-0N010	1NDTV..NDE180 (L),NO.1:SEE ILLUST	10/2012 - 05/2015	1
25593-33010	1NDTV..NDE180 (J),NO.3:SEE ILLUST	10/2012 - 05/2015	1
25594-0N010	1NDTV..NDE180 (L),NO.4:SEE ILLUST	10/2012 - 05/2015	1
25592-33020	1NDTV..NDE180 NO.2:REFER ILLUST.	10/2012 - 05/2015	1
25591-33050	1NDTV..NDE180 (J),NO.1:SEE ILLUST	10/2012 - 05/2015	1
25593-0N010	1NDTV..NDE180 (L),NO.3:SEE ILLUST	10/2012 - 05/2015	1
25594-33010	1NDTV..NDE180 (J),NO.4:SEE ILLUST	10/2012 - 05/2015	1
Common parts
90105-W0042
90105-W0128
90105-W0146
90116-06048
90116-08260
90116-10175
90119-W0026
90126-06029
90126-06033
90126-08052
90126-10033
90126-10044
90178-W0019
90178-W0031
90178-W0047
90179-08119
90179-10070
90179-10094
90917-06045
91551-80825
91552-81025
91552-81070
91671-80620
91671-80816
91672-81025
94151-20641
94151-80600
94151-80800
94151-81041
Linked diagrams
1708
2501
2606

NDE180R-DHFNXW (2012)

(1210-1505)1NDTV
