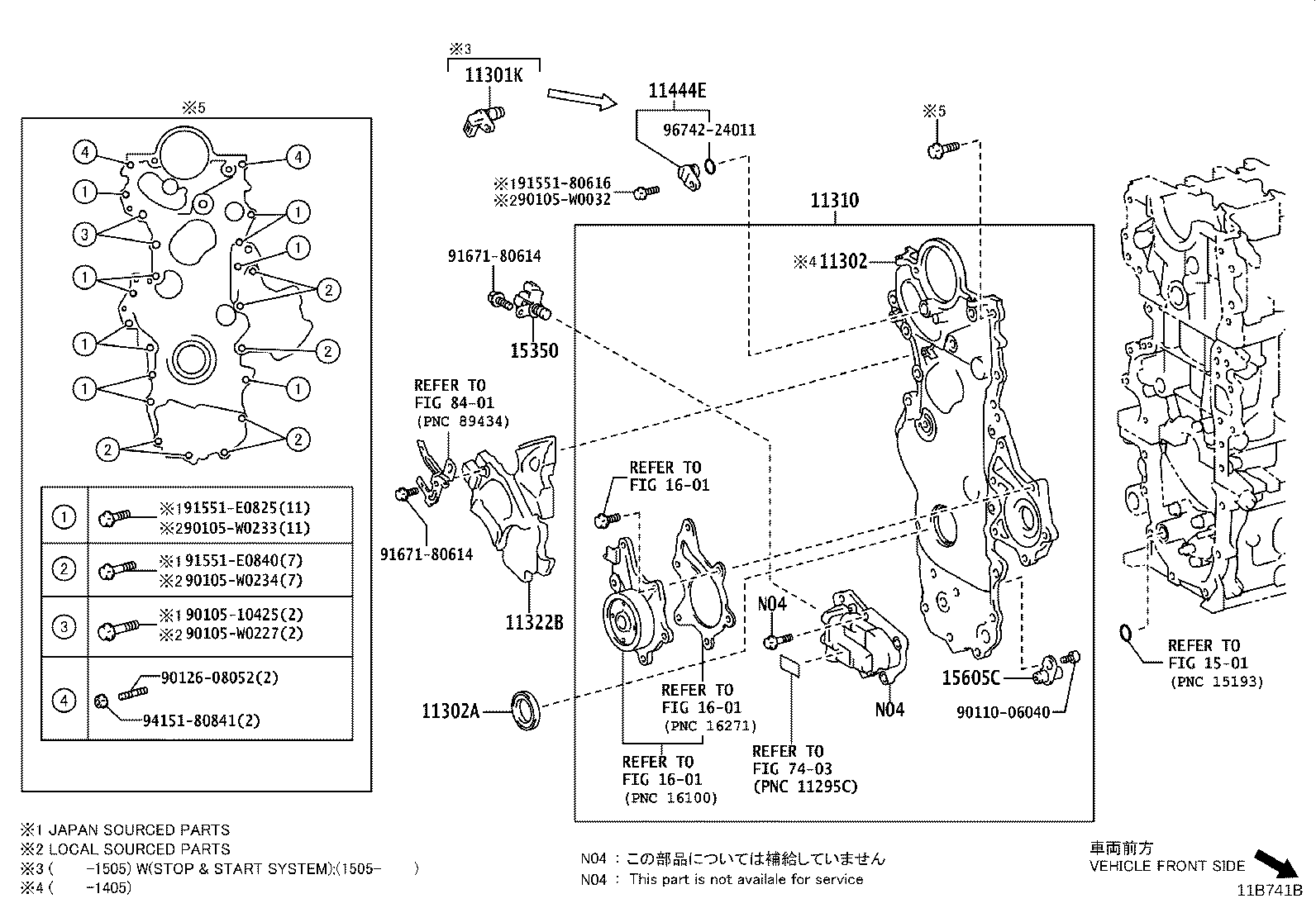

Toyota Auris/hybrid (ukp) NDE180 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11301K - SENSOR, CRANK POSITION
90919-05084	1NDTV..NDE180..RHD..6F START & STOP SYSTEM PACKAGE	05/2014 - 05/2015	1
90919-05084	1NDTV..NDE180..RHD..6F	10/2012 - 05/2014	1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-0N010	1NDTV..NDE180	10/2012 - 05/2014	1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-40033	1NDTV..NDE180	10/2012 - 03/2013	1
90311-40040	1NDTV..NDE180	03/2013 - 05/2015	1
11310 - COVER ASSY, TIMING CHAIN
11310-0N012	1NDTV..NDE180	09/2014 - 05/2015	1
11310-0N010	1NDTV..NDE180	10/2012 - 05/2014	1
11310-0N011	1NDTV..NDE180	05/2014 - 09/2014	1
11322B - COVER, TIMING BELT, NO.2
11322-33040	1NDTV..NDE180	10/2012 - 04/2015	1
11322-0N020	1NDTV..NDE180 (L)	04/2015 - 05/2015	1
11322-33040	1NDTV..NDE180 (J)	04/2015 - 05/2015	1
11444E - PLUG, HOLE
11444-33020	1NDTV..NDE180..RHD..HB..D N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944	10/2012 - 05/2014	1
11444-33020	1NDTV..NDE180..RHD..6F	05/2014 - 05/2015	1
15350 - VALVE ASSY, OIL PRESSURE SWITCHING
15350-33012	1NDTV..NDE180	10/2012 - 05/2015	1
15605C - VALVE SUB-ASSY, OIL CHECK
15605-30040	1NDTV..NDE180	10/2012 - 05/2015	1
Common parts
90105-10425
90105-W0032
90105-W0227
90105-W0233
90105-W0234
90110-06040
90126-08052
91551-80616
91551-E0825
91551-E0840
91671-80614
94151-80841
96742-24011
Linked diagrams
1501
1601
7403
8401

NDE180R-DHFNXW (2012)
