NDE180R-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210-1505)1NDTV

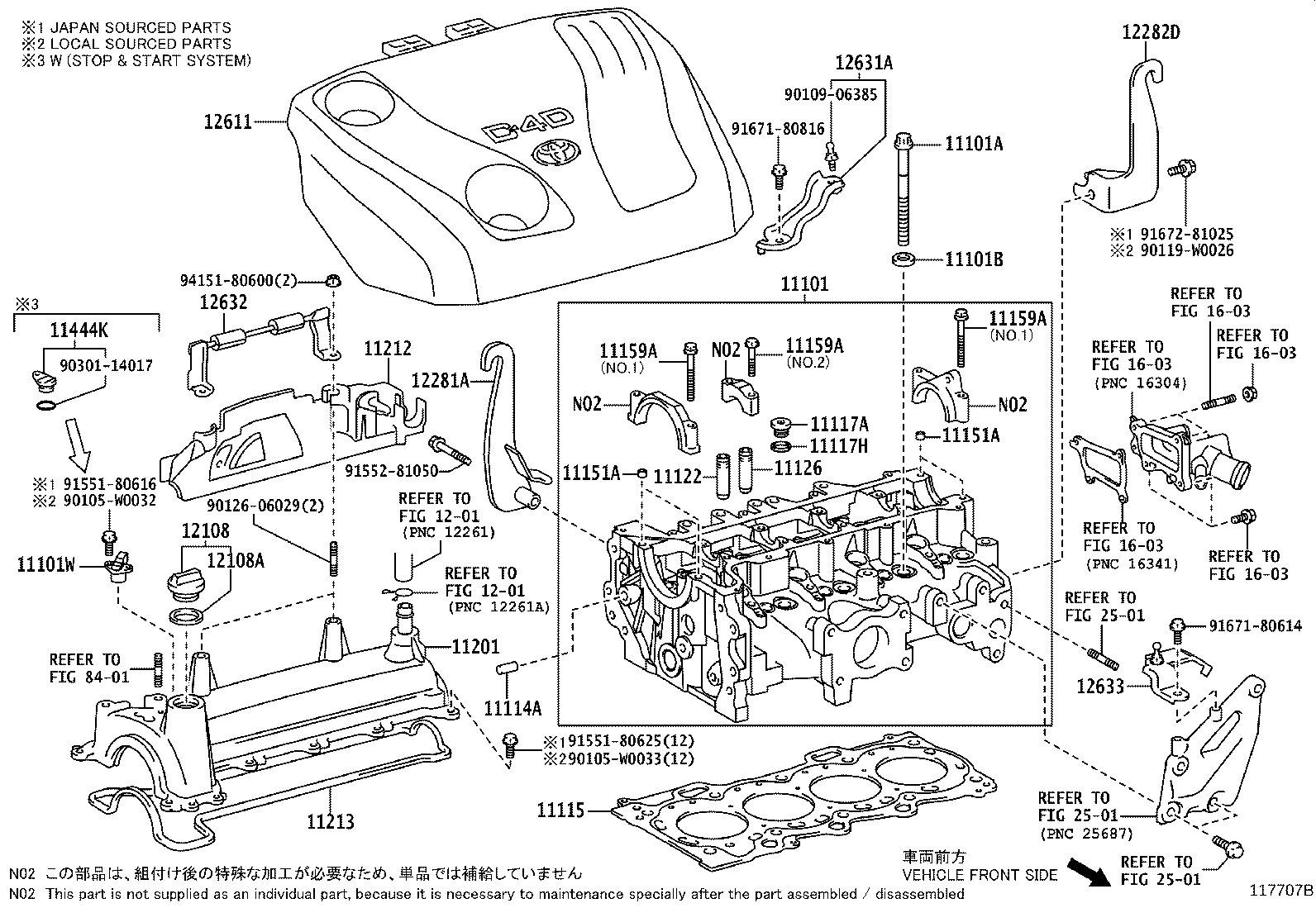

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101W 11114A 11115 11117A 11117H 11122 11126 11151A 11151A 11159A 11159A 11159A 11201 11212 11213 11444K 1201 1201 12108 12108A 12281A 12282D 12611 12631A 12632 12633 1603 1603 1603 1603 1603 2501 2501 2501 8401 90105W0032 90105W0033 9010906385 90119W0026 9012606029 9030114017 9155180616 9155180625 9155281050 9167180614 9167180816 9167281025 9415180600
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-33061

1NDTV..NDE180

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02171

1NDTV..NDE180

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-13042

1NDTV..NDE180

 10
11101W - SENSOR, CRANK POSITION, NO.1
90919-05029

1NDTV..NDE180..RHD..HB..D

N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944

 1
90919-05029

1NDTV..NDE180..RHD..6F

 1
11114A - PIN, STRAIGHT
90250-10030

1NDTV..NDE180

L=36,OD=10

 1
11115 - GASKET, CYLINDER HEAD
11115-33040A0

1NDTV..NDE180

MARKA,REFER REPAIR MANUAL

 1
11115-33040C0

1NDTV..NDE180

MARKC,REFER REPAIR MANUAL

 1
11115-33040D0

1NDTV..NDE180

MARKD,REFER REPAIR MANUAL

 1
11115-33040B0

1NDTV..NDE180

MARKB,REFER REPAIR MANUAL

 1
11115-33041B0

1NDTV..NDE180

MARK B,REFER REPAIR MANUAL

 1
11115-33041C0

1NDTV..NDE180

MARK C,REFER REPAIR MANUAL

 1
11115-33041A0

1NDTV..NDE180

MARK A,REFER REPAIR MANUAL

 1
11115-33041E0

1NDTV..NDE180

MARK E,REFER REPAIR MANUAL

 1
11115-33040E0

1NDTV..NDE180

MARKE,REFER REPAIR MANUAL

 1
11115-33041D0

1NDTV..NDE180

MARK D,REFER REPAIR MANUAL

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-14008

1NDTV..NDE180

 3
11117H - GASKET(FOR WATER HOLE)
90430-14008

1NDTV..NDE180

 3
11122 - BUSH, INTAKE VALVE GUIDE
11122-33030

1NDTV..NDE180

STD

 4
11123-33030

1NDTV..NDE180

O/S 0.05

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-33030

1NDTV..NDE180

STD

 4
11123-33030

1NDTV..NDE180

O/S 0.05

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-10004

1NDTV..NDE180

L=10,OD=8

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-10004

1NDTV..NDE180

L=10,OD=8

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07009

1NDTV..NDE180

NO.2:REFER ILLUST.

 8
90119-07008

1NDTV..NDE180

NO.1:REFER ILLUST.

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07009

1NDTV..NDE180

NO.2:REFER ILLUST.

 8
90119-07008

1NDTV..NDE180

NO.1:REFER ILLUST.

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07009

1NDTV..NDE180

NO.2:REFER ILLUST.

 8
90119-07008

1NDTV..NDE180

NO.1:REFER ILLUST.

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-0N020

1NDTV..NDE180

(L)

 1
11201-33041

1NDTV..NDE180

(J)

 1
11212 - COVER, CYLINDER HEAD, NO.2
11212-33031

1NDTV..NDE180

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-33030

1NDTV..NDE180

 1
11444K - PLUG, HOLE
11444-33010

1NDTV..NDE180..RHD..6F

 1
11444-33010

1NDTV..NDE180..RHD..6F

START & STOP SYSTEM PACKAGE

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-38010

1N#..NDE180,NRE180

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35001

1N#..NDE180,NRE180

 1
12281A - HANGER, ENGINE, NO.1
12281-33050

1NDTV..NDE180

 1
12282D - HANGER, ENGINE, NO.2
12282-33022

1NDTV..NDE180

 1
12611 - COVER, ENGINE, NO.1
12611-0N080

1NDTV..NDE180

 1
12631A - BRACKET, ENGINE COVER
12631-33020

1NDTV..NDE180

(J)

 1
12631-0N010

1NDTV..NDE180

(L)

 1
12632 - BRACKET, ENGINE COVER, NO.2
12632-33041

1NDTV..NDE180

(J)

 1
12632-0N010

1NDTV..NDE180

(L)

 1
12633 - BRACKET, ENGINE COVER, NO.3
12633-0N010

1NDTV..NDE180

(L)

 1
12633-33020

1NDTV..NDE180

(J)

 1
Common parts
90105-W0032
90105-W0033
90109-06385
90119-W0026
90126-06029
90301-14017
91551-80616
91551-80625
91552-81050
91671-80614
91671-80816
91672-81025
94151-80600
Linked diagrams
1201
1603
2501
8401
