NDE180R-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )

Click highlighted areas on diagram

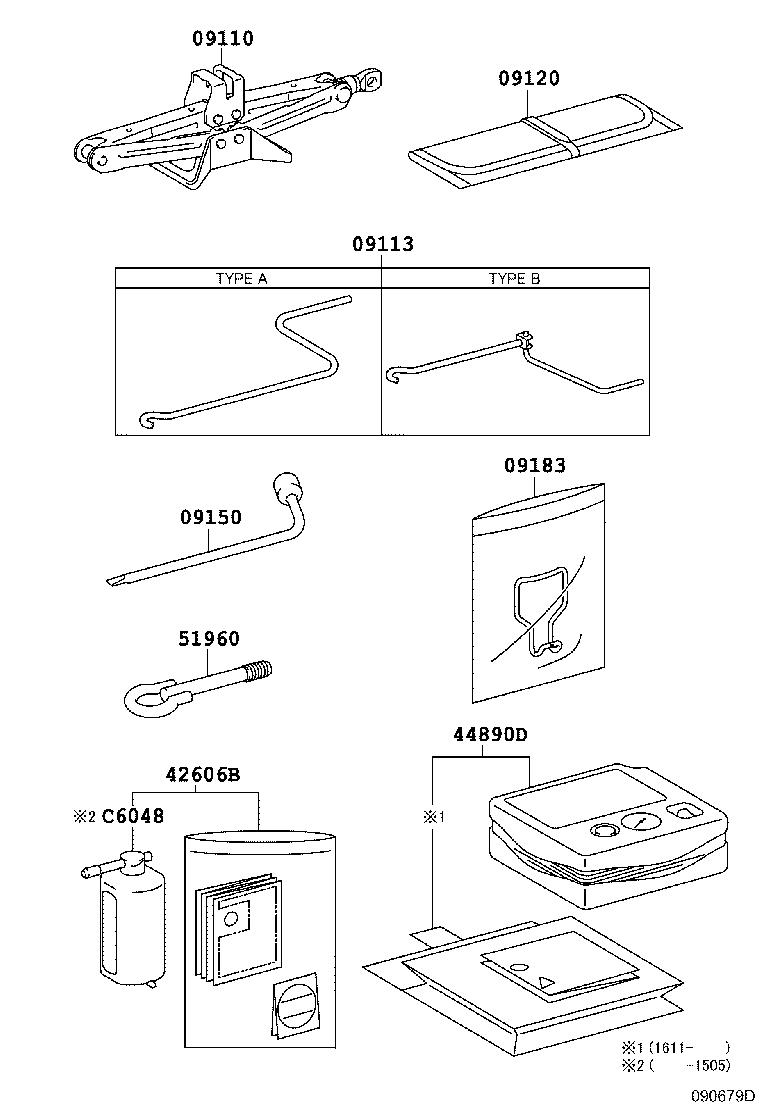

diagram 09110 09113 09120 09150 09183 42606B 44890D 51960 C6048
Part # Description Qty Price
09110 - JACK ASSY
09111-05050

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
09111-05050

ADE186,NDE180,NRE180,ZRE185,ZWE186

LIGHT GRADE

 1
09111-05050

ADE186,NDE180,NRE180,ZRE185,ZWE186

JACK-WITHOUT

 1
09113 - HANDLE, JACK
09113-0F010

ADE186,NDE180,NRE180,ZRE185,ZWE186..HB

SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE B:REFER ILLUST.

 1
09113-02051

ADE186,NDE180,NRE180,ZRE185,ZWE186

TYPE A:REFER ILLUST.

 1
09120 - BAG, TOOL
09120-02130

ADE186,NDE180,NRE180,ZRE185,ZWE186..HB

SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F

 1
09150 - WRENCH, HUB NUT BOX
09150-05011

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
09183 - WRENCH, WHEEL CAP
09183-0D010

ADE186,NDE180,NRE180,ZRE185

JACK-WITHOUT

 1
42606B - REPAIR KIT, TUBELESS TIRE
42606-02010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
44890D - COMPRESSOR ASSY, AIR
44890-02010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
51960 - HOOK ASSY, FRONT
51960-05010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
C6048 - REPAIR SET, TIRE
C6048-02010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
