NDE180R-DHFDXW (2012)
Toyota Auris/Hybrid (Ukp)

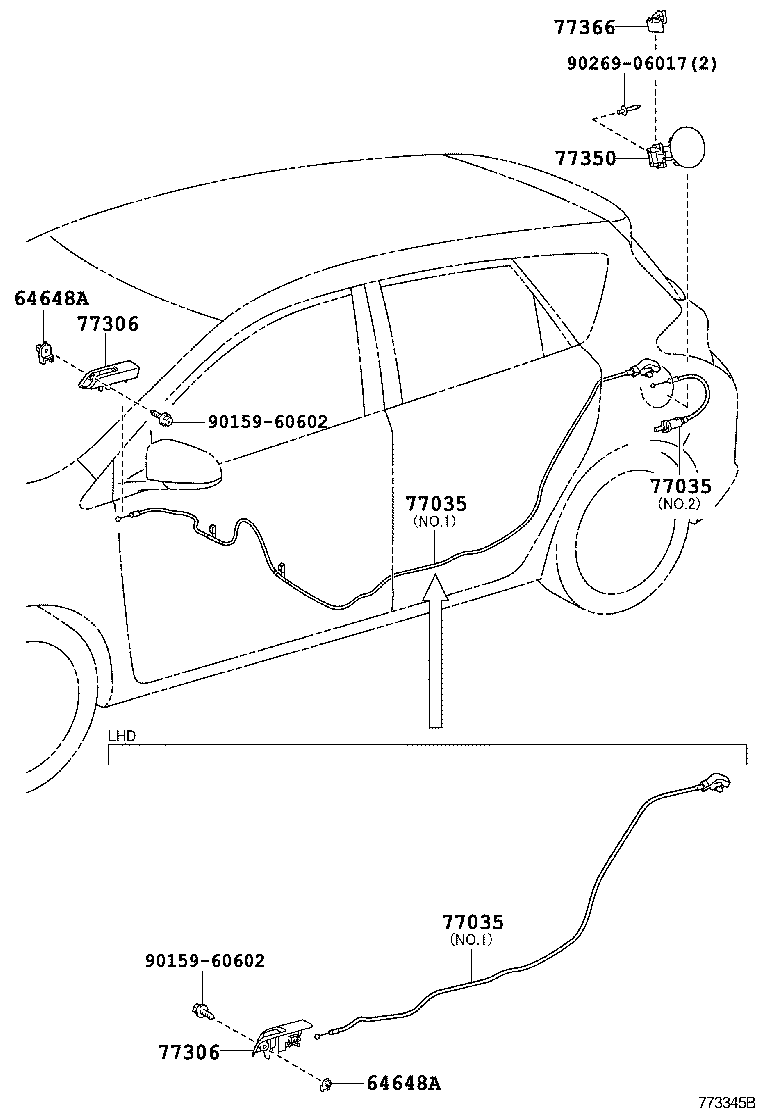

ILLUST NO. 3 OF 3(1210- )HB
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02320 |
NDE180,NRE180,ZRE185,ZWE186..RHD..HB NO.1:REFER ILLUST. |
1 | ||
| 77035-02340 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB NO.2:REFER ILLUST. |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02320 |
NDE180,NRE180,ZRE185,ZWE186..RHD..HB NO.1:REFER ILLUST. |
1 | ||
| 77035-02340 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB NO.2:REFER ILLUST. |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02320 |
NDE180,NRE180,ZRE185,ZWE186..RHD..HB NO.1:REFER ILLUST. |
1 | ||
| 77035-02340 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB NO.2:REFER ILLUST. |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0D110 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 77306-52050 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0D110 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 77306-52050 |
NDE180,NRE180,ZRE185,ZWE186..RHD |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-02100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90269-06017 | ||||

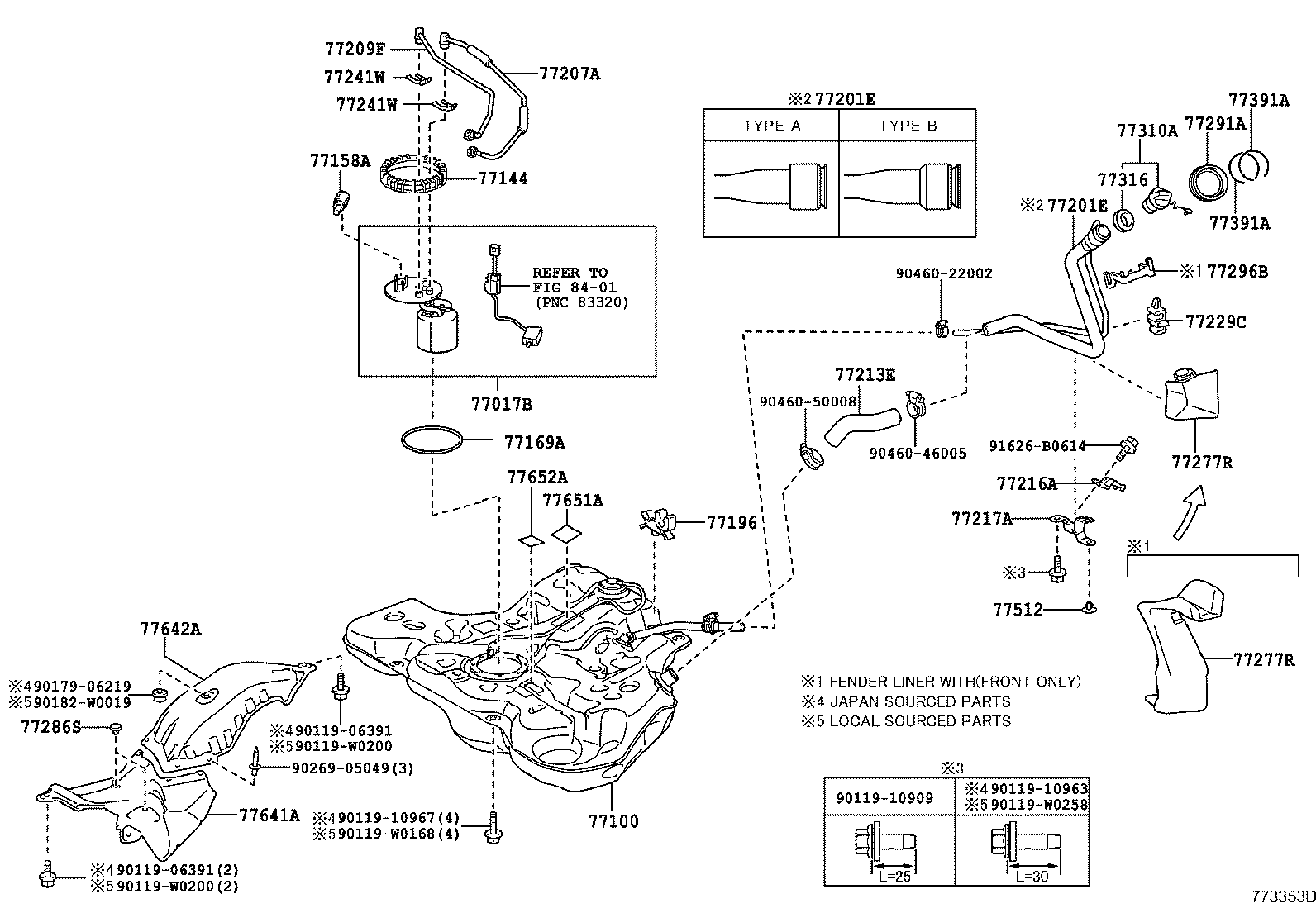

ILLUST NO. 1 OF 3(1210- )NDE180
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77010-02060 |
ADE186,NDE180 |
1 | ||
| 77010-02061 |
ADE186,NDE180 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02390 |
ADE186,NDE180 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-0D020 |
ADE186,NDE180 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-02050 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-02500 |
ADE186,NDE180 TYPE B:REFER ILLUST. |
1 | ||
| 77201-12860 |
ADE186,NDE180 TYPE A:REFER ILLUST. |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-02500 |
ADE186,NDE180 TYPE B:REFER ILLUST. |
1 | ||
| 77201-12860 |
ADE186,NDE180 TYPE A:REFER ILLUST. |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77204-02050 |
ADE186,NDE180 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02090 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-20190 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (J) |
1 | ||
| 77213-02220 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (L) |
1 | ||
| 77213-20190 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12190 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 PNC 77201E=TYPE A |
1 | ||
| 77216-02170 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 PNC 77201E=TYPE B |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-47080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 PNC 77201E=TYPE A |
1 | ||
| 77217-02140 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 PNC 77201E=TYPE B |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-12070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
ADE186,NDE180 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
ADE186,NDE180 |
2 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-02120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 FENDER LINER-WITH(FRONT ONLY) |
1 | ||
| 77277-12180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-02120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 FENDER LINER-WITH(FRONT ONLY) |
1 | ||
| 77277-12180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-02070 |
NDE180,NRE180 |
2 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-52030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 FENDER LINER-WITH(FRONT ONLY) |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12030 |
ADE186,NDE180 |
1 | ||
| 77300-20020 |
ADE186,NDE180 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-02060 |
NDE180,NRE180 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-02011 |
NDE180,NRE180 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-45020 |
ADE186,NDE180 |
1 | ||
| Common parts | ||||
| 90119-06391 | ||||
| 90119-10909 | ||||
| 90119-10963 | ||||
| 90119-10967 | ||||
| 90119-W0168 | ||||
| 90119-W0200 | ||||
| 90119-W0258 | ||||
| 90179-06219 | ||||
| 90182-W0019 | ||||
| 90269-05049 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

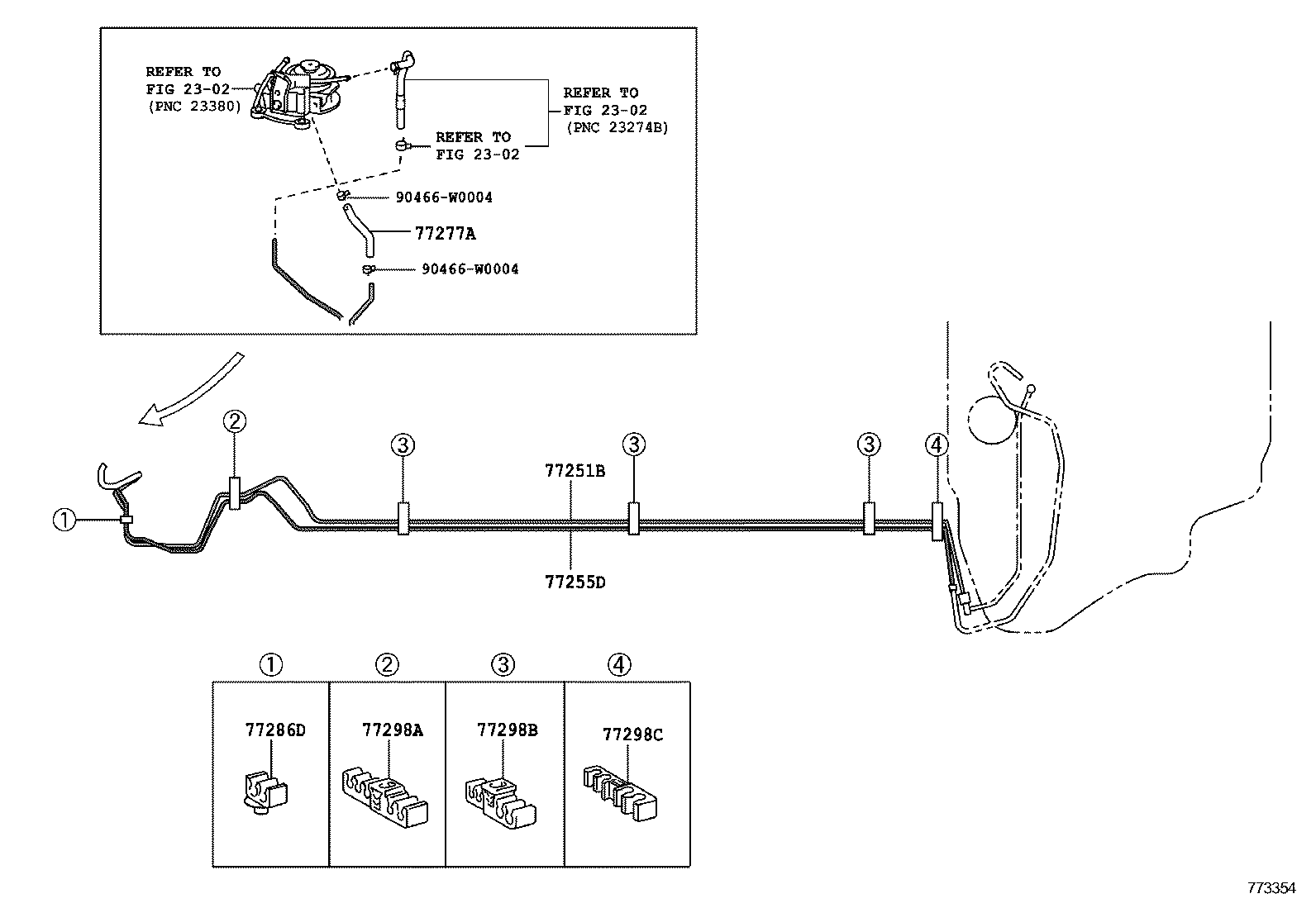

ILLUST NO. 2 OF 3(1210-1505)ADE186,NDE180
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02600 |
ADE186,NDE180 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-02300 |
ADE186,NDE180 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95338-08016 |
ADE186,NDE180 L=160 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-02030 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
3 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-02040 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| Common parts | ||||
| 90466-W0004 | ||||
| Linked diagrams | ||||
| 2302 | ||||
