NDE180R-DHFDXW (2012)
Toyota Auris/Hybrid (Ukp)
ILLUST NO. 1 OF 2(1210- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-02040B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LT.GRAY,TRIM2# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-02040B0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N LT.GRAY,TRIM2# |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-02460C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 BLACK |
1 | ||
| 73219-33020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 GRAY |
1 | ||
| 73219-33030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-02450C2 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-02490C0 |
NDE180,NRE180,ZRE185,ZWE186..RHD..(D,N) BLACK,TRIM2# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-02550C0 |
NDE180,NRE180,ZRE185,ZWE186..RHD..(D,N) BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-W0007 | ||||
| 90105-W0014 | ||||
| 90105-W0120 | ||||
| 90109-W0013 | ||||
| 90178-W0062 | ||||

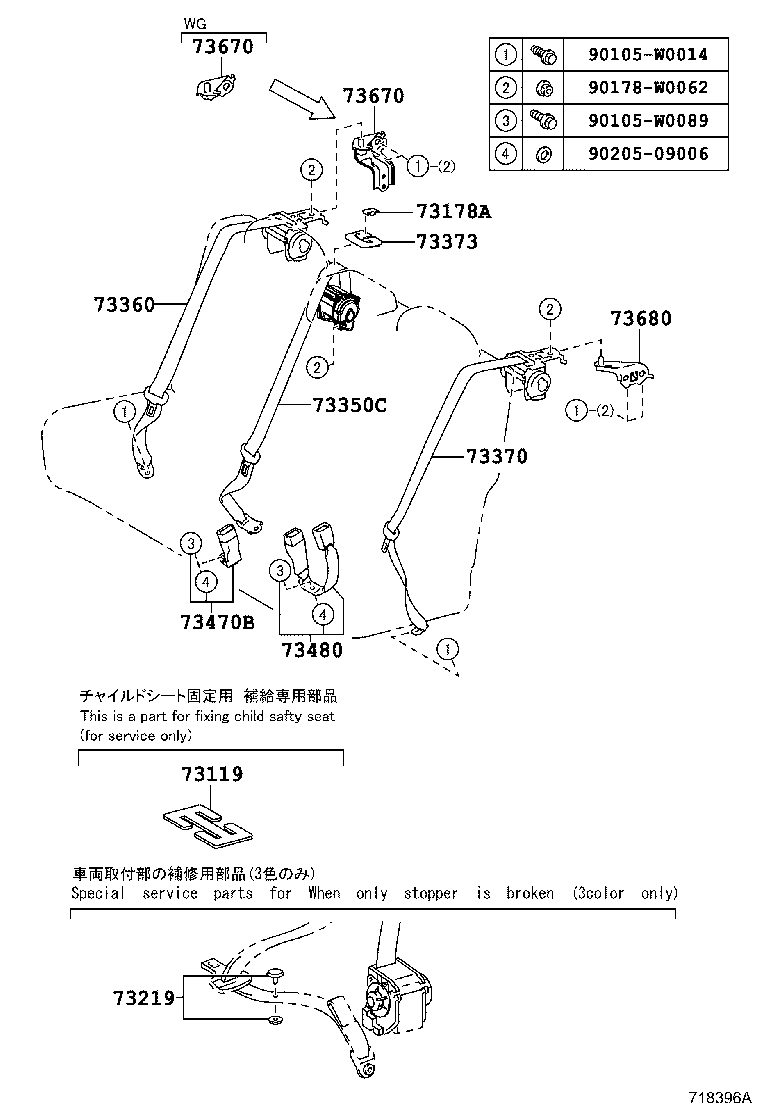

ILLUST NO. 2 OF 2(1210- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-02040C0 |
NRE180..LHD..HB..D;NDE180,ZRE185..HB..6F..D N1 PACKAGE,BLACK,TRIM2# |
1 | ||
| 73178-02040C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 BLACK |
1 | ||
| 73219-33020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 GRAY |
1 | ||
| 73219-33030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 BEIGE |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-02140C1 |
NRE180..LHD..HB..D;NDE180,ZRE185..HB..6F..D N1 PACKAGE,BLACK,TRIM2# |
1 | ||
| 73350-02140C1 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-02550C0 |
NRE180..LHD..HB..D;NDE180,ZRE185..HB..6F..D N1 PACKAGE,BLACK,TRIM2# |
1 | ||
| 73360-02550C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73360-02550C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 73360-02550C0 |
NRE180..LHD..HB..D;NDE180,ZRE185..HB..6F..D N1 PACKAGE,BLACK,TRIM2# |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 73373-02070C0 |
NRE180..LHD..HB..D;NDE180,ZRE185..HB..6F..D N1 PACKAGE,BLACK,TRIM2# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73380-02080C0 |
ADE186,NDE180,NRE180,ZRE185 BLACK,TRIM2# |
1 | ||
| 73380-02080C0 |
NRE180..LHD..HB..D;NDE180,ZRE185..HB..6F..D N1 PACKAGE,BLACK,TRIM2# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-02490C0 |
ADE186,NDE180,NRE180,ZRE185 BLACK,TRIM2# |
1 | ||
| 73480-02490C0 |
NRE180..LHD..HB..D;NDE180,ZRE185..HB..6F..D N1 PACKAGE,BLACK,TRIM2# |
1 | ||
| 73670 - BRACKET ASSY, REAR SEAT BELT OUTER ANCHOR, RH | ||||
| 73670-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 73670 - BRACKET ASSY, REAR SEAT BELT OUTER ANCHOR, RH | ||||
| 73670-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 73680 - BRACKET ASSY, REAR SEAT BELT OUTER ANCHOR, LH | ||||
| 73016-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90105-W0014 | ||||
| 90105-W0089 | ||||
| 90178-W0062 | ||||
| 90205-09006 | ||||
