NDE180R-DHFDXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1210- )

Click highlighted areas on diagram

SUSPENSION CROSSMEMBER

diagram 51201 51206A 51217A 51218A 51425A 52203F 52204C 52255 52255B 52256 52257 52257 52258A 52271D 52272 52275B 52276A 52277B 52278C 52295 52296 57104E 9010512371 9010512371 90105W0077 9011614014 9011912398 9011912400 9011912400 9011914098 9011914101 9011914101 9011914123 90119W0081 90119W0081 90119W0081 90119W0107 90119W0107 90178W0027 90178W0033
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-02102

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
51201-02101

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51107-02010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51108-02010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
51425A - REINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER
51425-02010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-02010

NDE180,NRE180

 1
52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52256-02010

NDE180,NRE180

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-02060

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-02060

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-02060

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
57104E - MEMBER SUB-ASSY, FRONT CROSS
57104-02230

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
Common parts
90105-12371
90105-W0077
90116-14014
90119-12398
90119-12400
90119-14098
90119-14101
90119-14123
90119-W0081
90119-W0107
90178-W0027
90178-W0033

ILLUST NO. 2 OF 2(1210- )

Click highlighted areas on diagram

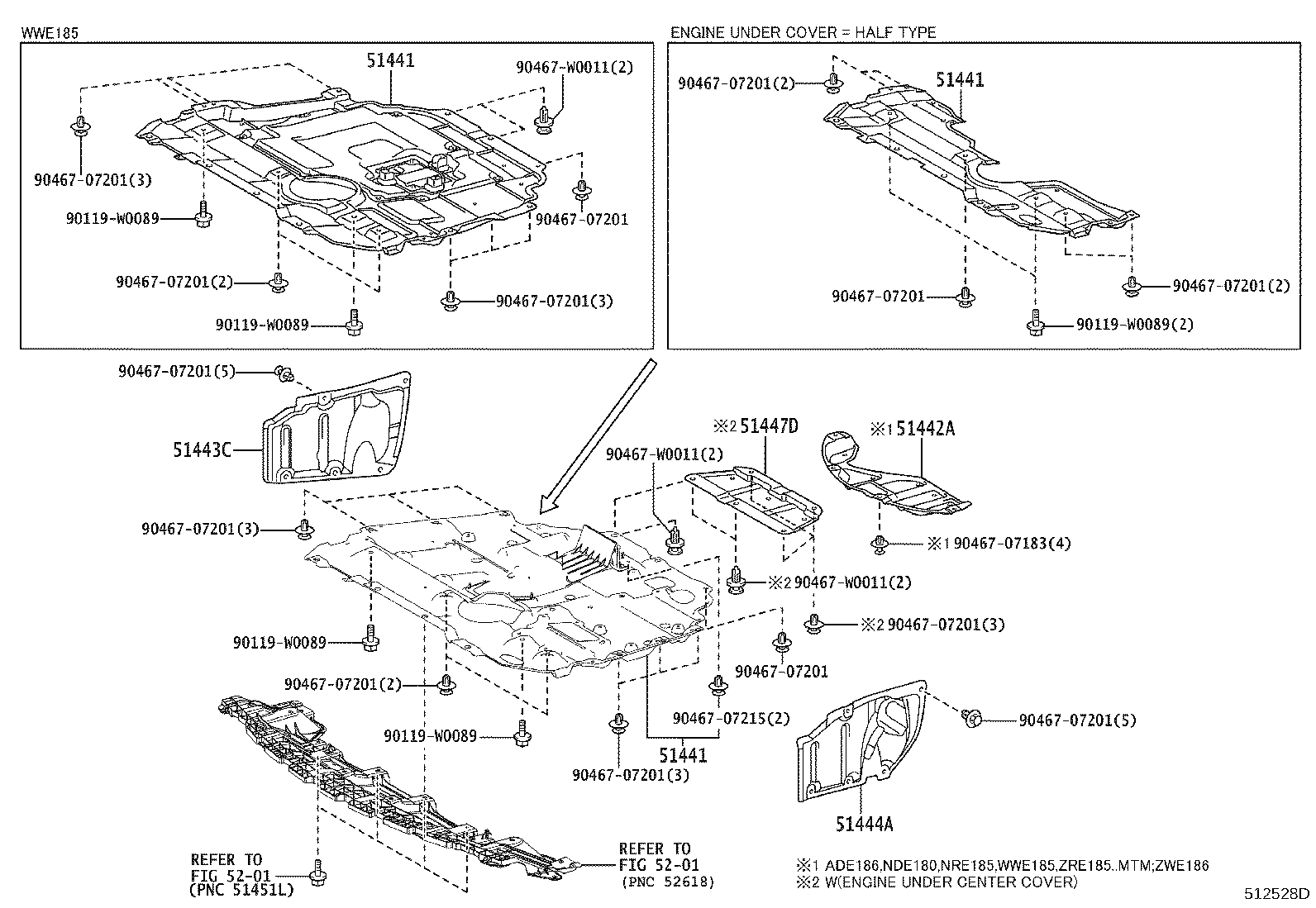

ENGINE UNDER COVER

diagram 51441 51441 51441 51442A 51443C 51444A 51447D 5201 5201 90119W0089 90119W0089 90119W0089 90119W0089 90119W0089 9046707183 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707215 90467W0011 90467W0011 90467W0011
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51410-02220

NDE180,ZRE185..MTM

 1
51441 - COVER, ENGINE UNDER, NO.1
51410-02220

NDE180,ZRE185..MTM

 1
51441 - COVER, ENGINE UNDER, NO.1
51410-02220

NDE180,ZRE185..MTM

 1
51442A - COVER, ENGINE UNDER, FRONT NO.3
51442-02230

ZWE186;ADE186,NDE180,ZRE185..MTM

 1
51443C - COVER, ENGINE UNDER, REAR RH
51443-02050

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
51443-05030

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-05020

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
51444-02041

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-02010

NDE180,NRE180

 1
Common parts
90119-W0089
90467-07183
90467-07201
90467-07215
90467-W0011
Linked diagrams
5201
