NDE180R-DHFDXW (2012)
Toyota Auris/Hybrid (Ukp)
Production
Oct 2012
-
May 2015
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1210- )1NDTV

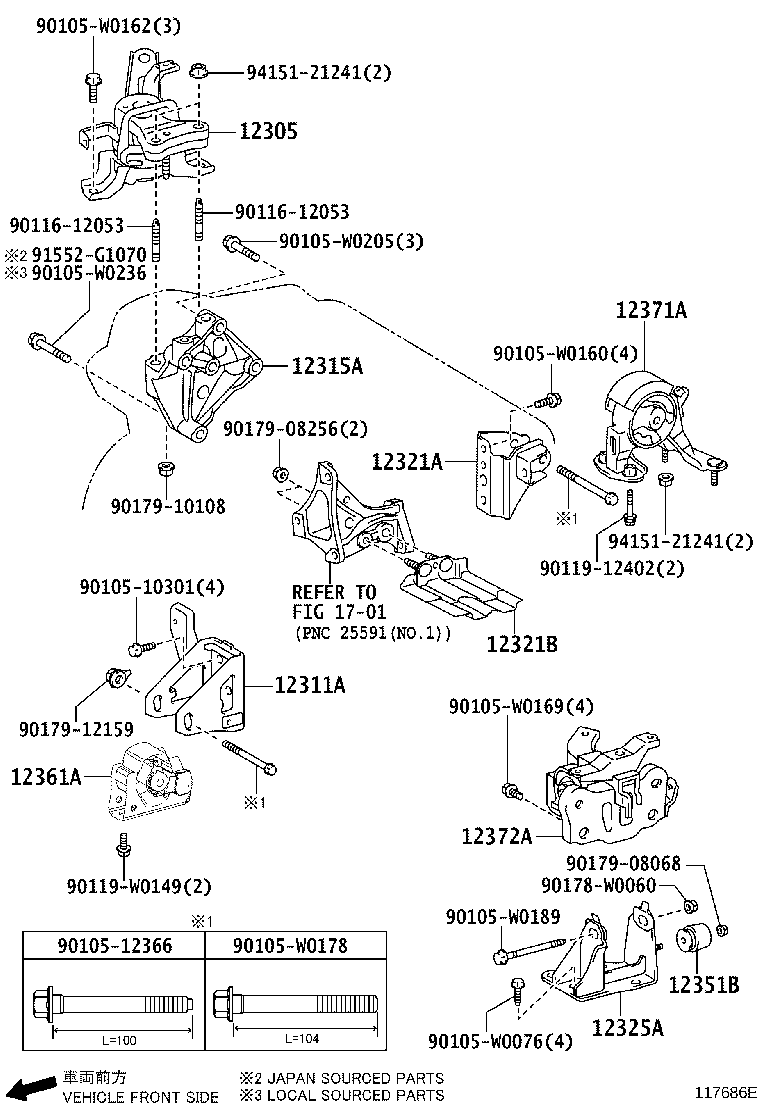

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0N090 |
1NDTV..NDE180 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0N070 |
1NDTV..NDE180 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-0N010 |
1NDTV..NDE180 (L) |
1 | ||
| 12315-33050 |
1NDTV..NDE180 (J) |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0Y010 |
1N#..NDE180,NRE180 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-52040 |
1NDTV..NDE180 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0T140 |
1NDTV..NDE180 |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-0R010 |
1NDTV..NDE180 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0T171 |
1N#..NDE180,NRE180 |
1 | ||
| 12361-0T170 |
1N#..NDE180,NRE180 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0T200 |
1NDTV..NDE180 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0N100 |
1NDTV..NDE180..6F |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-12366 | ||||
| 90105-W0076 | ||||
| 90105-W0160 | ||||
| 90105-W0162 | ||||
| 90105-W0169 | ||||
| 90105-W0178 | ||||
| 90105-W0189 | ||||
| 90105-W0205 | ||||
| 90105-W0236 | ||||
| 90116-12053 | ||||
| 90119-12402 | ||||
| 90119-W0149 | ||||
| 90178-W0060 | ||||
| 90179-08068 | ||||
| 90179-08256 | ||||
| 90179-10108 | ||||
| 90179-12159 | ||||
| 91552-G1070 | ||||
| 94151-21241 | ||||
| Linked diagrams | ||||
| 1701 | ||||
