NDE180R-DHFDXW (2015)
Toyota Auris/Hybrid (Ukp)

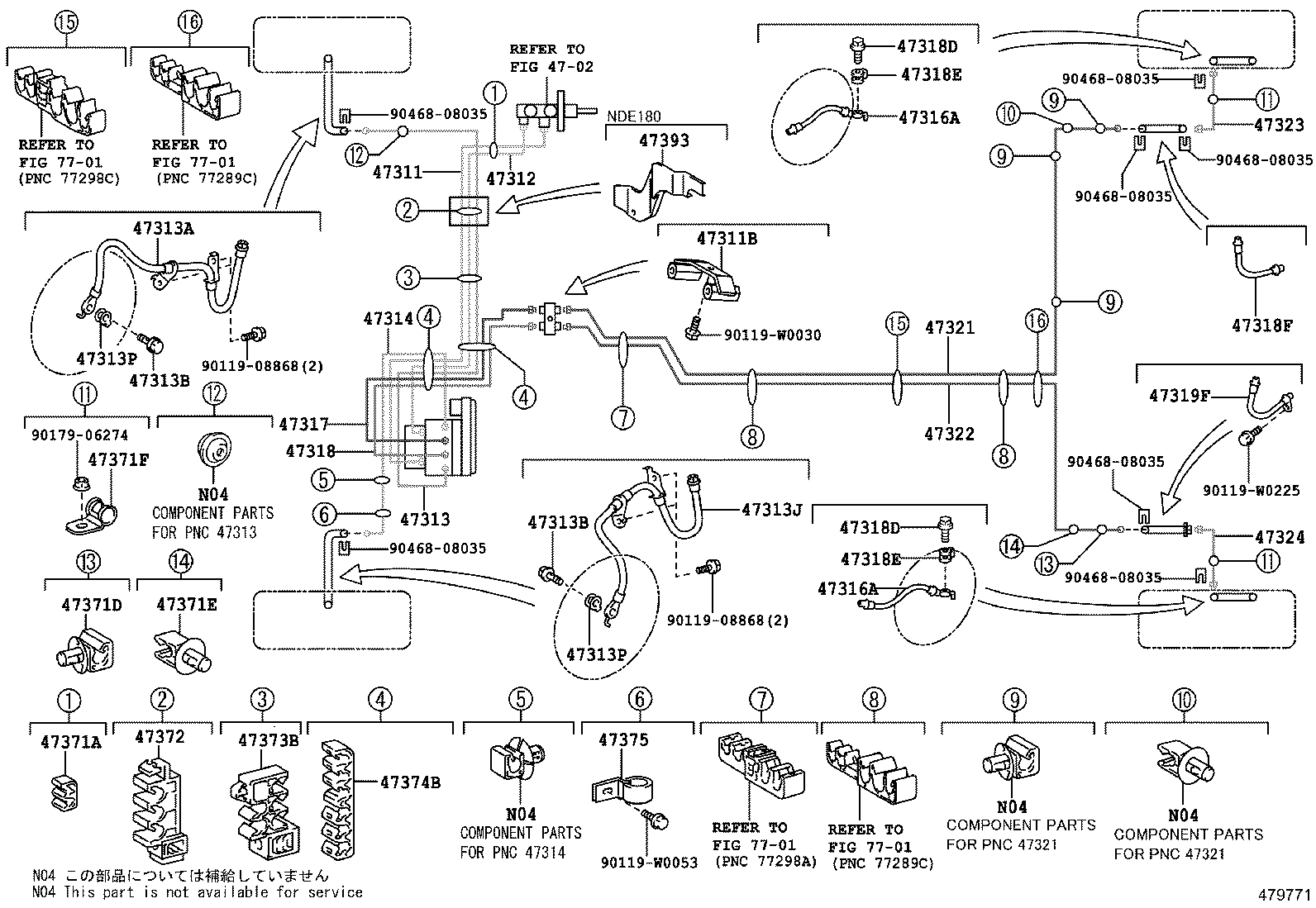

ILLUST NO. 1 OF 2(1505- )NDE180,NRE180..RHD
BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-02790 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 47311-02791 |
NDE180,NRE18#,ZRE185..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10285 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 90412-10285 |
NDE180,NRE18#,ZRE185 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-02671 |
NDE180,NRE18#,ZRE185..RHD |
1 | ||
| 47312-02670 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02870 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 47313-02C60 |
NDE180,NRE18#,ZRE185..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-W2042 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 90947-W2042 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 90401-10058 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 90401-10058 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-W2043 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 90947-W2043 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 47389-50020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 47389-50020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-02800 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 47314-02C10 |
NDE180,NRE18#,ZRE185..RHD |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-W2044 |
NDE180,NRE180 |
2 | ||
| 90947-W2044 |
NDE180,NRE180 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-W2044 |
NDE180,NRE180 |
2 | ||
| 90947-W2044 |
NDE180,NRE180 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-02730 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 47317-02B50 |
NDE180,NRE18#,ZRE185..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-02B70 |
NDE180,NRE18#,ZRE185..RHD |
1 | ||
| 47318-02750 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 90401-10058 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 90401-10058 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 47389-50020 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 47389-50020 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-W2045 |
NDE180,NRE180 |
1 | ||
| 90947-W2045 |
NDE180,NRE180 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-W2046 |
NDE180,NRE180 |
1 | ||
| 90947-W2046 |
NDE180,NRE180 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47320-02180 |
NDE180,NRE180 |
1 | ||
| 47320-02210 |
NDE180,NRE180 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-02580 |
NDE180,NRE180 |
1 | ||
| 47322-02360 |
NDE180,NRE180 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-02170 |
NDE180,NRE180 |
1 | ||
| 47323-02210 |
NDE180,NRE180 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-02160 |
NDE180,NRE180 |
1 | ||
| 47324-02220 |
NDE180,NRE180 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01E23 |
NDE180,NRE18#,ZRE185..RHD |
1 | ||
| 90464-00899 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-01D17 |
NDE180,NRE180 |
1 | ||
| 90949-01D17 |
NDE180,NRE180 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D29 |
NDE180,NRE180 |
1 | ||
| 90949-01D29 |
NDE180,NRE180 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90461-10843 |
NDE180,NRE180 |
2 | ||
| 90461-10843 |
NDE180,NRE180 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D72 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 90949-01E24 |
NDE180,NRE18#,ZRE185..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D43 |
NDE180,NRE180,ZRE185..RHD |
1 | ||
| 90949-01E20 |
NDE180,NRE18#,ZRE185..RHD |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00892 |
NDE180,NRE180,ZRE185..RHD |
2 | ||
| 90949-01E22 |
NDE180,NRE18#,ZRE185..RHD |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90461-10781 |
NDE180;ZWE186..LHD;NRE180,ZRE185..RHD |
1 | ||
| 90461-10781 |
ZWE186..LHD;NDE180,NRE18#,ZRE185..RHD |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-12020 |
NDE180..RHD |
1 | ||
| 47393-12010 |
NDE180,NRE185..RHD |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-W0030 | ||||
| 90119-W0053 | ||||
| 90119-W0225 | ||||
| 90179-06274 | ||||
| 90468-08035 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
