NDE180L-DWFDXW (2013)

Toyota Auris/Hybrid (Ukp)

Production Jun 2013 - May 2015
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210-1505)NDE180

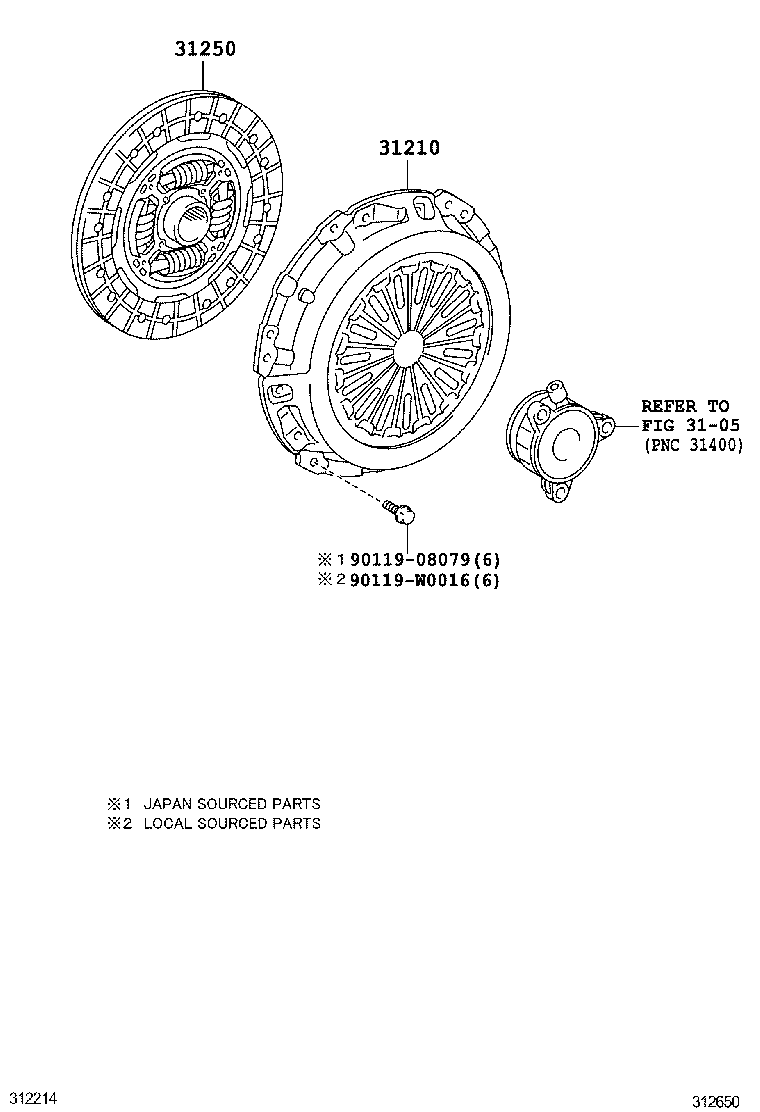

Click highlighted areas on diagram

diagram 3105 31210 31250 9011908079 90119W0016
Part # Description Qty Price
31210 - COVER ASSY, CLUTCH
31210-52100

NDE180..6F

 1
31250 - DISC ASSY, CLUTCH
31250-52131

NDE180..6F

 1
Common parts
90119-08079
90119-W0016
Linked diagrams
3105
