Toyota Auris/hybrid (ukp) NDE180 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
EU
AURIS/HYBRID (UKP)
NDE180L-DHFSXW (2015)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

NDE180L-DHFSXW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018

Engine 1NDTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1505- )NDE180

Click highlighted areas on diagram

Part #	Description	Period	Qty

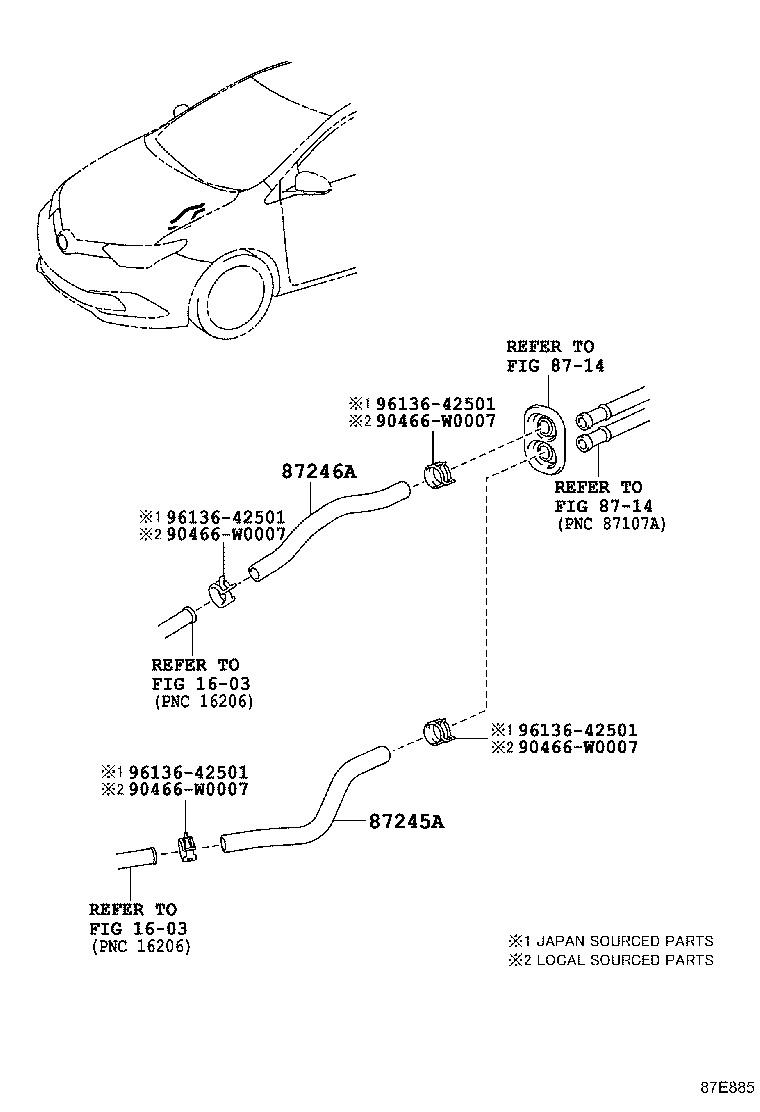

87245A - HOSE, HEATER WATER, INLET A
87245-02N00	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87245-02F10	NDE180	10/2012 - 05/2015	1
87245-02P70	NDE180..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87245-02N00	NDE180..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87245-02P70	NDE180..LHD LIGHT GRADE&COLD AREA SPEC	05/2015 - 12/2999	1
87245-02P70	NDE180..LHD ADDITIONAL HEATER-WITH(STOVE HEATER)	05/2015 - 12/2999	1
87245-02P70	NDE180	05/2015 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-02F90	NDE180..LHD ADDITIONAL HEATER-WITH(STOVE HEATER)	10/2012 - 05/2015	1
87245-02F90	NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87245-02F90	NDE180	10/2012 - 05/2015	1
87245-02P80	NDE180..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87245-02P80	NDE180..LHD ADDITIONAL HEATER-WITH(STOVE HEATER)	05/2015 - 12/2999	1
87245-02P80	NDE180	05/2015 - 12/2999	1
87245-02P80	NDE180..LHD LIGHT GRADE&COLD AREA SPEC	05/2015 - 12/2999	1
Common parts
90466-W0007
96136-42501
Linked diagrams
1603
8714

(1505- )NDE180

Click highlighted areas on diagram

W(STOVE HEATER)

Part #	Description	Period	Qty

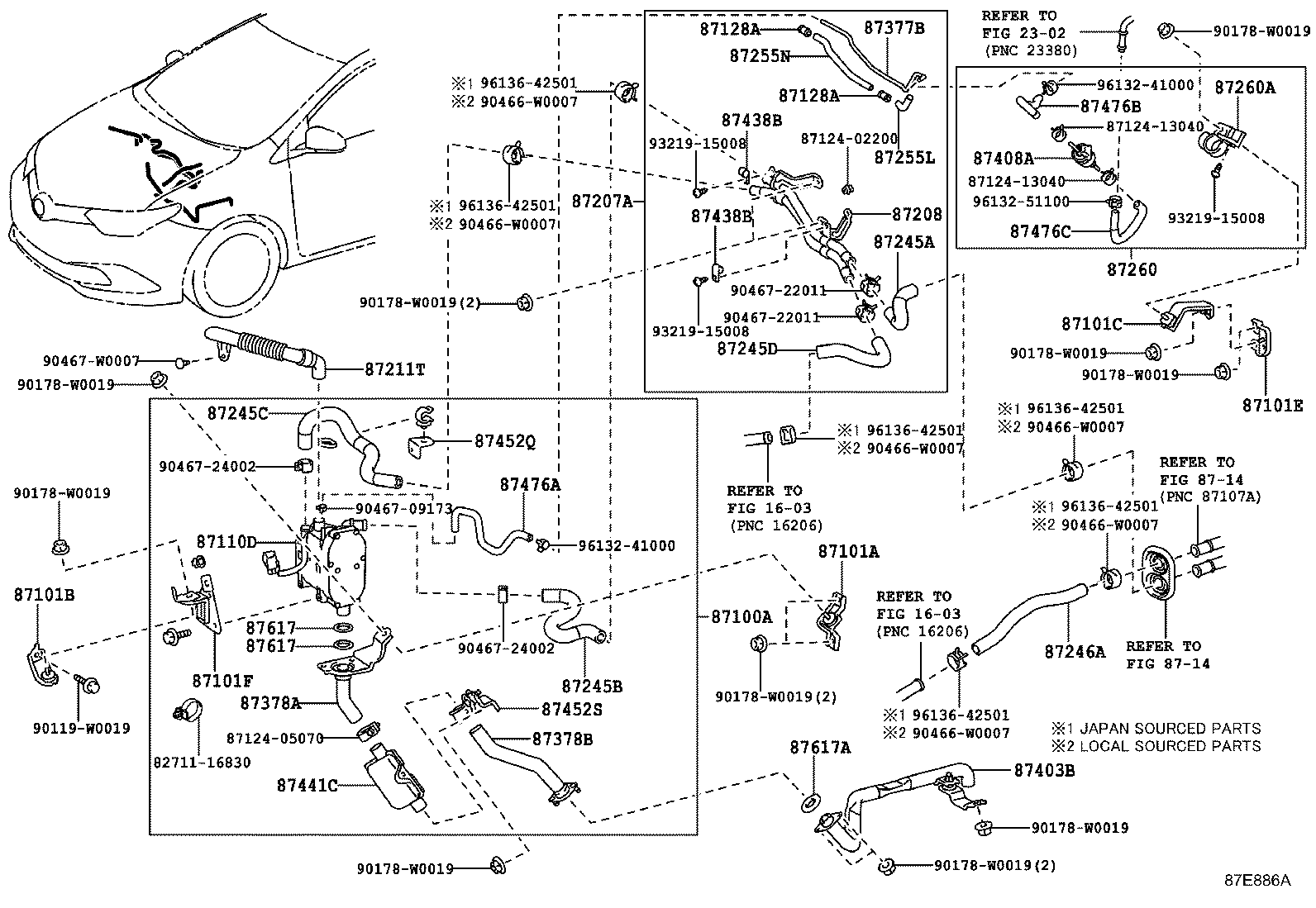

87100A - HEATER & ACCESSORY ASSY
87100-02060	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87100-02060	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87101A - BRACKET SUB-ASSY, HEATER NO.1
87101-02060	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87101-02060	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87101B - BRACKET SUB-ASSY, HEATER NO.2
87101-02070	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87101-02070	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87101C - BRACKET SUB-ASSY, HEATER NO.3
87101-02081	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87101-02081	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87101E - BRACKET SUB-ASSY, HEATER NO.4
87101-02100	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87101-02100	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87101F - BRACKET SUB-ASSY, HEATER NO.5
87101-02120	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87101-02120	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87110D - HEATER ASSY
87110-02020	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87110-02020	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87128A - GROMMET, HEATER
87128-74020	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	2
87128A - GROMMET, HEATER
87128-74020	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	2
87207A - PIPE & HOSE SUB-ASSY, WATER A
87207-02080	NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87207-02120	NDE180..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-02050	NDE180..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87208-02050	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87211T - DUCT, AIR
87211-02250	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87211-02250	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87245A - HOSE, HEATER WATER, INLET A
87245-02N00	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87245-02F10	NDE180	10/2012 - 05/2015	1
87245-02P70	NDE180..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87245-02N00	NDE180..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87245-02P70	NDE180..LHD LIGHT GRADE&COLD AREA SPEC	05/2015 - 12/2999	1
87245-02P70	NDE180..LHD ADDITIONAL HEATER-WITH(STOVE HEATER)	05/2015 - 12/2999	1
87245-02P70	NDE180	05/2015 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-02F20	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87245-02F20	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87245C - HOSE, HEATER WATER ,INLET C
87245-02B00	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87245-02B00	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87245D - HOSE, HEATER WATER, INLET D
87245-02Q10	NDE180..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87245-02M80	NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-02F90	NDE180..LHD ADDITIONAL HEATER-WITH(STOVE HEATER)	10/2012 - 05/2015	1
87245-02F90	NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87245-02F90	NDE180	10/2012 - 05/2015	1
87245-02P80	NDE180..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87245-02P80	NDE180..LHD ADDITIONAL HEATER-WITH(STOVE HEATER)	05/2015 - 12/2999	1
87245-02P80	NDE180	05/2015 - 12/2999	1
87245-02P80	NDE180..LHD LIGHT GRADE&COLD AREA SPEC	05/2015 - 12/2999	1
87255L - PIPE, HEATER PROTECTOR, NO.2
87255-02020	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87255N - PIPE, HEATER PROTECTOR, NO.1
87255-02010	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87260 - PUMP ASSY, HEATER
87260-02031	NDE180..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87260-02031	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87260A - BRACKET, HEATER PUMP
87261-02010	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87261-02010	NDE180..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87377B - PIPE, FUEL
87377-02010	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87377-02010	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87378A - PIPE, EXHAUST
87378-02050	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87378-02050	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87378B - PIPE, EXHAUST, NO.2
87378-02060	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87378-02060	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87403B - PIPE SUB-ASSY, EXHAUST
87403-02050	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87403-02050	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87408A - PUMP SUB-ASSY, FUEL
87408-0D011	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87408-0D011	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87438B - BRACKET, HEATER PIPE, C
87438-12010	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	2
87438B - BRACKET, HEATER PIPE, C
87438-12010	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	2
87441C - MUFFLER
87441-05010	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87441-05010	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87452Q - BRACKET, HEATER, NO.1
87452-02090	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87452-02090	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87452S - BRACKET, HEATER, NO.2
87452-02100	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87452-02100	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87476A - HOSE, HEATER FUEL, NO.1
87476-02060	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87476-02060	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87476B - HOSE, HEATER FUEL, NO.2
87476-02051	NDE180..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87476-02051	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87476C - HOSE, HEATER FUEL, NO.3
87476-02031	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
87476-02031	NDE180..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87617 - GASKET, HEAT EXCHANGER UNIT NO.1
87617-02040	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	2
87617-02040	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	2
87617 - GASKET, HEAT EXCHANGER UNIT NO.1
87617-02040	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	2
87617-02040	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	2
87617A - GASKET, HEAT EXCHANGER UNIT NO.2
87617-02020	NDE180,WWE185..LHD COLD AREA SPEC	05/2015 - 12/2999	1
87617-02020	ADE186,NDE180..LHD COLD AREA SPEC	10/2012 - 05/2015	1
Common parts
82711-16830
87124-02200
87124-05070
87124-13040
90119-W0019
90178-W0019
90466-W0007
90467-09173
90467-22011
90467-24002
90467-W0007
93219-15008
96132-41000
96132-51100
96136-42501
Linked diagrams
1603
2302
8714

NDE180L-DHFSXW (2015)

(1505- )NDE180

(1505- )NDE180
