NDE180L-DHFSXW (2015)
Toyota Auris/Hybrid (Ukp)

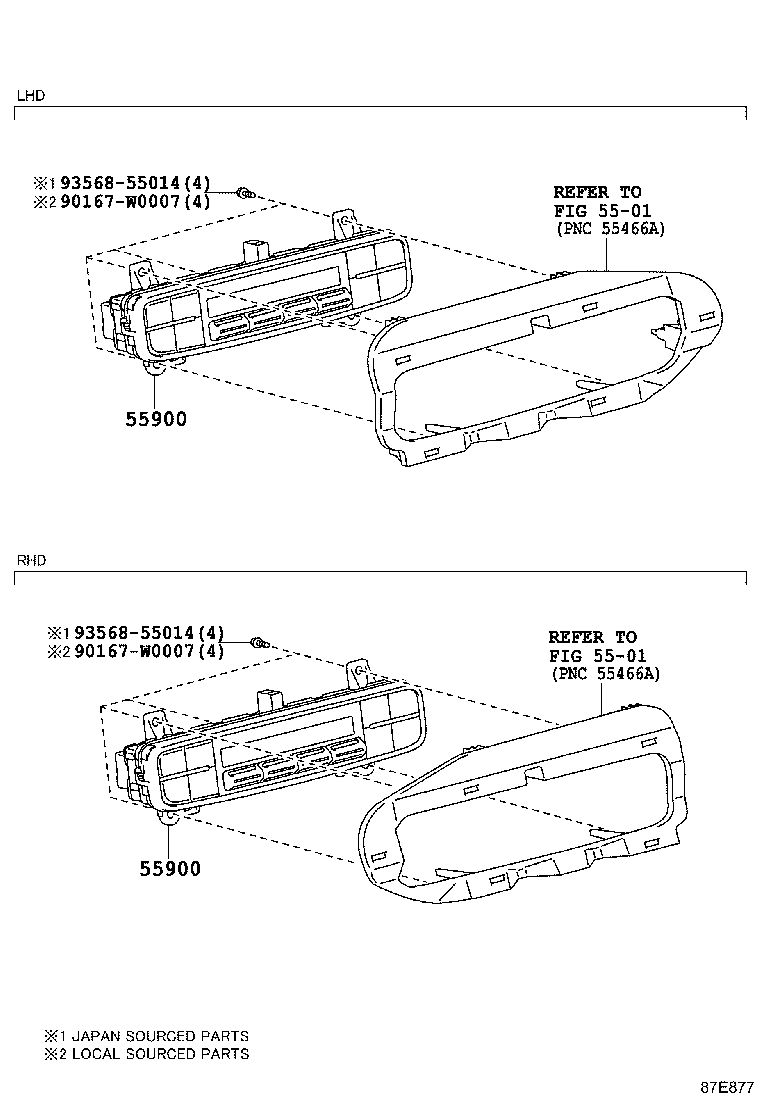

ILLUST NO. 1 OF 3(1505- )
HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-02360C2 |
ADE186,NDE180,NRE180,ZRE185..LHD..N HIGH GRADE&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&AIR CONDITIONER-AUTO(DUAL MODE),BLACK,TRIM2# |
1 | ||
| 55900-02370C0 |
NDE180,NRE180..LHD..D AIR CONDITIONER-AUTO(SINGLE MODE),BLACK,TRIM2# |
1 | ||
| 55900-02390B1 |
ADE186,NDE180,NRE180,ZRE185..LHD..N SPORT PACKAGE,GRAY,TRIM2# |
1 | ||
| 55900-02400C0 |
NDE180,NRE180..LHD..D BLACK,TRIM2# |
1 | ||
| 55900-02380B0 |
ADE186,NDE180,NRE180,ZRE185..LHD..N METAL SILVER,TRIM2# |
1 | ||
| 55900-02400C0 |
ADE186,ZRE185..LHD;NDE180,NRE180..LHD..N LIGHT GRADE&AIR CONDITIONER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 55900-02820 |
ZRE185,ZWE186..LHD..(D,N,S);NDE180,NRE18#,WWE185..LHD..(N,S) |
1 | ||
| 55900-02820 |
NDE180,NRE180..LHD..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55900-02830 |
NRE185,WWE185,ZRE185..LHD;NDE180,NRE180..LHD..(G,N,S) LIGHT GRADE&AIR CONDITIONER-WITHOUT |
1 | ||
| 55900-02C60 |
NDE180,NRE18#..LHD..(N,S);ZRE185,ZWE186..LHD..(D,N,S) |
1 | ||
| 55900-02830 |
NDE180,NRE180..LHD..D |
1 | ||
| 55900-02C60 |
NDE180,NRE180..LHD..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55900-02C70 |
NRE185,ZRE185..LHD;NDE180,NRE180..LHD..(G,N,S) LIGHT GRADE&AIR CONDITIONER-WITHOUT |
1 | ||
| 55900-02C70 |
NDE180,NRE180..LHD..D |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-02360C2 |
ADE186,NDE180,NRE180,ZRE185..LHD..N HIGH GRADE&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&AIR CONDITIONER-AUTO(DUAL MODE),BLACK,TRIM2# |
1 | ||
| 55900-02370C0 |
NDE180,NRE180..LHD..D AIR CONDITIONER-AUTO(SINGLE MODE),BLACK,TRIM2# |
1 | ||
| 55900-02390B1 |
ADE186,NDE180,NRE180,ZRE185..LHD..N SPORT PACKAGE,GRAY,TRIM2# |
1 | ||
| 55900-02400C0 |
NDE180,NRE180..LHD..D BLACK,TRIM2# |
1 | ||
| 55900-02380B0 |
ADE186,NDE180,NRE180,ZRE185..LHD..N METAL SILVER,TRIM2# |
1 | ||
| 55900-02400C0 |
ADE186,ZRE185..LHD;NDE180,NRE180..LHD..N LIGHT GRADE&AIR CONDITIONER-WITHOUT,BLACK,TRIM2# |
1 | ||
| 55900-02820 |
ZRE185,ZWE186..LHD..(D,N,S);NDE180,NRE18#,WWE185..LHD..(N,S) |
1 | ||
| 55900-02820 |
NDE180,NRE180..LHD..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55900-02830 |
NRE185,WWE185,ZRE185..LHD;NDE180,NRE180..LHD..(G,N,S) LIGHT GRADE&AIR CONDITIONER-WITHOUT |
1 | ||
| 55900-02C60 |
NDE180,NRE18#..LHD..(N,S);ZRE185,ZWE186..LHD..(D,N,S) |
1 | ||
| 55900-02830 |
NDE180,NRE180..LHD..D |
1 | ||
| 55900-02C60 |
NDE180,NRE180..LHD..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55900-02C70 |
NRE185,ZRE185..LHD;NDE180,NRE180..LHD..(G,N,S) LIGHT GRADE&AIR CONDITIONER-WITHOUT |
1 | ||
| 55900-02C70 |
NDE180,NRE180..LHD..D |
1 | ||
| Common parts | ||||
| 90167-W0007 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
