NDE180L-DHFSXW (2015)
Toyota Auris/Hybrid (Ukp)
(1505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

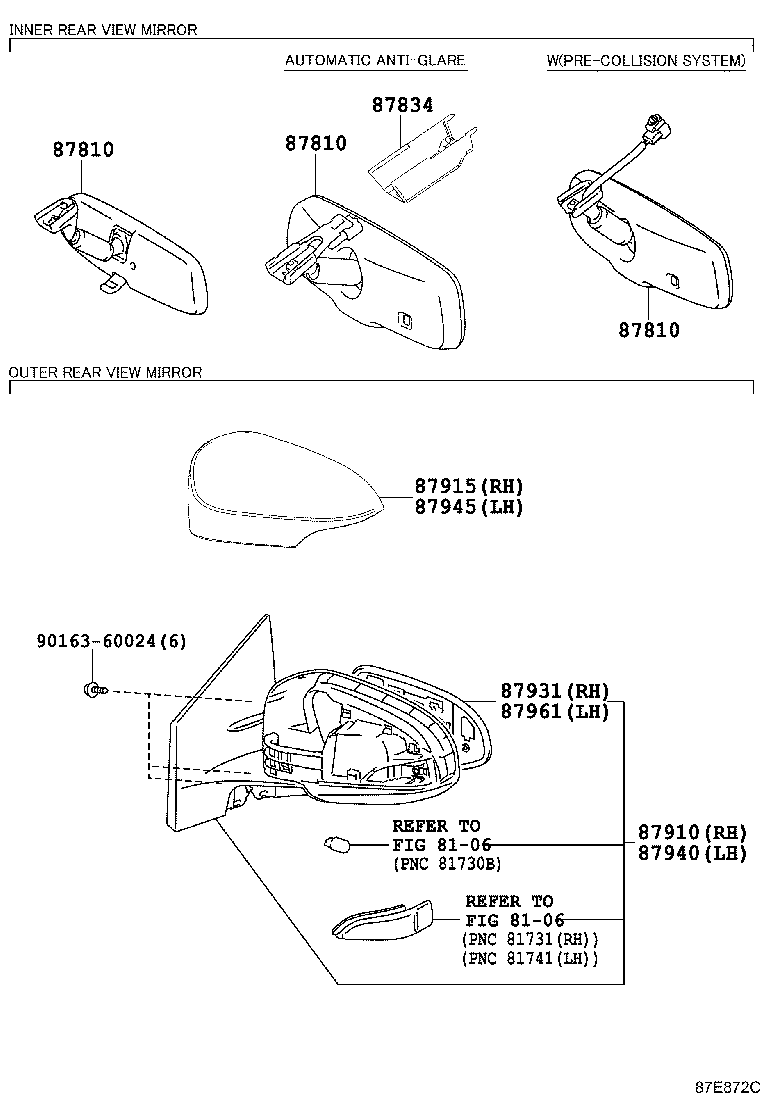

| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0F010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 87810-0W810 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185,ZWE186..N COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0W820 |
ZRE185,ZWE186..LHD..N;ADE186,NDE180,NRE180..LHD..6F..N COMFORT PACKAGE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0W810 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0W820 |
ZRE185..LHD..N;ADE186,NDE180,NRE180..LHD..6F..N HIGH GRADE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0W810 |
NRE180..LHD..N;NDE180,NRE185,ZRE185,ZWE186..N,S COMFORT PACKAGE |
1 | ||
| 87810-0WQ50 |
ZRE185..LHD..(N,S);NDE180,NRE185,ZWE186..N,S COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 87810-0WQ50 |
ZRE185..LHD..(N,S);NDE180,NRE185,ZWE186..N,S COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-HALOGEN & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 87810-0WQ40 |
NDE180,NRE18#,ZRE185,ZWE186..D,N,S |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0F010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 87810-0W810 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185,ZWE186..N COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0W820 |
ZRE185,ZWE186..LHD..N;ADE186,NDE180,NRE180..LHD..6F..N COMFORT PACKAGE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0W810 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0W820 |
ZRE185..LHD..N;ADE186,NDE180,NRE180..LHD..6F..N HIGH GRADE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0W810 |
NRE180..LHD..N;NDE180,NRE185,ZRE185,ZWE186..N,S COMFORT PACKAGE |
1 | ||
| 87810-0WQ50 |
ZRE185..LHD..(N,S);NDE180,NRE185,ZWE186..N,S COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 87810-0WQ50 |
ZRE185..LHD..(N,S);NDE180,NRE185,ZWE186..N,S COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-HALOGEN & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 87810-0WQ40 |
NDE180,NRE18#,ZRE185,ZWE186..D,N,S |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0F010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 87810-0W810 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185,ZWE186..N COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0W820 |
ZRE185,ZWE186..LHD..N;ADE186,NDE180,NRE180..LHD..6F..N COMFORT PACKAGE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0W810 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0W820 |
ZRE185..LHD..N;ADE186,NDE180,NRE180..LHD..6F..N HIGH GRADE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87810-0W810 |
NRE180..LHD..N;NDE180,NRE185,ZRE185,ZWE186..N,S COMFORT PACKAGE |
1 | ||
| 87810-0WQ50 |
ZRE185..LHD..(N,S);NDE180,NRE185,ZWE186..N,S COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 87810-0WQ50 |
ZRE185..LHD..(N,S);NDE180,NRE185,ZWE186..N,S COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-HALOGEN & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 87810-0WQ40 |
NDE180,NRE18#,ZRE185,ZWE186..D,N,S |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-0W070 |
ADE186,NDE180,NRE180,ZRE185..LHD..N HIGH GRADE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87818-0W070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N COMFORT PACKAGE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87818-0W070 |
NRE180..LHD..N;ADE186,NDE180,ZRE185..N HIGH GRADE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87818-0W070 |
NRE180..LHD..N;ADE186,NDE180,ZRE185,ZWE186..N COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 87818-02070 |
NRE180..LHD..N;NDE180,NRE185,ZRE185,ZWE186..N,S COMFORT PACKAGE |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-02F10 |
NDE180,NRE180,ZRE185..LHD..D NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER) |
1 | ||
| 87910-02F10 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER) |
1 | ||
| 87910-02640 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) NO PAINT REQ. |
1 | ||
| 87910-02F10 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 87910-02F10 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(N,S) NO PAINT REQ.,COMFORT PACKAGE |
1 | ||
| 87910-02640 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(D,N,S) NO PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-02370B2 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 DK. STEEL MC.,1H2 |
1 | ||
| 87915-02370D0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 RED M.M.,3R3 |
1 | ||
| 87915-02370C0 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..S BLACK MC.,209 ,2KR ,2PN ,2PP ,2QS ,2QT |
1 | ||
| 87915-02370A1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 WHITE PEARL CS.,070 |
1 | ||
| 87915-02370J3 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 DK.BLUE MC.,8T5 |
1 | ||
| 87915-02370E0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 87915-02370B1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 GRAY ME.,1G6 |
1 | ||
| 87915-02370A0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 SUPER WHITE 2,040 |
1 | ||
| 87915-02925 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 PAINT REQ. |
1 | ||
| 87915-02370B5 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 CEMENT GRAY ME.,1H5 |
1 | ||
| 87915-02370C0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,G,N BLACK MC.,209 |
1 | ||
| 87915-02370D1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 RED MC.,3T3 |
1 | ||
| 87915-02370J4 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 BLUE ME.,8U6 |
1 | ||
| 87915-02370B0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 SILVER ME.,1F7 |
1 | ||
| 87915-02370J5 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 DK.BLUE,8Q4 |
1 | ||
| 87915-02370B4 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 GRAY ME.,1G2 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-02F10 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 87931-02F10 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-02E50 |
NDE180,NRE180,ZRE185..LHD..D NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER) |
1 | ||
| 87940-02E50 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER) |
1 | ||
| 87940-02620 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) NO PAINT REQ. |
1 | ||
| 87940-02E50 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 87940-02620 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(D,N,S) NO PAINT REQ. |
1 | ||
| 87940-02E50 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(N,S) NO PAINT REQ.,COMFORT PACKAGE |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-02380E0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 87945-02380D0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 RED M.M.,3R3 |
1 | ||
| 87945-02380A1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 WHITE PEARL CS.,070 |
1 | ||
| 87945-02925 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 PAINT REQ. |
1 | ||
| 87945-02380A0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 SUPER WHITE 2,040 |
1 | ||
| 87945-02380C0 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..S BLACK MC.,209 ,2KR ,2PN ,2PP ,2QS ,2QT |
1 | ||
| 87945-02380B1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 GRAY ME.,1G6 |
1 | ||
| 87945-02380C0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,G,N BLACK MC.,209 |
1 | ||
| 87945-02380J5 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 DK.BLUE,8Q4 |
1 | ||
| 87945-02380B2 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 DK. STEEL MC.,1H2 |
1 | ||
| 87945-02380B0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 SILVER ME.,1F7 |
1 | ||
| 87945-02380J4 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 BLUE ME.,8U6 |
1 | ||
| 87945-02380D1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 RED MC.,3T3 |
1 | ||
| 87945-02380B4 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 GRAY ME.,1G2 |
1 | ||
| 87945-02380J3 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 DK.BLUE MC.,8T5 |
1 | ||
| 87945-02380B5 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 CEMENT GRAY ME.,1H5 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-02E50 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 87961-02E50 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90163-60024 | ||||
| Linked diagrams | ||||
| 8106 | ||||
