NDE180L-DHFSXW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )LHD

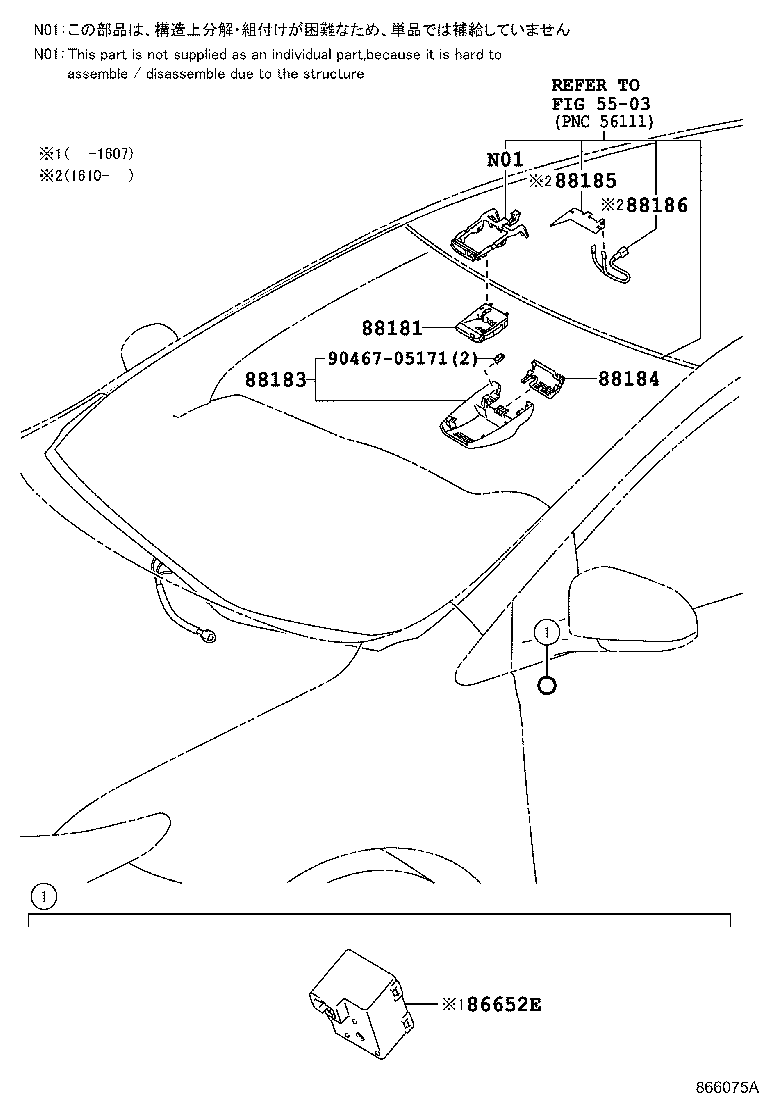

Click highlighted areas on diagram

diagram 5503 86652E 88181 88183 88184 88185 88186 9046705171
Part # Description Qty Price
86652E - BUZZER, PRE-COLLISION CITY
86652-50010

NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S

PRE-COLLISION SYSTEM-WITH

 1
88181 - SENSOR, PRE-COLLISION CITY
88181-02030

NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S

PRE-COLLISION SYSTEM-WITH,P/N LABEL=8818102030

 1
88181-02031

NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S

PRE-COLLISION SYSTEM-WITH,P/N LABEL=8818102031

 1
88181-02060

NDE180,NRE18#,ZRE185,ZWE186..D,N,S

PRE-COLLISION SYSTEM-WITH,P/N LABEL=8818102060

 1
88183 - COVER, PRE-COLLISION CITY
88183-12020

NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S

PRE-COLLISION SYSTEM-WITH

 1
88183-12021

NDE180,NRE18#,ZRE185,ZWE186..D,N,S

PRE-COLLISION SYSTEM-WITH

 1
88184 - COVER, PRE-COLLISION CITY, 2ND
88184-12020

NDE180,NRE18#,ZRE185,ZWE186..LHD..(D,N,S)

PRE-COLLISION SYSTEM-WITH

 1
88185 - HEATER, PRE-COLLISION CITY
88185-05020

NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S)

PRE-COLLISION SYSTEM-WITH

 1
88186 - WIRE, PRE-COLLISION CITY HEATER
88186-05020

NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S)

PRE-COLLISION SYSTEM-WITH

 1
Common parts
90467-05171
Linked diagrams
5503
