NDE180L-DHFSXW (2015)
Toyota Auris/Hybrid (Ukp)

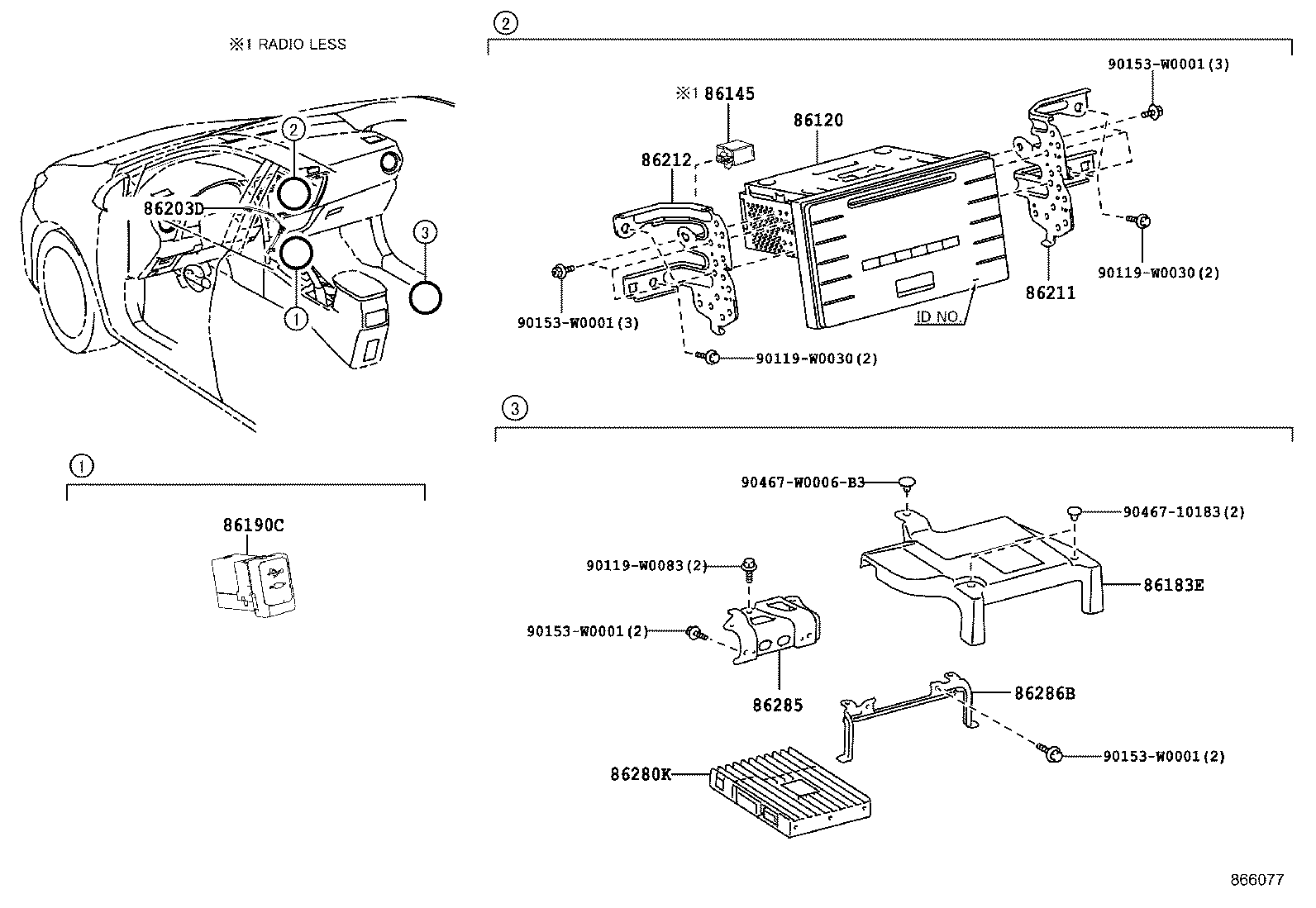

ILLUST NO. 1 OF 2(1505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-02J60 |
NDE180,NRE180,ZRE185,ZWE186..D PANASONIC,ID=510096 |
1 | ||
| 86120-02J60 |
NDE180,NRE180,ZRE185,ZWE186..D PANASONIC,ID=510096,AUDIO-RADIO LESS & WITHOUT(SPEAKER) |
1 | ||
| 86120-02J61 |
NDE180,NRE180,ZRE185,ZWE186..D PANASONIC,ID=510319,AUDIO-RADIO LESS & WITHOUT(SPEAKER) |
1 | ||
| 86120-02880 |
NDE180,NRE180,ZRE185..D PANASONIC,ID=53876 |
1 | ||
| 86120-02J61 |
NDE180,NRE180,ZRE185,ZWE186..D PANASONIC,ID=510319,AUDIO-RADIO LESS & 4SPEAKER |
1 | ||
| 86120-02J61 |
NDE180,NRE180,ZRE185,ZWE186..D PANASONIC,ID=510319 |
1 | ||
| 86120-02J60 |
NDE180,NRE180,ZRE185,ZWE186..D PANASONIC,ID=510096,AUDIO-RADIO LESS & 4SPEAKER |
1 | ||
| 86145 - CONNECTOR, ANTENNA MALE | ||||
| 86145-52010 |
NDE180,NRE180,ZRE185..LHD..D AUDIO-RADIO LESS & 4SPEAKER |
1 | ||
| 86145-52010 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..G,N,S AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 86145-52010 |
NDE180,NRE180,ZRE185,ZWE186..D AUDIO-RADIO LESS & 4SPEAKER |
1 | ||
| 86145-52010 |
ADE186,NDE180,NRE180,ZRE185..LHD..N AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 86183E - COVER, AUDIO AMPLIFIER | ||||
| 86183-02020 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86183-02020 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86183-02020 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86183-02020 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86183-02020 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
1 | ||
| 86183-02020 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-0D030 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..G,N,S AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 86190-0D030 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..G,N,S AUDIO-RADIO LESS & WITHOUT(SPEAKER) |
1 | ||
| 86190-0D030 |
NDE180,NRE180,ZWE186..LHD..D AUDIO-*DA & DAB & 6SPEAKER |
1 | ||
| 86190-0D030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 86190-0D030 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..G,N,S |
1 | ||
| 86203D - WIRE, STEREO COMPONENT, NO.1 | ||||
| 86203-12440 |
ADE186,NDE180,NRE180,ZRE185..N AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 86203-12440 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 86203-12440 |
NDE180,NRE180,ZRE185..D AUDIO-RADIO LESS & 4SPEAKER |
1 | ||
| 86203-02160 |
NDE180,NRE18#,WWE185,ZRE185..G,N,S |
1 | ||
| 86203-12440 |
ADE186,NDE180,NRE180,ZRE185 AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 86203-02160 |
NDE180,NRE18#,WWE185,ZRE185..G,N,S AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 86203-02160 |
NDE180,NRE18#,WWE185,ZRE185..G,N,S AUDIO-RADIO LESS & WITHOUT(SPEAKER) |
1 | ||
| 86203-02160 |
NDE180,NRE180..LHD..D AUDIO-*DA & DAB & 6SPEAKER |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-02430 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 86211-02240 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-02420 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 86212-02200 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 86280K - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-02050 |
ZRE185..HB..N;ZWE186..HB..G;NDE180,NRE180..LHD..HB..6F..N AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
1 | ||
| 86280-02050 |
ZRE185..HB..N;ZWE186..HB..G;NDE180,NRE180..LHD..HB..6F..N AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86280-02050 |
ZRE185..HB..N;ZWE186..HB..G;NDE180,NRE180..LHD..HB..6F..N AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86280-02050 |
ZRE185..HB..N;ZWE186..HB..G;NDE180,NRE180..LHD..HB..6F..N AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
1 | ||
| 86280-02050 |
ZRE185..HB..N;ZWE186..HB..G;NDE180,NRE180..LHD..HB..6F..N AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86280-02050 |
ZRE185..HB..N;ZWE186..HB..G;NDE180,NRE180..LHD..HB..6F..N AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86285-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
1 | ||
| 86285-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
1 | ||
| 86285-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86285-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86285-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86286B - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-*DA&*BT&USB&JBL&9SPEAKER |
1 | ||
| 86286-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*EXB))&*BT&USB&JBL&6SPEAKER |
1 | ||
| 86286-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86286-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-*DA&*BT&USB&DAB&JBL&6SPEAKER |
1 | ||
| 86286-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*EXB))&*BT&USB&DAB&JBL&9SPEAKER |
1 | ||
| 86286-02010 |
ZRE185..N;ZWE186..G;NDE180,NRE180..LHD..6F..N AUDIO-W(*NS(*HGE))&*BT&USB&JBL&6SPEAKER |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90119-W0083 | ||||
| 90153-W0001 | ||||
| 90467-10183 | ||||
| 90467-W0006B3 | ||||
