NDE180L-DHFSXW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )

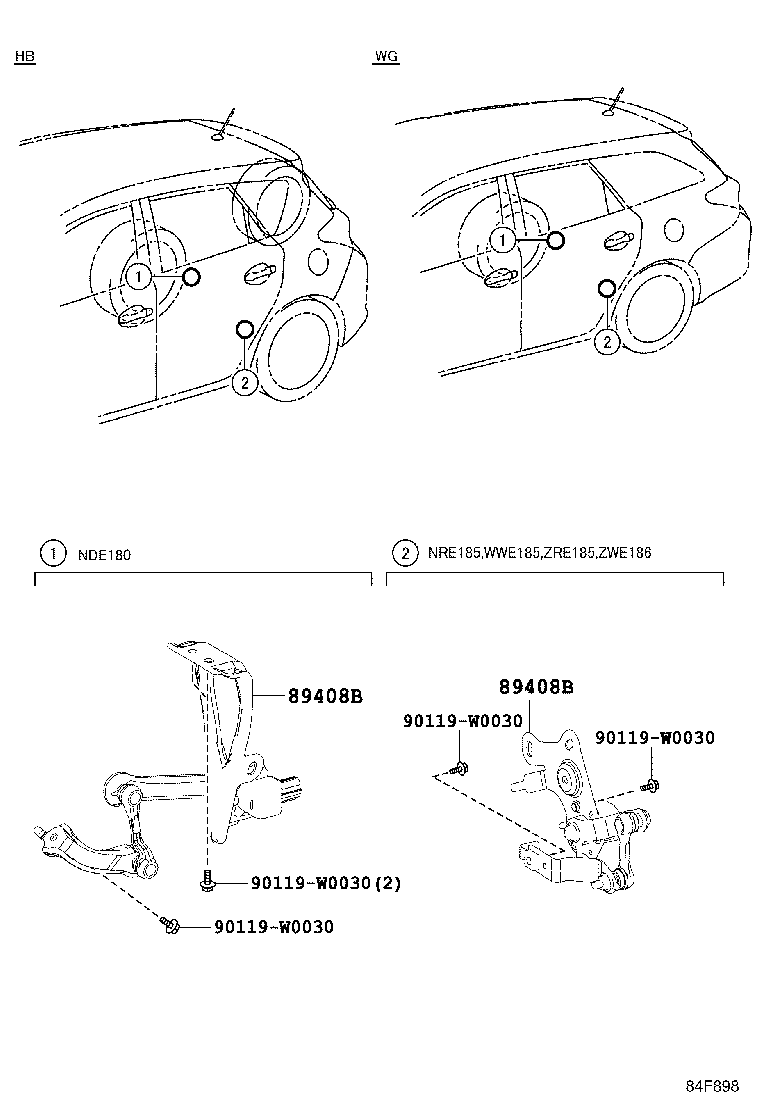

Click highlighted areas on diagram

diagram 89408B 89408B 90119W0030 90119W0030 90119W0030 90119W0030
Part # Description Qty Price
89408B - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR
89407-12030

NDE180,NRE180..LHD..6F..N

HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM

 1
89407-12030

NDE180,NRE180..LHD..6F..N

HEADLAMP-DISCHARGE & AFS

 1
89407-12030

NDE180..N,S

HEADLAMP-LED

 1
89407-12030

NDE180..N,S

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

 1
89408B - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR
89407-12030

NDE180,NRE180..LHD..6F..N

HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM

 1
89407-12030

NDE180,NRE180..LHD..6F..N

HEADLAMP-DISCHARGE & AFS

 1
89407-12030

NDE180..N,S

HEADLAMP-LED

 1
89407-12030

NDE180..N,S

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

 1
Common parts
90119-W0030
