NDE180L-DHFSXW (2015)
Toyota Auris/Hybrid (Ukp)

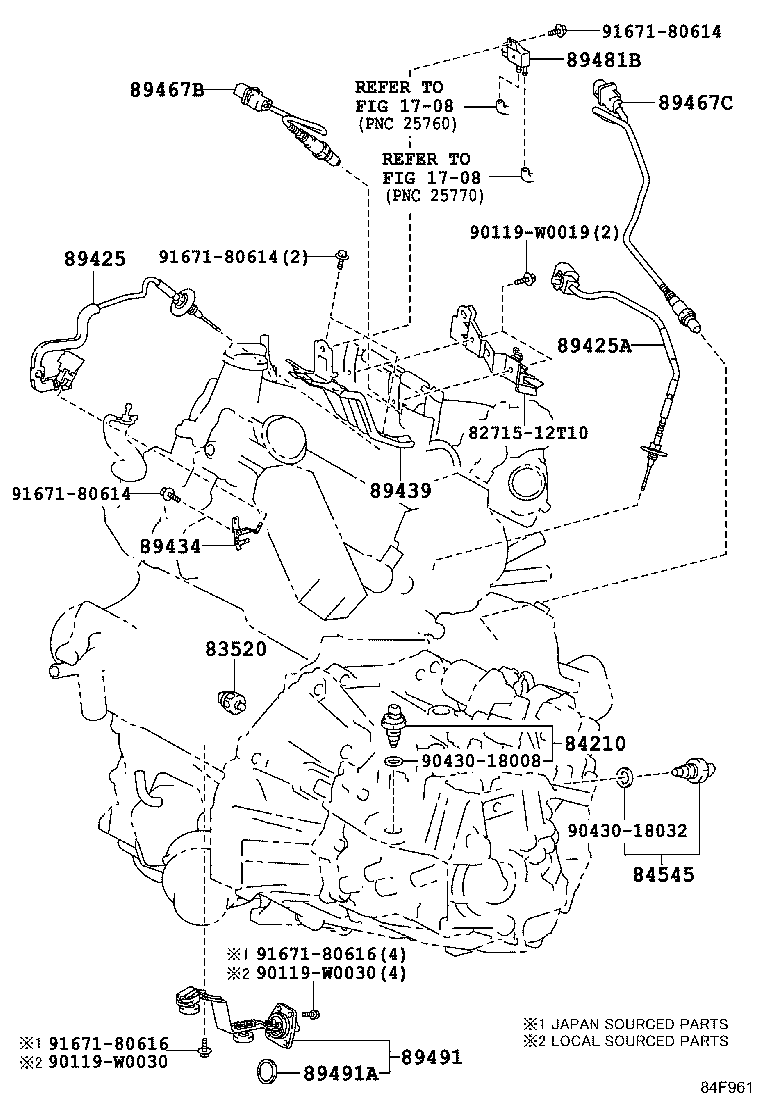

ILLUST NO. 1 OF 7(1505- )NDE180
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
ADE186,NDE180 |
1 | ||
| 83520-60060 |
NDE180,NRE185 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
ADE186,NDE180,NRE180,ZRE185..MTM |
1 | ||
| 84210-52050 |
NDE180,NRE18#,WWE185,ZRE185..6F |
1 | ||
| 84545 - SWITCH, NEUTRAL POSITION | ||||
| 84545-52010 |
NDE180,NRE185..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 84545-52010 |
NDE180,NRE180..LHD..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-52031 |
NDE180 |
1 | ||
| 89425-02010 |
NDE180 |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-02020 |
NDE180 |
1 | ||
| 89425-52021 |
NDE180 |
1 | ||
| 89434 - BRACKET, MANIFOLD TEMPERATURE SENSOR | ||||
| 89434-52050 |
NDE180 |
1 | ||
| 89434-52050 |
NDE180 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-52010 |
NDE180 |
1 | ||
| 89439-12090 |
NDE180 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-02100 |
NDE180 |
1 | ||
| 89467-12130 |
NDE180 (J) |
1 | ||
| 89467-02080 |
NDE180 (L) |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-02110 |
NDE180 |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-12050 |
NDE180 |
1 | ||
| 89481-71010 |
NDE180 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-52051 |
NDE180 |
1 | ||
| 89491-52052 |
NDE180 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-36005 |
NDE180 |
1 | ||
| 90430-36005 |
NDE180 |
1 | ||
| Common parts | ||||
| 82715-12T10 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1708 | ||||

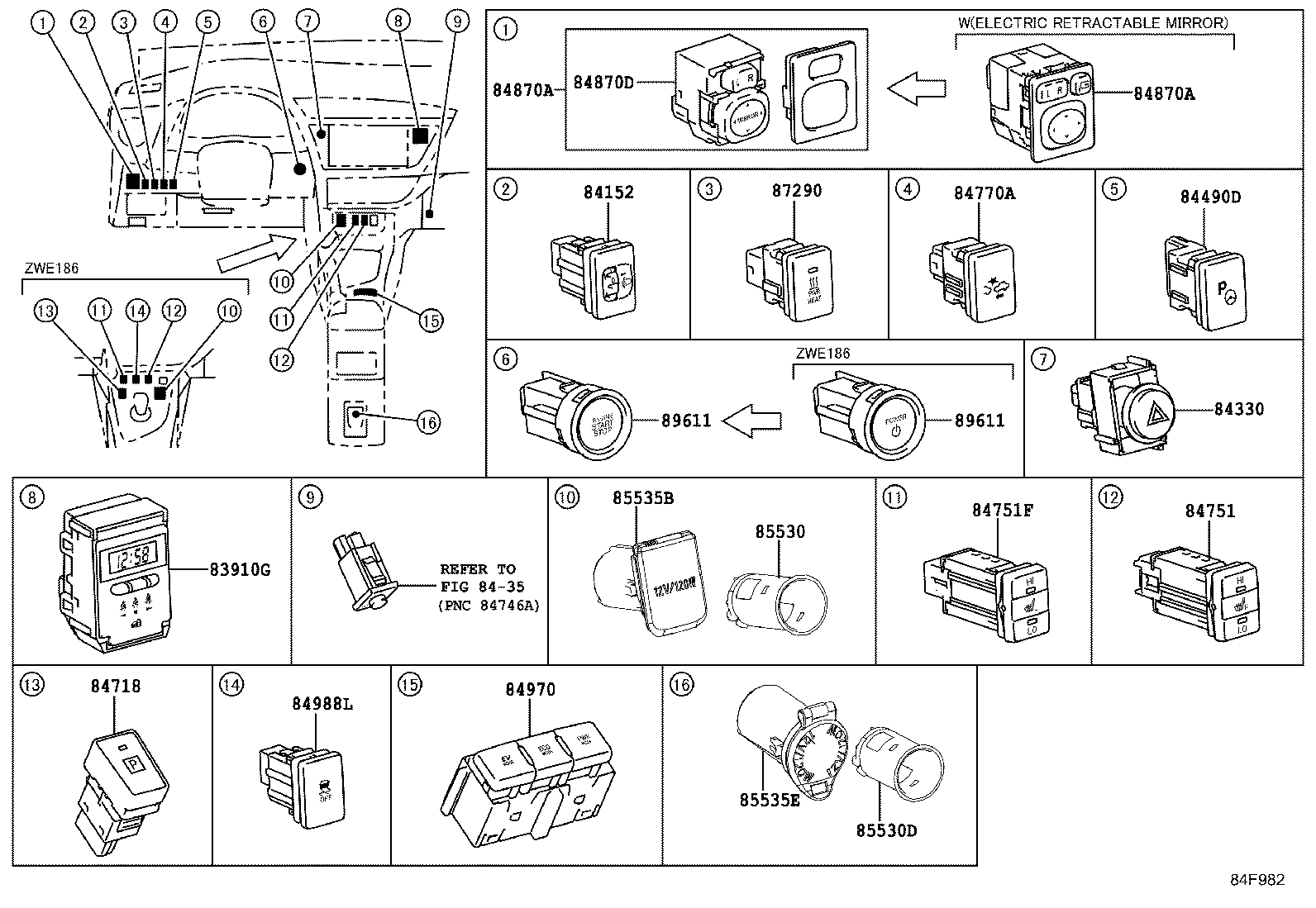

ILLUST NO. 5 OF 7(1505- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-12620 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 83910-02200 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 83910-02210 |
NRE180..LHD..HB..D;NDE180,ZRE185..HB..6F..D N1 PACKAGE |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02080 |
ZRE185;NDE180,NRE18#,ZWE186..D,N,S |
1 | ||
| 84152-02080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84152-02080 |
ZRE185..G,N,S;NRE180..LHD..N;NDE180,NRE185,ZWE186..N,S HEADLAMP-LED |
1 | ||
| 84152-02080 |
ZRE185..G,N,S;NDE180,NRE185,ZWE186..N,S HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02180 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 84332-02300 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 84490D - SWITCH ASSY, IPA MAIN | ||||
| 84490-02090 |
NDE180,NRE18#,ZRE185,ZWE186..N,S CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 84490-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N CLEARANCE & BACK SONAR-WITH |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-12100 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) SEAT HEATER-WITH |
1 | ||
| 84751-12102 |
NRE185,ZRE185..D,N,S;NDE180,NRE180,ZWE186..N,S;NDE180,NRE180,ZWE186..LHD..D SEAT HEATER-WITH |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-12110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) SEAT HEATER-WITH |
1 | ||
| 84751-12112 |
NRE185,ZRE185..D,N,S;NDE180,NRE180,ZWE186..N,S;NDE180,NRE180,ZWE186..LHD..D SEAT HEATER-WITH |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-02010 |
NDE180,NRE18#,ZRE185,ZWE186..D,N,S PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02110C0 |
NDE180,NRE180,ZRE185..D OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER),BLACK,TRIM2# |
1 | ||
| 84870-02090C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 84870-02100C0 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER),BLACK,TRIM2# |
1 | ||
| 84870-02110C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER),BLACK,TRIM2# |
1 | ||
| 84870-02101 |
NRE180..LHD..N;NDE180,NRE185,WWE185,ZRE185,ZWE186..N,S COMFORT PACKAGE |
1 | ||
| 84870-02090C0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S BLACK |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02110C0 |
NDE180,NRE180,ZRE185..D OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER),BLACK,TRIM2# |
1 | ||
| 84870-02090C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 84870-02100C0 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER),BLACK,TRIM2# |
1 | ||
| 84870-02110C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER),BLACK,TRIM2# |
1 | ||
| 84870-02101 |
NRE180..LHD..N;NDE180,NRE185,WWE185,ZRE185,ZWE186..N,S COMFORT PACKAGE |
1 | ||
| 84870-02090C0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S BLACK |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-02140 |
NDE180,NRE18#,ZRE185,ZWE186..D,N,S |
1 | ||
| 84872-02140 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02110 |
NDE180,NRE185..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 84970-02130 |
NDE180,NRE18#,ZRE185..6F |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-02040 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D021 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 85530-0D020 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 85530-0D020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-0D020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85530-0D021 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 85530-0D020 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12060 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 85535-12060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-12050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 85535-12050C0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S BLACK,TRIM2# |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-02040 |
NDE180..LHD COLD AREA SPEC |
1 | ||
| 87290-02030 |
ADE186,NDE180..LHD COLD AREA SPEC |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02100 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR) |
1 | ||
| 89611-02100 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR) |
1 | ||
| 89611-02100 |
NRE180..LHD..N;NDE180,NRE185,WWE185,ZRE185..N,S SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 89611-02101 |
NRE180..LHD..N;NDE180,NRE185,WWE185,ZRE185..N,S SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 89611-02102 |
NRE180..LHD..N;NDE180,NRE185,ZRE185..N,S SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02100 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR) |
1 | ||
| 89611-02100 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR) |
1 | ||
| 89611-02100 |
NRE180..LHD..N;NDE180,NRE185,WWE185,ZRE185..N,S SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 89611-02101 |
NRE180..LHD..N;NDE180,NRE185,WWE185,ZRE185..N,S SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 89611-02102 |
NRE180..LHD..N;NDE180,NRE185,ZRE185..N,S SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| Linked diagrams | ||||
| 8435 | ||||

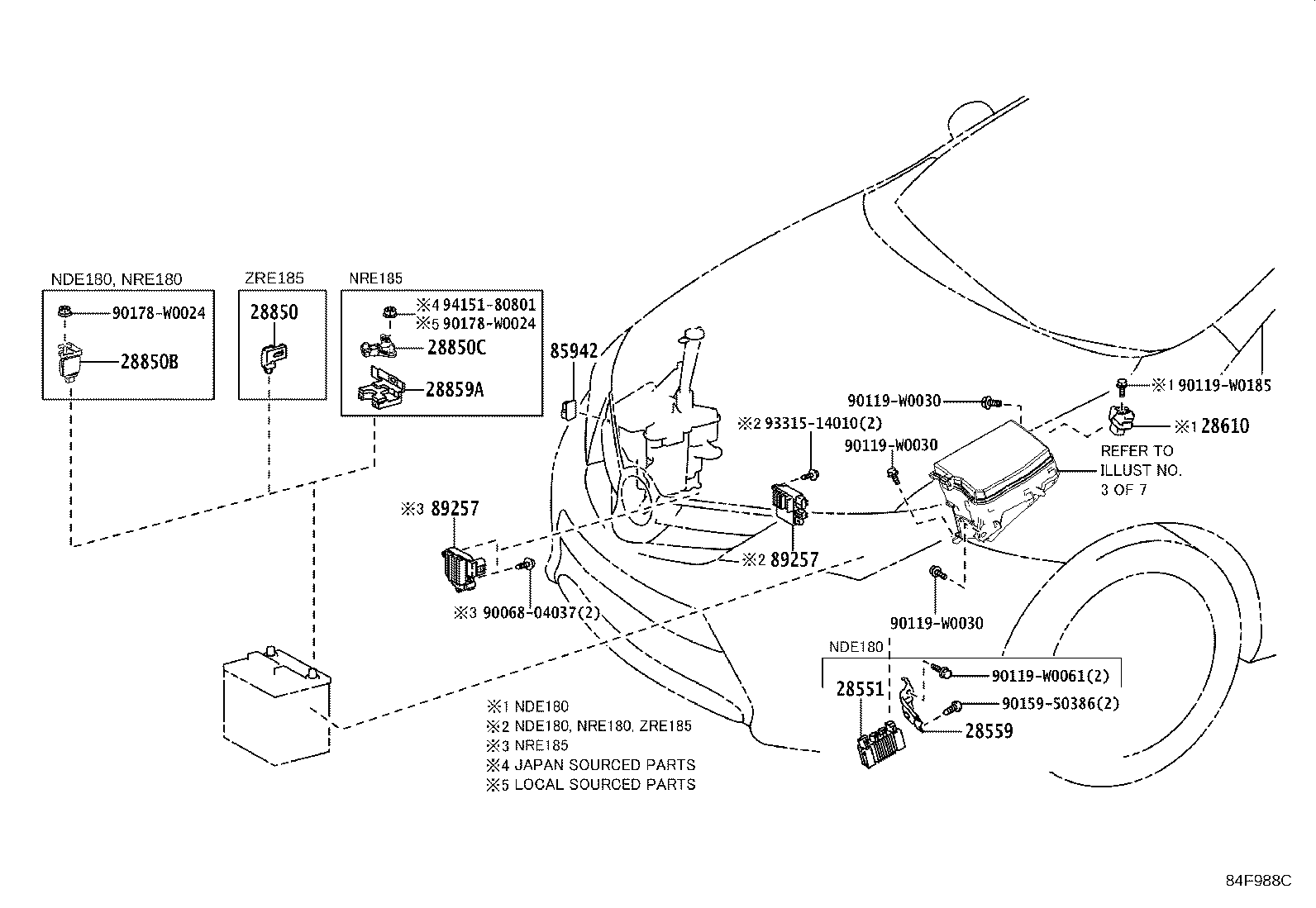

ILLUST NO. 2 OF 7(1505- )NDE180,NRE18#,ZRE185
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28551 - CONTROLLER, GLOW PLUG | ||||
| 28551-30010 |
1NDTV..NDE180 |
1 | ||
| 28559 - BRACKET, GLOW PLUG CONTROLLER, NO.1 | ||||
| 28559-26010 |
1NDTV..NDE180 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28601-26030 |
1ADFTV,1NDTV..ADE186,NDE180 |
1 | ||
| 28601-26030 |
1NDTV..NDE180 |
1 | ||
| 28850B - COMPUTER ASSY, ALTERNATOR CONTROL | ||||
| 28850-26011 |
1ADFTV,1NDTV..ADE186,NDE180 |
1 | ||
| 28850-26012 |
1NDTV..NDE180 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-02060 |
NDE180,NRE18#,ZRE185,ZWE186..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 85942-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12020 |
NDE180 |
1 | ||
| 89257-12020 |
NDE180 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12020 |
NDE180 |
1 | ||
| 89257-12020 |
NDE180 |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||
| 90119-W0030 | ||||
| 90119-W0061 | ||||
| 90119-W0185 | ||||
| 90159-50386 | ||||
| 90178-W0024 | ||||
| 93315-14010 | ||||
| 94151-80801 | ||||
ILLUST NO. 4 OF 7(1505- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-02010 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 69065-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
NDE180,NRE18#,ZRE185,ZWE186 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
NDE180,NRE18#,ZRE185,ZWE186 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
NDE180,NRE18#,ZRE185,ZWE186 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
NDE180,NRE18#,ZRE185,ZWE186 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NDE180,NRE18#,ZRE185,ZWE186 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NDE180,NRE18#,ZRE185,ZWE186 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
NDE180,NRE18#,ZRE185,ZWE186 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
NDE180,NRE18#,ZRE185,ZWE186 25A,MINI FUSE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
NDE180,NRE18#,ZRE185,ZWE186 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
NDE180,NRE18#,ZRE185,ZWE186 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NDE180,NRE18#,ZRE185,ZWE186 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NDE180,NRE18#,ZRE185,ZWE186 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
NDE180,NRE18#,ZRE185,ZWE186 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
NDE180,NRE18#,ZRE185,ZWE186 25A,MINI FUSE |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90080-87021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 90080-87021 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12450 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 82672-12450 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 82673-02110 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-02120 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 82673-02120 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-02130 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 82673-02130 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12X80 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 82730-12X70 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N |
1 | ||
| 82730-12X70 |
NDE180,NRE18#,WWE185,ZRE185..LHD..6F..(G,N,S) REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 82730-12X71 |
NDE180,ZRE185..LHD..HB..6F..N LIGHT GRADE |
1 | ||
| 82730-12X80 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..G,N,S |
1 | ||
| 82730-12X70 |
NDE180,NRE180,ZRE185,ZWE186..D |
1 | ||
| 82730-12X71 |
NDE180,ZRE185..LHD..HB..6F..N REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 82730-12X70 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..G,N,S LIGHT GRADE |
1 | ||
| 82730-12X71 |
NDE180,NRE180,ZRE185,ZWE186..D |
1 | ||
| 82730-12X81 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S |
1 | ||
| 82730-12X71 |
NRE18#..LHD..6F..(G,N,S);NDE180,ZRE185..HB..6F..(G,S);NDE180,ZRE185..LHD..WG..6F..(G,N,S) REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 82730-12X71 |
ZRE185..HB..CVT..N;NRE18#,ZWE186..G,N,S;NDE180,ZRE185..HB..(G,S);NDE180,ZRE185..RHD..HB..N;NDE180,ZRE185..WG..(G,N,S) LIGHT GRADE |
1 | ||
| 82730-12X71 |
NDE180,ZRE185..LHD..HB..6F..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN) |
1 | ||
| 82755 - BLOCK, CENTER RELAY | ||||
| 82755-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 82755-02040 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-02020 |
NDE180,NRE180..LHD..6F..N COMFORT PACKAGE&START & STOP SYSTEM PACKAGE |
1 | ||
| 82877-02020 |
NDE180,NRE180..LHD..6F..N COMFORT PACKAGE&START & STOP SYSTEM PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82877-02020 |
ZRE185..LHD..N;NDE180,NRE180..LHD..6F..N COMFORT PACKAGE |
1 | ||
| 82877-02020 |
NDE180,NRE180..LHD..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 82877-02020 |
ZRE185..LHD..N;NDE180,NRE180..LHD..6F..N CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82877-02020 |
NDE180,NRE180..LHD..6F..N START & STOP SYSTEM PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82877-02020 |
ZRE185..LHD..N;NDE180,NRE180..LHD..6F..N COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82877-02020 |
NDE180,NRE185..LHD..6F..(N,S) START & STOP SYSTEM PACKAGE&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 82877-02020 |
ZRE185..LHD..(N,S);NDE180,NRE18#..LHD..6F..(N,S) COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 82877-02020 |
NDE180,NRE185..LHD..6F..(N,S) COMFORT PACKAGE&START & STOP SYSTEM PACKAGE |
1 | ||
| 82877-02020 |
NDE180,NRE185..LHD..6F..(D,N,S) START & STOP SYSTEM PACKAGE |
1 | ||
| 82877-02020 |
ZRE185..LHD..(N,S);NDE180,NRE18#..LHD..6F..(N,S) CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 82877-02020 |
NDE180,NRE185..LHD..6F..(N,S) COMFORT PACKAGE&START & STOP SYSTEM PACKAGE&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 82877-02020 |
ZRE185..LHD..(N,S);NDE180,NRE18#..LHD..6F..(N,S) COMFORT PACKAGE |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90080-87021 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 90080-87021 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09020 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 84340-09020 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 84345-51010 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
ADE186,NDE180,NRE180,ZRE185..6F |
2 | ||
| 84520-42010 |
NDE180,NRE18#,WWE185,ZRE185..6F |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
ADE186,NDE180,NRE180,ZRE185..6F |
2 | ||
| 84520-42010 |
NDE180,NRE18#,WWE185,ZRE185..6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD |
1 | ||
| 84550-33010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 90987-02027 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S FRONT FOG LAMP-WITHOUT |
1 | ||
| 90987-02027 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N |
1 | ||
| 90987-02027 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-02060 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE |
1 | ||
| 85940-02060 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185,ZWE186..N COMFORT PACKAGE |
1 | ||
| 85940-02060 |
NRE180..LHD..N;NDE180,NRE185,ZRE185,ZWE186..N,S COMFORT PACKAGE |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-12010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 89121-12010 |
NDE180,NRE18#,ZRE185,ZWE186..D,N,S PRE-COLLISION SYSTEM-WITH |
1 | ||
| 89121-12010 |
NRE180..LHD..N;NDE180,NRE185,ZRE185,ZWE186..N,S COMFORT PACKAGE |
1 | ||
| 89121-12010 |
NRE180..LHD..N;NDE180,NRE185,ZRE185,ZWE186..N,S COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 89220-02020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 89220-02520 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..HB BALKAN STATES SPEC |
1 | ||
| 89220-02540 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..HB REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 89220-02560 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..HB |
1 | ||
| 89220-02360 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..HB BALKAN STATES SPEC |
1 | ||
| 89220-02520 |
NRE180..LHD..HB..D;NDE180,NRE185,ZRE185,ZWE186..LHD..HB TURKEY SPEC |
1 | ||
| 89220-02M40 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..HB REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12C90 |
ADE186,NDE180,NRE180,ZRE185..LHD |
1 | ||
| 89650-12D60 |
NDE180,NRE18#,WWE185,ZRE185..LHD |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-12090 |
NDE180,NRE180..LHD..HB..6F..N HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM |
1 | ||
| 89940-12040 |
NDE180,NRE180..LHD..HB..6F..N HEADLAMP-DISCHARGE & AFS |
1 | ||
| 89940-12190 |
NDE180..HB..(N,S) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 89940-12190 |
NDE180..HB..(N,S) HEADLAMP-LED |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90119-W0156 | ||||
| 90159-60613 | ||||
| 90159-W0007 | ||||
| 90159-W0012 | ||||
| 90179-06110 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8407 | ||||
| 8417 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
