NDE180L-DHFSXW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF13(1505- )NDE180

Click highlighted areas on diagram

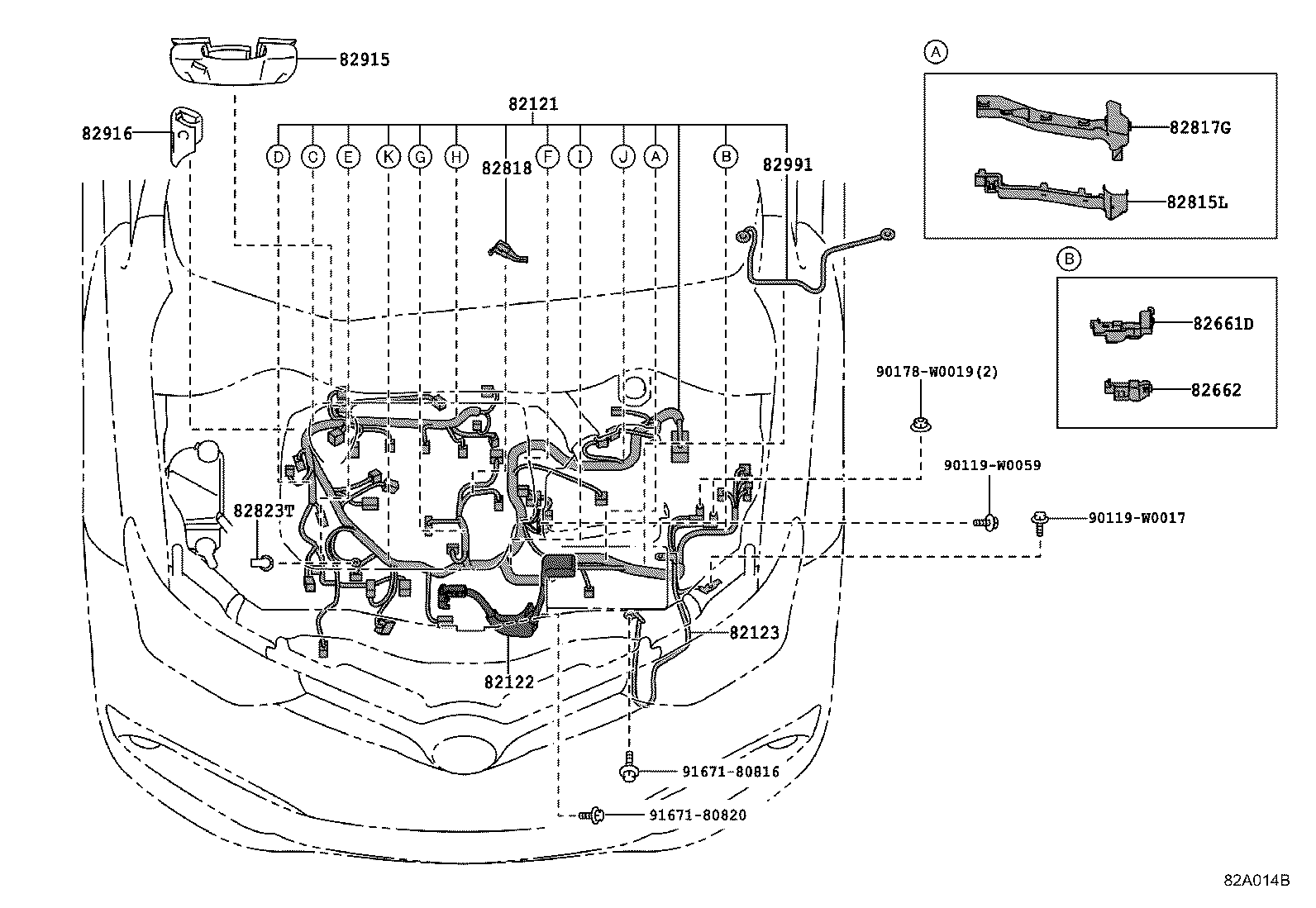

ENGINE 1/2

diagram 82121 82122 82123 82661D 82662 82815L 82817G 82818 82823T 82915 82916 82991 90119W0017 90119W0059 90178W0019 9167180816 9167180820
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0Z270

NDE180..LHD..6F

START & STOP SYSTEM PACKAGE

 1
82121-0Z260

NDE180..LHD..6F

 1
82121-0ZC50

NDE180

 1
82121-0ZC60

NDE180..D

START & STOP SYSTEM PACKAGE&AIR CONDITIONER-AUTO(SINGLE MODE)

 1
82121-0ZC60

NDE180

START & STOP SYSTEM PACKAGE

 1
82122 - WIRE, ENGINE, NO.2
82122-02170

NDE180

 1
82122-02170

NDE180

 1
82123 - WIRE, ENGINE, NO.3
82123-02570

NDE180

 1
82123-02570

NDE180

 1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-12320

ADE186,NDE180

 1
82661-12320

NDE180,NRE185..6F

 1
82662 - COVER, RELAY BLOCK, UPPER
82662-12C00

ADE186,NDE180

 1
82662-12C00

NDE180,NRE185..6F

 1
82815L - COVER, WIRING HARNESS PROTECTOR, NO.9
82815-02370

NDE180

 1
82815-02370

NDE180

 1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-02B00

NDE180

 1
82817-02B00

NDE180

 1
82818 - PROTECTOR, WIRING HARNESS, NO.2
82817-12K60

NDE180

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

ADE186,NDE180,NRE180,ZRE185

 1
82823-22050

NDE180,NRE18#

 1
82915 - INSULATOR, WIRING HARNESS HEAT, NO.1
82915-12020

NDE180

 1
82916 - INSULATOR, WIRING HARNESS HEAT, NO.2
82916-12010

NDE180

 1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-02040

NDE180..HB

LIGHT GRADE&START & STOP SYSTEM PACKAGE

 1
82991-02030

NDE180

 1
82991-02030

NDE180

 1
82991-02040

NDE180..LHD..6F

LIGHT GRADE&START & STOP SYSTEM PACKAGE

 1
Common parts
90119-W0017
90119-W0059
90178-W0019
91671-80816
91671-80820

ILLUST NO. 2 OF13(1505- )NDE180

Click highlighted areas on diagram

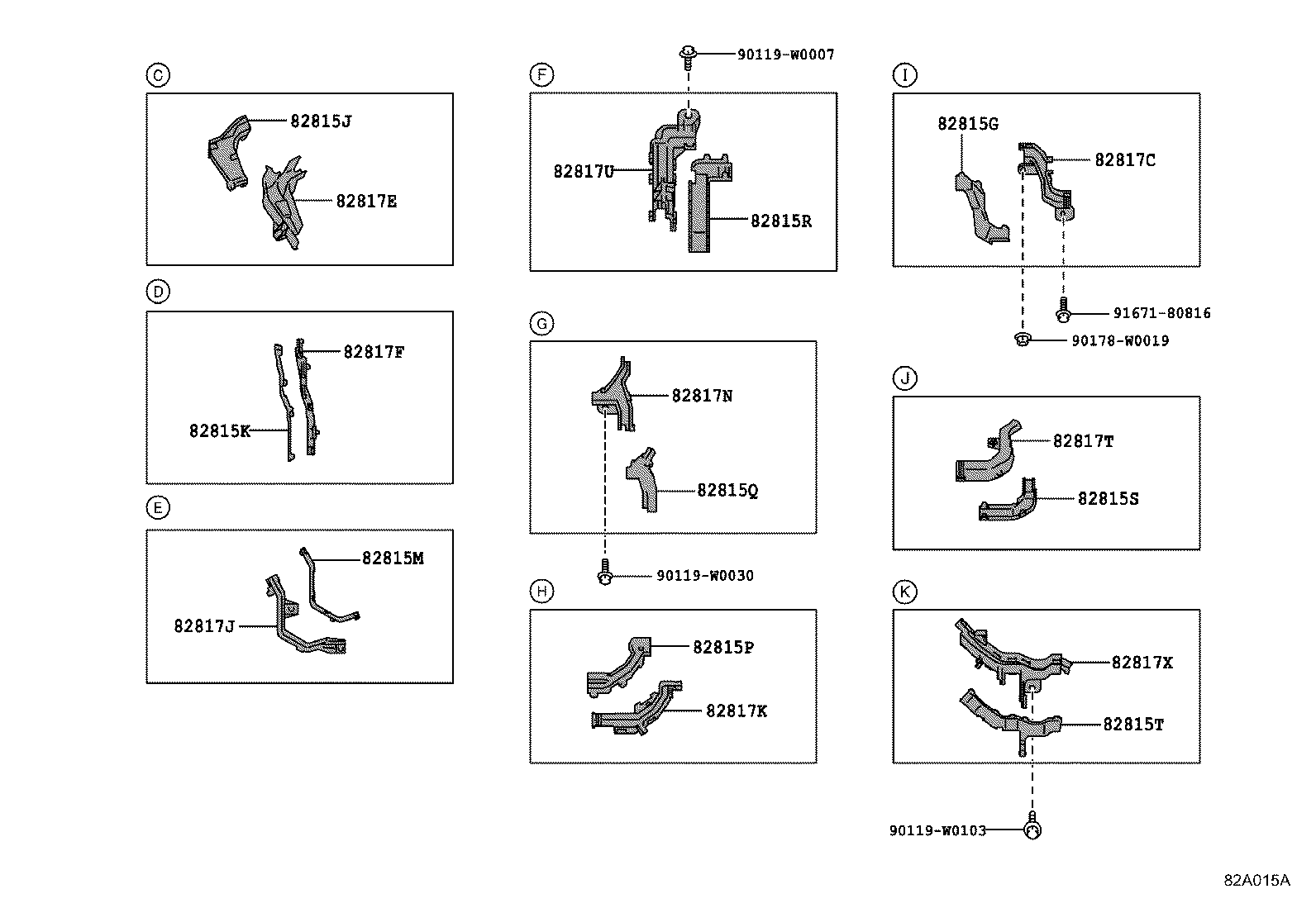

ENGINE 2/2

diagram 82815G 82815J 82815K 82815M 82815P 82815Q 82815R 82815S 82815T 82817C 82817E 82817F 82817J 82817K 82817N 82817T 82817U 82817X 90119W0007 90119W0030 90119W0103 90178W0019 9167180816
Part # Description Qty Price
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-02290

NDE180

 1
82815-02290

NDE180

 1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-0D110

NDE180

 1
82815-0D110

NDE180

 1
82815K - COVER, WIRING HARNESS PROTECTOR, NO.8
82815-0D120

NDE180

 1
82815-0D120

NDE180

 1
82815M - COVER, WIRING HARNESS PROTECTOR, NO.10
82815-0D130

NDE180

 1
82815-0D130

NDE180

 1
82815P - COVER, WIRING HARNESS PROTECTOR, NO.12
82815-0D150

NDE180

 1
82815-0D150

NDE180

 1
82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13
82815-12490

NDE180

 1
82815-12490

NDE180

 1
82815R - COVER, WIRING HARNESS PROTECTOR, NO.14
82815-02690

NDE180

 1
82815-02280

NDE180

 1
82815S - COVER, WIRING HARNESS PROTECTOR, NO.15
82815-02070

ADE186,NDE180

 1
82815-02070

NDE180

 1
82815T - COVER, WIRING HARNESS PROTECTOR, NO.16
82815-0D290

NDE180

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-02800

NDE180

 1
82817-02800

NDE180

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-0D180

NDE180

 1
82817-0D180

NDE180

 1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-0D190

NDE180

 1
82817-0D190

NDE180

 1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-0D200

NDE180

 1
82817-0D200

NDE180

 1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-0D210

NDE180

 1
82817-0D210

NDE180

 1
82817N - PROTECTOR, WIRING HARNESS, NO.13
82817-12F90

NDE180

 1
82817-12F90

NDE180

 1
82817T - PROTECTOR, WIRING HARNESS, NO.15
82817-02380

NDE180

 1
82817-02380

ADE186,NDE180

 1
82817U - PROTECTOR, WIRING HARNESS, NO.16
82817-02L20

NDE180

 1
82817-02790

NDE180

 1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-0D890

NDE180

 1
Common parts
90119-W0007
90119-W0030
90119-W0103
90178-W0019
91671-80816
