NDE180L-DHFSXW (2015)
Toyota Auris/Hybrid (Ukp)
(1505- )NDE180,NRE180,WWE185,ZRE185

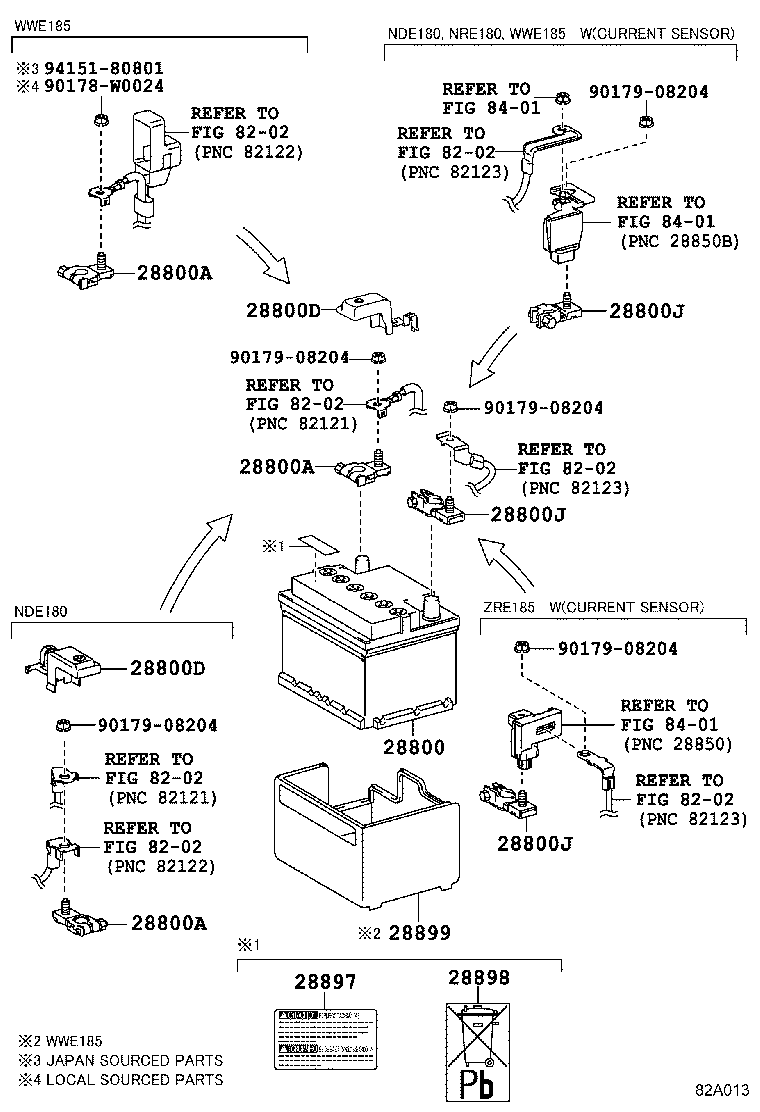

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-0D241 |
1NDTV..NDE180..LHD..HB LN3,COLD AREA SPEC,MUTLU |
1 | ||
| 28800-0N060 |
1NDTV..NDE180..LHD..HB LN3,COLD AREA SPEC,VARTA |
1 | ||
| 28800-0D350 |
1ZRFAE..ZRE185..HB;1NDTV..NDE180..6FS;1N#..NDE180,NRE180..LHD..HB..6F LN2,VARTA |
1 | ||
| 28800-0N060 |
1NDTV..NDE180..6FS;1NDTV..NDE180..LHD..HB..6F LN3,SUB COLD AREA SPEC,VARTA |
1 | ||
| 28800-0D140 |
1ZRFAE..ZRE185..HB;1NDTV..NDE180..6FS;1N#..NDE180,NRE180..LHD..HB..6F LN2,MUTLU |
1 | ||
| 28800-47050 |
1N#..NDE180,NRE180..LHD..6F Q-55,LIGHT GRADE&START & STOP SYSTEM PACKAGE |
1 | ||
| 28800-0Y080 |
1NDTV..NDE180..LHD..6F LN3,START & STOP SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28800-0Y080 |
1NDTV..NDE180..LHD..6F LN3,START & STOP SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28800-0Y080 |
1NDTV..NDE180..LHD..6F LN3,START & STOP SYSTEM PACKAGE |
1 | ||
| 28800-0D241 |
1NDTV..NDE180..6FS;1NDTV..NDE180..LHD..HB..6F LN3,SUB COLD AREA SPEC,MUTLU |
1 | ||
| 28800-0N060 |
1NDTV..NDE180..LHD..HB LN3,COLD AREA SPEC |
1 | ||
| 28800-0N060 |
1NDTV..NDE180..HB LN3,SUB COLD AREA SPEC |
1 | ||
| 28800-0D350 |
8NRFTS..NRE185..HB..6F;1N#,1ZRFAE..NDE180,NRE180,ZRE185..HB LN2 |
1 | ||
| 28800-0N061 |
1NDTV..NDE180 LN3,SUB COLD AREA SPEC |
1 | ||
| 28800-0N061 |
1NDTV..NDE180..LHD LN3,COLD AREA SPEC |
1 | ||
| 28800-0D351 |
1ZRFAE..ZRE185;1N#,8NRFTS..NDE180,NRE18#..6F LN2 |
1 | ||
| 28800-0Y080 |
1NDTV..NDE180 LN3,START & STOP SYSTEM PACKAGE |
1 | ||
| 28800-47050 |
1NDTV..NDE180 Q-55,LIGHT GRADE&START & STOP SYSTEM PACKAGE |
1 | ||
| 28800-47050 |
1NDTV..NDE180..LHD Q-55,LIGHT GRADE&START & STOP SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28800-47050 |
1NDTV..NDE180 Q-55,LIGHT GRADE&START & STOP SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28800-0Y080 |
1NDTV..NDE180..LHD LN3,START & STOP SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28800-0Y080 |
1NDTV..NDE180 LN3,START & STOP SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05056 |
1ADFTV,1NDTV..ADE186,NDE180 |
1 | ||
| 90982-05056 |
1NDTV..NDE180 |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05056 |
1ADFTV,1NDTV..ADE186,NDE180 |
1 | ||
| 90982-05056 |
1NDTV..NDE180 |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05056 |
1ADFTV,1NDTV..ADE186,NDE180 |
1 | ||
| 90982-05056 |
1NDTV..NDE180 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-52060 |
1NDTV..NDE180 |
1 | ||
| 82821-52060 |
1NDTV..NDE180 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-52060 |
1NDTV..NDE180 |
1 | ||
| 82821-52060 |
1NDTV..NDE180 |
1 | ||
| 28800J - TERMINAL, BATTERY NEGATIVE | ||||
| 90982-06059 |
1ADFTV,1N#,1ZRFAE..ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 90982-06059 |
1N#..NDE180,NRE180 |
1 | ||
| 28800J - TERMINAL, BATTERY NEGATIVE | ||||
| 90982-06059 |
1ADFTV,1N#,1ZRFAE..ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 90982-06059 |
1N#..NDE180,NRE180 |
1 | ||
| 28800J - TERMINAL, BATTERY NEGATIVE | ||||
| 90982-06059 |
1ADFTV,1N#,1ZRFAE..ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 90982-06059 |
1N#..NDE180,NRE180 |
1 | ||
| 28898 - PLATE, BATTERY | ||||
| 28898-16020 |
1N#..NDE180,NRE180..LHD..6F LIGHT GRADE&START & STOP SYSTEM PACKAGE |
1 | ||
| 28898-16020 |
1NDTV..NDE180..HB LIGHT GRADE&START & STOP SYSTEM PACKAGE |
1 | ||
| Common parts | ||||
| 90178-W0024 | ||||
| 90179-08204 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
